SMD0805P005TF

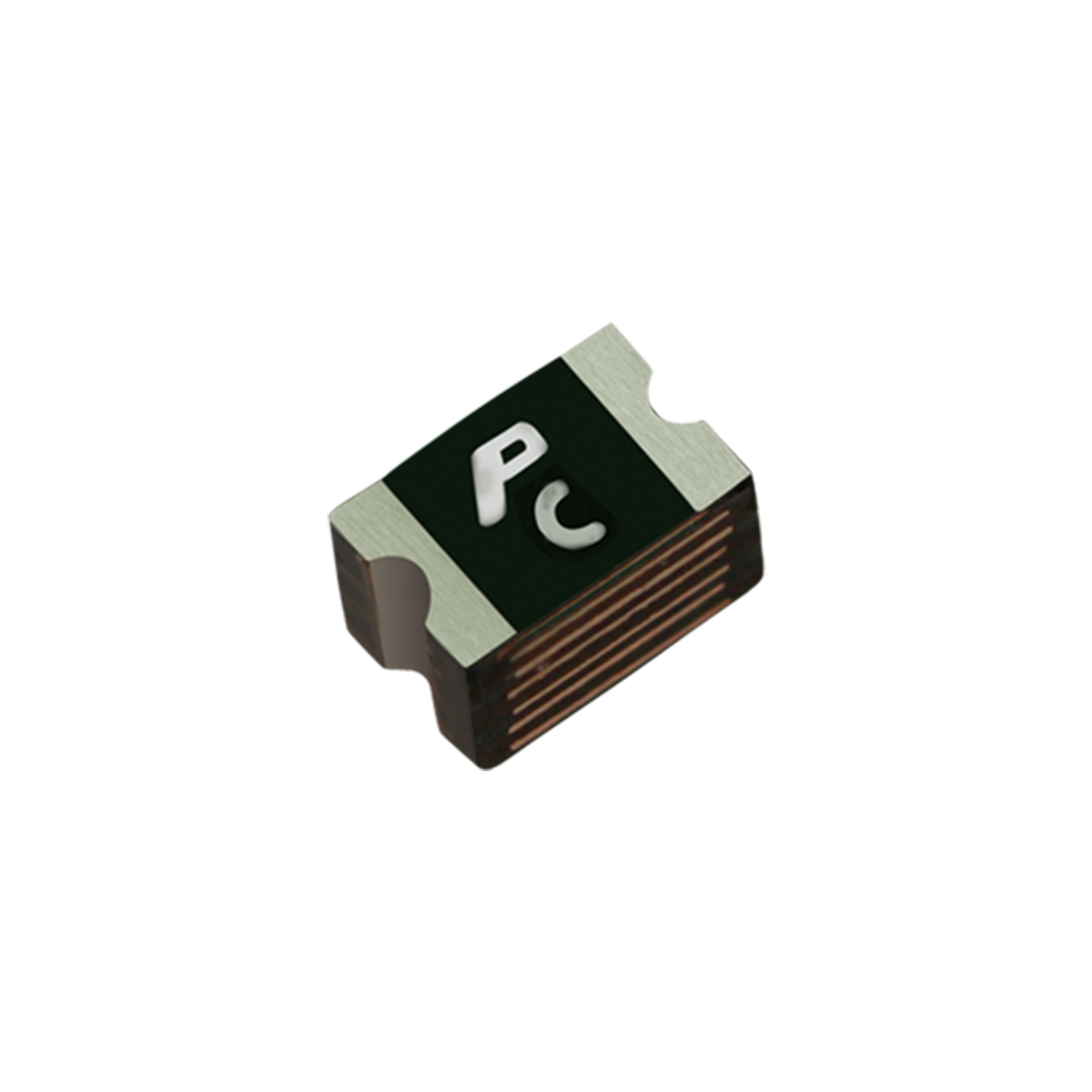

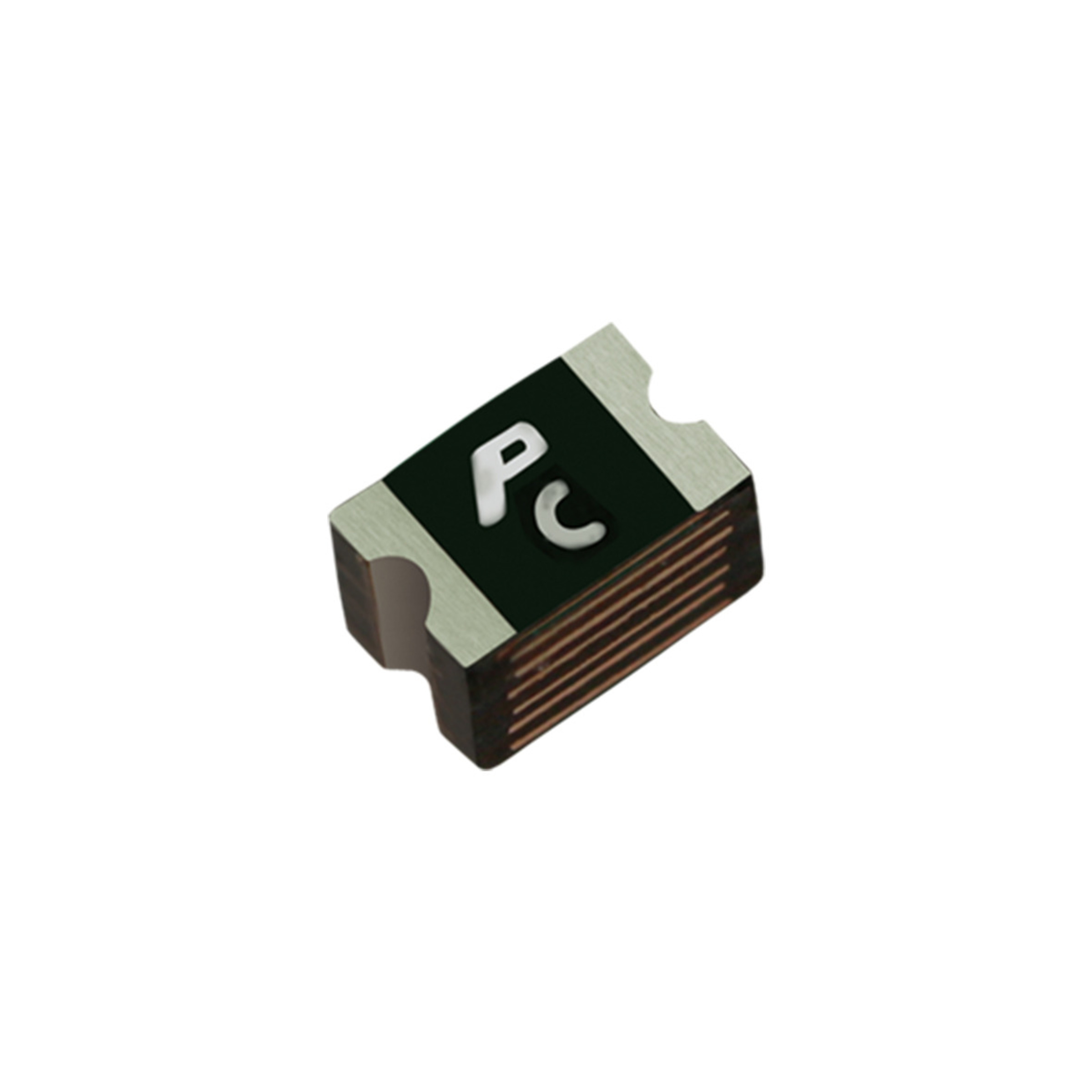

Polytronics Technology Corp. Poly-Switch Fuse SMD0805TF 30VDC 0,05A SMD 0805
Manufacturer Part No.
SMD0805P005TF
Schukat Part No.
SMD0805P005TF
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
470 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Self-resetting fuse
- Series
- SMD0805TF
- Housing
- 0805
- Rated current
- 0.05 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 30 V DC
- Operating voltage, max.
- 30 V
- RoHS-Conform
Specifications
Open all

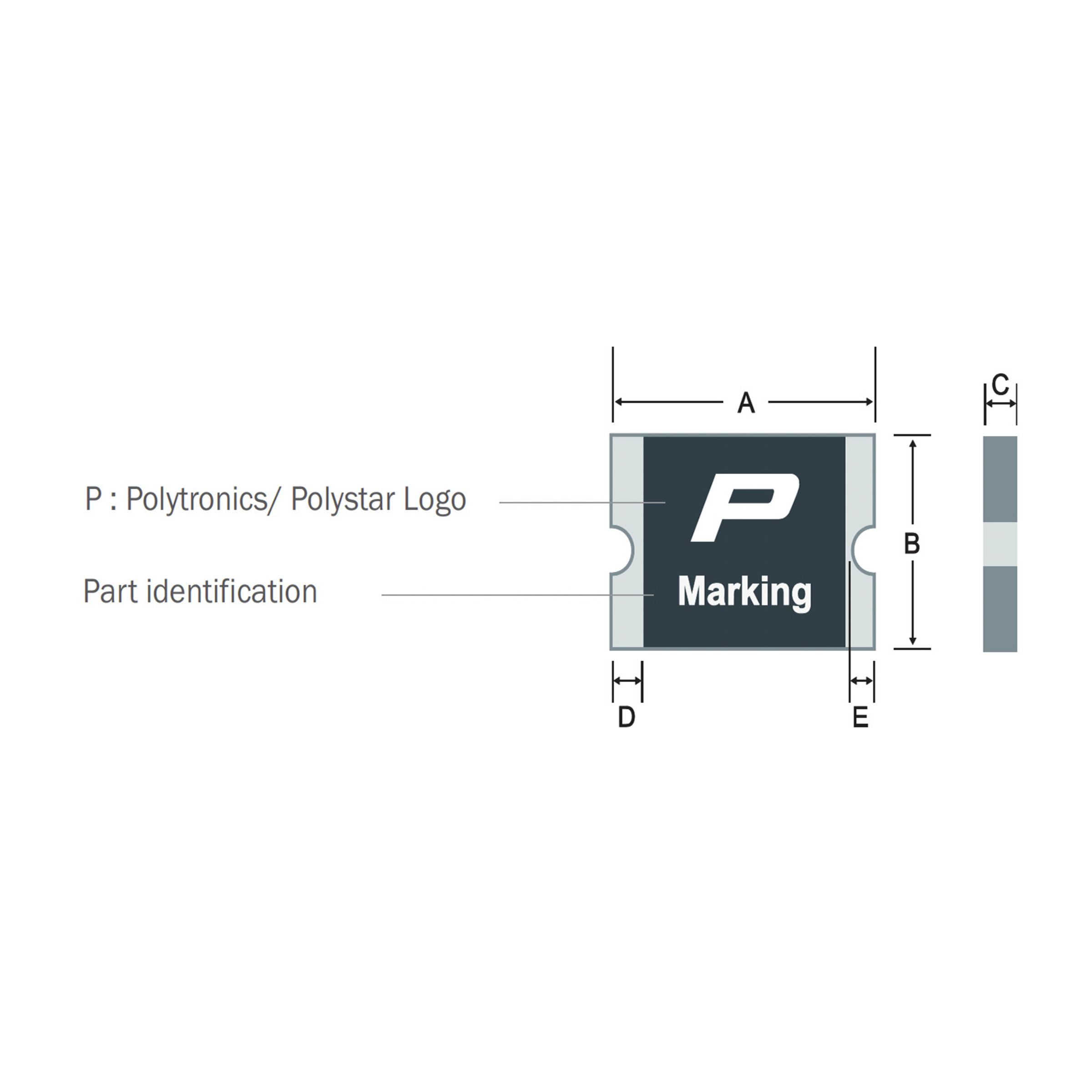

Dimensions and Weights
- Dimension: Length
- 2.2 mm
- Dimension: Width
- 1.5 mm
- Dimension: Height
- 1.25 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 0.05 A
- Interrupting Current, Max.
- 40 A
- Interrupting current, max.
- 0.15 A
- Rated voltage V DC
- 30 V DC
- Operating voltage, max.
- 30 V
- Cold resistance, min.
- 3,6 Ohm
- Cold resistance, max.
- 20 Ohm
- Tripping time with specified reference current IS
- 1.5 s
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 61249-2-21:2003
