RLD16P1100GF

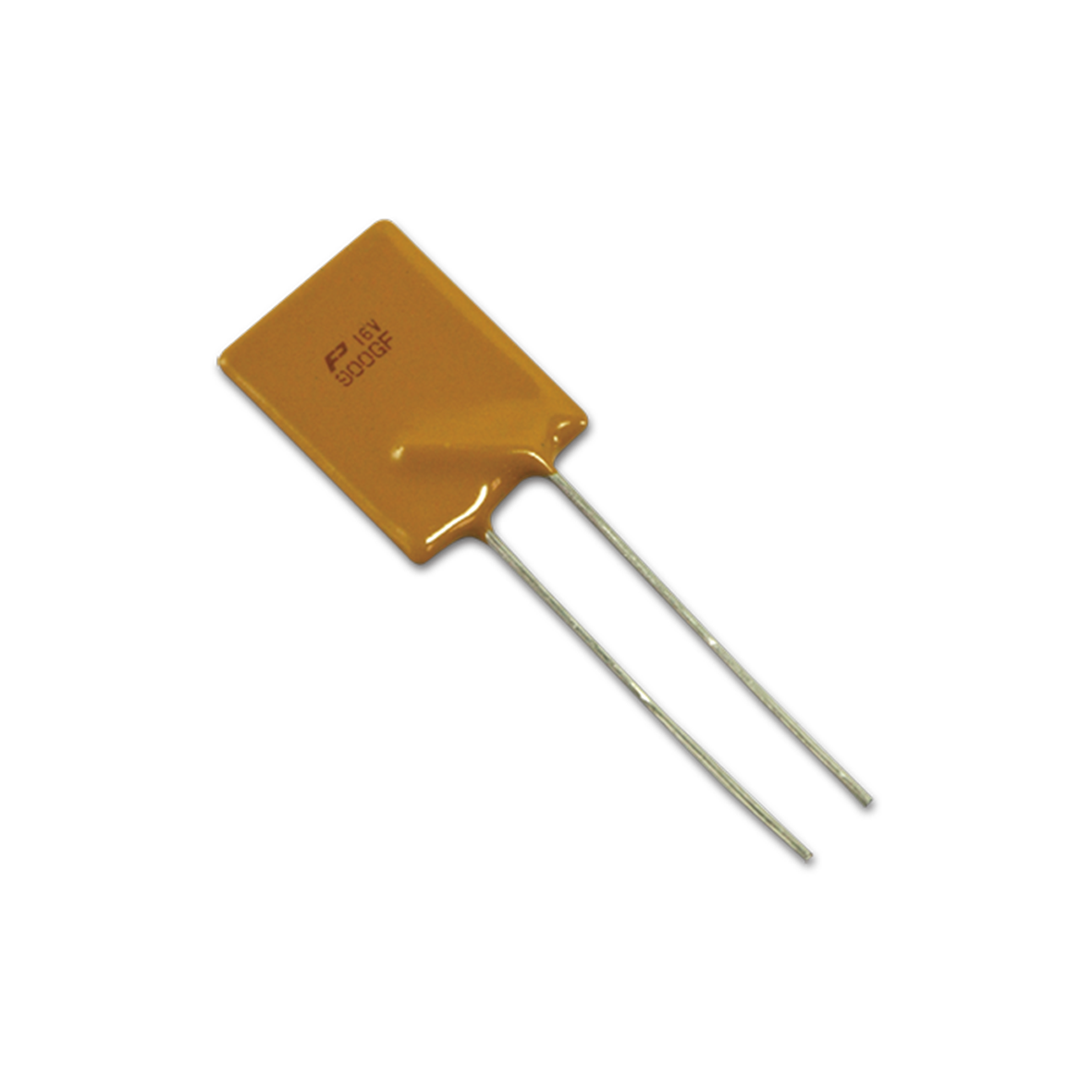

Polytronics Technology Corp. Poly-Switch Fuse RLD_GF 16VDC 11A radial RM5,1mm
NEW
Manufacturer Part No.
RLD16P1100GF
Schukat Part No.
RLD16P1100GF
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- RLD_GF
- Rated current
- 11 A
- Operating voltage, max.
- 16 V
- Interrupting Current, Max.
- 18.7 A
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all

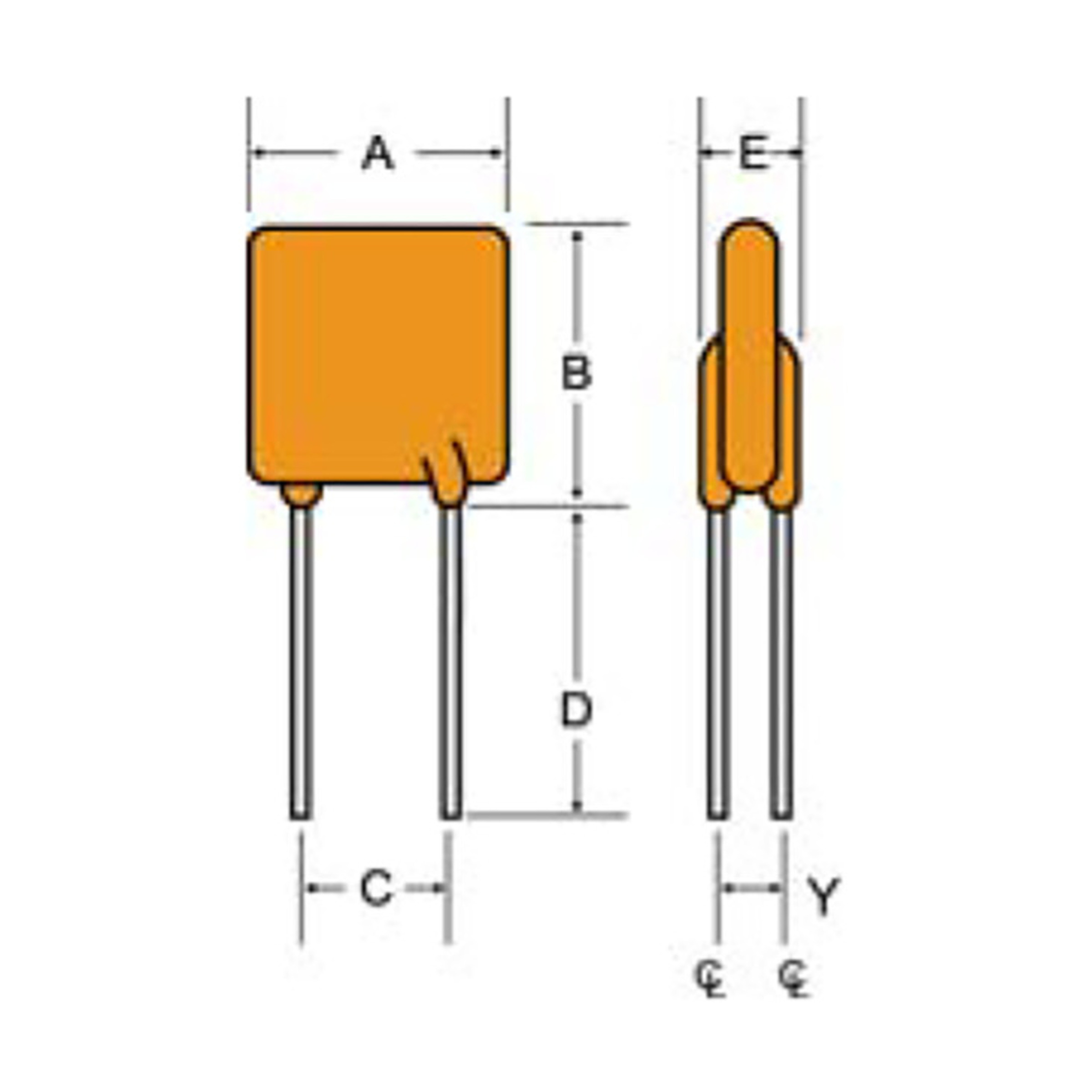

Dimensions and weights
- Dimension: Length
- 3 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 26 mm
- Pin length
- 7.6 mm
- Pitch
- 5.1 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Rated current
- 11 A
- Interrupting Current, Max.
- 18.7 A
- Rated voltage V DC
- 16 V DC
- Operating voltage, max.
- 16 V
- Cold resistance, min.
- 0,0037 Ohm
- Cold resistance, max.
- 0,0089 Ohm
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 61249-2-21:2003
