CLM2213P2030

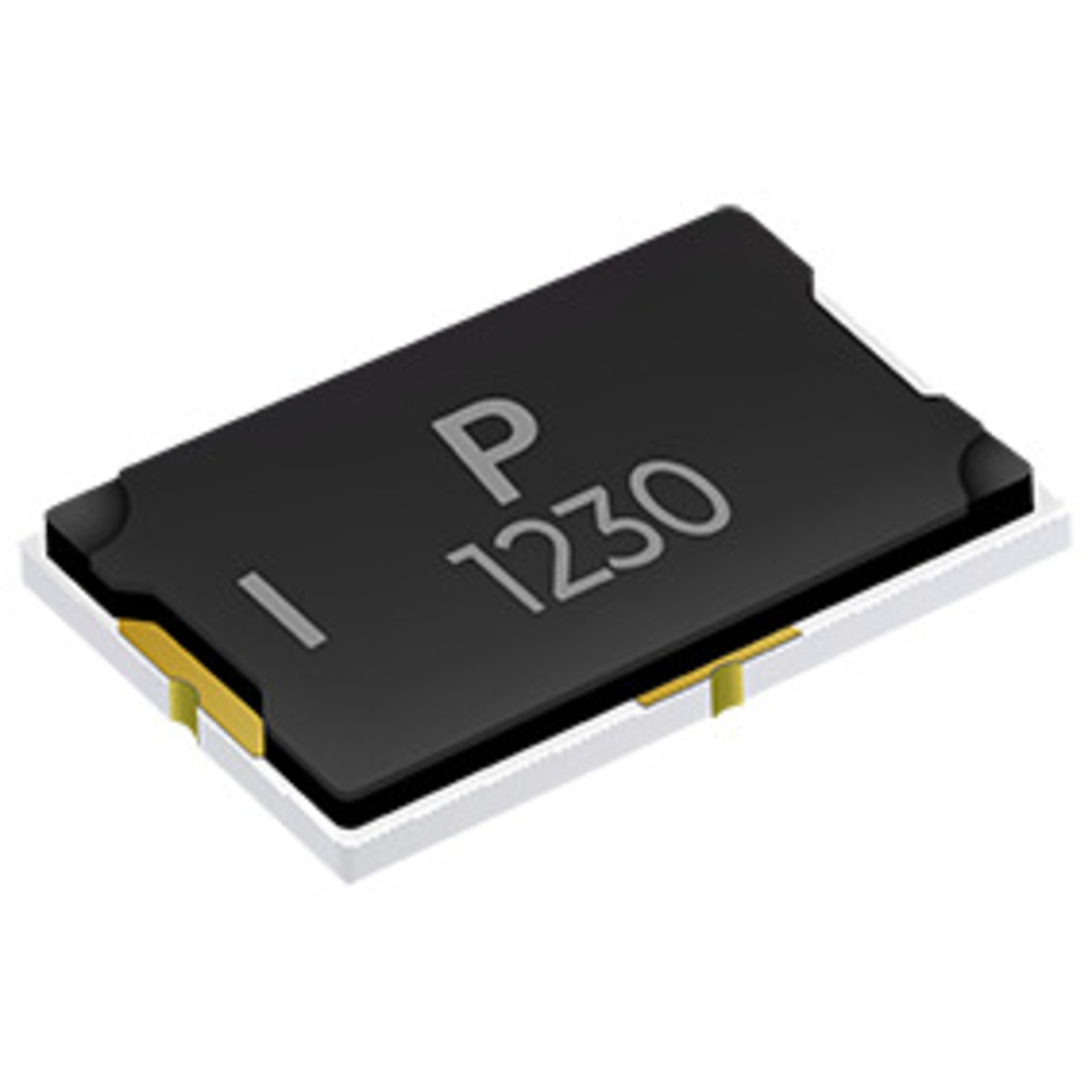

Polytronics Technology Corp. SMD fuse CLM2213 nimble 20VDC 30A 5,4x3,2mm 3-pole
NEW
Manufacturer Part No.
CLM2213P2030
Schukat Part No.
CLM2213P2030
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- CLM2213
- Characteristic
- nimble
- Package/Case
- 5,4 x 3,2 mm
- Type ( axial, radial )
- 3-pole
- Rated voltage V DC
- 20 V DC
- Rated current
- 30 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 5.4 mm
- Dimension: Width
- 3.2 mm
- Dimension: Height
- 1.8 mm
Operating conditions
- Operating temperature range, min.
- -10 °C
- Operating temperature range, max.
- 65 °C
Technical features
- Rated current
- 30 A
- Interrupting Current, Max.
- 80 A
- Rated voltage V DC
- 20 V DC
- Operating voltage, max.
- 62 V
- Cold resistance, min.
- 0,5 mOhm
- Cold resistance, max.
- 2,5 mOhm
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 61249-2-21:2003
