CLM1107P0405

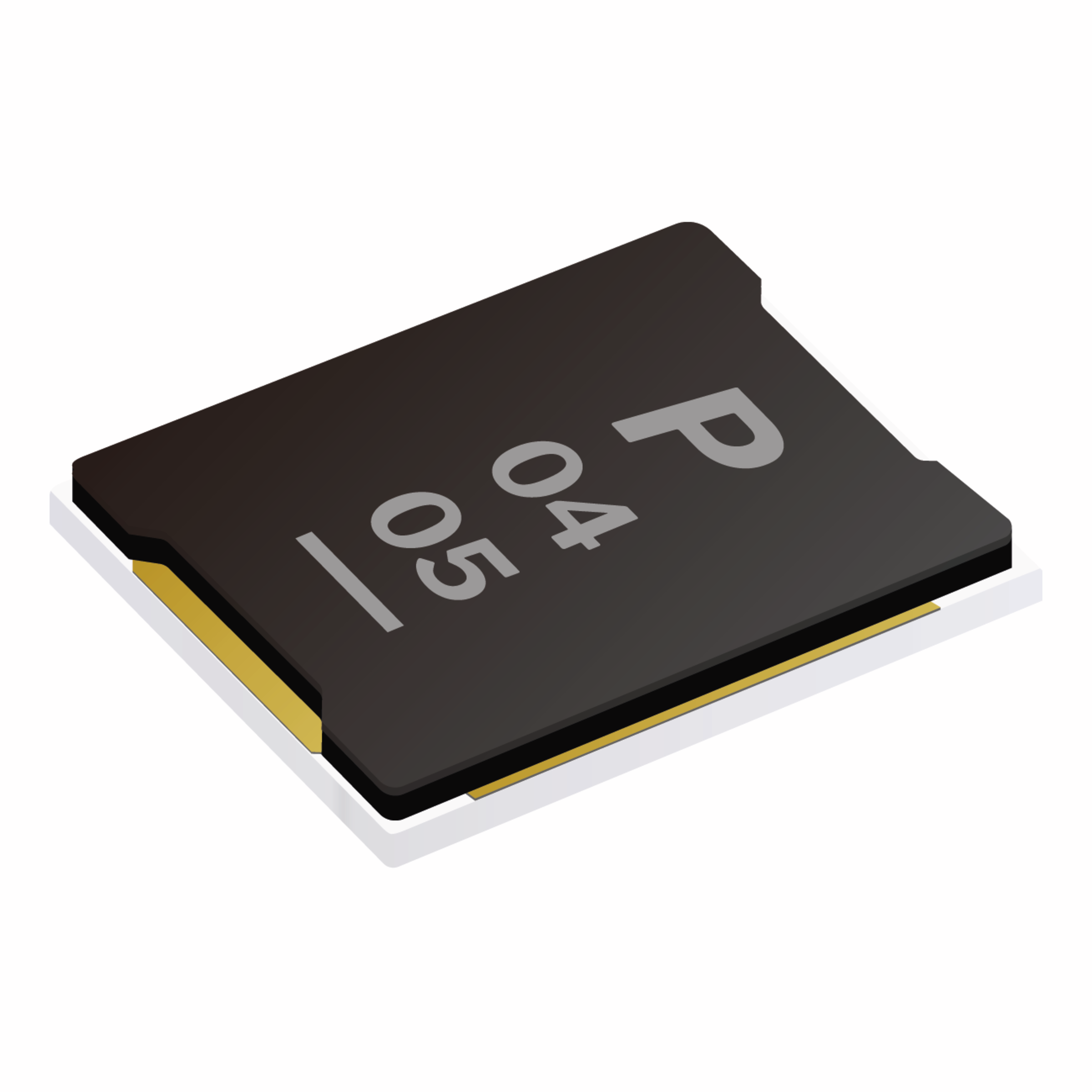

Polytronics Technology Corp. SMD fuse CLM1107 nimble 4VDC 5A 2,7x1,8mm 3-pole

Image similar
NEW
Manufacturer Part No.
CLM1107P0405
Schukat Part No.
CLM1107P0405
Manufacturer
Polytronics Technology Corp.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
SMD fuse
Series
CLM1107
Characteristic
nimble
Package/Case
2,7 x 1,8 mm
Type ( axial, radial )
3-pole
Rated voltage V DC
4 V DC
Rated current
5 A

Specifications

Open all

General

Manufacturer
  • Polytronics Technology Corp.
Series
  • CLM1107
Type
  • SMD fuse
Product group
  • E1391 Polytronics CLM 3 Terminal Fuse
Assembly
  • Printed circuit board assembly
Type ( axial, radial )
  • 3-pole
Characteristic
  • nimble
Package/Case
  • 2,7 x 1,8 mm
Applications
  • Protection against overcurrent and overvoltage, ideal for battery monitoring; Automotive applications
Notice
  • • Before and after mounted, the ultrasonic-cleaning or immersion-cleaning must not be done to CLM device. The flux on element would flow, and it would not be satisfied its specification when cleaning is done. In addition, a similar influence happens when the product comes in contact with cleaning-solution. These products after cleaning will not be guaranteed. • Silicone-based oils, oils, solvents, gels, electrolytes, fuels, acids, and the like will adversely affect the properties of CLM devices, and shall not be used or applied. • Please Do Not reuse the CLM device removed by the soldering process. • CLM devices are secondary protection devices and are used solely for sporadic, accidental over-current or over-temperature error condition, and shall NOT be used if or when constant or repeated fault conditions (such fault conditions may be caused by, among others, incorrect pin-connection of a connector) or over-extensive trip events may occur.
Housing material
  • Glass Epoxy
Labelling
  • Company symbol, operation voltage, rated current
Termination Style
  • SMD
Features

  • • 3 terminal current limiting module
    • Halogen-free
    • Overcharging protection
    • Overcurrent protection
    • Surface mountable
    • Fast response time

Dimensions and weights

Dimension: Length
  • 2.7 mm
Dimension: Width
  • 1.8 mm
Dimension: Height
  • 0.85 mm

Operating conditions

Operating temperature range, min.
  • -10 °C
Operating temperature range, max.
  • 65 °C

Technical features

Rated current
  • 5 A
Interrupting Current, Max.
  • 50 A
Rated voltage V DC
  • 4 V DC
Operating voltage, max.
  • 36 V

Safety/Certifications

Approvals
  • MOT
  • cULus
Standards
  • IEC 61249-2-21:2003
