PT6KH-504A2020

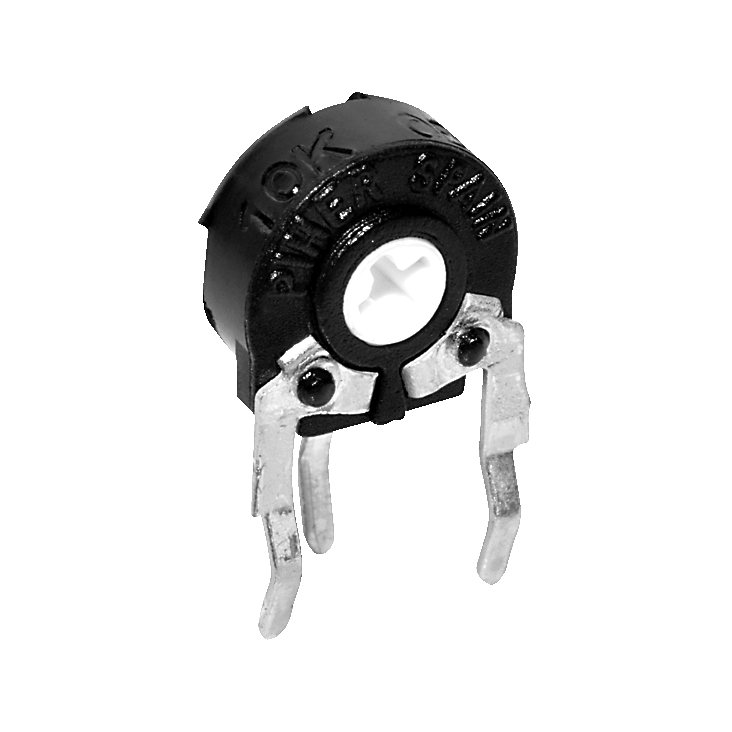

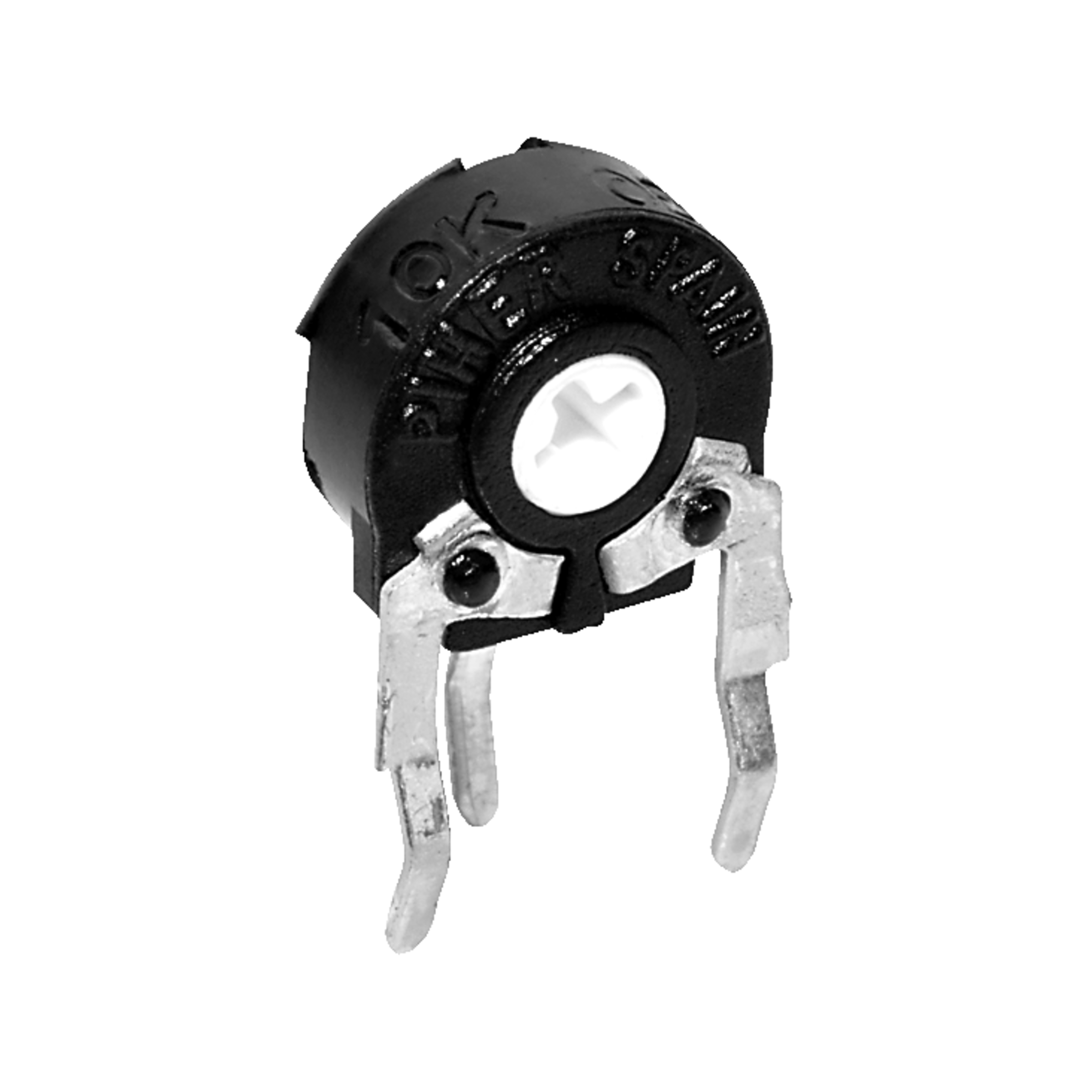

Piher Carbon film trimmer PT6 vertical 0,1W 500kOhm 20% Actuation from the side arrow slot P5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable knurled discs and plug-in-axles. - Type
- Carbon film trimmer
- Series
- PT6
- Housing
- vertical
- Actuation
- from the side
- Rotation angle, mechanical
- 235 °
- Rated power
- 0.1 W
- Resistance
- 500 kOhm
- Resistance tolerance
- 20 %
- RoHS-Conform
Specifications
Open all

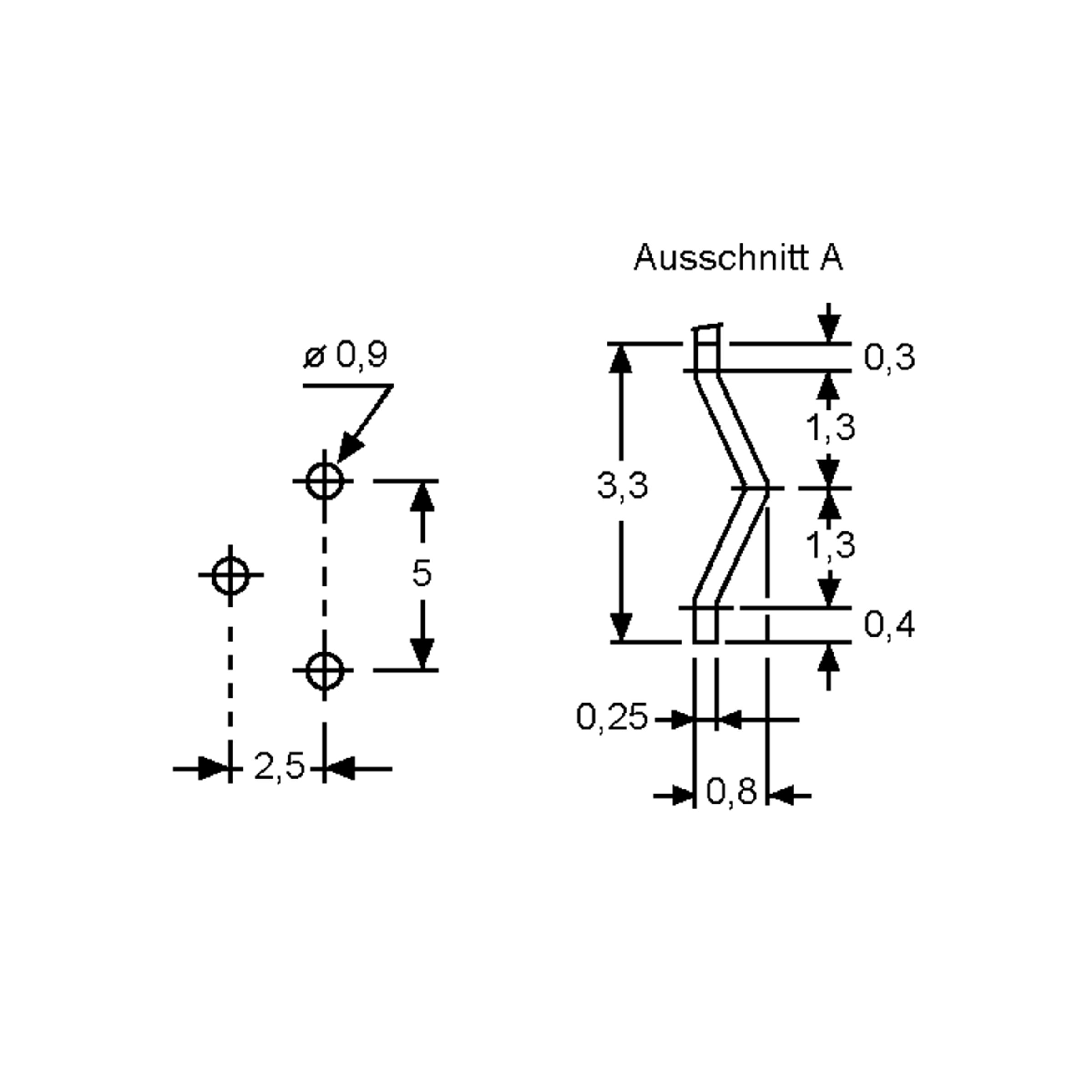

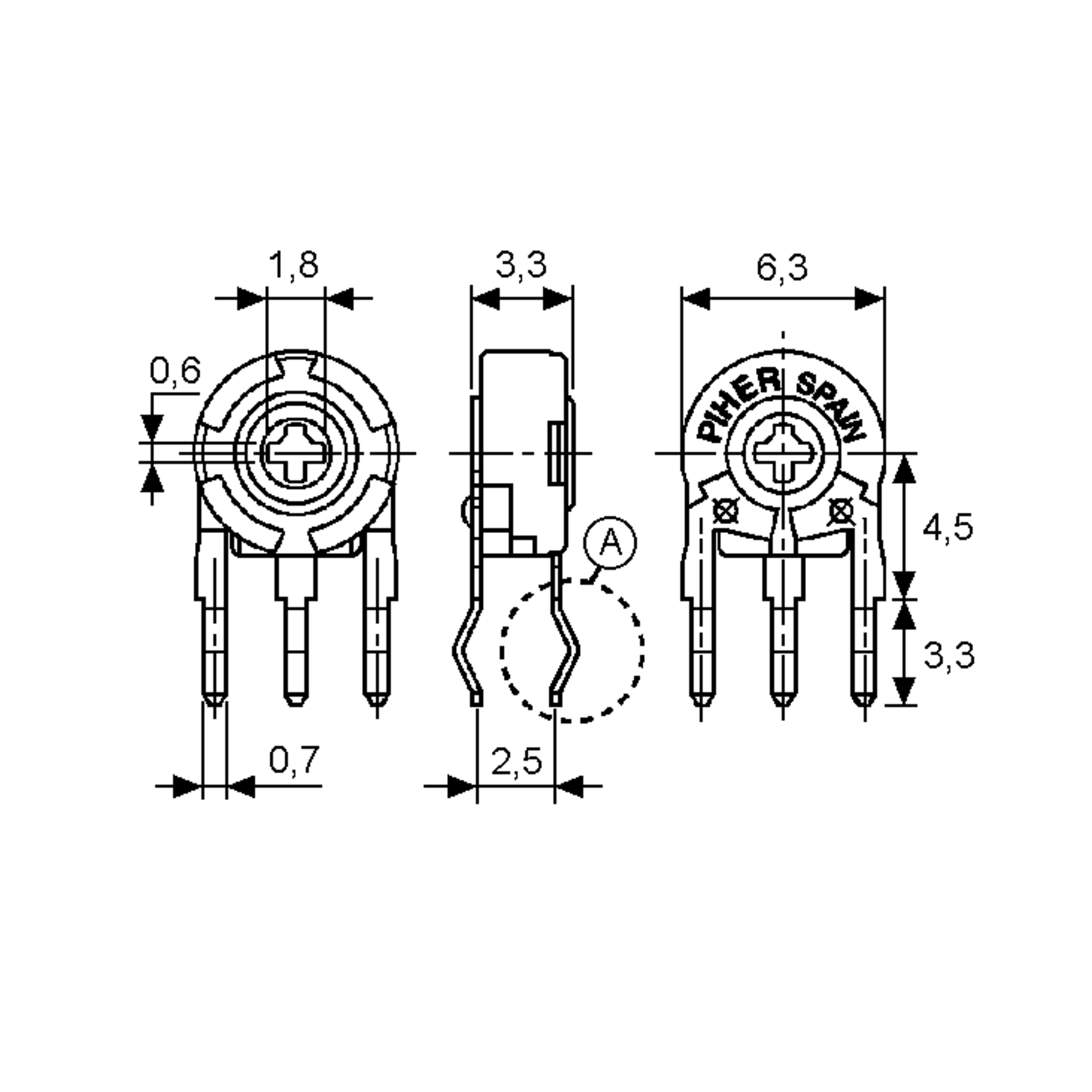

Dimensions and Weights
- Dimension: Width
- 3.3 mm
- Pitch
- 5 mm
- Diameter, housing
- 6.3 mm
- Shaft
- arrow slot
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Resistance value
- 500
- Resistance unit
- kOhm
- Resistance
- 500 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.1 W
- Hold-off Voltage
- 100 V
Mechanical Features
- Actuation
- from the side
- Rotation angle, mechanical
- 235 °
- Rotation angle, electric
- 220 °
- Impact resistance
- 4 Ncm
- Torque
- 2 Ncm
