PC16SH-10IP06251A2020TA

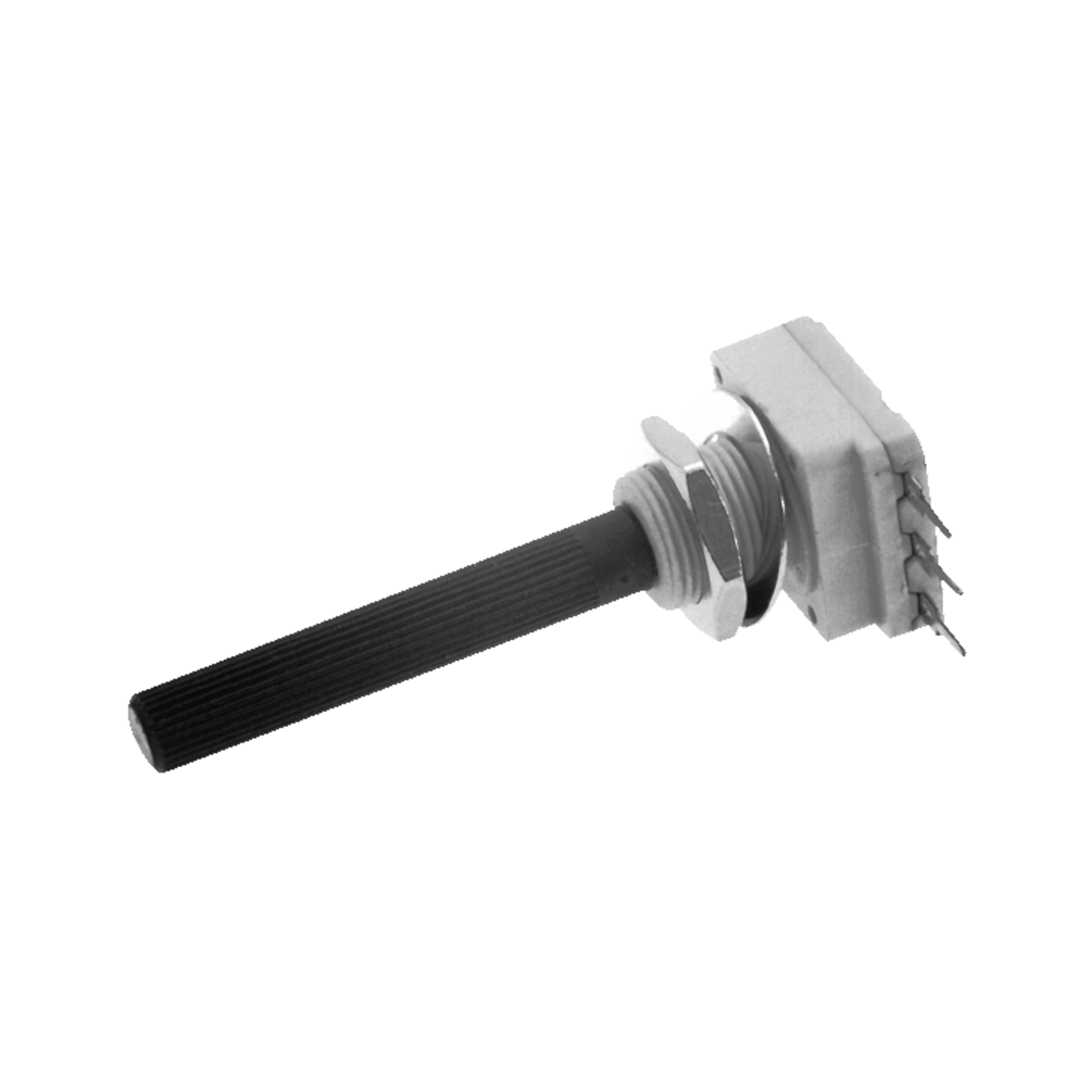

Piher Carbon film potentiometer PC16 linear 0,2W 250Ohm 20% Shaft-Ø6mm plastic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 23/2026
180 Pcs.
180 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable dials, knurled discs and plug-in-axles. - Type
- Carbon film potentiometer
- Series
- PC16
- Resistance curve
- linear
- Resistance
- 250 Ohm
- Resistance tolerance
- 20 %
- Diameter, shaft
- 6 mm
- Length, shaft
- 45 mm
- Shaft
- plastic
- RoHS-Conform
Specifications
Open all

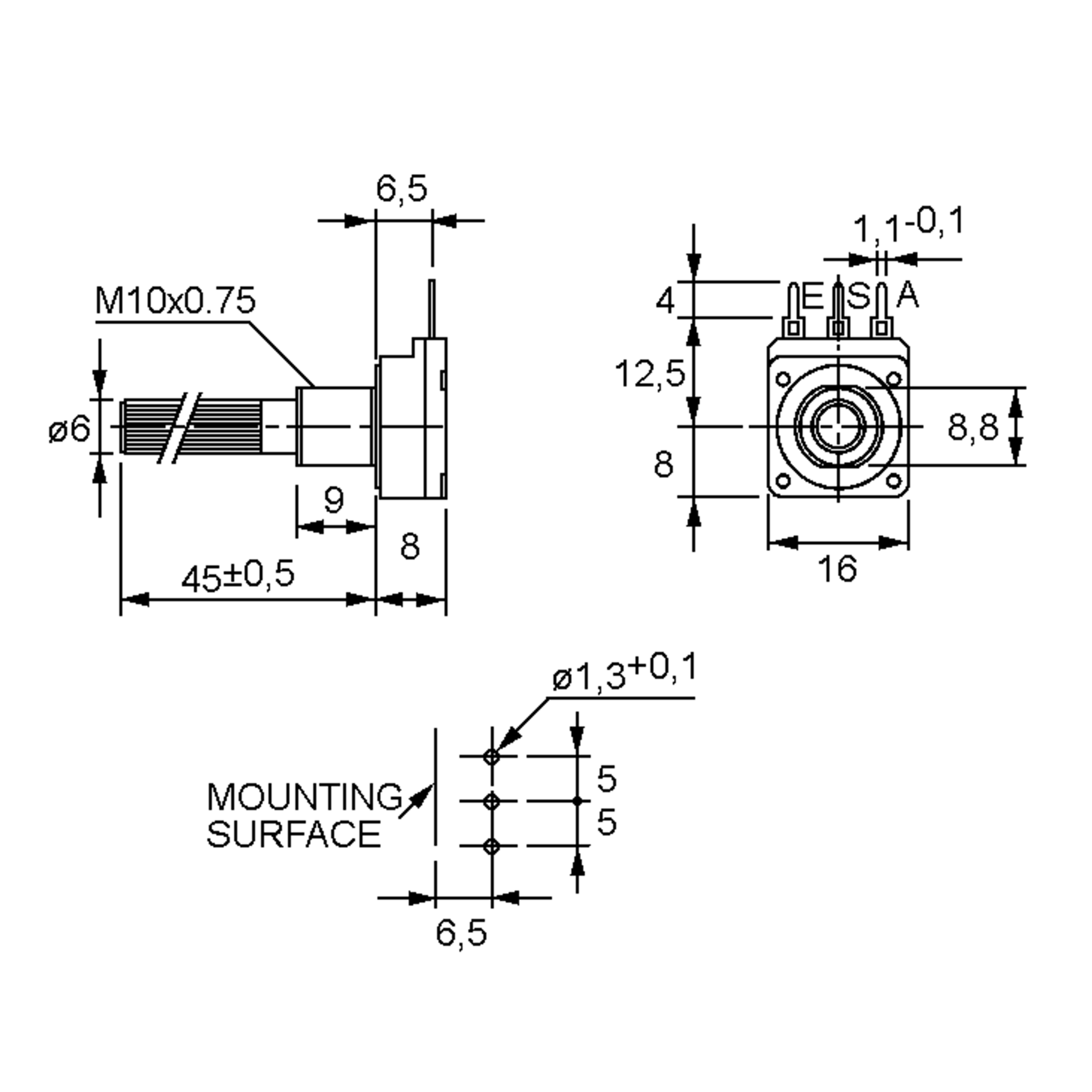

Dimensions and Weights
- Pitch
- 5 mm
- Width Body
- 16 mm
- Height body
- 6.5 mm
- Length, shaft
- 45 mm
- Diameter, shaft
- 6 mm
- Shaft
- plastic
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Resistance value
- 250
- Resistance unit
- Ohm
- Resistance
- 250 Ohm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.2 W
- Hold-off Voltage
- 250 V
Mechanical Features
- Number of connections
- 3
- Rotation angle, mechanical
- 300 °
- Rotation angle, electric
- 280 °
- Impact resistance
- 40 Ncm
- Torque
- 1,5 Ncm
Safety/Certifications
- Approvals
- UL 94 V0
- Standards
- IEC 60529
- Protection Class
- IP54
