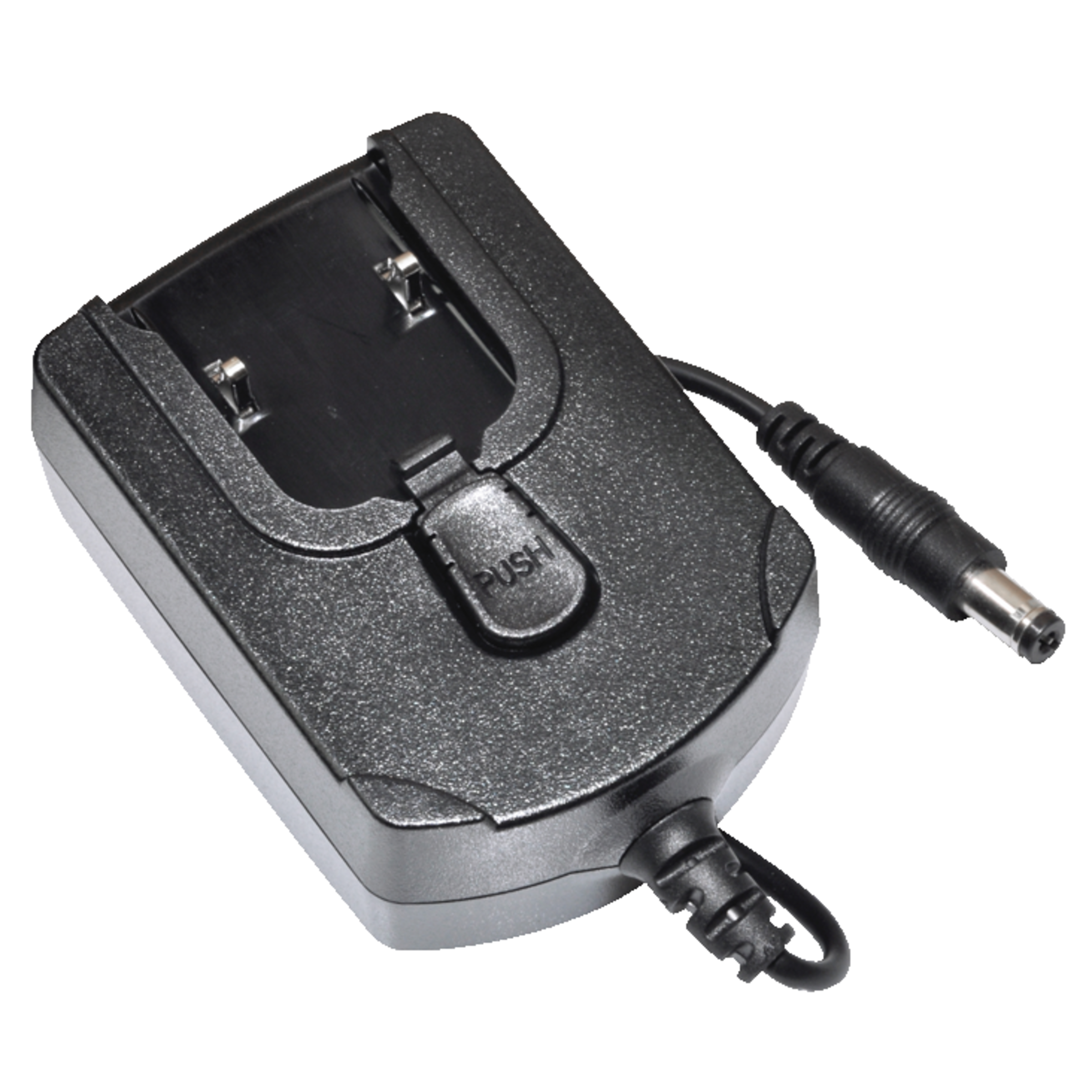

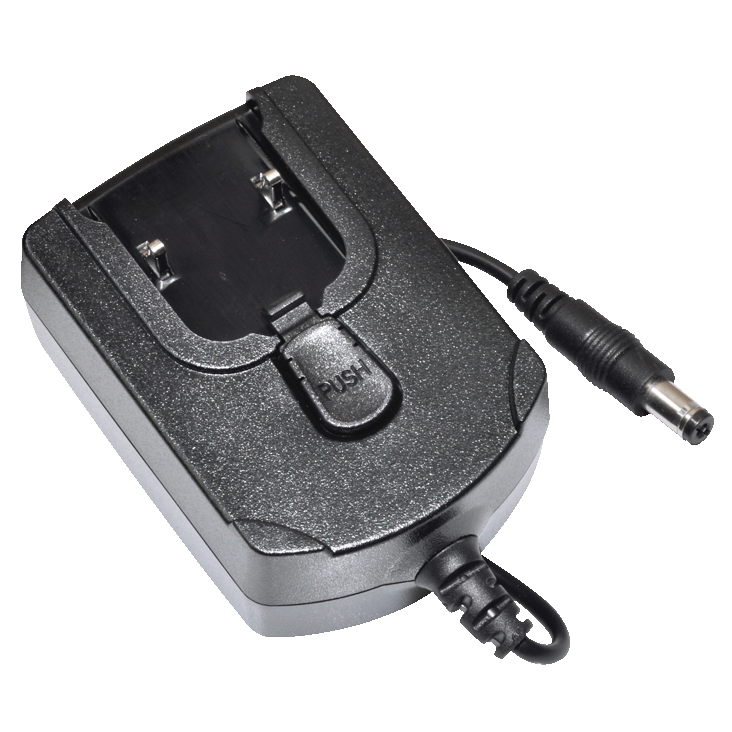

PSAA20R-240L6
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Pcs. in stock
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Lieferbar (ab Lager)
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output Power
- 20 W
- Output voltage
- 24 V
- Output current
- 0.83 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 75 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 264 V
- Efficiency (at 10% load)
- 75.95 %
- Average efficiency
- 85.95 %
- No load power, less than
- 0.1 W
- Inrush current, max.
- 60 A
- Power factor correction (PFC)
Output
- Number of outputs
- 1
- Output Power
- 20 W
- Output voltage
- 24 V
- Selectable output voltage
- Output voltage tolerance
- 1 %
- Ripple & Noise
- 120 mVp-p
- Output current
- 0.83 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Cable length, output
- 150 cm
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 3000 V
- Energy level
- (EU) 2019/1782 + Level VI
- Approvals
- CE
- UL
- EN
- Standards (safety)
- EN 60950-1
- UL 60950-1
