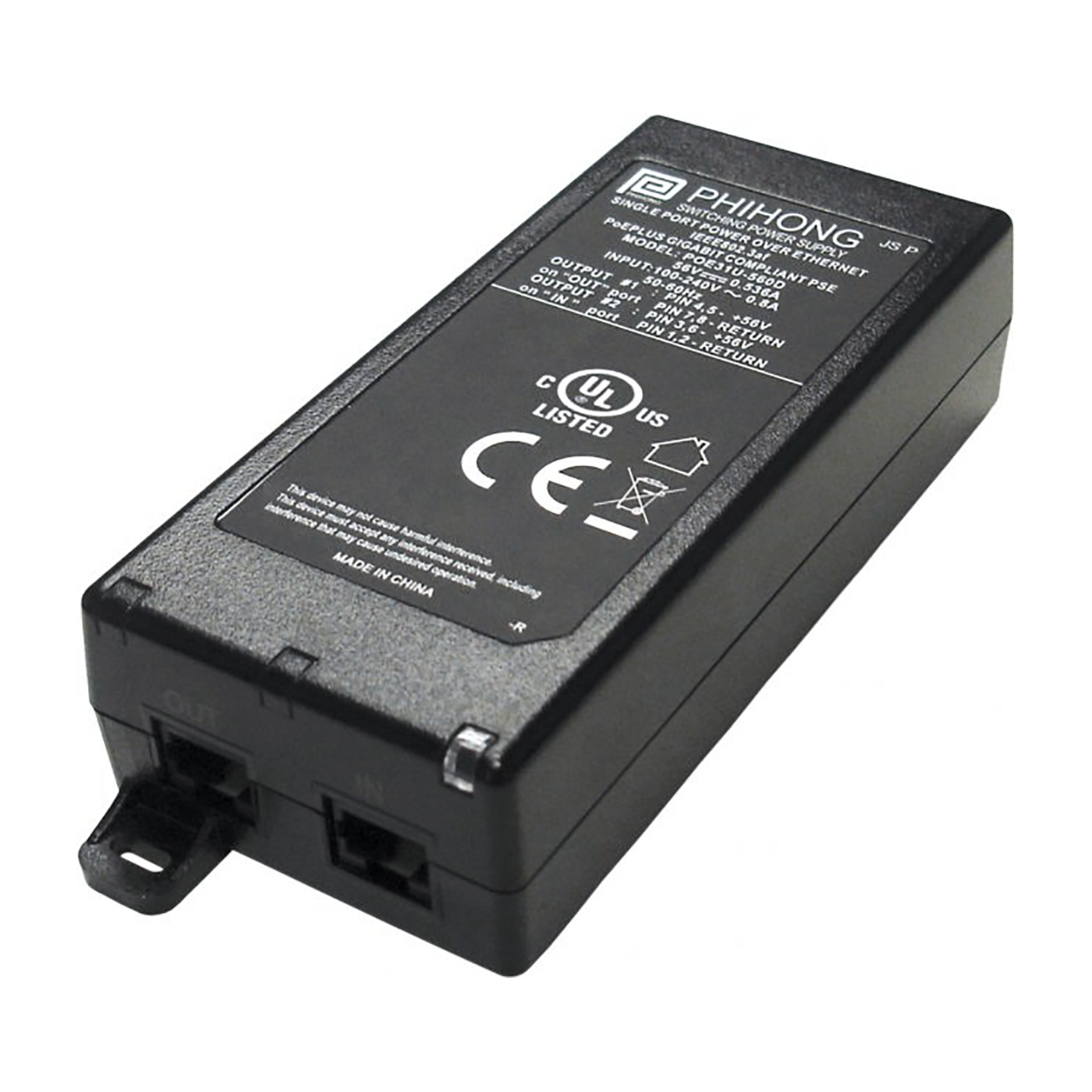

POE60U-1BT
Phihong POE Midspan 60,0 W 56 V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 09.10.2020
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 78 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Midspan
- Number of ports
- 1
- Power per port
- 60 W
- Output voltage
- 56 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 10 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 65 °C
- Data rate
- 1GB
Input
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 264 V
- Input current
- 1.2 A
- Efficiency
- 75 %
- Leakage current, max.
- 3.5 mA
- Inrush current, max.
- 80 A
- Power factor correction (PFC)
- Connection type, input
- Unknown
Output
- Number of ports
- 1
- Power per port
- 60 W
- Output Power
- 60 W
- Output voltage
- 56 V
- Ripple & Noise
- 100 mVp-p
- Output current
- 1.070 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- RJ45-Socket
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 4,242 V
- Isolation voltage I/P-FG
- 2,121 V
- Approvals
- CE
- UL
- Standards (EMC)
- EN 55032 Class B
