POE29U-1AT(PL)D

Phihong POE Midspan 30 W 56 V

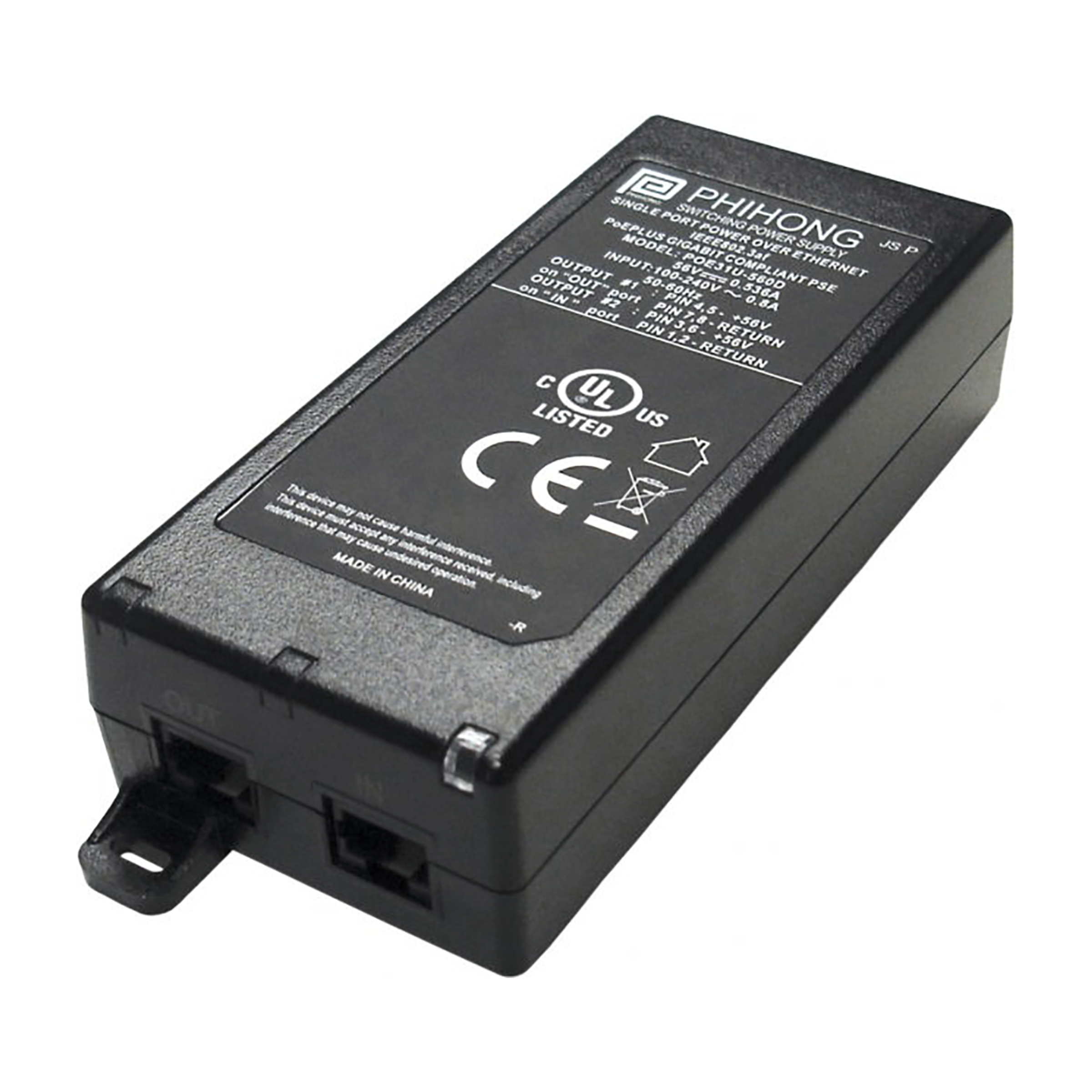

Image similar
Manufacturer Part No.
POE29U-1AT(PL)D
Schukat Part No.
POE29U-1AT(PL)D
Manufacturer
Phihong
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

31 Pcs. in stock

Planned delivery time
Ø 33 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Midspan
Number of ports
1
Power per port
30 W
Output voltage
56 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Phihong
Series
  • POE29U
Product group
  • M7337 Phihong POE SPS extern 30W
Application
  • ITE
  • Industry
Operating mode
  • aktive
Type
  • Midspan
Package/Case
  • Desktop Power Supply

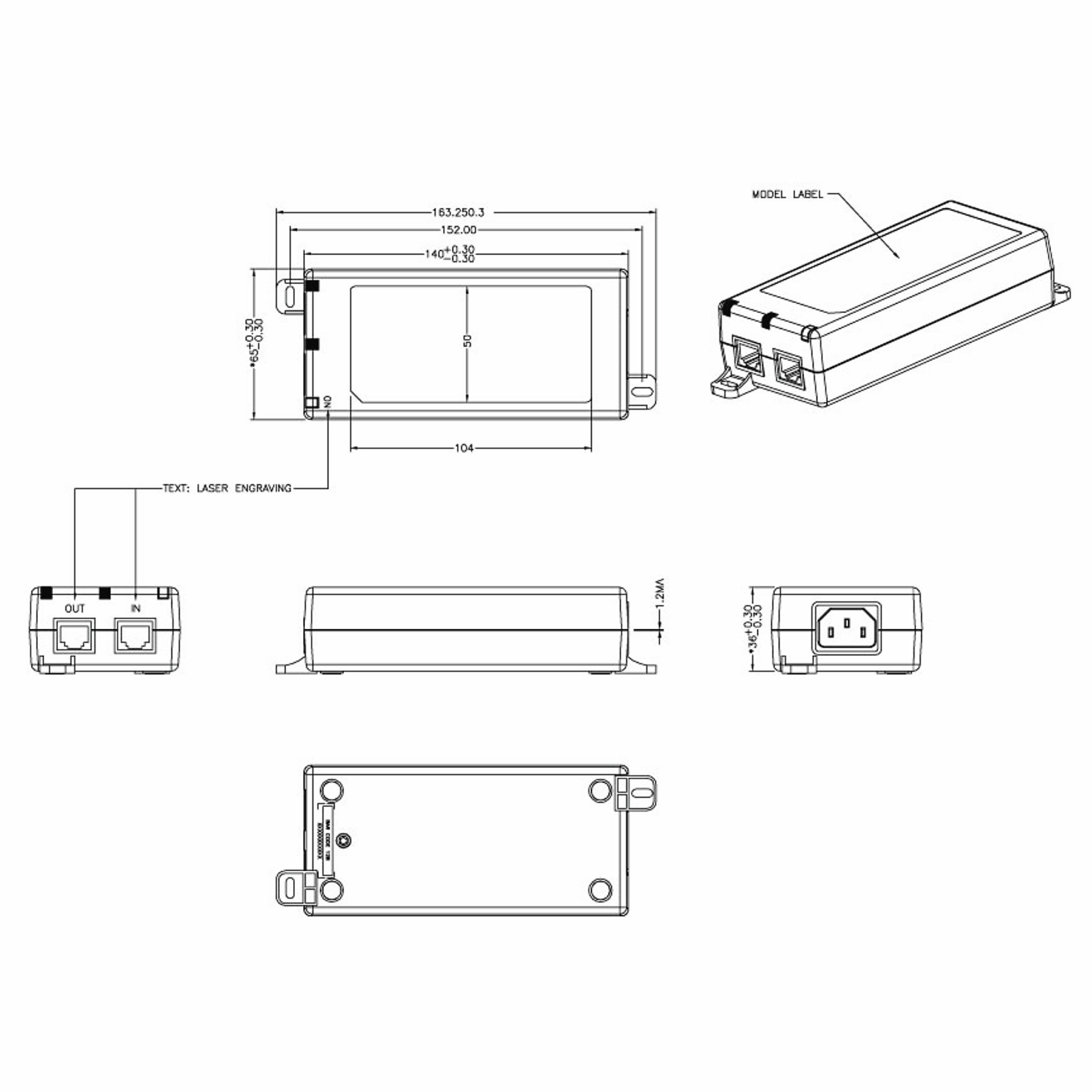

Dimension: Length
  • 140 mm
Dimension: Width
  • 65 mm
Dimension: Height
  • 36 mm
Weight
  • 220 g
Label
  • FCC
Manufacturer's warranty (years)
  • 1
Features
  • LPS

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C
Data rate
  • 1 GB

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 0.55 A
Efficiency
  • 80 %
Leakage current, max.
  • 0.35 mA
Inrush current, max.
  • 60 A
Power factor correction (PFC)
Connection type, input
  • IEC-320 C14

Output

Number of ports
  • 1
Power per port
  • 30 W
Output Power
  • 30 W
Output voltage
  • 56 V
Output voltage tolerance
  • -5 %
Output current
  • 0.357 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • RJ45-Socket

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 1,500 V
Approvals
  • BIS
  • BSMI
  • CCC
  • CE
  • EAC
  • IEC
  • IRAM
  • KC
  • RCM
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • IEC 60950-1
  • IEC 62368-1
  • UL 60950-1
  • UL 62368-1
