Results (327)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Actuation | Resistance value | Resistance unit | Resistance tolerance | Rated power | Shaft | Rotation angle, mechanical | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, housing | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
226 |  | Manufacturers Part No. CA14NH05-100RA2020(CA14NHE100) ACP Carbon film trimmer CA14 vertical 0,25W 100Ohm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 3000 or mul. of 3000) | Carbon film trimmer | ACP | THT | vertical | from the side | 100.0 | Ohm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
227 | | Manufacturers Part No. CA9PV10-500KA2020(CA9VK500) ACP Carbon film trimmer CA9 horizontal 0,15W 500kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 1.600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 500.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
228 | | Manufacturers Part No. CA9PV10-1MA2020(CA9VM001) ACP Carbon film trimmer CA9 horizontal 0,15W 1MOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 1.0 | MOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
229 | | Manufacturers Part No. PT10LH01-254A2020-S(PT10HK250) Piher Carbon film trimmer PT10 vertical 0,15W 250kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 250.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
230 | | Manufacturers Part No. PT10LH01-502A2020-S(PT10HK005) Piher Carbon film trimmer PT10 vertical 0,15W 5kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 4.825 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 5.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
231 | | Manufacturers Part No. PT10LH01-253A2020-S(PT10HK025) Piher Carbon film trimmer PT10 vertical 0,15W 25kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.150 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | vertical | from the side | 25.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 4.8 mm | 15.6 mm | 10.3 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
232 | | Manufacturers Part No. PT10LV10-254A2020-S(PT10VK250) Piher Carbon film trimmer PT10 horizontal 0,15W 250kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 850 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 250.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
233 | | Manufacturers Part No. PT10LV10-252A2020-S(PT10VK002.5) Piher Carbon film trimmer PT10 horizontal 0,15W 2,5kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 2.625 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 2.5 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
234 | | Manufacturers Part No. PT10LV10-103A2020-S(PT10VK010) Piher Carbon film trimmer PT10 horizontal 0,15W 10kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 14.200 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 10.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
235 | | Manufacturers Part No. PT10LV10-104A2020-S(PT10VK100) Piher Carbon film trimmer PT10 horizontal 0,15W 100kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 4.850 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 100.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
236 | | Manufacturers Part No. PT10LV10-503A2020-S(PT10VK050) Piher Carbon film trimmer PT10 horizontal 0,15W 50kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 5.800 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 50.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
237 | | Manufacturers Part No. PT10LV10-102A2020-S(PT10VK001) Piher Carbon film trimmer PT10 horizontal 0,15W 1kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 7.150 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 1.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
238 | | Manufacturers Part No. PT10LV10-251A2020-S(PT10VE250) Piher Carbon film trimmer PT10 horizontal 0,15W 250Ohm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 1.375 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | Piher | THT | horizontal | from above | 250.0 | Ohm | 20.0 % | 0.15 W | arrow slot | 235.0 ° | 9.5 mm | 10.3 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
239 | | Manufacturers Part No. CA6XV05-2K5A2020(CA6VK002.5) ACP Carbon film trimmer CA6 horizontal 0,1W 2,5kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 2.5 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
240 | | Manufacturers Part No. CA6XV05-250KA2020(CA6VK250) ACP Carbon film trimmer CA6 horizontal 0,1W 250kOhm 20% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 1.300 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | horizontal | from above | 250.0 | kOhm | 20.0 % | 0.1 W | crossed slot | 235.0 ° | 6.5 mm | 6.5 mm | 8.2 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
241 | | Manufacturers Part No. CA9PH2,5-100RA2020(CA9HE100) ACP Carbon film trimmer CA9 vertical 0,15W 100Ohm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Carbon film trimmer | ACP | THT | vertical | from the side | 100.0 | Ohm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
242 | | Manufacturers Part No. CA9PH2,5-5KA2020(CA9HK005) ACP Carbon film trimmer CA9 vertical 0,15W 5kOhm 20% Actuation from the side arrow slot P5mm | Customer Part No. Customer Project No. | 3.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | vertical | from the side | 5.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 5.2 mm | 16.0 mm | 5.0 mm | -25.0 °C | 70.0 °C | |||||||
243 | | Manufacturers Part No. CA9PV10-10KA2020(CA9VK010) ACP Carbon film trimmer CA9 horizontal 0,15W 10kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 10.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||
244 | | Manufacturers Part No. CA14NH05-25KA2020(CA14NHK025) ACP Carbon film trimmer CA14 vertical 0,25W 25kOhm 20% Actuation from the side elougated hole P10mm | Customer Part No. Customer Project No. | 1.675 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Carbon film trimmer | ACP | THT | vertical | from the side | 25.0 | kOhm | 20.0 % | 0.25 W | elougated hole | 265.0 ° | 14.0 mm | 6.0 mm | 21.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | |||||||
245 | | Manufacturers Part No. CA9PV10-50KA2020(CA9VK050) ACP Carbon film trimmer CA9 horizontal 0,15W 50kOhm 20% Actuation from above arrow slot P10mm | Customer Part No. Customer Project No. | 2.100 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 50) | Carbon film trimmer | ACP | THT | horizontal | from above | 50.0 | kOhm | 20.0 % | 0.15 W | arrow slot | 240.0 ° | 9.8 mm | 10.0 mm | 10.0 mm | -25.0 °C | 70.0 °C | ||||||||

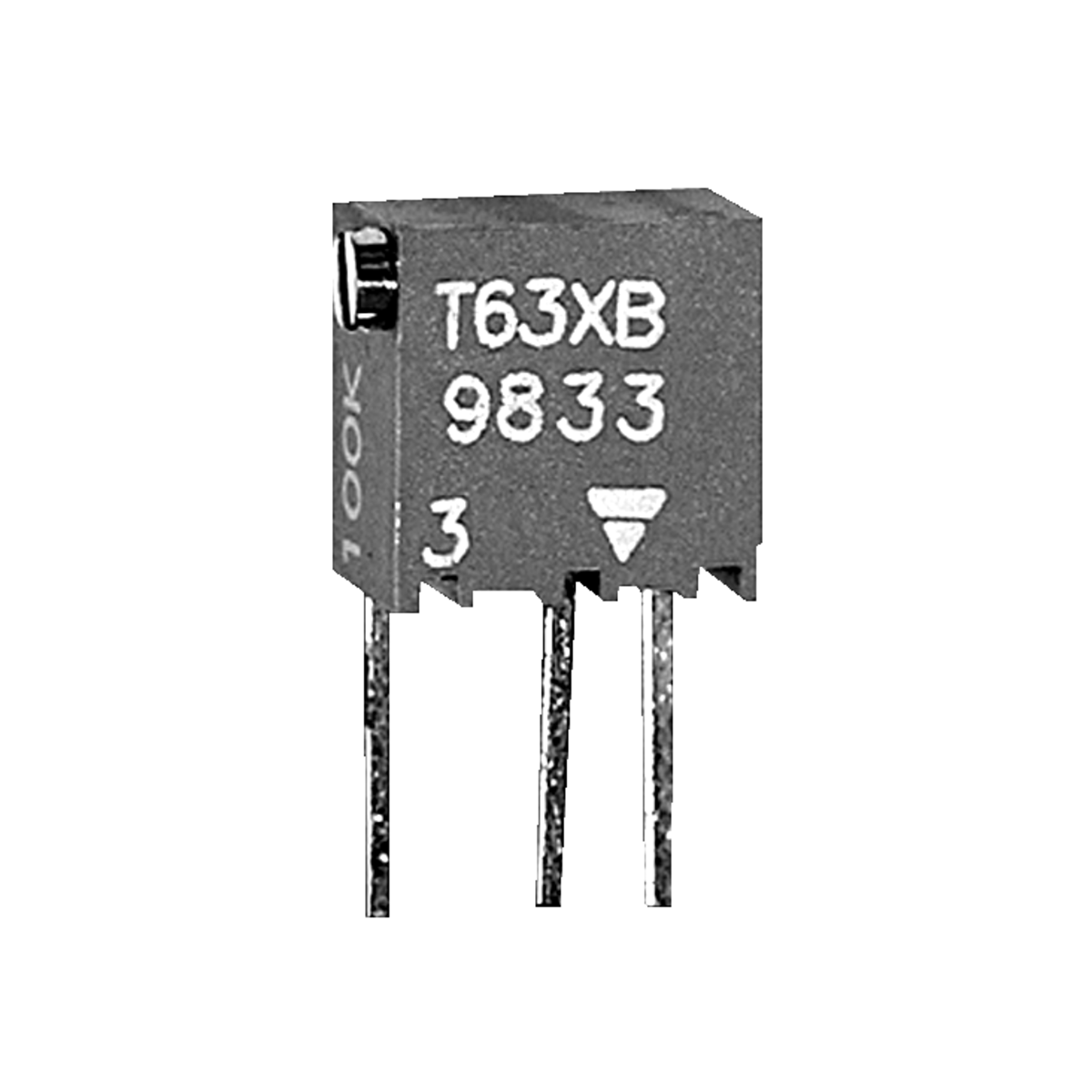

246 | | Manufacturers Part No. T63XB472KT20(T63XBK004.7) Vishay Cermet spindle trimmer T63 vertical 0,25W 4,7kOhm 10% Actuation from the side slot P2,54mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from the side | 4.7 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 10.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||

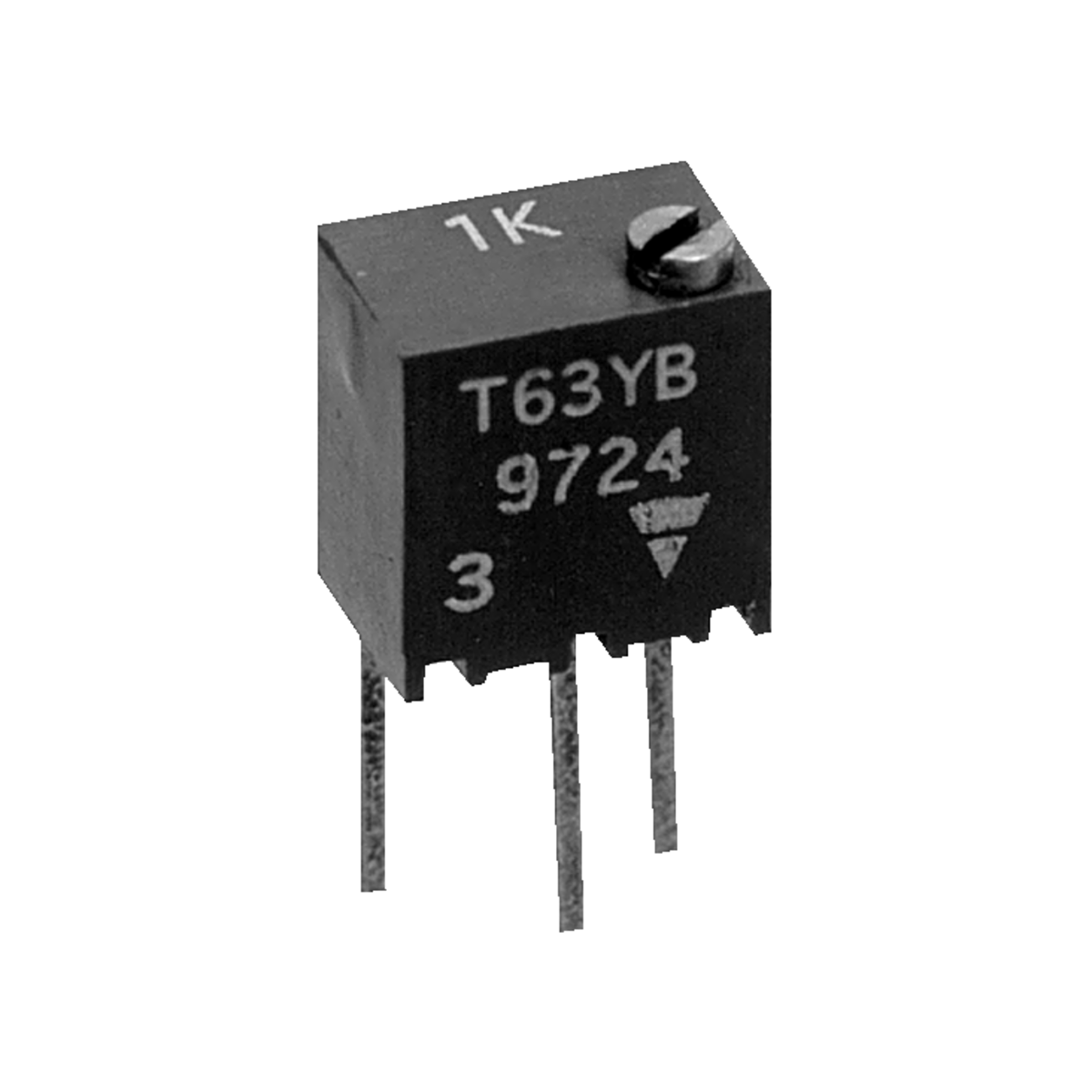

247 | | Manufacturers Part No. T63YB103KT20(T63YBK010) Vishay Cermet spindle trimmer T63 vertical 0,25W 10kOhm 10% Actuation from above slot P2,54mm TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 10.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||

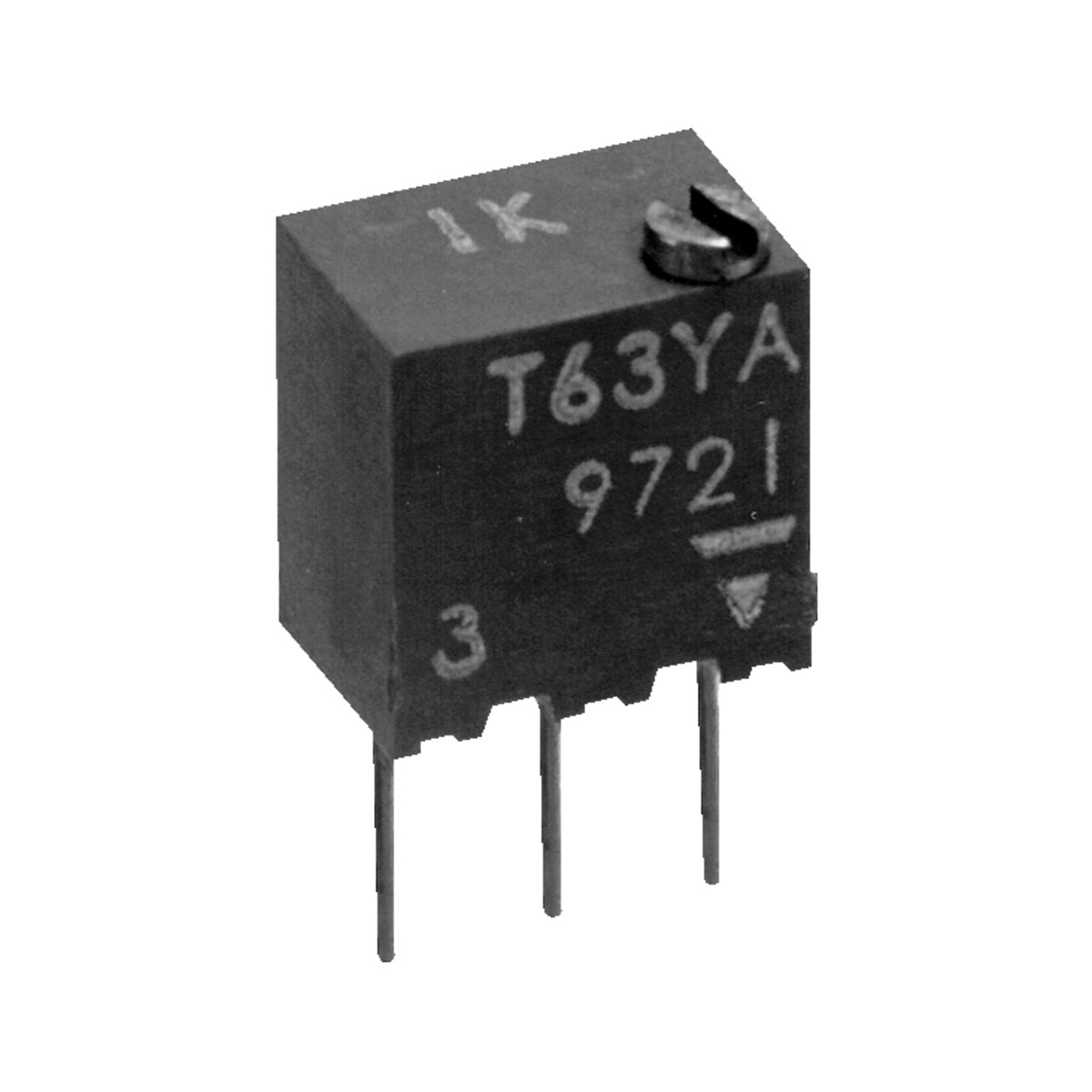

248 | | Manufacturers Part No. T63YA104KT20(T63YAK100) Vishay Cermet spindle trimmer T63 vertical 0,25W 100kOhm 10% Actuation from above slot P2,54mm | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 10 or mul. of 10) | Cermet spindle trimmer | Vishay | THT | vertical | from above | 100.0 | kOhm | 10.0 % | 0.25 W | slot | 6.8 mm | 5.0 mm | 11.8 mm | 2.54 mm | -55.0 °C | 155.0 °C | ||||||||

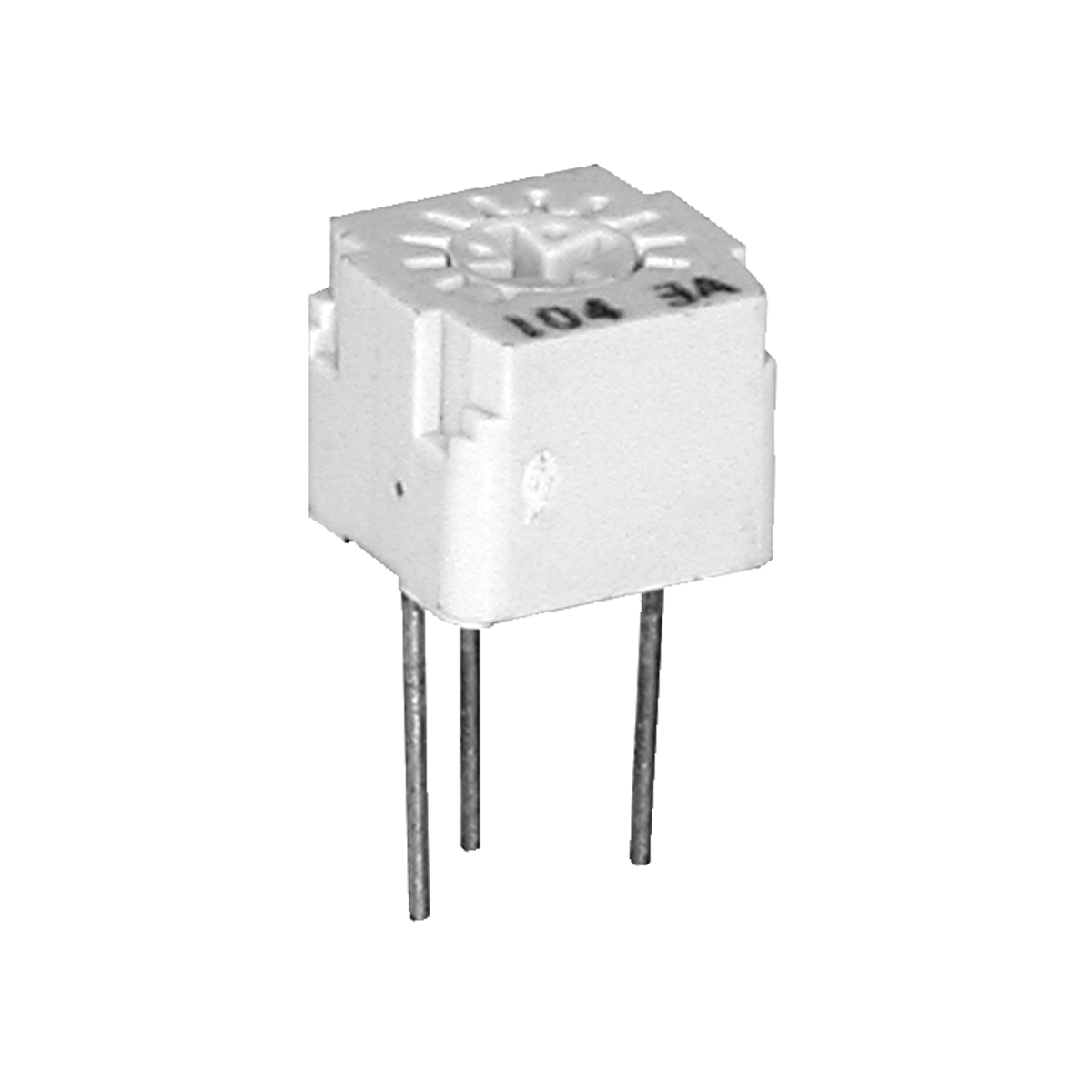

249 | | Manufacturers Part No. FT-63EP-102(FT63EPK001) Copal Cermet trimmer FT-63 vertical 0,5W 1kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 25 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 1.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C | |||||||
250 | | Manufacturers Part No. FT-63EP-202(FT63EPK002) Copal Cermet trimmer FT-63 vertical 0,5W 2kOhm 10% Actuation from above crossed slot P5mm | Customer Part No. Customer Project No. | 575 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | Cermet trimmer | Copal | THT | vertical | from above | 2.0 | kOhm | 10.0 % | 0.5 W | crossed slot | 260.0 ° | 7.0 mm | 7.0 mm | 13.0 mm | 5.0 mm | -55.0 °C | 125.0 °C |
