Results (92)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Resistance value | Resistance unit | Resistance tolerance | Qualification | Rated power | Nominal temperature | Operating Temperature Min. | Operating Temperature Max. | Dimension: Length | Dimension: Width | Dimension: Height | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

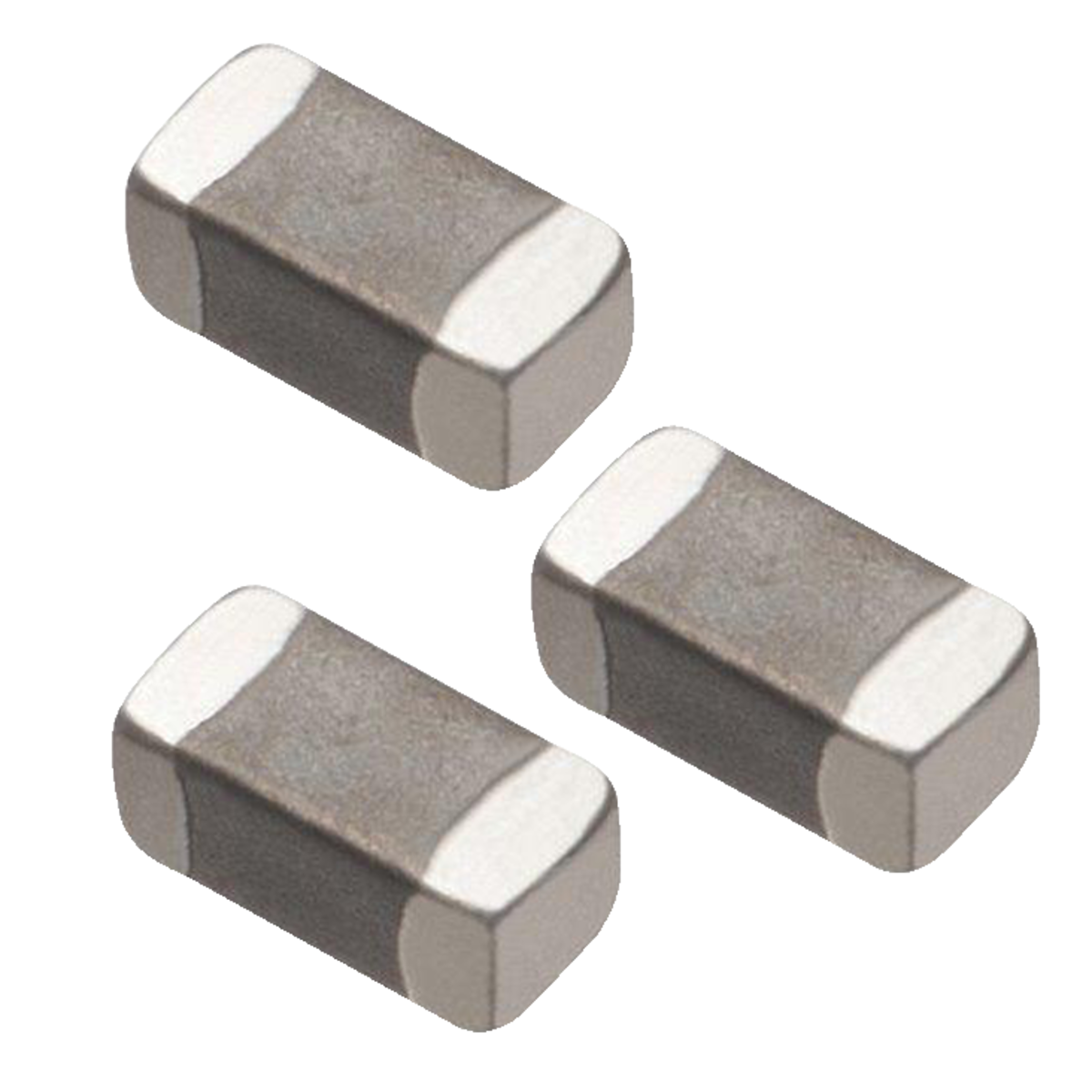

51 | Manufacturers Part No. ERTJ0EV104J(ERTJ0EV104J) Panasonic NTC resistor ERTJ 100kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 100.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
52 | Manufacturers Part No. ERTJZEG103FA(ERTJZEG103FA) Panasonic NTC resistor ERTJ 10kOhm 1% SMD 0201 AEC-Q200 | Customer Part No. Customer Project No. | 10.700 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 10.0 | kOhm | 1.0 % | AEC-Q200 | 0.033 W | -40.0 °C | 125.0 °C | 0.6 mm | 0.3 mm | 0.3 mm | ||||||||
53 | Manufacturers Part No. ERTJZET472J(ERTJZET472J) Panasonic NTC resistor ERTJ 4,7kOhm 5% SMD 0201 AEC-Q200 | Customer Part No. Customer Project No. | 15.000 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 4.7 | kOhm | 5.0 % | AEC-Q200 | 0.033 W | -40.0 °C | 125.0 °C | 0.6 mm | 0.3 mm | 0.3 mm | ||||||||
54 | Manufacturers Part No. ERTJ0EA151J(ERTJ0EA151J) Panasonic NTC resistor ERTJ 150Ohm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 150.0 | Ohm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
55 | Manufacturers Part No. ERTJ0EA470J(ERTJ0EA470J) Panasonic NTC resistor ERTJ 47Ohm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 47.0 | Ohm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
56 | Manufacturers Part No. ERTJ0EA680J(ERTJ0EA680J) Panasonic NTC resistor ERTJ 68Ohm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 25 or mul. of 25) | NTC resistor | Panasonic | SMD | 68.0 | Ohm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
57 | Manufacturers Part No. ERTJ0EG103FA(ERTJ0EG103FA) Panasonic NTC resistor ERTJ 10kOhm 1% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 10.0 | kOhm | 1.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
58 | Manufacturers Part No. ERTJ0EG103JA(ERTJ0EG103JA) Panasonic NTC resistor ERTJ 10kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 10.000 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 10.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
59 | Manufacturers Part No. ERTJ0EM103J(ERTJ0EM103J) Panasonic NTC resistor ERTJ 10kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 6.900 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 10.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
60 | Manufacturers Part No. ERTJ0ER223J(ERTJ0ER223J) Panasonic NTC resistor ERTJ 22kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 6.000 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 22.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
61 | Manufacturers Part No. ERTJ0ES104F(ERTJ0ES104F) Panasonic NTC resistor ERTJ 100kOhm 1% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 4.000 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 100.0 | kOhm | 1.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
62 | Manufacturers Part No. ERTJ0ET102J(ERTJ0ET102J) Panasonic NTC resistor ERTJ 1kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 1.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
63 | Manufacturers Part No. ERTJ0EV224J(ERTJ0EV224J) Panasonic NTC resistor ERTJ 220kOhm 5% SMD 0402 AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks | (at least 100 or mul. of 100) | NTC resistor | Panasonic | SMD | 220.0 | kOhm | 5.0 % | AEC-Q200 | 0.066 W | -40.0 °C | 125.0 °C | 1.0 mm | 0.5 mm | 0.5 mm | ||||||||
64 | Manufacturers Part No. B57164K0472K000(K164NK004.7-10) TDK Electronics NTC resistor K164 4,7kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 3.980 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 4.7 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
65 | Manufacturers Part No. B57164K0153K000(K164NK015-10) TDK Electronics NTC resistor K164 15kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 1.630 Pcs. Planned Delivery Time Ø 14 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 15.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
66 | Manufacturers Part No. B57164K0104K000(K164NK100-10) TDK Electronics NTC resistor K164 100kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 2.390 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 100.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
67 | Manufacturers Part No. B57164K0474K000(K164NK470-10) TDK Electronics NTC resistor K164 470kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 2.630 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 470.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
68 | Manufacturers Part No. B57164K0334K000(K164NK330-10) TDK Electronics NTC resistor K164 330kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 1.520 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 330.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
69 | Manufacturers Part No. B57164K0224K000(K164NK220-10) TDK Electronics NTC resistor K164 220kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 220.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 5.0 mm | 41.5 mm | 5.0 mm | ||||||||
70 | Manufacturers Part No. B57045K0102K000(B57045K01) TDK Electronics NTC resistor B57045K 1kOhm 10% THT P5mm | Customer Part No. Customer Project No. | 1.230 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | NTC resistor | TDK Electronics | THT | 1.0 | kOhm | 10.0 % | 0.45 W | 25.0 °C | -55.0 °C | 125.0 °C | 51.0 mm | 5.0 mm | |||||||||
71 | Manufacturers Part No. B59606A0110A062(B59606A0110A062) TDK Electronics PTC resistor B59606 27Ohm 25% SMD 1210 | Customer Part No. Customer Project No. | 6.000 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 100 or mul. of 100) | PTC resistor | TDK Electronics | SMD | 27.0 | Ohm | 25.0 % | 110.0 °C | -40.0 °C | 125.0 °C | 3.2 mm | 2.5 mm | 1.6 mm | |||||||||
72 | Manufacturers Part No. B59607A0120A062(B59607A0120A062) TDK Electronics PTC resistor B59607 55Ohm 25% SMD 1210 | Customer Part No. Customer Project No. | 4.900 Pcs. | (at least 100 or mul. of 100) | PTC resistor | TDK Electronics | SMD | 55.0 | Ohm | 25.0 % | 120.0 °C | -40.0 °C | 125.0 °C | 3.2 mm | 2.5 mm | 1.6 mm | |||||||||
73 | Manufacturers Part No. B59850C0080A070(PTC265V10) TDK Electronics PTC resistor B598 10Ohm 25% THT P5mm | Customer Part No. Customer Project No. | 630 Pcs. Planned Delivery Time Ø 28 Weeks | (at least 10 or mul. of 10) | PTC resistor | TDK Electronics | THT | 10.0 | Ohm | 25.0 % | 80.0 °C | -40.0 °C | 125.0 °C | 17.0 mm | 5.0 mm | ||||||||||
74 | Manufacturers Part No. B59870C0080A070(PTC265V25) TDK Electronics PTC resistor B598 25Ohm 25% THT P5mm | Customer Part No. Customer Project No. | 2.890 Pcs. Planned Delivery Time Ø 20 Weeks | (at least 10 or mul. of 10) | PTC resistor | TDK Electronics | THT | 25.0 | Ohm | 25.0 % | 80.0 °C | -40.0 °C | 125.0 °C | 12.5 mm | 5.0 mm | ||||||||||
75 | Manufacturers Part No. B59965C0120A070(PTC30V1.2) TDK Electronics PTC resistor B599 1,2Ohm 25% THT P5mm | Customer Part No. Customer Project No. | 1.880 Pcs. Planned Delivery Time Ø 17 Weeks | (at least 10 or mul. of 10) | PTC resistor | TDK Electronics | THT | 1.2 | Ohm | 25.0 % | 120.0 °C | -40.0 °C | 125.0 °C | 14.5 mm | 5.0 mm |
