Results (179)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Resistance value | Resistance unit | Resistance curve | Rated power | Rotation angle, mechanical | Centre detent | Shaft | Width Body | Height body | Diameter Body | Length, shaft | Diameter, shaft | Operating Temperature Max. | Operating Temperature Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

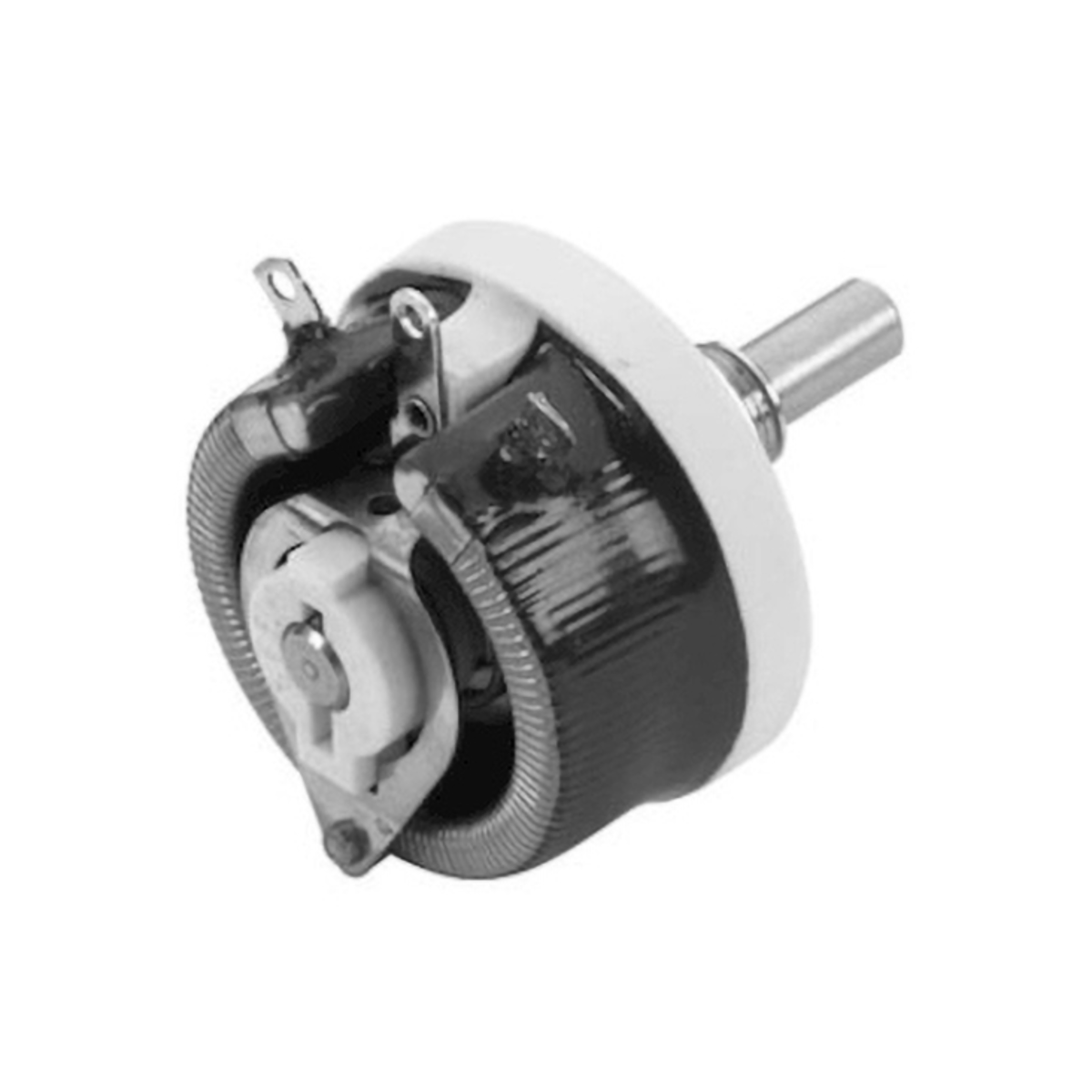

151 |  | Manufacturers Part No. RT025AS1000KB(RT025AS1000KB) Vishay Wire potentiometer RT25 linear 25W 100Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 100.0 | Ohm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
152 | | Manufacturers Part No. RT025AS2200KB(RT025AS2200KB) Vishay Wire potentiometer RT25 linear 25W 220Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 220.0 | Ohm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
153 | | Manufacturers Part No. RT025AS4700KB(RT025AS4700KB) Vishay Wire potentiometer RT25 linear 25W 470Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 470.0 | Ohm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
154 | | Manufacturers Part No. RT025AS1001KB(RT025AS1001KB) Vishay Wire potentiometer RT25 linear 25W 1kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 1.0 | kOhm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
155 | | Manufacturers Part No. RT025AS2201KB(RT025AS2201KB) Vishay Wire potentiometer RT25 linear 25W 2,2kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 2.2 | kOhm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
156 | | Manufacturers Part No. RT025AS4701KB(RT025AS4701KB) Vishay Wire potentiometer RT25 linear 25W 4,7kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 4.7 | kOhm | linear | 25.0 W | 300.0 ° | without | metal | 25.0 mm | 38.0 mm | 12.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||

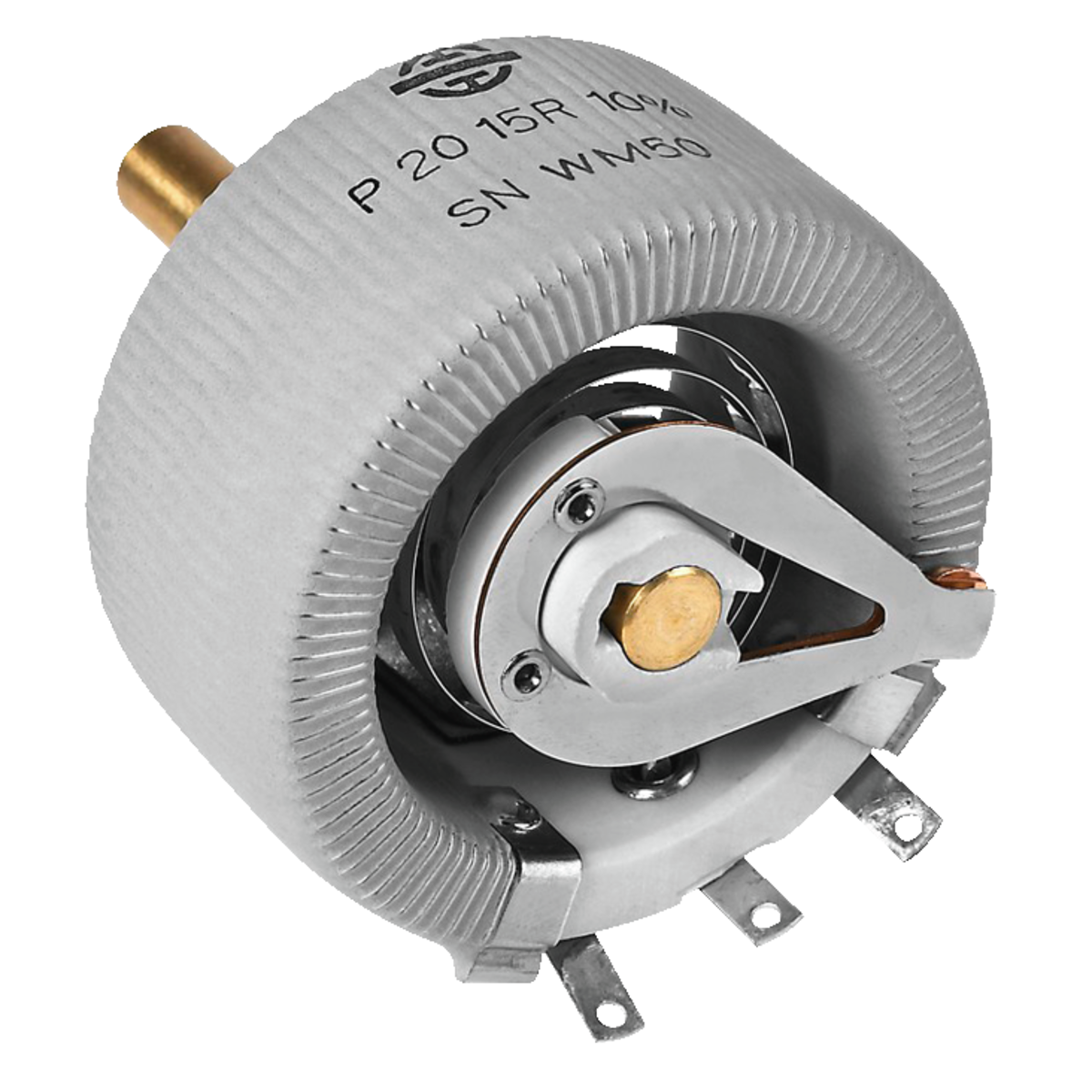

157 | EOL 12.02.2026 | Manufacturers Part No. P20 50 100R 10% AEY(P2050100R) Vishay Wire potentiometer P20 linear 30W 100Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | No longer available | (at least 5 or mul. of 5) | Wire potentiometer | Vishay | Solder lugs | horizontal | 100.0 | Ohm | linear | 30.0 W | 290.0 ° | metal | 31.0 mm | 43.0 mm | 35.0 mm | 6.0 mm | |||||||||

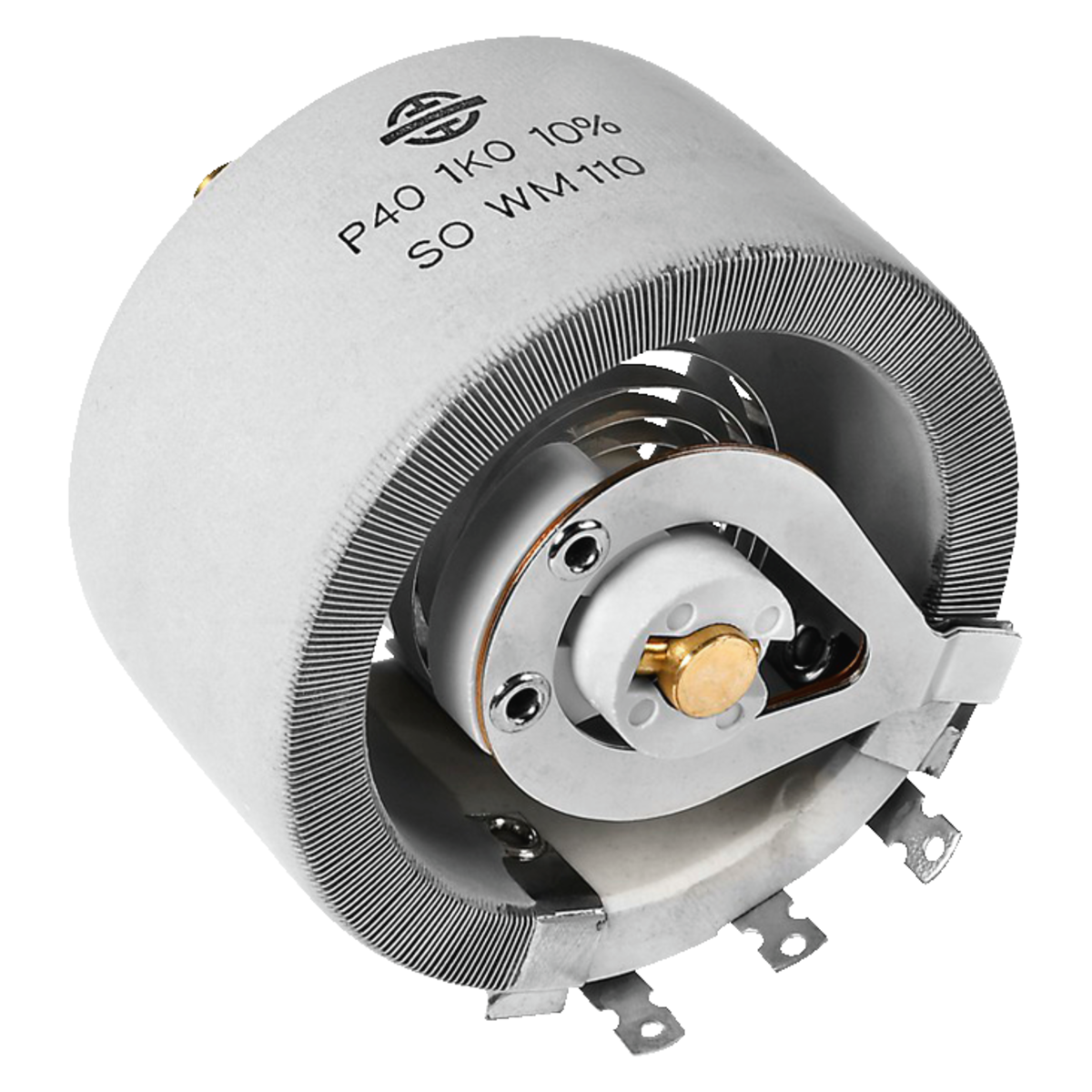

158 | EOL 12.02.2026 | Manufacturers Part No. P40 50 10R 10% AGX(P405010R) Vishay Wire potentiometer P40 linear 50W 10Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | 5 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 10.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
159 | EOL 12.02.2026 | Manufacturers Part No. P40 50 22R 10% AGX(P405022R) Vishay Wire potentiometer P40 linear 50W 22Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | 5 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 22.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
160 | EOL 12.02.2026 | Manufacturers Part No. P40 50 47R 10% AGX(P405047R) Vishay Wire potentiometer P40 linear 50W 47Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | 4 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 47.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
161 | EOL 12.02.2026 | Manufacturers Part No. P40 50 220R 10% AGX(P4050220R) Vishay Wire potentiometer P40 linear 50W 220Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | 2 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 220.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
162 | EOL 12.02.2026 | Manufacturers Part No. P40 50 470R 10% AGX(P4050470R) Vishay Wire potentiometer P40 linear 50W 470Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | 5 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 470.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||

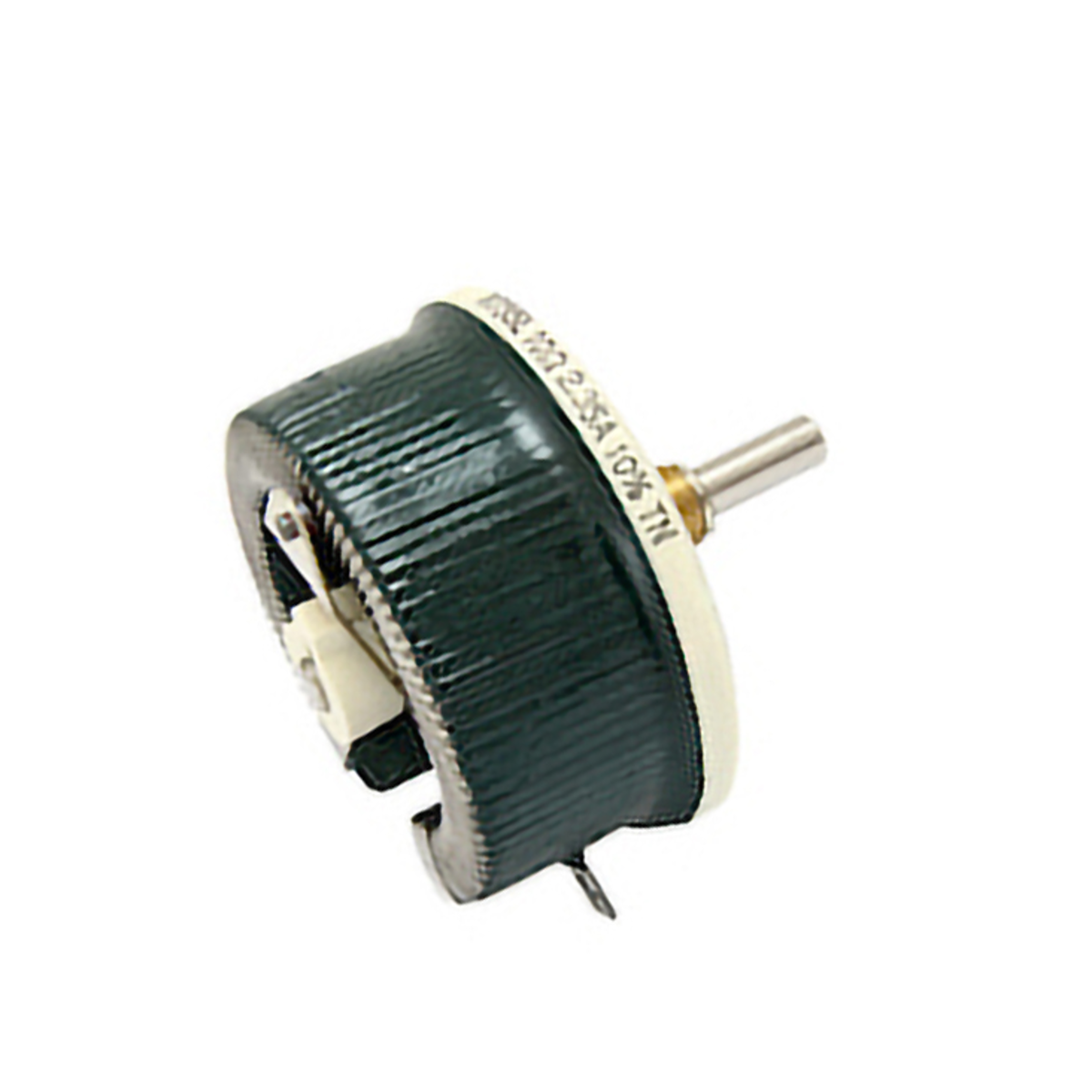

163 | | Manufacturers Part No. RT055AS10R0KB(RT055AS10R0KB) Vishay Wire potentiometer RT55 linear 55W 10Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 10.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
164 | | Manufacturers Part No. RT055AS22R0KB(RT055AS22R0KB) Vishay Wire potentiometer RT55 linear 55W 22Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 22.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
165 | | Manufacturers Part No. RT055AS47R0KB(RT055AS47R0KB) Vishay Wire potentiometer RT55 linear 55W 47Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 47.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
166 | | Manufacturers Part No. RT055AS1000KB(RT055AS1000KB) Vishay Wire potentiometer RT55 linear 55W 100Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 100.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
167 | | Manufacturers Part No. RT055AS2200KB(RT055AS2200KB) Vishay Wire potentiometer RT55 linear 55W 220Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 220.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
168 | | Manufacturers Part No. RT055AS4700KB(RT055AS4700KB) Vishay Wire potentiometer RT55 linear 55W 470Ohm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 470.0 | Ohm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
169 | | Manufacturers Part No. RT055AS1001KB(RT055AS1001KB) Vishay Wire potentiometer RT55 linear 55W 1kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 1.0 | kOhm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
170 | | Manufacturers Part No. RT055AS2201KB(RT055AS2201KB) Vishay Wire potentiometer RT55 linear 55W 2,2kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 2.2 | kOhm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
171 | | Manufacturers Part No. RT055AS4701KB(RT055AS4701KB) Vishay Wire potentiometer RT55 linear 55W 4,7kOhm 10% Shaft-Ø6mm metal New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Wire potentiometer | Vishay | Solder lugs | horizontal | 4.7 | kOhm | linear | 55.0 W | 300.0 ° | without | metal | 36.0 mm | 60.0 mm | 15.0 mm | 6.0 mm | 320.0 °C | -55.0 °C | ||||||
172 | EOL 12.02.2026 | Manufacturers Part No. P40 50 100R 10% AGX(P4050100R) Vishay Wire potentiometer P40 linear 50W 100Ohm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | No longer available | (at least 2 or mul. of 2) | Wire potentiometer | Vishay | Solder lugs | horizontal | 100.0 | Ohm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
173 | EOL 12.02.2026 | Manufacturers Part No. P40 110 1K0 10% AGX(P401101K0) Vishay Wire potentiometer P40 linear 50W 1kOhm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | No longer available | (at least 2 or mul. of 2) | Wire potentiometer | Vishay | Solder lugs | horizontal | 1.0 | kOhm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
174 | EOL 12.02.2026 | Manufacturers Part No. P40 110 2K2 10% AGX(P401102K2) Vishay Wire potentiometer P40 linear 50W 2,2kOhm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | No longer available | (at least 2 or mul. of 2) | Wire potentiometer | Vishay | Solder lugs | horizontal | 2.2 | kOhm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm | |||||||||
175 | EOL 12.02.2026 | Manufacturers Part No. P40 110 4K7 10% AGX(P401104K7) Vishay Wire potentiometer P40 linear 50W 4,7kOhm 10% Shaft-Ø6mm metal | Customer Part No. Customer Project No. | No longer available | (at least 2 or mul. of 2) | Wire potentiometer | Vishay | Solder lugs | horizontal | 4.7 | kOhm | linear | 50.0 W | 290.0 ° | metal | 42.0 mm | 54.0 mm | 35.0 mm | 6.0 mm |
