Results (57)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Specifications | Housing | Packaging | Transmission ratio | Primary DC resistance | Secondary DC resistance | Inductance | Primary Voltage | Secondary Voltage | Secondary Current | ∫Udt | Insulation voltage | Dimension: Length | Dimension: Width | Dimension: Height | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Manufacturers Part No. RMR-003-A55S-R(RMR-003-A55S-R) Recom Switching transformer Full-Bridge 1to1.12 0,121mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to1.12 | 0.26 Ohm | 0.27 Ohm | 0,121 mH | 5 V | 5 V | 200 mA | 10.0 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||

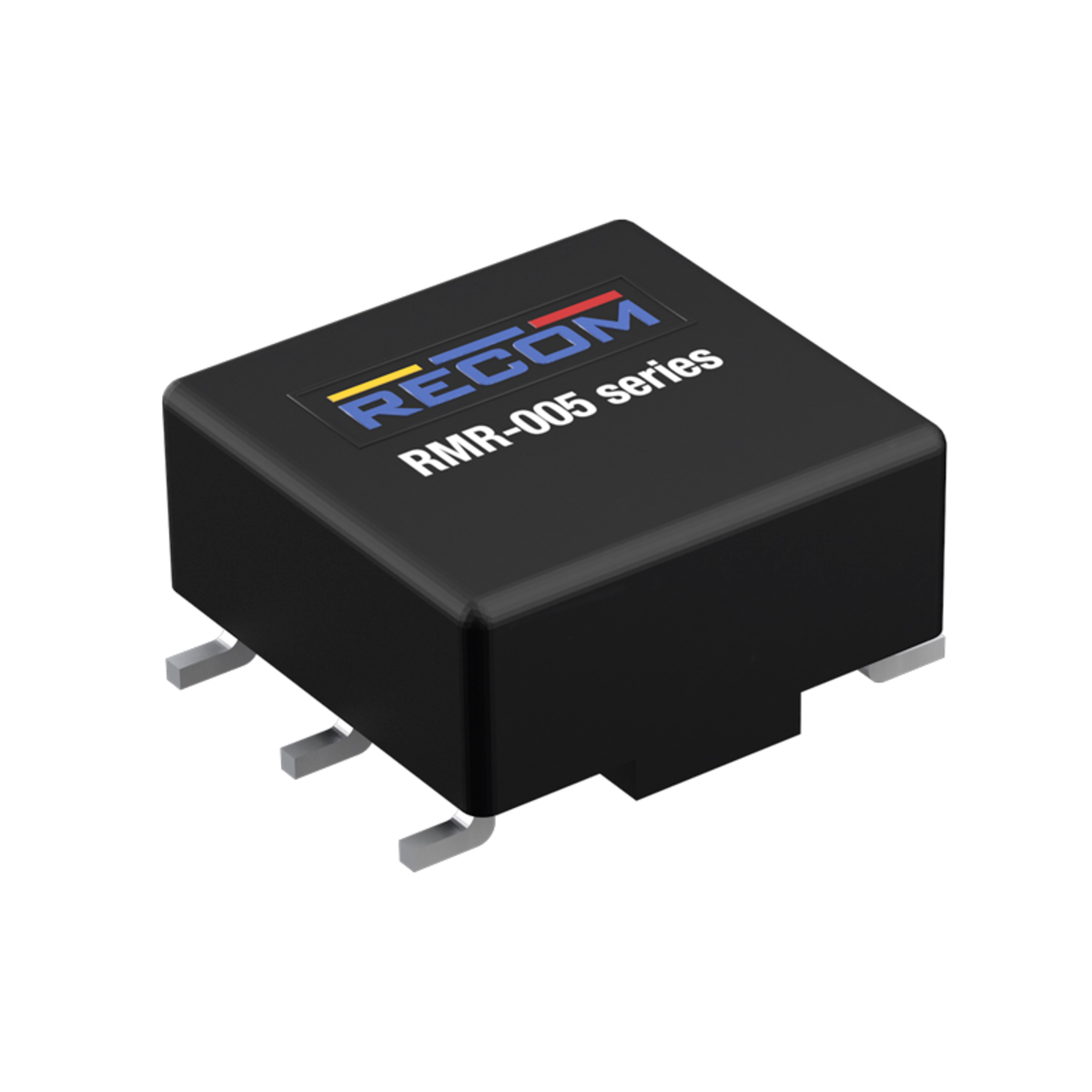

02 | | Manufacturers Part No. RMR-005-AA5S-R(RMR-005-AA5S-R) Recom Switching transformer Push-Pull 1to0.9 0,169mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to0.9 | 0.34 Ohm | 0.36 Ohm | 0,169 mH | 12 V | 5 V | 200 mA | 12.0 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||

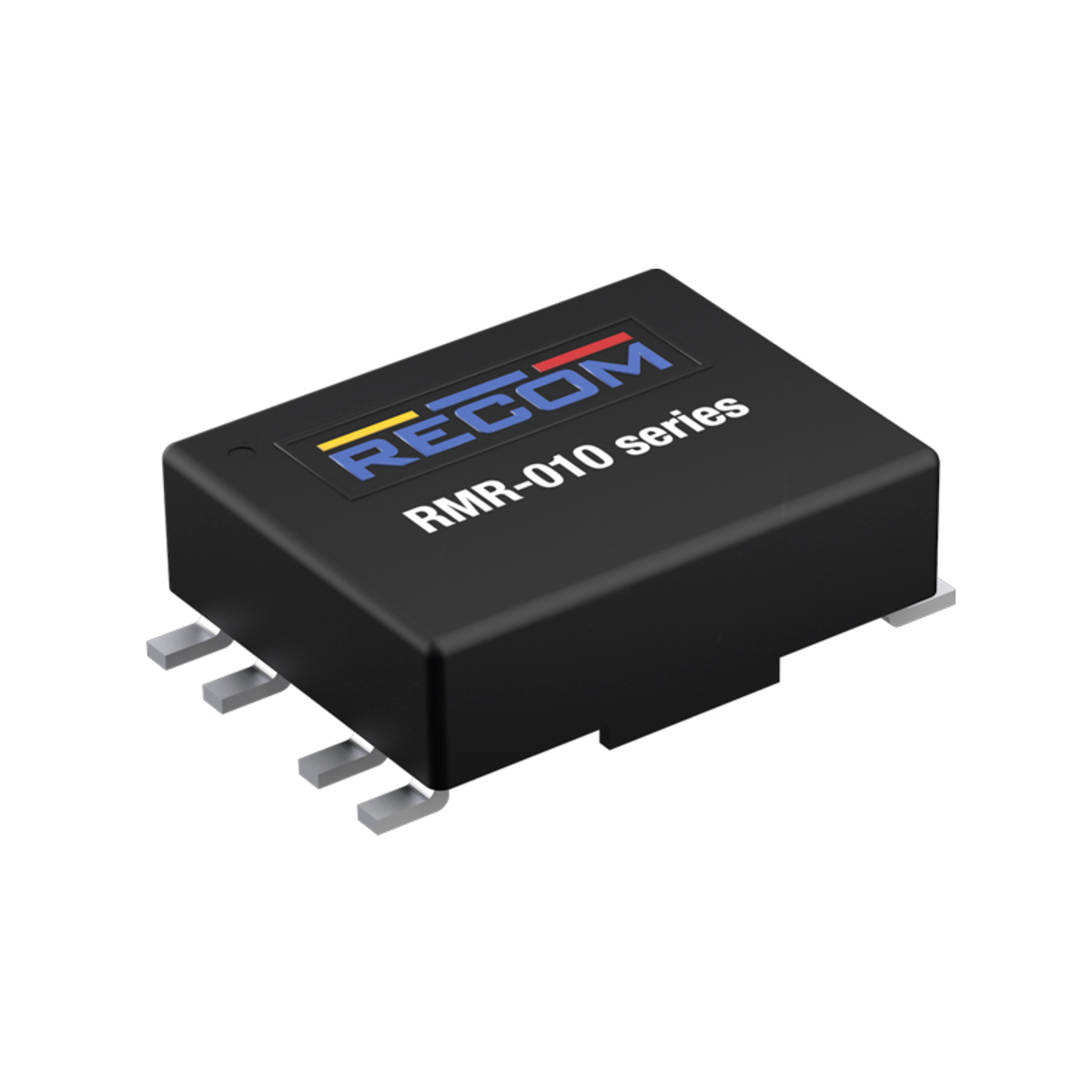

03 | | Manufacturers Part No. RMR-010-CA5S-R(RMR-010-CA5S-R) Recom Switching transformer Full-Bridge 2.23to2.23to1to1 0,519mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 2.23to2.23to1to1 | 0.5 Ohm | 0.26 Ohm | 0,519 mH | 12 V | 5 V | 200 mA | 34.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||

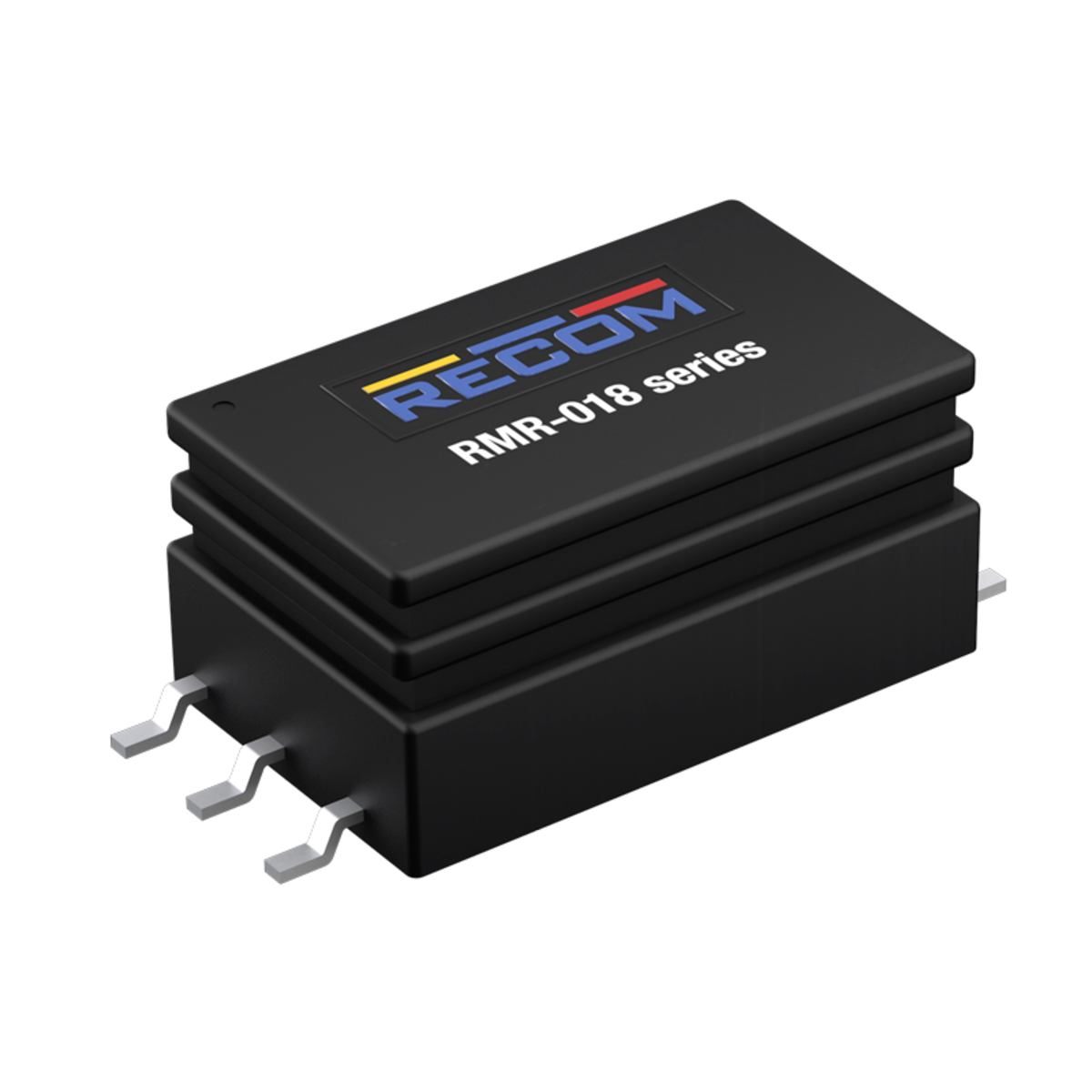

04 | | Manufacturers Part No. RMR-018-F5AS-R(RMR-018-F5AS-R) Recom Switching transformer Full-Bridge 2.56to1 0,108mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 2.56to1 | 0.8 Ohm | 0.3 Ohm | 0,108 mH | 5 V | 12 V | 83 mA | 23.0 V/µs | 7.07 kV DC | 19.9 mm | 9.5 mm | 7.6 mm | -40.0 °C | 125.0 °C | |||||
05 | | Manufacturers Part No. RMR-028-F55S-R(RMR-028-F55S-R) Recom Switching transformer Full-Bridge 1to1.125 0,085mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to1.125 | 0.23 Ohm | 0.36 Ohm | 0,085 mH | 5 V | 5 V | 200 mA | 20.0 V/µs | 7.07 kV DC | 19.9 mm | 9.5 mm | 7.6 mm | -40.0 °C | 125.0 °C | |||||
06 | | Manufacturers Part No. RBA-026-UB5S-R(RBA-026-UB5S-R) Recom Switching transformer Flyback 1to0.59to0.88 0,02mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 250 or mul. of 250) | Recom | Switching transformer | Flyback | SMD | Roll | 1to0.59to0.88 | 0.27 Ohm | 0.095 Ohm | 0,02 mH | 24 V | 5 V | 1000 mA | 6.0 kV DC | 34.5 mm | 11.0 mm | 11.0 mm | -40.0 °C | 125.0 °C | ||||||
07 | | Manufacturers Part No. RPE-021-WB5S(RPE-021-WB5S) Recom Switching transformer Flyback 1to2.25to1to1.25 0,011mH Tray New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 40 or mul. of 40) | Recom | Switching transformer | Flyback | THT | Tray | 1to2.25to1to1.25 | 0.17 Ohm | 0.06 Ohm | 0,011 mH | 32 V | 2000 mA | 6.08 kV DC | 23.3 mm | 17.2 mm | 11.0 mm | -40.0 °C | 70.0 °C | |||||||
08 | | Manufacturers Part No. RBE-011-UB5S-R(RBE-011-UB5S-R) Recom Switching transformer Flyback 1.67to1to1to1 0,015mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1.67to1to1to1 | 0.1 Ohm | 0.09 Ohm | 0,015 mH | 24 V | 5 V | 1200 mA | 1.5 kV DC | 13.0 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C | ||||||
09 | | Manufacturers Part No. RBE-023-WB5S-R(RBE-023-WB5S-R) Recom Switching transformer Flyback 1to1.67to1to1 0,011mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1to1.67to1to1 | 0.09 Ohm | 0.083 Ohm | 0,011 mH | 24 V | 5 V | 2000 mA | 1.5 kV DC | 13.0 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C | ||||||
10 | | Manufacturers Part No. RBE-029-UBCC-R(RBE-029-UBCC-R) Recom Switching transformer Flyback 1to1.25to1.5to1.5 0,007mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1to1.25to1.5to1.5 | 0.09 Ohm | 0.21 Ohm | 0,007 mH | 24 V | 1.5 kV DC | 13.0 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C | ||||||||
11 | | Manufacturers Part No. RMR-006-AD5S-R(RMR-006-AD5S-R) Recom Switching transformer Push-Pull 1to1.67 0,06mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1.67 | 0.22 Ohm | 0.3 Ohm | 0,06 mH | 3.3 V | 5 V | 200 mA | 7.3 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||
12 | | Manufacturers Part No. RMR-009-A5DS-R(RMR-009-A5DS-R) Recom Switching transformer Push-Pull 1.31to1 0,121mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1.31to1 | 0.25 Ohm | 0.22 Ohm | 0,121 mH | 5 V | 3.3 V | 303 mA | 10.0 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||
13 | | Manufacturers Part No. RMR-007-A55S-R(RMR-007-A55S-R) Recom Switching transformer Push-Pull 1to1.14 0,082mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1.14 | 0.22 Ohm | 0.25 Ohm | 0,082 mH | 5 V | 5 V | 400 mA | 8.5 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||
14 | | Manufacturers Part No. RMR-012-F55S-R(RMR-012-F55S-R) Recom Switching transformer Full-Bridge 1to1to1.11to1.11 0,108mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to1to1.11to1.11 | 0.45 Ohm | 0.65 Ohm | 0,108 mH | 5 V | 5 V | 200 mA | 22.0 V/µs | 6.36 kV DC | 12.6 mm | 9.0 mm | 5.3 mm | -40.0 °C | 125.0 °C | |||||
15 | | Manufacturers Part No. RMR-008-C55S-R(RMR-008-C55S-R) Recom Switching transformer Full-Bridge 1to1to1.125to1.125 0,158mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to1to1.125to1.125 | 0.18 Ohm | 0.24 Ohm | 0,158 mH | 5 V | 5 V | 200 mA | 19.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||
16 | | Manufacturers Part No. RMR-013-CACS-R(RMR-013-CACS-R) Recom Switching transformer Full-Bridge 1.53to1.53to1to1 0,519mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1.53to1.53to1to1 | 0.48 Ohm | 0.36 Ohm | 0,519 mH | 12 V | 15 V | 67 mA | 34.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||
17 | | Manufacturers Part No. RMR-016-C5CS-R(RMR-016-C5CS-R) Recom Switching transformer Push-Pull 1to1to3.17to3.17 0,088mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1to3.17to3.17 | 0.24 Ohm | 0.67 Ohm | 0,088 mH | 5 V | 15 V | 67 mA | 14.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||
18 | | Manufacturers Part No. RMR-015-A5AS-R(RMR-015-A5AS-R) Recom Switching transformer Push-Pull 1to1.29 0,082mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1.29 | 0.205 Ohm | 0.29 Ohm | 0,082 mH | 5 V | 12 V | 83 mA | 8.5 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||
19 | | Manufacturers Part No. RMR-020-C5AS-R(RMR-020-C5AS-R) Recom Switching transformer Push-Pull 1to1to2.53to2.53 0,139mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1to2.53to2.53 | 0.3 Ohm | 0.61 Ohm | 0,139 mH | 5 V | 12 V | 83 mA | 17.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||
20 | | Manufacturers Part No. RMR-004-CAAS-R(RMR-004-CAAS-R) Recom Switching transformer Full-Bridge 1to1to1.03to1.03 0,519mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to1to1.03to1.03 | 0.5 Ohm | 0.54 Ohm | 0,519 mH | 12 V | 12 V | 83 mA | 34.0 V/µs | 3.0 kV DC | 12.6 mm | 8.5 mm | 3.75 mm | -40.0 °C | 125.0 °C | |||||
21 | | Manufacturers Part No. RMR-031-IBCE-R(RMR-031-IBCE-R) Recom Switching transformer Full-Bridge 1to0.67to0.42 0,381mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 400 or mul. of 400) | Recom | Switching transformer | Full-Bridge | SMD | Roll | 1to0.67to0.42 | 0.3 Ohm | 0.22 Ohm | 0,381 mH | 24 V | 84.0 V/µs | 7.07 kV DC | 15.7 mm | 15.3 mm | 7.0 mm | -40.0 °C | 125.0 °C | |||||||
22 | | Manufacturers Part No. RMR-039-A55S-R(RMR-039-A55S-R) Recom Switching transformer Push-Pull 1to1.11 0,13mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1500 or mul. of 1500) | Recom | Switching transformer | Push-Pull | SMD | Roll | 1to1.11 | 0.45 Ohm | 0.45 Ohm | 0,13 mH | 5 V | 5 V | 200 mA | 10.9 V/µs | 1.5 kV DC | 8.1 mm | 6.8 mm | 3.8 mm | -40.0 °C | 125.0 °C | |||||
23 | | Manufacturers Part No. RBE-024-WBBS-R(RBE-024-WBBS-R) Recom Switching transformer Flyback 1to0.71to0.5to1 0,011mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1to0.71to0.5to1 | 0.12 Ohm | 0.39 Ohm | 0,011 mH | 24 V | 24 V | 420 mA | 1.5 kV DC | 13.0 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C | ||||||
24 | | Manufacturers Part No. RBE-014-UBCS-R(RBE-014-UBCS-R) Recom Switching transformer Flyback 1to0.63to0.81to1 0,011mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1to0.63to0.81to1 | 0.35 Ohm | 0.5 Ohm | 0,011 mH | 24 V | 15 V | 400 mA | 1.5 kV DC | 13.0 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C | ||||||
25 | | Manufacturers Part No. RBE-017-UBAS-R(RBE-017-UBAS-R) Recom Switching transformer Flyback 1to1.4to1.4to1.4 0,011mH Roll New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 500 or mul. of 500) | Recom | Switching transformer | Flyback | SMD | Roll | 1to1.4to1.4to1.4 | 0.12 Ohm | 0.39 Ohm | 0,011 mH | 24 V | 12 V | 500 mA | 3.0 kV DC | 15.1 mm | 11.5 mm | 5.9 mm | -40.0 °C | 125.0 °C |
