Results (22)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Transmission ratio | Primary DC resistance | Secondary DC resistance | Inductance | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Customer Part No. Customer Project No. | 470 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:6 | 4.6 Ohm | 180.0 Ohm | 34.0 mH | ||||||||
02 | | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1:1 | 0.8 Ohm | 0.8 Ohm | 3.0 mH | -25.0 °C | 70.0 °C | ||||||

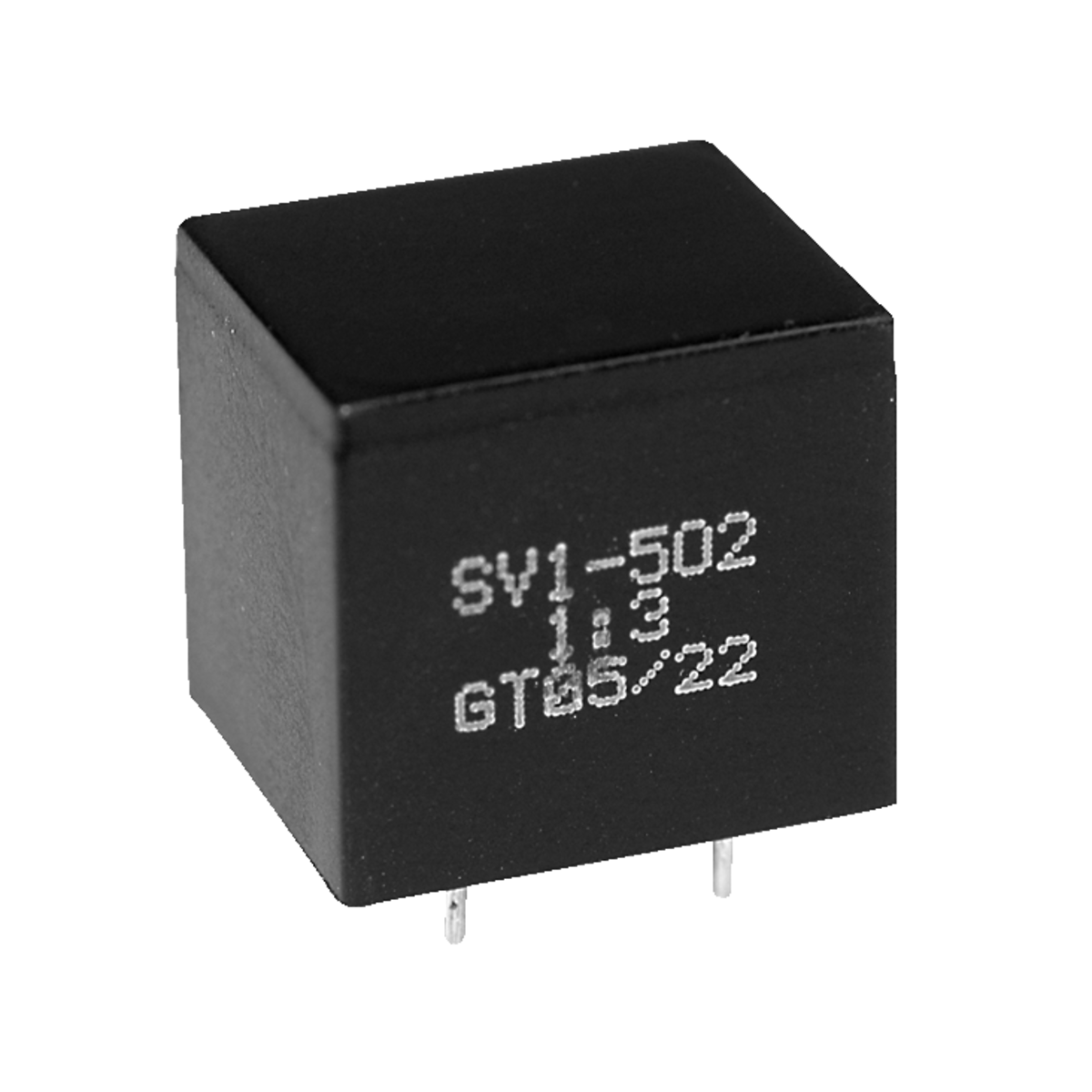

03 | | Customer Part No. Customer Project No. | 225 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:3 | 4.6 Ohm | 47.0 Ohm | 34.0 mH | ||||||||
04 | | Customer Part No. Customer Project No. | 24 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1:1 | 0.75 Ohm | 0.75 Ohm | 2.5 mH | -25.0 °C | 70.0 °C | ||||||
05 | | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 3:1 | 2.0 Ohm | 0.8 Ohm | 12.0 mH | -25.0 °C | 70.0 °C | ||||||
06 | | % | Customer Part No. Customer Project No. | 445 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:4 | 4.6 Ohm | 115.0 Ohm | 34.0 mH | |||||||
07 | | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1:1 | 0.8 Ohm | 0.8 Ohm | 2.5 mH | -25.0 °C | 70.0 °C | ||||||
08 | | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1 | 0.9 Ohm | 0.9 Ohm | 3.0 mH | -25.0 °C | 70.0 °C | ||||||
09 | | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 28 Weeks Available on order | (at least 50 or mul. of 50) | Schaffner | Pulse transformer | 1:1:1 | 1.4 Ohm | 1.4 Ohm | 6.5 mH | -25.0 °C | 70.0 °C | ||||||
10 | | Customer Part No. Customer Project No. | 440 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:1 | 4.6 Ohm | 4.6 Ohm | 34.0 mH | ||||||||
11 | | Customer Part No. Customer Project No. | 134 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 3:1:1 | 2.8 Ohm | 0.9 Ohm | 15.0 mH | -25.0 °C | 70.0 °C | ||||||
12 | | Customer Part No. Customer Project No. | 42 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1:1 | 0.33 Ohm | 0.4 Ohm | 3.0 mH | -25.0 °C | 70.0 °C | ||||||
13 | | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 2:1:1 | 3.1 Ohm | 1.5 Ohm | 17.0 mH | -25.0 °C | 70.0 °C | ||||||
14 | | Customer Part No. Customer Project No. | 165 Pcs. Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:2 | 4.6 Ohm | 30.0 Ohm | 34.0 mH | ||||||||
15 | | Customer Part No. Customer Project No. | 185 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1 | 0.62 Ohm | 0.75 Ohm | 2.5 mH | -25.0 °C | 70.0 °C | ||||||
16 | | Customer Part No. Customer Project No. | 830 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 5 or mul. of 5) | GT | Transformer | 1:10 | 4.6 Ohm | 340.0 Ohm | 34.0 mH | ||||||||
17 | | Customer Part No. Customer Project No. | 205 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1 | 1.48 Ohm | 1.48 Ohm | 8.0 mH | -25.0 °C | 70.0 °C | ||||||
18 | | Customer Part No. Customer Project No. | 102 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 2:1 | 2.1 Ohm | 1.1 Ohm | 7.0 mH | -25.0 °C | 70.0 °C | ||||||
19 | | Customer Part No. Customer Project No. | 146 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 2:1 | 3.2 Ohm | 1.6 Ohm | 17.0 mH | -25.0 °C | 70.0 °C | ||||||
20 | | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1:1 | 0.55 Ohm | 0.55 Ohm | 1.1 mH | -25.0 °C | 70.0 °C | ||||||
21 | | Customer Part No. Customer Project No. | 130 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 1:1 | 0.8 Ohm | 0.8 Ohm | 2.2 mH | -25.0 °C | 70.0 °C | ||||||
22 | | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 1 or mul. of 1) | Schaffner | Pulse transformer | 3:1:1 | 1.6 Ohm | 0.7 Ohm | 35.0 mH | -25.0 °C | 70.0 °C |
