PCB Transformers

(455 Results)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Type	Core	Performance	Primary Voltage	Secondary Voltage	Number of outputs	Secondary Current	Dimension: Length	Dimension: Width	Dimension: Height	Temperature Resistance Class	Approvals

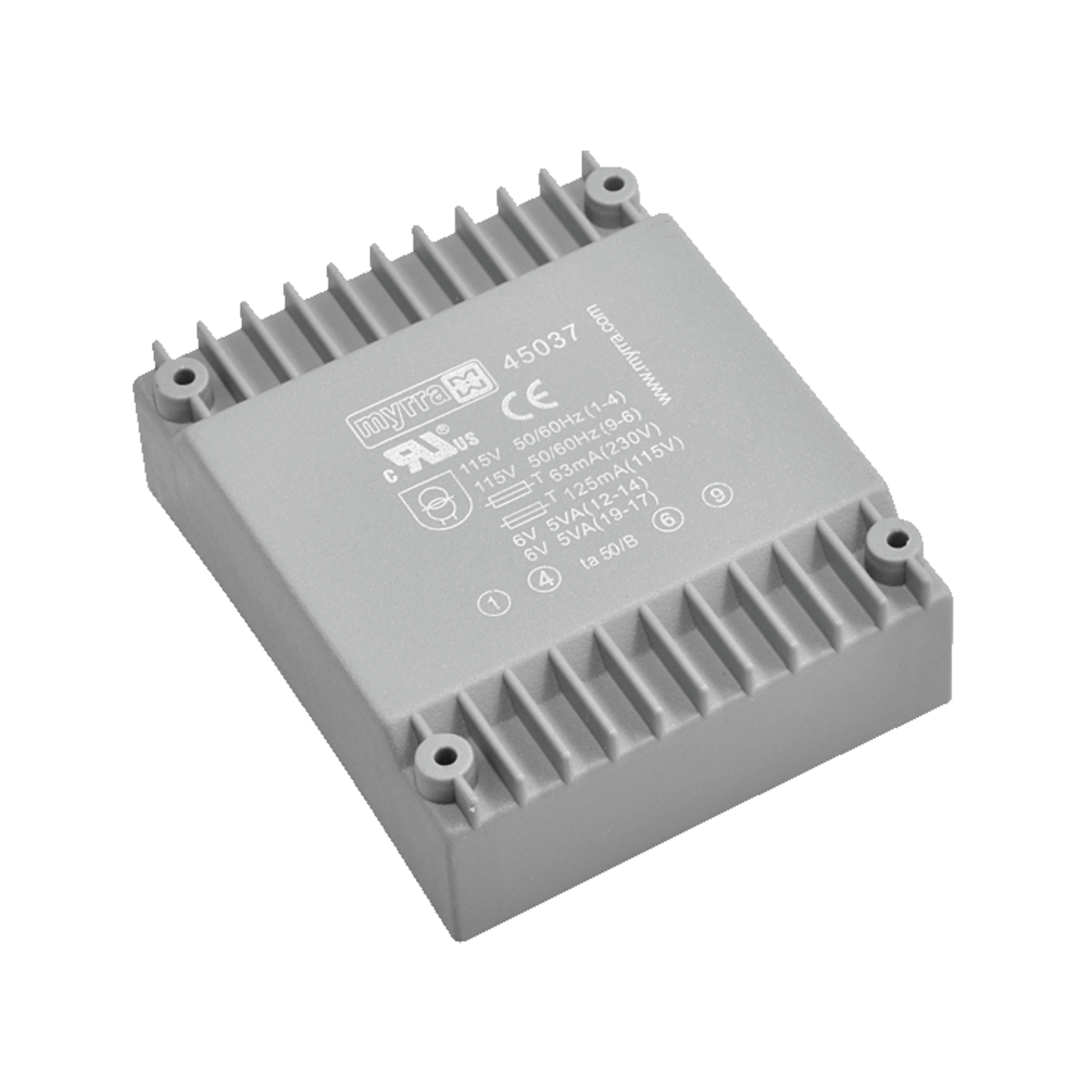

426	Manufacturers Part No. 45037 (MT45037) Myrra Print transformer MT450/39 UI39 10VA 2x115V 2x6V 2x833mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 6 or mul. of 6)	MT450/39	Myrra	Print transformer	UI39	10.0 VA	2 x 115 V	2 x 6 V	2	2 x 833 mA	68.0 mm	57.0 mm	21.7 mm		CE UL 506 cCSA
427	Manufacturers Part No. 45040 (MT45040) Myrra Print transformer MT450/39 UI39 10VA 2x115V 2x15V 2x333mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	10.0 VA	2 x 115 V	2 x 15 V	2	2 x 333 mA	68.0 mm	57.0 mm	21.7 mm		CE UL 506 cCSA
428	Manufacturers Part No. 45045 (MT45045) Myrra Print transformer MT450/39 UI39 14VA 2x115V 2x12V 2x583mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	75 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	14.0 VA	2 x 115 V	2 x 12 V	2	2 x 583 mA	68.0 mm	57.0 mm	23.8 mm		CE UL 506 cCSA
429	Manufacturers Part No. 45048 (MT45048) Myrra Print transformer MT450/39 UI39 14VA 2x115V 2x24V 2x292mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	14.0 VA	2 x 115 V	2 x 24 V	2	2 x 292 mA	68.0 mm	57.0 mm	23.8 mm		CE UL 506 cCSA
430	Manufacturers Part No. 45053 (MT45053) Myrra Print transformer MT450/39 UI39 18VA 2x115V 2x18V 2x500mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	18.0 VA	2 x 115 V	2 x 18 V	2	2 x 500 mA	68.0 mm	57.0 mm	27.1 mm		CE UL 506 cCSA
431	Manufacturers Part No. 45058 (MT45058) Myrra Print transformer MT450/39 UI39 24VA 2x115V 2x15V 2x800mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	31 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	24.0 VA	2 x 115 V	2 x 15 V	2	2 x 800 mA	68.0 mm	57.0 mm	30.8 mm		CE UL 506 cCSA
432	Manufacturers Part No. 45061 (MT45061) Myrra Print transformer MT450/39 UI39 30VA 2x115V 2x6V 2x2.500mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	186 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	30.0 VA	2 x 115 V	2 x 6 V	2	2 x 2.500 mA	68.0 mm	57.0 mm	34.8 mm		CE UL 506 cCSA
433	Manufacturers Part No. BVUI3010133 (BVUI3010133) Hahn Print transformer BVUI30 UI30 3VA 2x115V 2x12V 2x126mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order	(at least 20 or mul. of 20)	BVUI30	Hahn	Print transformer	UI30	3.0 VA	2 x 115 V	2 x 12 V	2	2 x 126 mA	53.8 mm	44.8 mm	18.2 mm		CE ENEC10 VDE cCSA cULus
434	Manufacturers Part No. BVUI3010167 (BVUI3010167) Hahn Print transformer BVUI30 UI30 3VA 2x115V 2x6V 2x250mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order	(at least 20 or mul. of 20)	BVUI30	Hahn	Print transformer	UI30	3.0 VA	2 x 115 V	2 x 6 V	2	2 x 250mA	53.8 mm	44.8 mm	18.2 mm		CE ENEC10 VDE cCSA cULus

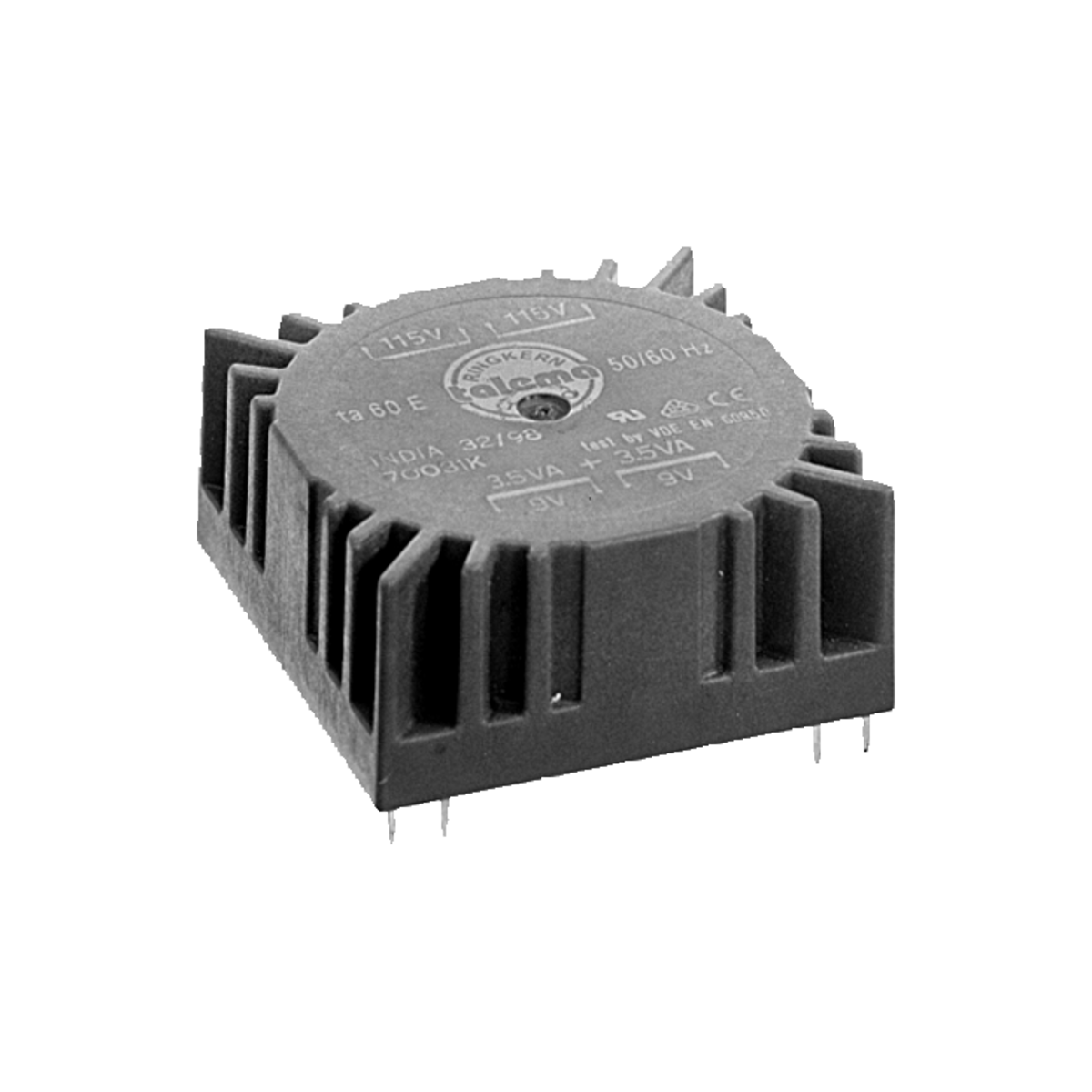

435	Manufacturers Part No. 70030K (RKPT7207) Talema Print transformer 700__K Ringkern 7VA 2x115V 2x7V 2x500mA not short circuit proof	Customer Part No. Customer Project No.	Talema	65 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	700__K	Talema	Print transformer	Ringkern	7.0 VA	2 x 115 V	2 x 7 V	2	2 x 500 mA	49.7 mm	49.7 mm	23.1 mm	T 60/E	BS415 UL 5085 VDE 0805
436	Manufacturers Part No. BVUI3020161 (BVUI3020161) Hahn Print transformer BVUI30 UI30 4VA 2x115V 2x9V 2x222mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	10 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock)	(at least 5 or mul. of 5)	BVUI30	Hahn	Print transformer	UI30	4.0 VA	2 x 115 V	2 x 9 V	2	2 x 222 mA	53.8 mm	44.8 mm	20.3 mm		CE ENEC10 VDE cCSA cULus
437	Manufacturers Part No. BVUI3030143 (BVUI3030143) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x18V 2x166mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	4 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 18 V	2	2 x 166 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
438	Manufacturers Part No. BVUI3030145 (BVUI3030145) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x12V 2x250mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	185 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 12 V	2	2 x 250 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
439	Manufacturers Part No. BVUI3030158 (BVUI3030158) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x9V 2x334mA not short circuit proof TOP	Customer Part No. Customer Project No.	Hahn	291 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 9 V	2	2 x 334 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
440	Manufacturers Part No. BVUI3030162 (BVUI3030162) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x6V 2x500mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	15 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 6 V	2	2 x 500 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
441	Manufacturers Part No. BVUI3030163 (BVUI3030163) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x15V 2x200mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	44 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 15 V	2	2 x 200 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
442	Manufacturers Part No. BVUI3030170 (BVUI3030170) Hahn Print transformer BVUI30 UI30 6VA 2x115V 2x21V 2x143mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order	(at least 20 or mul. of 20)	BVUI30	Hahn	Print transformer	UI30	6.0 VA	2 x 115 V	2 x 21 V	2	2 x 143 mA	53.8 mm	44.8 mm	23.2 mm		CE ENEC10 VDE cCSA cULus
443	Manufacturers Part No. BVUI3040129 (BVUI3040129) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x7,5V 2x667mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order	(at least 20 or mul. of 20)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 7,5 V	2	2 x 667 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
444	Manufacturers Part No. BVUI3040136 (BVUI3040136) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x15V 2x333mA not short circuit proof TOP	Customer Part No. Customer Project No.	Hahn	162 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 15 V	2	2 x 333 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
445	Manufacturers Part No. BVUI3040153 (BVUI3040153) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x9V 2x555mA not short circuit proof TOP	Customer Part No. Customer Project No.	Hahn	285 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 9 V	2	2 x 555 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
446	Manufacturers Part No. BVUI3040154 (BVUI3040154) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x12V 2x416mA not short circuit proof TOP	Customer Part No. Customer Project No.	Hahn	134 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 12 V	2	2 x 416 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
447	Manufacturers Part No. BVUI3040155 (BVUI3040155) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x6V 2x833mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	83 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 6 V	2	2 x 833 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
448	Manufacturers Part No. BVUI3040159 (BVUI3040159) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x18V 2x277mA not short circuit proof TOP	Customer Part No. Customer Project No.	Hahn	141 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 18 V	2	2 x 277 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
449	Manufacturers Part No. BVUI3040173 (BVUI3040173) Hahn Print transformer BVUI30 UI30 10VA 2x115V 2x21V 2x238mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	17 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock)	(at least 1 or mul. of 1)	BVUI30	Hahn	Print transformer	UI30	10.0 VA	2 x 115 V	2 x 21 V	2	2 x 238 mA	53.8 mm	44.8 mm	29.3 mm		CE ENEC10 VDE cCSA cULus
450	Manufacturers Part No. BVUI3050147 (BVUI3050147) Hahn Print transformer BVUI30 UI30 16VA 2x115V 2x6V 2x1.330mA not short circuit proof	Customer Part No. Customer Project No.	Hahn	0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order	(at least 20 or mul. of 20)	BVUI30	Hahn	Print transformer	UI30	16.0 VA	2 x 115 V	2 x 6 V	2	2 x 1.330 mA	53.8 mm	44.8 mm	37.9 mm		CE ENEC10 VDE cCSA cULus

‹ 1 ··· 15 16 17 18 19 ›
