PCB Transformers

(455 Results)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Type	Core	Performance	Primary Voltage	Secondary Voltage	Number of outputs	Secondary Current	Dimension: Length	Dimension: Width	Dimension: Height	Temperature Resistance Class	Approvals
376	Manufacturers Part No. BV302S06018 (BV302S06018) Zettler Print transformer BV302S EI30 1,8VA 230V 6V 300mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	37 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	6 V	1	300 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
377	Manufacturers Part No. BV302S12018 (BV302S12018) Zettler Print transformer BV302S EI30 1,8VA 230V 12V 150mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	31 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	12 V	1	150 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
378	Manufacturers Part No. BV302S24018 (BV302S24018) Zettler Print transformer BV302S EI30 1,8VA 230V 24V 75mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	140 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	24 V	1	75 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
379	Manufacturers Part No. BV302S15018 (BV302S15018) Zettler Print transformer BV302S EI30 1,8VA 230V 15V 120mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	120 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	15 V	1	120 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
380	Manufacturers Part No. BV302S12020 (BV302S12020) Zettler Print transformer BV302S EI30 2VA 230V 12V 167mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 29/2026 (150 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	12 V	1	167 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
381	Manufacturers Part No. BV382S06032 (BV382S06032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 6V 533mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	112 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	6 V	1	533 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
382	Manufacturers Part No. BV382S15032 (BV382S15032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 15V 213mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	26 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	15 V	1	213 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
383	Manufacturers Part No. BV382S24032 (BV382S24032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 24V 133mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	100 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	24 V	1	133 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
384	Manufacturers Part No. BV382S09032 (BV382S09032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 9V 356mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 29/2026 (120 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	9 V	1	356 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
385	Manufacturers Part No. BV382S12032 (BV382S12032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 12V 267mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	68 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	12 V	1	267 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
386	Manufacturers Part No. BV382S18032 (BV382S18032) Zettler Print transformer BV382S EI38/13,6 3,2VA 230V 18V 178mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	120 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV382S	Zettler	Print transformer	EI38/13,6	3.2 VA	230 V	18 V	1	178 mA	41.8 mm	35.5 mm	27.3 mm	T 70/B	CE VDE
387	Manufacturers Part No. BV302S15028 (BV302S15028) Zettler Print transformer BV302S EI30 2,8VA 230V 15V 187mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	178 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.8 VA	230 V	15 V	1	187 mA	32.8 mm	27.8 mm	29.8 mm	Ta 40/B	CE VDE cULus
388	Manufacturers Part No. BV302S18006 (BV302S18006) Zettler Print transformer BV302S EI30 0,6VA 230V 18V 33mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	245 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	0.6 VA	230 V	18 V	1	33 mA	32.8 mm	27.8 mm	16.0 mm	T 70/B	CE VDE cULus
389	Manufacturers Part No. BV302S09010 (BV302S09010) Zettler Print transformer BV302S EI30 1VA 230V 9V 111mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	210 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.0 VA	230 V	9 V	1	111 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
390	Manufacturers Part No. BV302S24010 (BV302S24010) Zettler Print transformer BV302S EI30 1VA 230V 24V 42mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	176 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.0 VA	230 V	24 V	1	42 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
391	Manufacturers Part No. BV302S15012 (BV302S15012) Zettler Print transformer BV302S EI30/10,5 1,2VA 230V 15V 80mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	220 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30/10,5	1.2 VA	230 V	15 V	1	80 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
392	Manufacturers Part No. BV302S09015 (BV302S09015) Zettler Print transformer BV302S EI30 1,5VA 230V 9V 167mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	170 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	9 V	1	167 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
393	Manufacturers Part No. BV302S24015 (BV302S24015) Zettler Print transformer BV302S EI30 1,5VA 230V 24V 63mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	1 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	24 V	1	63 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
394	Manufacturers Part No. BV302S18018 (BV302S18018) Zettler Print transformer BV302S EI30 1,8VA 230V 18V 100mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	82 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	18 V	1	100 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus

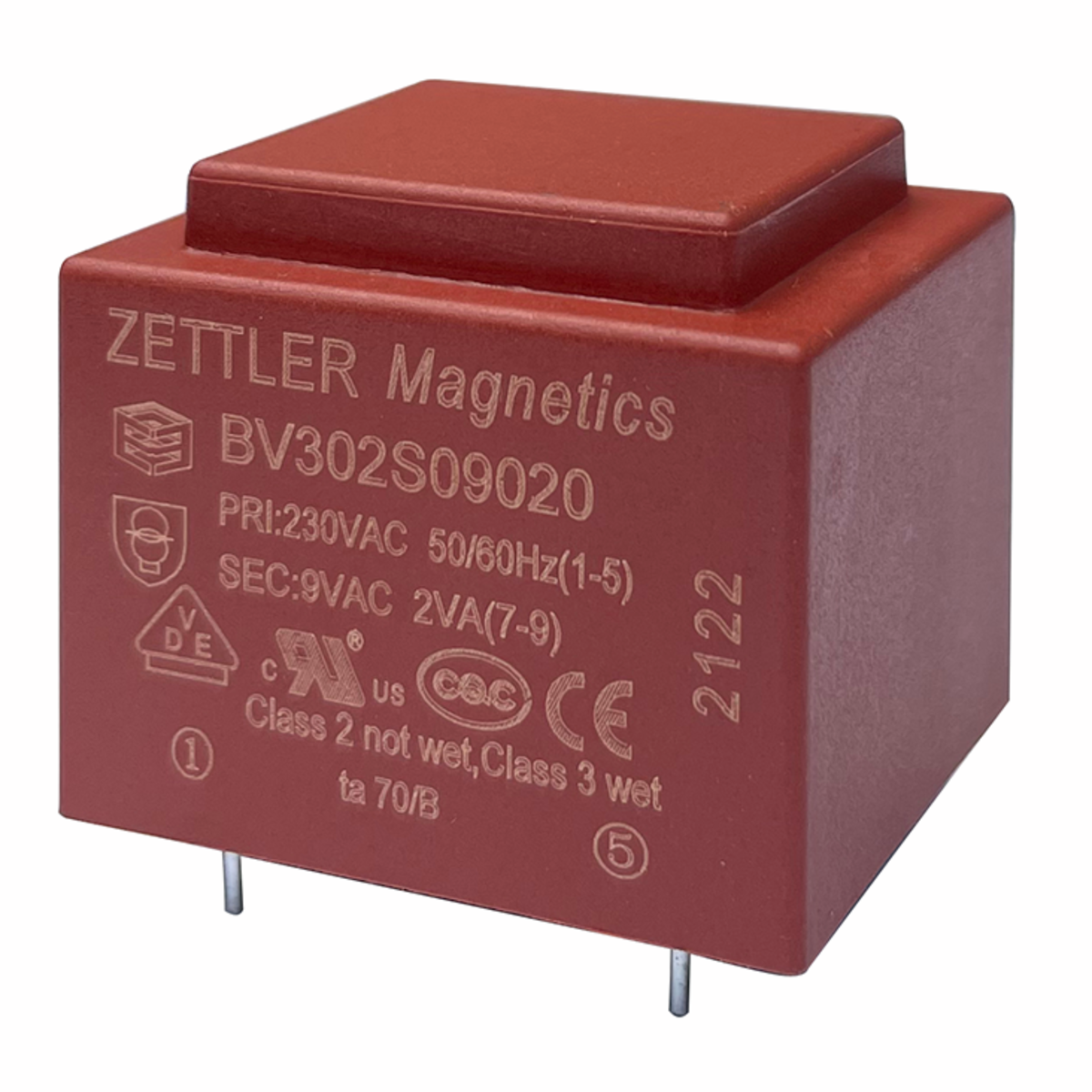

395	Manufacturers Part No. BV302S09020 (BV302S09020) Zettler Print transformer BV302S EI30 2VA 230V 9V 222mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	61 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	9 V	1	222 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
396	Manufacturers Part No. BV302S15006 (BV302S15006) Zettler Print transformer BV302S EI30 0,6VA 230V 15V 40mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	297 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	0.6 VA	230 V	15 V	1	40 mA	32.8 mm	27.8 mm	16.0 mm	T 70/B	CE VDE cULus
397	Manufacturers Part No. BV302S06010 (BV302S06010) Zettler Print transformer BV302S EI30 1VA 230V 6V 167mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	55 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.0 VA	230 V	6 V	1	167 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
398	Manufacturers Part No. BV302S15010 (BV302S15010) Zettler Print transformer BV302S EI30 1VA 230V 15V 67mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 19/2026 (112 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.0 VA	230 V	15 V	1	67 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
399	Manufacturers Part No. BV302S06012 (BV302S06012) Zettler Print transformer BV302S EI30/10,5 1,2VA 230V 6V 200mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	200 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30/10,5	1.2 VA	230 V	6 V	1	200 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
400	Manufacturers Part No. BV302S24012 (BV302S24012) Zettler Print transformer BV302S EI30/10,5 1,2VA 230V 24V 50mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	222 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30/10,5	1.2 VA	230 V	24 V	1	50 mA	32.8 mm	27.8 mm	22.3 mm	T 70/B	CE VDE cULus
