PCB Transformers

(455 Results)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Type	Core	Performance	Primary Voltage	Secondary Voltage	Number of outputs	Secondary Current	Dimension: Length	Dimension: Width	Dimension: Height	Temperature Resistance Class	Approvals

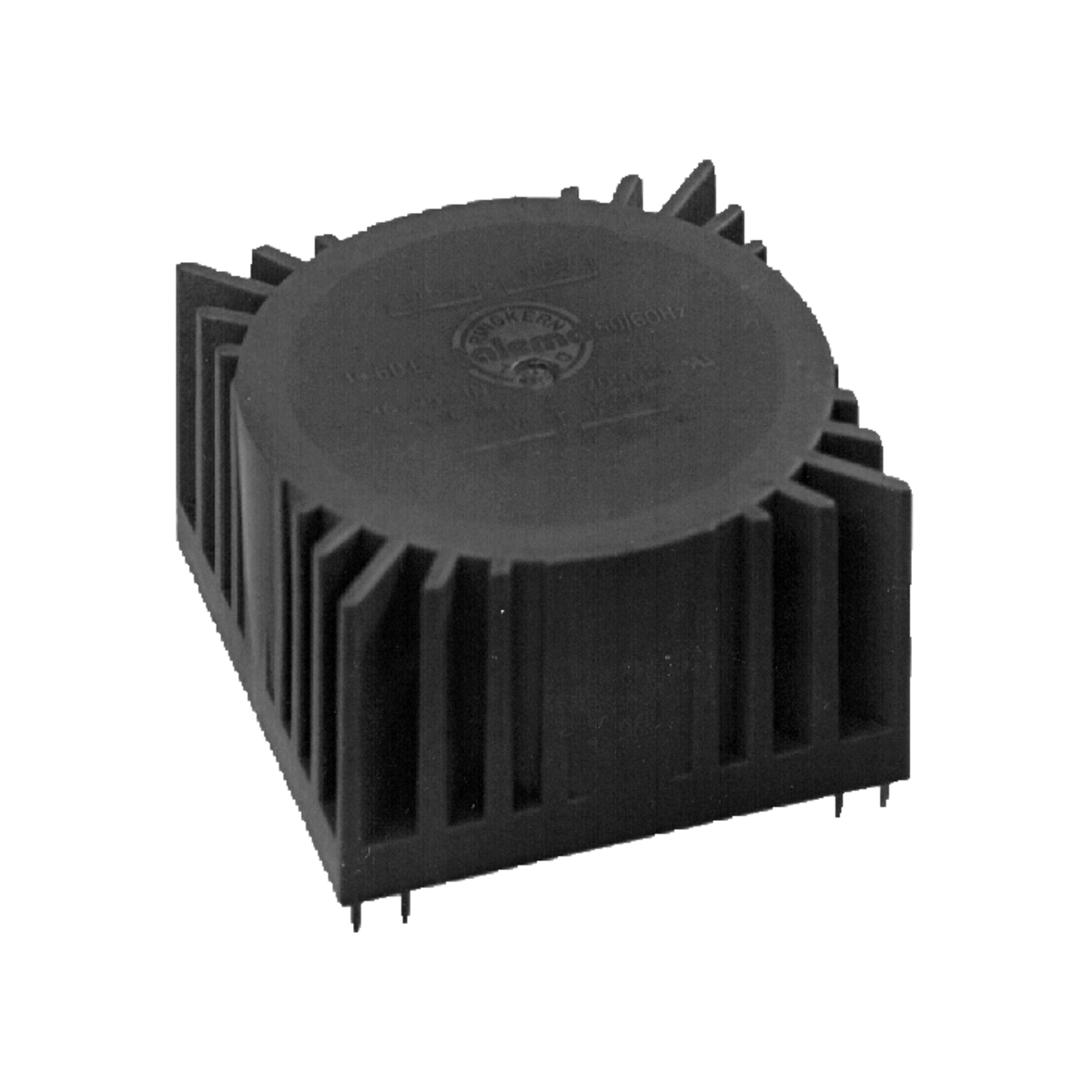

251	Manufacturers Part No. 70065K (RKPT25222) Talema Print transformer 700__K Ringkern 25VA 2x115V 2x22V 2x568mA not short circuit proof	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 32/2026 (47 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	700__K	Talema	Print transformer	Ringkern	25.0 VA	2 x 115 V	2 x 22 V	2	2 x 568 mA	60.0 mm	60.0 mm	37.5 mm	T 60/E	BS415 UL 5085 VDE 0805
252	Manufacturers Part No. 45064 (MT45064) Myrra Print transformer MT450/39 UI39 30VA 2x115V 2x15V 2x1.000mA not short circuit proof % TOP	Customer Part No. Customer Project No.	Myrra	59 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	30.0 VA	2 x 115 V	2 x 15 V	2	2 x 1.000 mA	68.0 mm	57.0 mm	34.8 mm		CE UL 506 cCSA
253	Manufacturers Part No. 45066 (MT45066) Myrra Print transformer MT450/39 UI39 30VA 2x115V 2x24V 2x625mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	11 Pcs. Next Stock Receipt Week 26/2026 (72 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	30.0 VA	2 x 115 V	2 x 24 V	2	2 x 625 mA	68.0 mm	57.0 mm	34.8 mm		CE UL 506 cCSA
254	Manufacturers Part No. 45038 (MT45038) Myrra Print transformer MT450/39 UI39 10VA 2x115V 2x9V 2x555mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	10.0 VA	2 x 115 V	2 x 9 V	2	2 x 555 mA	68.0 mm	57.0 mm	21.7 mm		CE UL 506 cCSA
255	Manufacturers Part No. 45041 (MT45041) Myrra Print transformer MT450/39 UI39 10VA 2x115V 2x18V 2x277mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	10.0 VA	2 x 115 V	2 x 18 V	2	2 x 277 mA	68.0 mm	57.0 mm	21.7 mm		CE UL 506 cCSA
256	Manufacturers Part No. 45042 (MT45042) Myrra Print transformer MT450/39 UI39 10VA 2x115V 2x24V 2x208mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	10.0 VA	2 x 115 V	2 x 24 V	2	2 x 208 mA	68.0 mm	57.0 mm	21.7 mm		CE UL 506 cCSA
257	Manufacturers Part No. 45044 (MT45044) Myrra Print transformer MT450/39 UI39 14VA 2x115V 2x9V 2x778mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Next Stock Receipt Week 26/2026 (29 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	14.0 VA	2 x 115 V	2 x 9 V	2	2 x 778 mA	68.0 mm	57.0 mm	23.8 mm		CE UL 506 cCSA
258	Manufacturers Part No. 45046 (MT45046) Myrra Print transformer MT450/39 UI39 14VA 2x115V 2x15V 2x467mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 6 or mul. of 6)	MT450/39	Myrra	Print transformer	UI39	14.0 VA	2 x 115 V	2 x 15 V	2	2 x 467 mA	68.0 mm	57.0 mm	23.8 mm		CE UL 506 cCSA
259	Manufacturers Part No. 45049 (MT45049) Myrra Print transformer MT450/39 UI39 18VA 2x115V 2x6V 2x1.500mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	18.0 VA	2 x 115 V	2 x 6 V	2	2 x 1.500 mA	68.0 mm	57.0 mm	27.1 mm		CE UL 506 cCSA
260	Manufacturers Part No. 45051 (MT45051) Myrra Print transformer MT450/39 UI39 18VA 2x115V 2x12V 2x750mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	17 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	18.0 VA	2 x 115 V	2 x 12 V	2	2 x 750 mA	68.0 mm	57.0 mm	27.1 mm		CE UL 506 cCSA
261	Manufacturers Part No. 45052 (MT45052) Myrra Print transformer MT450/39 UI39 18VA 2x115V 2x15V 2x600mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	126 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	18.0 VA	2 x 115 V	2 x 15 V	2	2 x 600 mA	68.0 mm	57.0 mm	27.1 mm		CE UL 506 cCSA
262	Manufacturers Part No. 45054 (MT45054) Myrra Print transformer MT450/39 UI39 18VA 2x115V 2x24V 2x375mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 9 or mul. of 9)	MT450/39	Myrra	Print transformer	UI39	18.0 VA	2 x 115 V	2 x 24 V	2	2 x 375 mA	68.0 mm	57.0 mm	27.1 mm		CE UL 506 cCSA
263	Manufacturers Part No. 45056 (MT45056) Myrra Print transformer MT450/39 UI39 24VA 2x115V 2x9V 2x1.333mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order	(at least 18 or mul. of 18)	MT450/39	Myrra	Print transformer	UI39	24.0 VA	2 x 115 V	2 x 9 V	2	2 x 1.333 mA	68.0 mm	57.0 mm	30.8 mm		CE UL 506 cCSA
264	Manufacturers Part No. 45057 (MT45057) Myrra Print transformer MT450/39 UI39 24VA 2x115V 2x12V 2x1.000mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	78 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	24.0 VA	2 x 115 V	2 x 12 V	2	2 x 1.000 mA	68.0 mm	57.0 mm	30.8 mm		CE UL 506 cCSA
265	Manufacturers Part No. 45060 (MT45060) Myrra Print transformer MT450/39 UI39 24VA 2x115V 2x24V 2x500mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	7 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	24.0 VA	2 x 115 V	2 x 24 V	2	2 x 500 mA	68.0 mm	57.0 mm	30.8 mm		CE UL 506 cCSA
266	Manufacturers Part No. 45063 (MT45063) Myrra Print transformer MT450/39 UI39 30VA 2x115V 2x12V 2x1.250mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Next Stock Receipt Week 26/2026 (162 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	MT450/39	Myrra	Print transformer	UI39	30.0 VA	2 x 115 V	2 x 12 V	2	2 x 1.250 mA	68.0 mm	57.0 mm	34.8 mm		CE UL 506 cCSA
267	Manufacturers Part No. BVEI3042047 (BVEI3042047) Hahn Print transformer BVEI304 EI30 2,6VA 230V 2x12V 2x108mA absolutely short circuit proof	Customer Part No. Customer Project No.	Hahn	41 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock)	(at least 5 or mul. of 5)	BVEI304	Hahn	Print transformer	EI30	2.6 VA	230 V	2 x 12 V	2	2 x 108 mA	33.2 mm	28.2 mm	27.4 mm	Ta 40/F	ENEC10 UL VDE cCSA
268	Manufacturers Part No. 44308 (MT809-2) Myrra Print transformer MT8 EI54 16VA 230V 2x9V 2x889mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	250 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT8	Myrra	Print transformer	EI54	16.0 VA	230 V	2 x 9 V	2	2 x 889 mA	56.9 mm	47.8 mm	39.3 mm	T 50/B	ENEC10 UL VDE cCSA
269	Manufacturers Part No. 44309 (MT812-2) Myrra Print transformer MT8 EI54 16VA 230V 2x12V 2x667mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	0 Pcs. Next Stock Receipt Week 20/2026 (396 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	MT8	Myrra	Print transformer	EI54	16.0 VA	230 V	2 x 12 V	2	2 x 667 mA	56.9 mm	47.8 mm	39.3 mm	T 50/B	ENEC10 UL VDE cCSA
270	Manufacturers Part No. 44305 (MT818-1) Myrra Print transformer MT8 EI54 16VA 230V 18V 889mA not short circuit proof	Customer Part No. Customer Project No.	Myrra	933 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	MT8	Myrra	Print transformer	EI54	16.0 VA	230 V	18 V	1	889 mA	56.9 mm	47.8 mm	39.3 mm	T 50/B	ENEC10 UL VDE cCSA
271	Manufacturers Part No. 44702 (MT44702) Myrra Print transformer 447_ EI30 2,8VA 230V 24V 117mA absolutely short circuit proof	Customer Part No. Customer Project No.	Myrra	73 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	447_	Myrra	Print transformer	EI30	2.8 VA	230 V	24 V	1	117 mA	32.5 mm	27.5 mm	30.0 mm	T 70/B	ENEC10 UL VDE cCSA
272	Manufacturers Part No. 44703 (MT44703) Myrra Print transformer 447_ EI30 2,8VA 230V 2x6V 2x233mA absolutely short circuit proof	Customer Part No. Customer Project No.	Myrra	6 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	447_	Myrra	Print transformer	EI30	2.8 VA	230 V	2 x 6 V	2	2 x 233 mA	32.5 mm	27.5 mm	30.0 mm	T 70/B	ENEC10 UL VDE cCSA
273	Manufacturers Part No. 44706 (MT44706) Myrra Print transformer 447_ EI30 2,8VA 230V 2x15V 2x93mA absolutely short circuit proof	Customer Part No. Customer Project No.	Myrra	90 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	447_	Myrra	Print transformer	EI30	2.8 VA	230 V	2 x 15 V	2	2 x 93 mA	32.5 mm	27.5 mm	30.0 mm	T 70/B	ENEC10 UL VDE cCSA
274	Manufacturers Part No. 44123 (MT44123) Myrra Print transformer 441_ EI30 2VA 230V 12V 167mA absolutely short circuit proof	Customer Part No. Customer Project No.	Myrra	1.208 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	441_	Myrra	Print transformer	EI30	2.0 VA	230 V	12 V	1	167 mA	32.5 mm	27.5 mm	27.3 mm	T 70/B	ENEC10 UL VDE cCSA
275	Manufacturers Part No. 44157 (MT44157) Myrra Print transformer 441_ EI30 2,3VA 230V 6V 383mA absolutely short circuit proof	Customer Part No. Customer Project No.	Myrra	225 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock)	(at least 1 or mul. of 1)	441_	Myrra	Print transformer	EI30	2.3 VA	230 V	6 V	1	383 mA	32.5 mm	27.5 mm	30.0 mm	T 70/B	ENEC10 UL VDE cCSA

‹ 1 ··· 9 10 11 12 13 ··· 19 ›
