PCB Transformers - page 8

(463 Results)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Type	Core	Performance	Primary Voltage	Secondary Voltage	Number of outputs	Secondary Current	Dimension: Length	Dimension: Width	Dimension: Height	Temperature Resistance Class	Approvals
176	Manufacturers Part No. BV302S12015 (BV302S12015) Zettler Print transformer BV302S EI30 1,5VA 230V 12V 125mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	44 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	12 V	1	125 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
177	Manufacturers Part No. BV302S15015 (BV302S15015) Zettler Print transformer BV302S EI30 1,5VA 230V 15V 100mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 50/2026 (98 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	15 V	1	100 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
178	Manufacturers Part No. BV302S18015 (BV302S18015) Zettler Print transformer BV302S EI30 1,5VA 230V 18V 83mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	149 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	18 V	1	83 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
179	Manufacturers Part No. BV302S24015 (BV302S24015) Zettler Print transformer BV302S EI30 1,5VA 230V 24V 63mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	1 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.5 VA	230 V	24 V	1	63 mA	32.8 mm	27.8 mm	24.4 mm	T 70/B	CE VDE cULus
180	Manufacturers Part No. BV302S06018 (BV302S06018) Zettler Print transformer BV302S EI30 1,8VA 230V 6V 300mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	36 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	6 V	1	300 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
181	Manufacturers Part No. BV302S09018 (BV302S09018) Zettler Print transformer BV302S EI30 1,8VA 230V 9V 200mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	45 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	9 V	1	200 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus

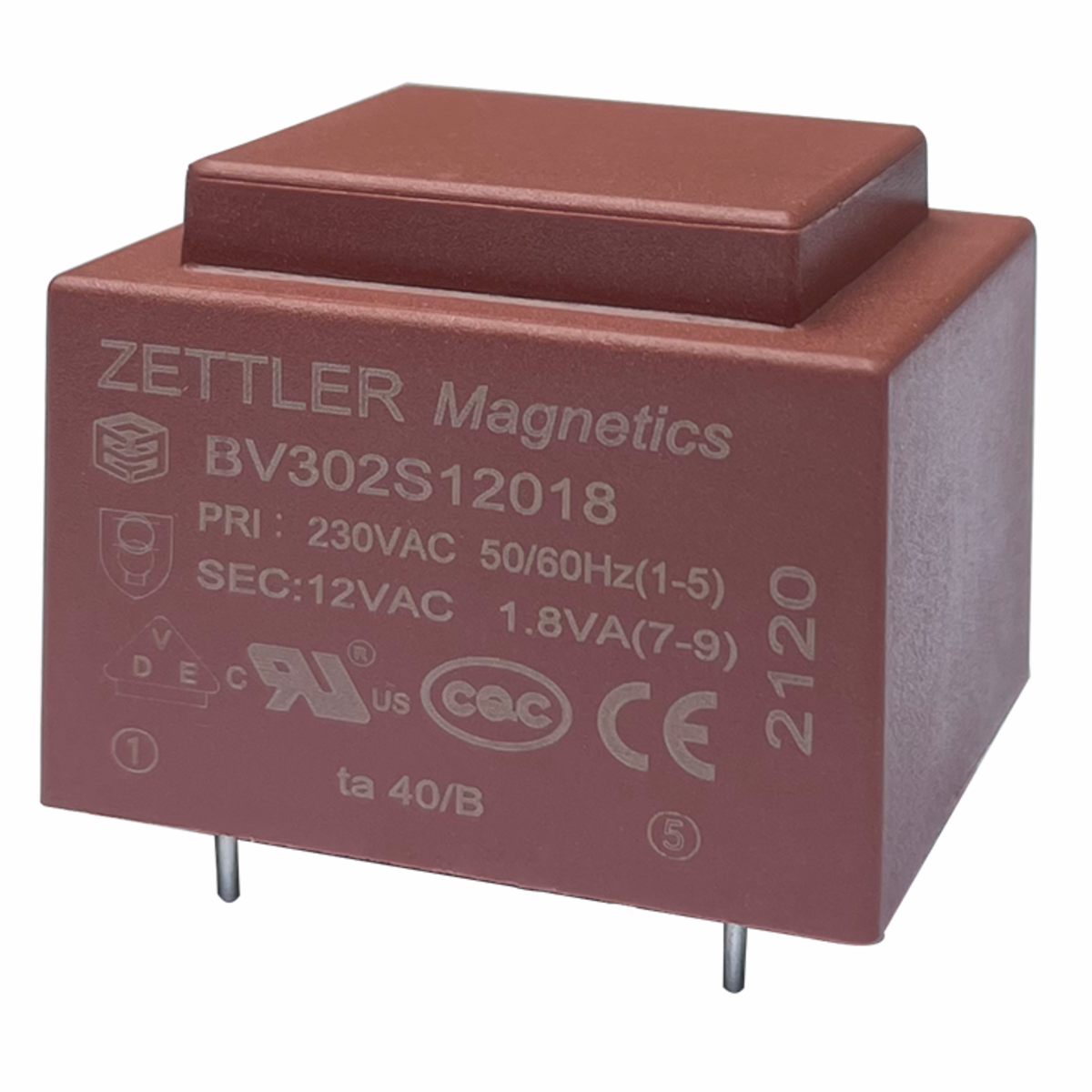

182	Manufacturers Part No. BV302S12018 (BV302S12018) Zettler Print transformer BV302S EI30 1,8VA 230V 12V 150mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	31 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	12 V	1	150 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
183	Manufacturers Part No. BV302S15018 (BV302S15018) Zettler Print transformer BV302S EI30 1,8VA 230V 15V 120mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 30/2026 (70 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	15 V	1	120 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
184	Manufacturers Part No. BV302S18018 (BV302S18018) Zettler Print transformer BV302S EI30 1,8VA 230V 18V 100mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	62 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	18 V	1	100 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
185	Manufacturers Part No. BV302S24018 (BV302S24018) Zettler Print transformer BV302S EI30 1,8VA 230V 24V 75mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	140 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	1.8 VA	230 V	24 V	1	75 mA	32.8 mm	27.8 mm	24.4 mm	Ta 40/B	CE VDE cULus
186	Manufacturers Part No. BV302S06020 (BV302S06020) Zettler Print transformer BV302S EI30 2VA 230V 6V 333mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	198 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	6 V	1	333 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus

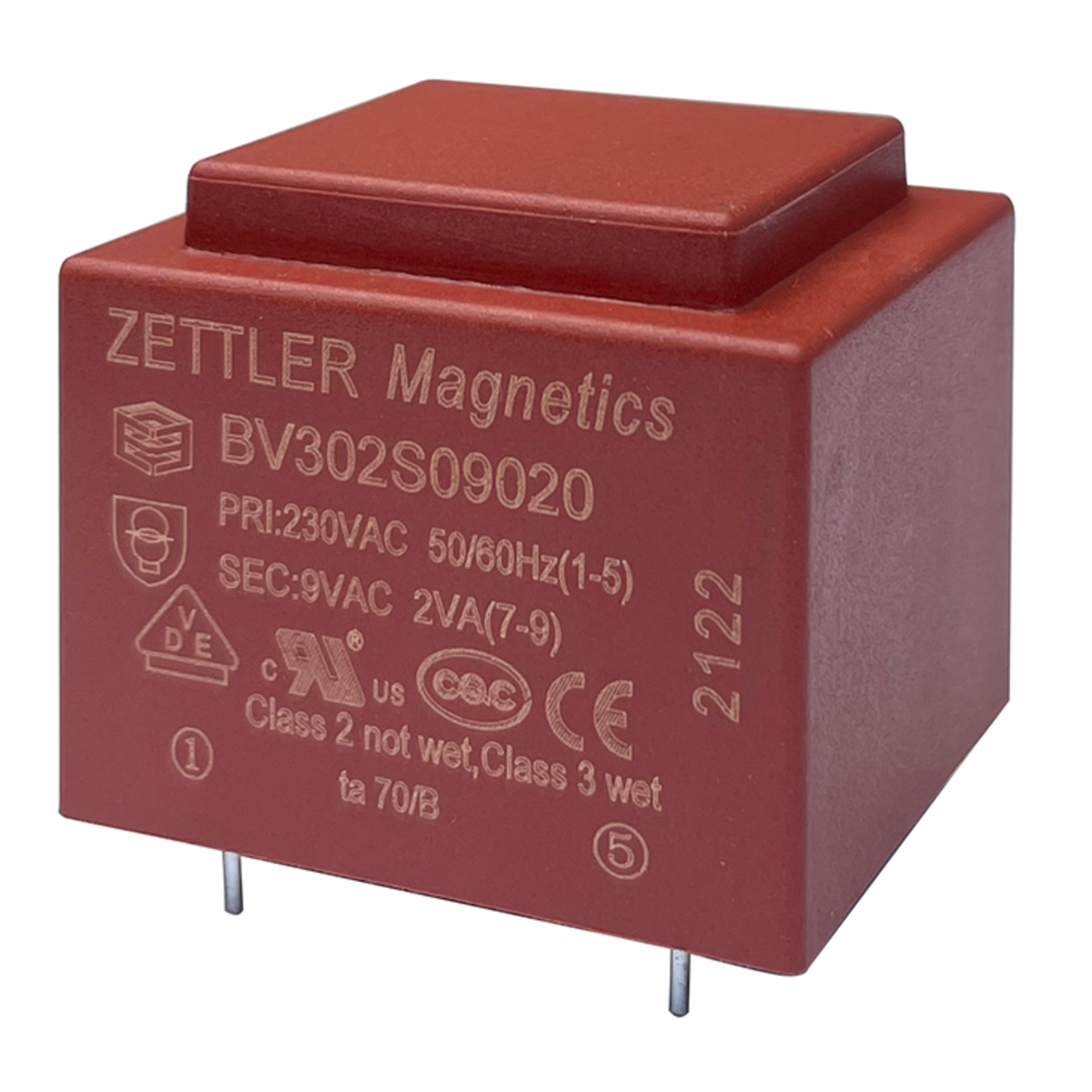

187	Manufacturers Part No. BV302S09020 (BV302S09020) Zettler Print transformer BV302S EI30 2VA 230V 9V 222mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	56 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	9 V	1	222 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
188	Manufacturers Part No. BV302S12020 (BV302S12020) Zettler Print transformer BV302S EI30 2VA 230V 12V 167mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	50 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	12 V	1	167 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
189	Manufacturers Part No. BV302S15020 (BV302S15020) Zettler Print transformer BV302S EI30 2VA 230V 15V 133mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	15 V	1	133 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
190	Manufacturers Part No. BV302S18020 (BV302S18020) Zettler Print transformer BV302S EI30 2VA 230V 18V 111mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	114 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	18 V	1	111 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
191	Manufacturers Part No. BV302S24020 (BV302S24020) Zettler Print transformer BV302S EI30 2VA 230V 24V 83mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	127 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.0 VA	230 V	24 V	1	83 mA	32.8 mm	27.8 mm	27.4 mm	T 70/B	CE VDE cULus
192	Manufacturers Part No. BV302S06023 (BV302S06023) Zettler Print transformer BV302S EI30 2,3VA 230V 6V 383mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	149 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	6 V	1	383 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
193	Manufacturers Part No. BV302S09023 (BV302S09023) Zettler Print transformer BV302S EI30 2,3VA 230V 9V 256mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 40/2026 (136 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	9 V	1	256 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
194	Manufacturers Part No. BV302S12023 (BV302S12023) Zettler Print transformer BV302S EI30 2,3VA 230V 12V 192mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	60 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	12 V	1	192 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
195	Manufacturers Part No. BV302S15023 (BV302S15023) Zettler Print transformer BV302S EI30 2,3VA 230V 15V 153mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	137 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	15 V	1	153 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
196	Manufacturers Part No. BV302S18023 (BV302S18023) Zettler Print transformer BV302S EI30 2,3VA 230V 18V 128mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	89 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	18 V	1	128 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
197	Manufacturers Part No. BV302S24023 (BV302S24023) Zettler Print transformer BV302S EI30 2,3VA 230V 24V 96mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	46 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.3 VA	230 V	24 V	1	96 mA	32.8 mm	27.8 mm	29.8 mm	T 70/B	CE VDE cULus
198	Manufacturers Part No. BV302S06028 (BV302S06028) Zettler Print transformer BV302S EI30 2,8VA 230V 6V 467mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	208 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.8 VA	230 V	6 V	1	467 mA	32.8 mm	27.8 mm	29.8 mm	Ta 40/B	CE VDE cULus
199	Manufacturers Part No. BV302S09028 (BV302S09028) Zettler Print transformer BV302S EI30 2,8VA 230V 9V 311mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	0 Pcs. Next Stock Receipt Week 50/2026 (150 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.8 VA	230 V	9 V	1	311 mA	32.8 mm	27.8 mm	29.8 mm	Ta 40/B	CE VDE cULus
200	Manufacturers Part No. BV302S12028 (BV302S12028) Zettler Print transformer BV302S EI30 2,8VA 230V 12V 233mA short-circuit proof	Customer Part No. Customer Project No.	Zettler	29 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	BV302S	Zettler	Print transformer	EI30	2.8 VA	230 V	12 V	1	233 mA	32.8 mm	27.8 mm	29.8 mm	Ta 40/B	CE VDE cULus

‹ 1 ··· 6 7 8 9 10 ··· 19 ›
