Current Transformer

(63 Results)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Winding ratio	Input Current, min.	Input Current, max.	Tolerance	Load resistance	Operating Temperature Min.	Operating Temperature Max.
01	Manufacturers Part No. ACST-262-15 (ACST-262-15) Zettler Current transformer ACST 1to1500 0,4A 30A 5% 50-200Hz 100Ohm Print assembly	Customer Part No. Customer Project No.	Zettler	901 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock)	(at least 1 or mul. of 1)	ACST	Zettler	1to1500	0.4 A	30.0 A	5.0 %	100.0 Ohm	-40.0 °C	85.0 °C
02	Manufacturers Part No. ACST-262-18 (ACST-262-18) Zettler Current transformer ACST 1to1500 0,4A 30A 5% 50-200Hz 100Ohm Print assembly	Customer Part No. Customer Project No.	Zettler	1.052 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ACST	Zettler	1to1500	0.4 A	30.0 A	5.0 %	100.0 Ohm	-40.0 °C	85.0 °C
03	Manufacturers Part No. ACST-265-10 (ACST-265-10) Zettler Current transformer ACST 1to1000 0,4A 36A 5% 50-60Hz 60Ohm Print assembly	Customer Part No. Customer Project No.	Zettler	475 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ACST	Zettler	1to1000	0.4 A	36.0 A	5.0 %	60.0 Ohm	-40.0 °C	85.0 °C
04	Manufacturers Part No. XZM-CT50A01-SF (XZM-CT50A01-SF) Zettler Current transformer XZM-CT 1to1000 0,5A 50A 0,3% 50-60Hz 50Ohm Print assembly	Customer Part No. Customer Project No.	Zettler	0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order	(at least 1260 or mul. of 60)	XZM-CT	Zettler	1to1000	0.5 A	50.0 A	0.3 %	50.0 Ohm	-40.0 °C	85.0 °C
05	Manufacturers Part No. AS-100 (AS100) Talema Current transformer AS 1to50 15A 20.000-200.000Hz Print assembly, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 47/2026 (975 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AS	Talema	1to50		15.0 A			-40.0 °C	120.0 °C
06	Manufacturers Part No. AX-0750 (AX0750) Talema Current transformer AX 1to750 7,5A 50-60Hz 100Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	275 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	AX	Talema	1to750		7.5 A		100.0 Ohm	-40.0 °C	120.0 °C
07	Manufacturers Part No. AS-101 (AS101) Talema Current transformer AS 1to100 15A 20.000-200.000Hz Print assembly, cast	Customer Part No. Customer Project No.	Talema	1.475 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	AS	Talema	1to100		15.0 A			-40.0 °C	120.0 °C
08	Manufacturers Part No. AS-102 (AS102) Talema Current transformer AS 1to200 15A 20.000-200.000Hz Print assembly, cast	Customer Part No. Customer Project No.	Talema	955 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	AS	Talema	1to200		15.0 A			-40.0 °C	120.0 °C
09	Manufacturers Part No. AS-103 (AS103) Talema Current transformer AS 1to300 15A 20.000-200.000Hz Print assembly, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 47/2026 (775 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AS	Talema	1to300		15.0 A			-40.0 °C	120.0 °C
10	Manufacturers Part No. AS-104 (AS104) Talema Current transformer AS 1to500A 15A 20.000-200.000Hz Print assembly, cast	Customer Part No. Customer Project No.	Talema	110 Pcs. Next Stock Receipt Week 01/2027 (500 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AS	Talema	1to500A		15.0 A			-40.0 °C	120.0 °C

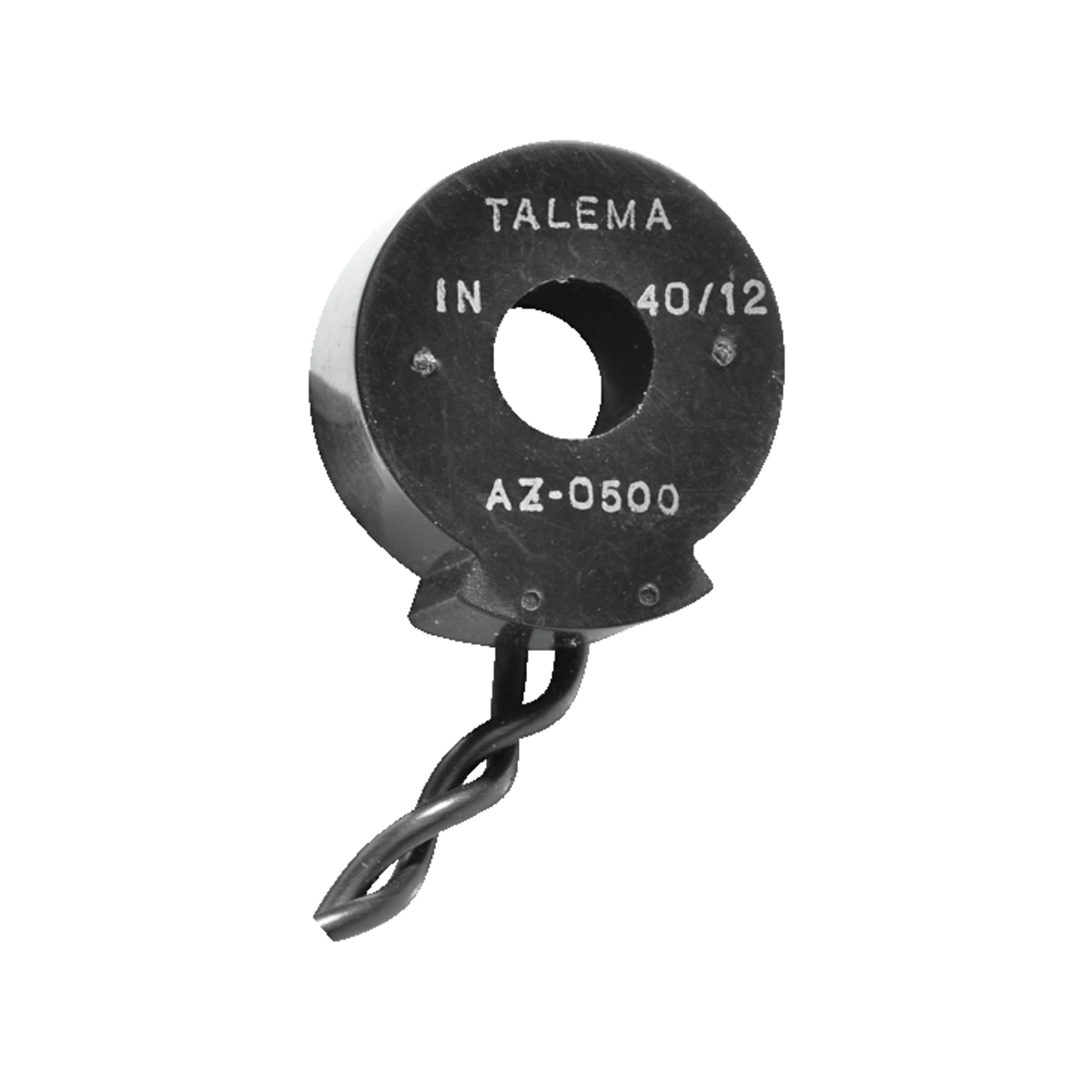

11	Manufacturers Part No. AZ-0500 (AZ0500) Talema Current transformer AZ 1to500 25A 50-60Hz 33Ohm Wired, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 560 or mul. of 560)	AZ	Talema	1to500		25.0 A		33.0 Ohm	-40.0 °C	85.0 °C
12	Manufacturers Part No. AX-1500 (AX1500) Talema Current transformer AX 1to1500 15A 50-60Hz 100Ohm Print assembly, cast TOP	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 01/2027 (300 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AX	Talema	1to1500		15.0 A		100.0 Ohm	-40.0 °C	120.0 °C

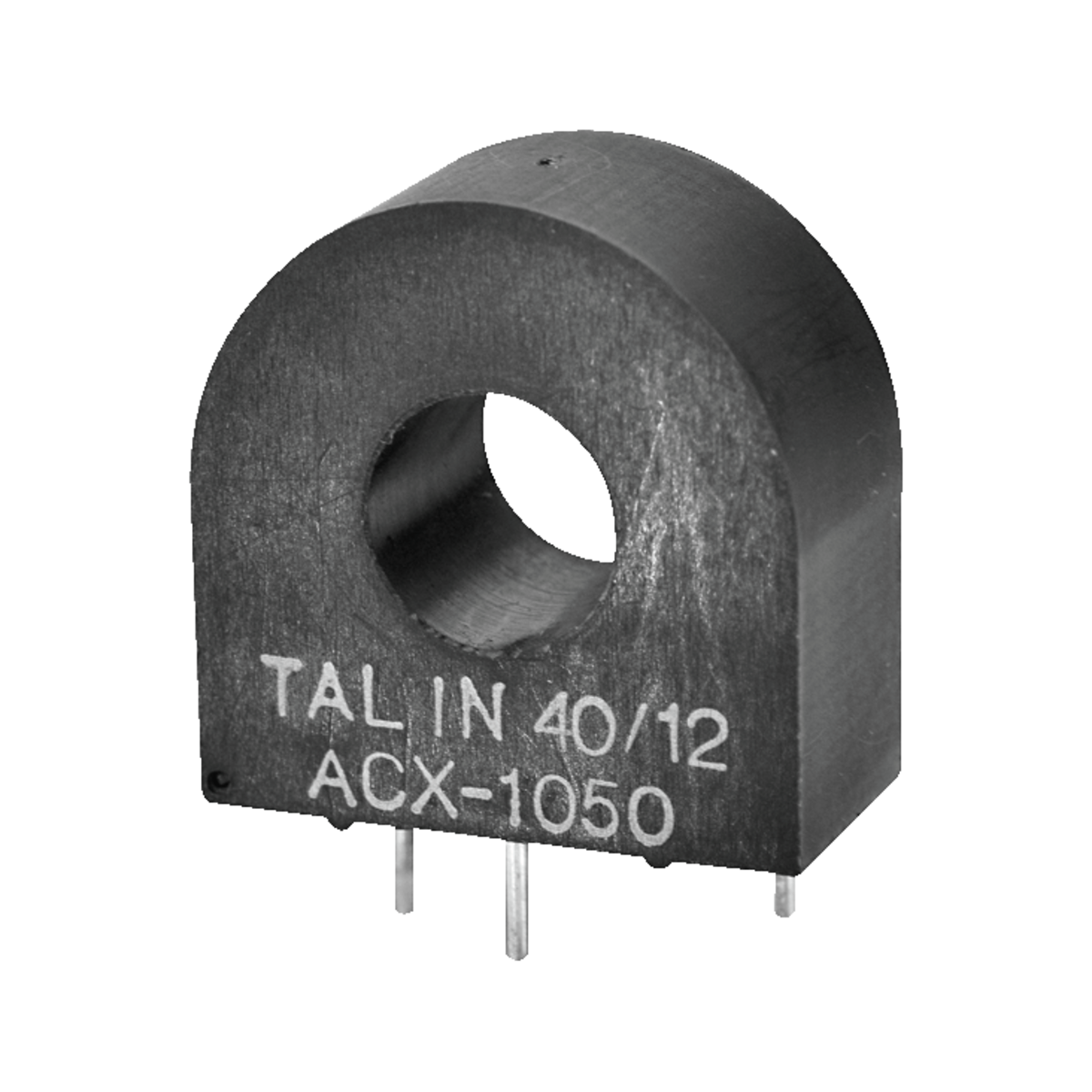

13	Manufacturers Part No. ACX-1050 (ACX1050) Talema Current transformer ACX 1to2500 50A 1% 50-60Hz 33Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 1 or mul. of 1)	ACX	Talema	1to2500		50.0 A	1.0 %	33.0 Ohm	-40.0 °C	85.0 °C
14	Manufacturers Part No. AZ-0750 (AZ0750) Talema Current transformer AZ 1to750 40A 50-60Hz 33Ohm Wired, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order	(at least 200 or mul. of 200)	AZ	Talema	1to750		40.0 A		33.0 Ohm	-40.0 °C	85.0 °C
15	Manufacturers Part No. AX-0500 (AX0500) Talema Current transformer AX 1to500 5A 50-60Hz 100Ohm Print assembly, cast TOP	Customer Part No. Customer Project No.	Talema	0 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	AX	Talema	1to500		5.0 A		100.0 Ohm	-40.0 °C	120.0 °C
16	Manufacturers Part No. AZ-1000 (AZ1000) Talema Current transformer AZ 1to1000 50A 50-60Hz 33Ohm Wired, cast	Customer Part No. Customer Project No.	Talema	125 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	AZ	Talema	1to1000		50.0 A		33.0 Ohm	-40.0 °C	85.0 °C
17	Manufacturers Part No. ACX-1150 (ACX1150) Talema Current transformer ACX 1to2500 150A 1% 50-60Hz 33Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	235 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	ACX	Talema	1to2500		150.0 A	1.0 %	33.0 Ohm	-40.0 °C	85.0 °C
18	Manufacturers Part No. ACX-1100 (ACX1100) Talema Current transformer ACX 1to2500 100A 1% 50-60Hz 33Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	210 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	ACX	Talema	1to2500		100.0 A	1.0 %	33.0 Ohm	-40.0 °C	85.0 °C

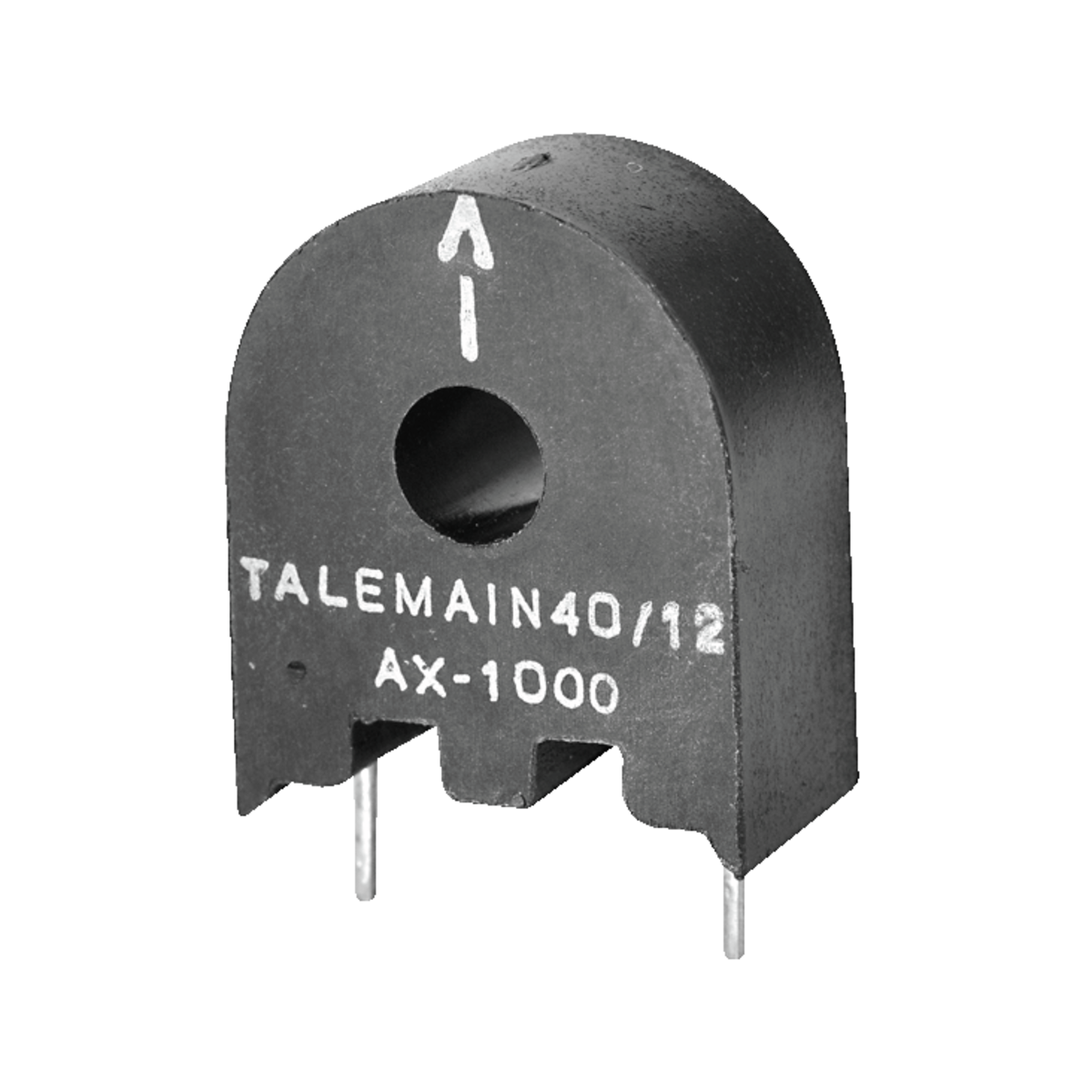

19	Manufacturers Part No. AX-1000 (AX1000) Talema Current transformer AX 1to1000 10A 50-60Hz 100Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 49/2026 (495 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AX	Talema	1to1000		10.0 A		100.0 Ohm	-40.0 °C	120.0 °C

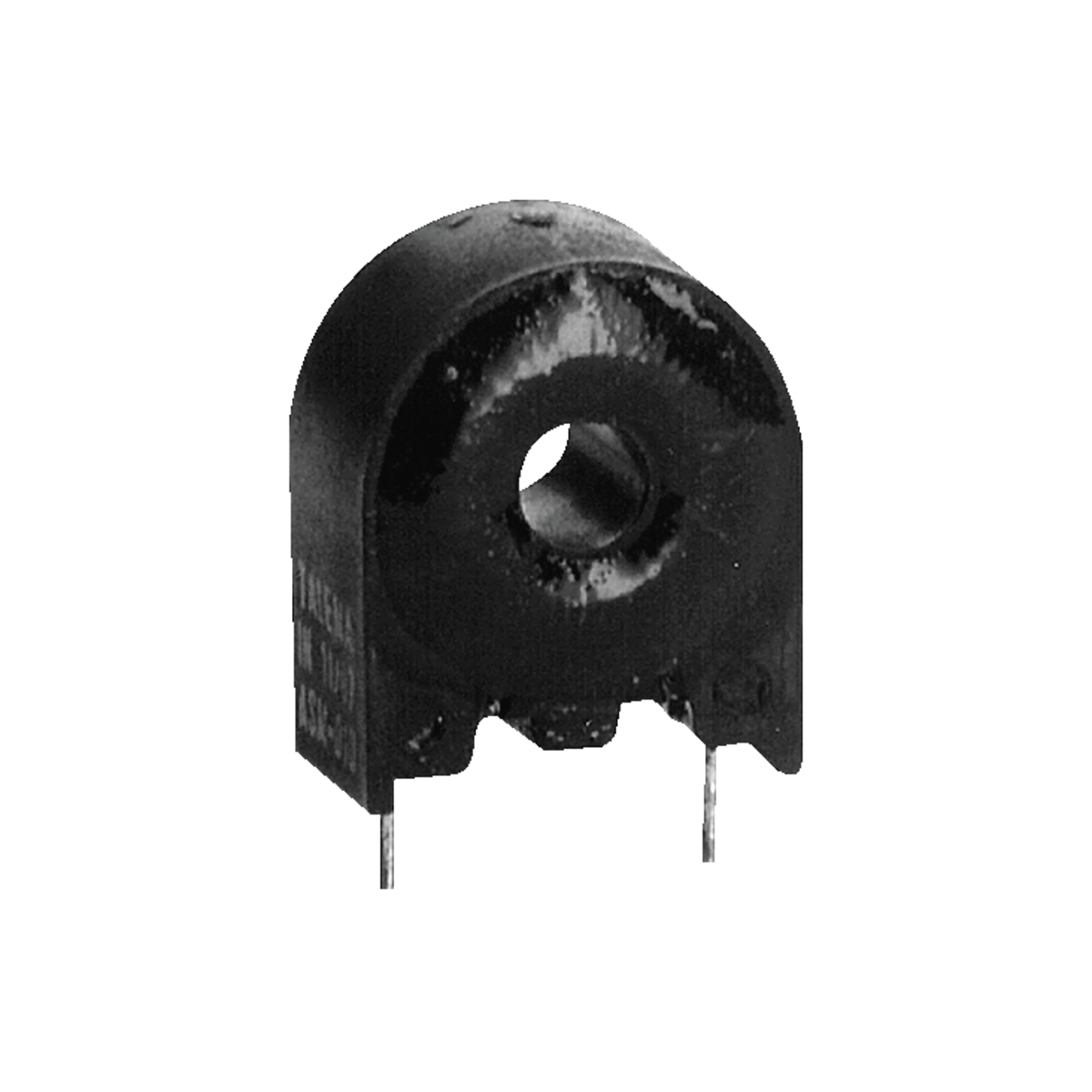

20	Manufacturers Part No. ASM-010 (ASM10) Talema Current transformer Series: ASM 1 A 10 % -40 °C 120 °C TOP	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 50/2026 (2.380 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	ASM	Talema		1.0 A	10.0 A	10.0 %		-40.0 °C	120.0 °C
21	Manufacturers Part No. ASM-100 (ASM100) Talema Current transformer Series: ASM 5 A 10 % -40 °C 120 °C	Customer Part No. Customer Project No.	Talema	25 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	ASM	Talema		5.0 A	100.0 A	10.0 %		-40.0 °C	120.0 °C

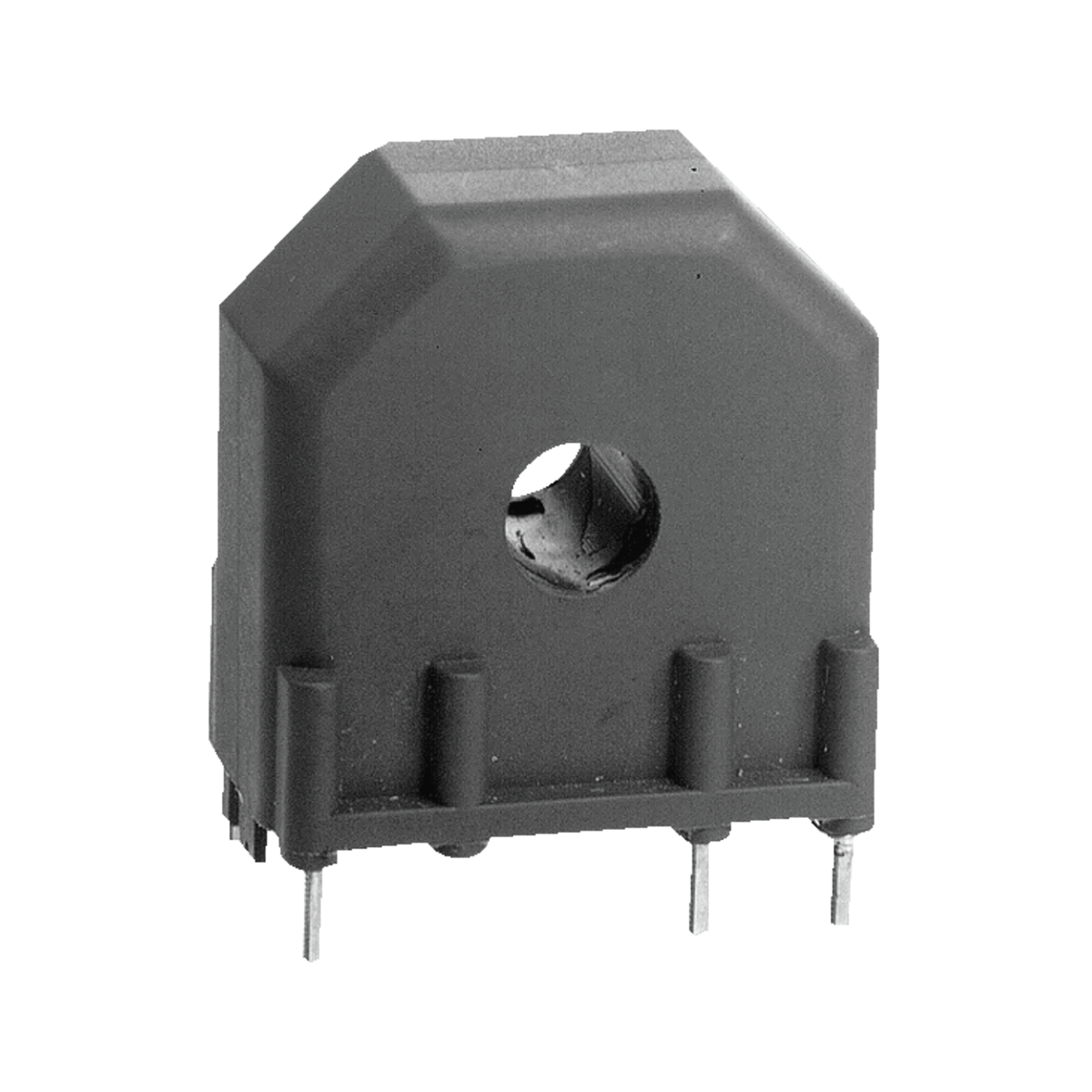

22	Manufacturers Part No. ASM-050 (ASM50) Talema Current transformer Series: ASM 5 A 10 % -40 °C 120 °C	Customer Part No. Customer Project No.	Talema	0 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock)	(at least 5 or mul. of 5)	ASM	Talema		5.0 A	50.0 A	10.0 %		-40.0 °C	120.0 °C
23	Manufacturers Part No. AC-1010 (AC1010) Talema Current transformer AC 1to1000 10A 60A 50-60Hz 100Ohm Print assembly, cast TOP	Customer Part No. Customer Project No.	Talema	1.084 Pcs. Next Stock Receipt Week 01/2027 (1.000 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	AC	Talema	1to1000	10.0 A	60.0 A		100.0 Ohm
24	Manufacturers Part No. AC-1005 (AC1005) Talema Current transformer AC 1to1000 5A 60A 50-60Hz 100Ohm Print assembly, cast TOP	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 44/2026 (1.535 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	AC	Talema	1to1000	5.0 A	60.0 A		100.0 Ohm

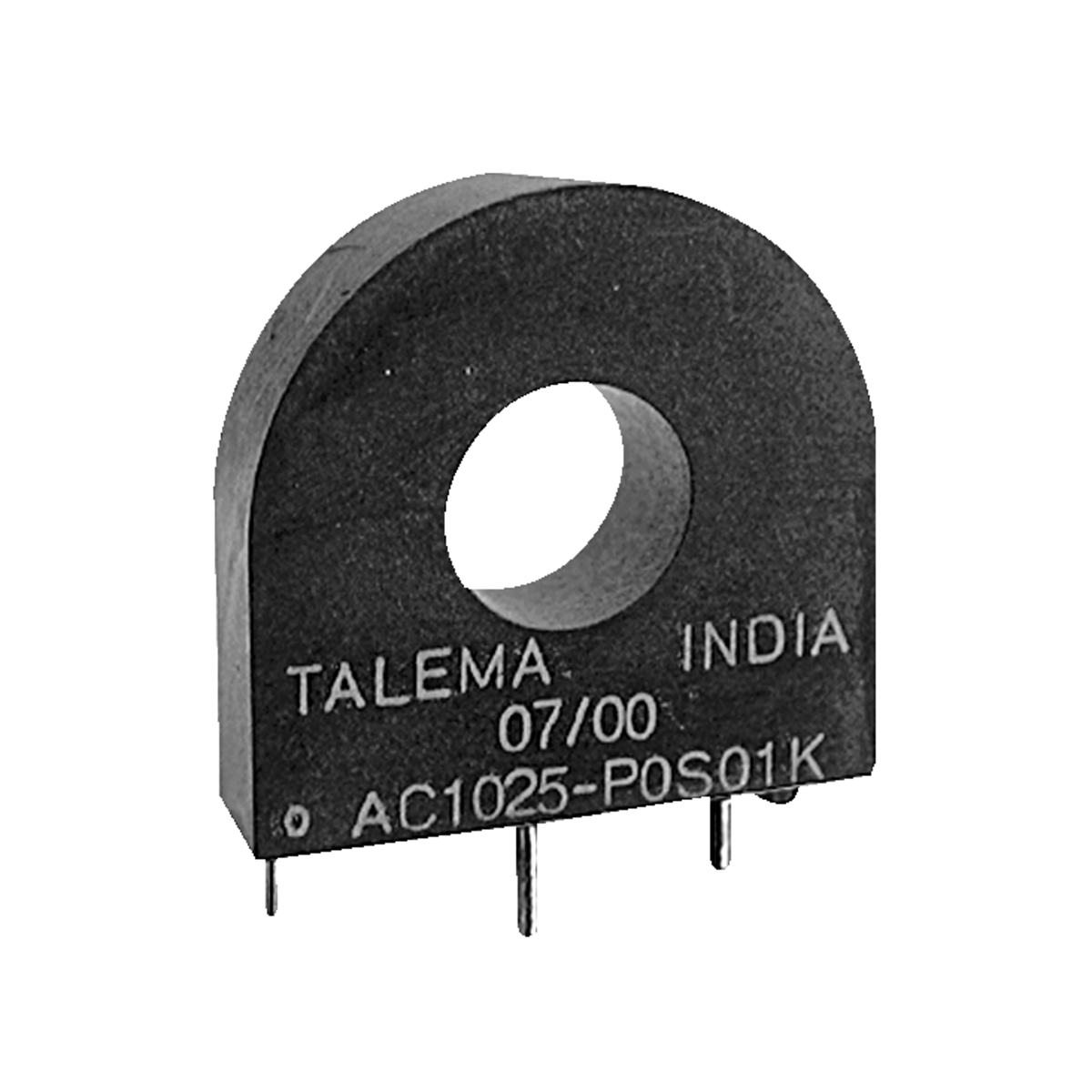

25	Manufacturers Part No. AC-1025 (AC1025) Talema Current transformer AC 1to1000 25A 75A 50-60Hz 100Ohm Print assembly, cast	Customer Part No. Customer Project No.	Talema	0 Pcs. Next Stock Receipt Week 49/2026 (300 Pcs.) Available (from stock)	(at least 5 or mul. of 5)	AC	Talema	1to1000	25.0 A	75.0 A		100.0 Ohm

‹ 1 2 3 ›
