Results (4167)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Capacity | Capacity unit | Capacity Tolerance [%] | Rated voltage DC | Rated voltage AC | Application | Assembly Type | Housing | Diameter | Pitch | Dimension: Length | Dimension: Width | Dimension: Height | Form of Delivery | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

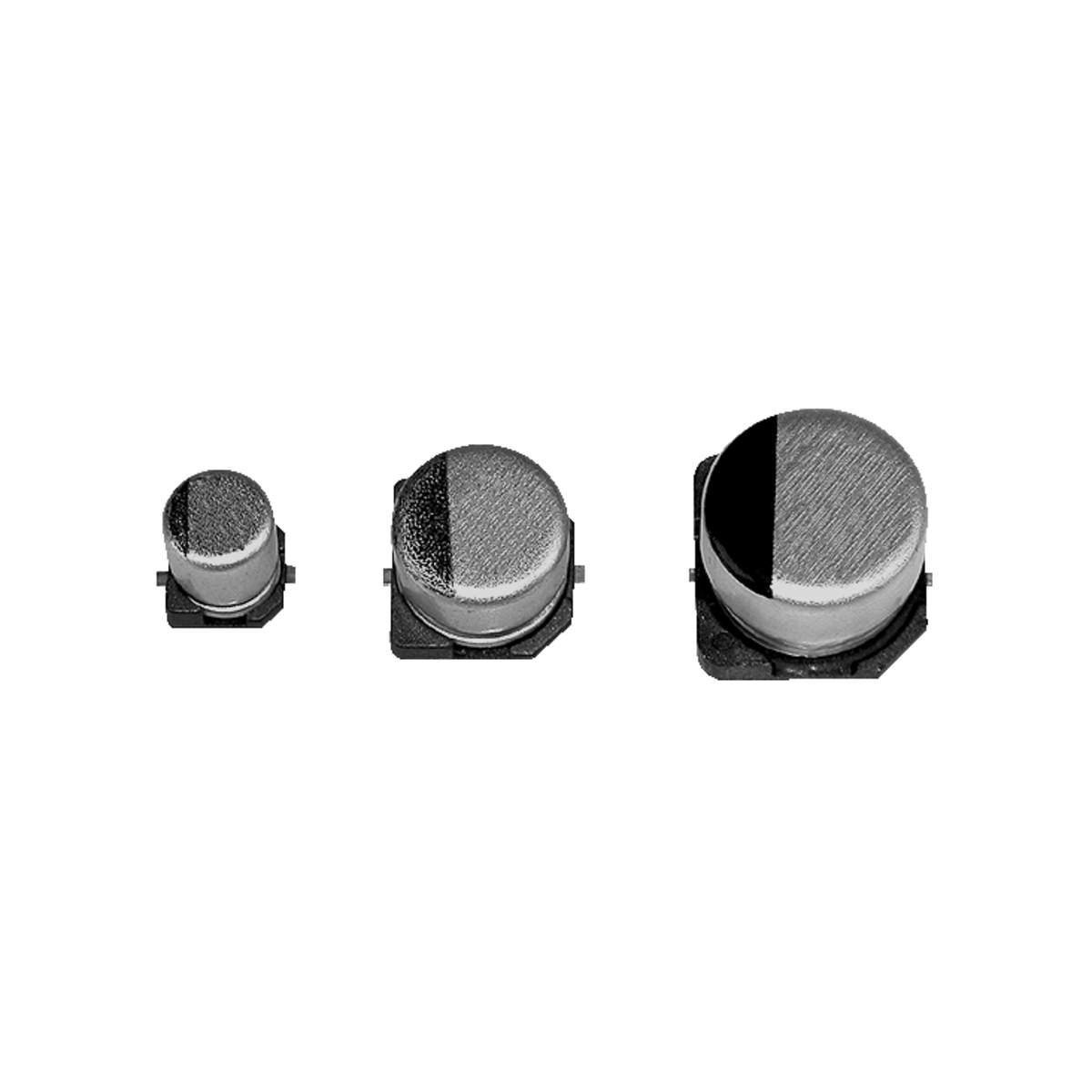

3801 |  NRND | Manufacturers Part No. EEE1VA470WP(EEE1VA470WP) Panasonic SMD Aluminum electrolytic capacitor S 35V 47µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 8.500 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 47.0 | µF | ±20 | 35.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3802 | NRND | Manufacturers Part No. EEE1CA471UP(EEE1CA471UP) Panasonic SMD Aluminum electrolytic capacitor S 16V 470µF ±20% 8mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 470.0 | µF | ±20 | 16.0 V | SMD | F | 8.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3803 | NRND | Manufacturers Part No. EEE2AA100UP(EEE2AA100UP) Panasonic SMD Aluminum electrolytic capacitor S 100V 10µF ±20% 8mmx6,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 3.000 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 10.0 | µF | ±20 | 100.0 V | SMD | E | 8.0 mm | 6.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3804 | NRND | Manufacturers Part No. EEE1EA100SR(EEE1EA100SR) Panasonic SMD Aluminum electrolytic capacitor S 25V 10µF ±20% 5mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 5.000 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 10.0 | µF | ±20 | 25.0 V | SMD | C | 5.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3805 | NRND | Manufacturers Part No. EEE2AA220UP(EEE2AA220UP) Panasonic SMD Aluminum electrolytic capacitor S 100V 22µF ±20% 8mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 22.0 | µF | ±20 | 100.0 V | SMD | F | 8.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3806 | NRND | Manufacturers Part No. EEE1EA100WR(EEE1EA100WR) Panasonic SMD Aluminum electrolytic capacitor S 25V 10µF ±20% 4mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 4.000 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 10.0 | µF | ±20 | 25.0 V | SMD | B | 4.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3807 | NRND | Manufacturers Part No. EEE2AA330P(EEE2AA330P) Panasonic SMD Aluminum electrolytic capacitor S 100V 33µF ±20% 10mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 1.500 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 33.0 | µF | ±20 | 100.0 V | SMD | G | 10.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3808 | NRND | Manufacturers Part No. EEE1EA101P(EEE1EA101P) Panasonic SMD Aluminum electrolytic capacitor S 25V 100µF ±20% 8mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 100.0 | µF | ±20 | 25.0 V | SMD | F | 8.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3809 | NRND | Manufacturers Part No. EEE1EA220SP(EEE1EA220SP) Panasonic SMD Aluminum electrolytic capacitor S 25V 22µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 1.300 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 22.0 | µF | ±20 | 25.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3810 | NRND | Manufacturers Part No. EEE1EA220WR(EEE1EA220WR) Panasonic SMD Aluminum electrolytic capacitor S 25V 22µF ±20% 5mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 4.000 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 22.0 | µF | ±20 | 25.0 V | SMD | C | 5.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3811 | NRND | Manufacturers Part No. EEE1EA221UP(EEE1EA221UP) Panasonic SMD Aluminum electrolytic capacitor S 25V 220µF ±20% 8mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 2.600 Pcs. Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 220.0 | µF | ±20 | 25.0 V | SMD | F | 8.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3812 | NRND | Manufacturers Part No. EEE0GA101SR(EEE0GA101SR) Panasonic SMD Aluminum electrolytic capacitor S 4V 100µF ±20% 5mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 400 Pcs. Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 100.0 | µF | ±20 | 4.0 V | SMD | C | 5.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3813 | NRND | Manufacturers Part No. EEE1EA330SP(EEE1EA330SP) Panasonic SMD Aluminum electrolytic capacitor S 25V 33µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 1.800 Pcs. Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 33.0 | µF | ±20 | 25.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3814 | NRND | Manufacturers Part No. EEE0GA221SP(EEE0GA221SP) Panasonic SMD Aluminum electrolytic capacitor S 4V 220µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Not Recommended for New Designs | (at least 1000 or mul. of 1000) | Aluminum electrolytic capacitor | Panasonic | 220.0 | µF | ±20 | 4.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3815 | NRND | Manufacturers Part No. EEE0GA331WP(EEE0GA331WP) Panasonic SMD Aluminum electrolytic capacitor S 4V 330µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Not Recommended for New Designs | (at least 1000 or mul. of 1000) | Aluminum electrolytic capacitor | Panasonic | 330.0 | µF | ±20 | 4.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3816 | NRND | Manufacturers Part No. EEE0GA470SR(EEE0GA470SR) Panasonic SMD Aluminum electrolytic capacitor S 4V 47µF ±20% 4mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 47.0 | µF | ±20 | 4.0 V | SMD | B | 4.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3817 | NRND | Manufacturers Part No. EEE1EA4R7SR(EEE1EA4R7SR) Panasonic SMD Aluminum electrolytic capacitor S 25V 4,7µF ±20% 4mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 3.300 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 4.7 | µF | ±20 | 25.0 V | SMD | B | 4.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3818 | NRND | Manufacturers Part No. EEE0GA471XP(EEE0GA471XP) Panasonic SMD Aluminum electrolytic capacitor S 4V 470µF ±20% 6,3mmx7,7mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Not Recommended for New Designs | (at least 900 or mul. of 900) | Aluminum electrolytic capacitor | Panasonic | 470.0 | µF | ±20 | 4.0 V | SMD | D | 6.3 mm | 7.7 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3819 | NRND | Manufacturers Part No. EEE1HA010SR(EEE1HA010SR) Panasonic SMD Aluminum electrolytic capacitor S 50V 1µF ±20% 4mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 2.700 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 1.0 | µF | ±20 | 50.0 V | SMD | B | 4.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3820 | NRND | Manufacturers Part No. EEE0JA101SP(EEE0JA101SP) Panasonic SMD Aluminum electrolytic capacitor S 6,3V 100µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 1.600 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 100.0 | µF | ±20 | 6.3 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3821 | NRND | Manufacturers Part No. EEE1HA100SP(EEE1HA100SP) Panasonic SMD Aluminum electrolytic capacitor S 50V 10µF ±20% 6,3mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 2.800 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 10.0 | µF | ±20 | 50.0 V | SMD | D | 6.3 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3822 | NRND | Manufacturers Part No. EEE1HA100WR(EEE1HA100WR) Panasonic SMD Aluminum electrolytic capacitor S 50V 10µF ±20% 5mmx5,4mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 3.300 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 10.0 | µF | ±20 | 50.0 V | SMD | C | 5.0 mm | 5.4 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3823 | NRND | Manufacturers Part No. EEE0JA102UP(EEE0JA102UP) Panasonic SMD Aluminum electrolytic capacitor S 6,3V 1000µF ±20% 8mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 5.100 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 1000.0 | µF | ±20 | 6.3 V | SMD | F | 8.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3824 | NRND | Manufacturers Part No. EEE1HA101P(EEE1HA101P) Panasonic SMD Aluminum electrolytic capacitor S 50V 100µF ±20% 10mmx10,2mm -40°C...85°C AEC-Q200 | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 29 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 100.0 | µF | ±20 | 50.0 V | SMD | G | 10.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 | ||||||||||
3825 | NRND | Manufacturers Part No. EEE0JA152P(EEE0JA152P) Panasonic SMD Aluminum electrolytic capacitor S 6,3V 1500µF ±20% 10mmx10,2mm -40°C...85°C AEC-Q200 % | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 23 Weeks Not Recommended for New Designs | (at least 100 or mul. of 100) | Aluminum electrolytic capacitor | Panasonic | 1500.0 | µF | ±20 | 6.3 V | SMD | G | 10.0 mm | 10.2 mm | strapped | -40.0 °C | 85.0 °C | AEC-Q200 |
