VL-2330/HFN

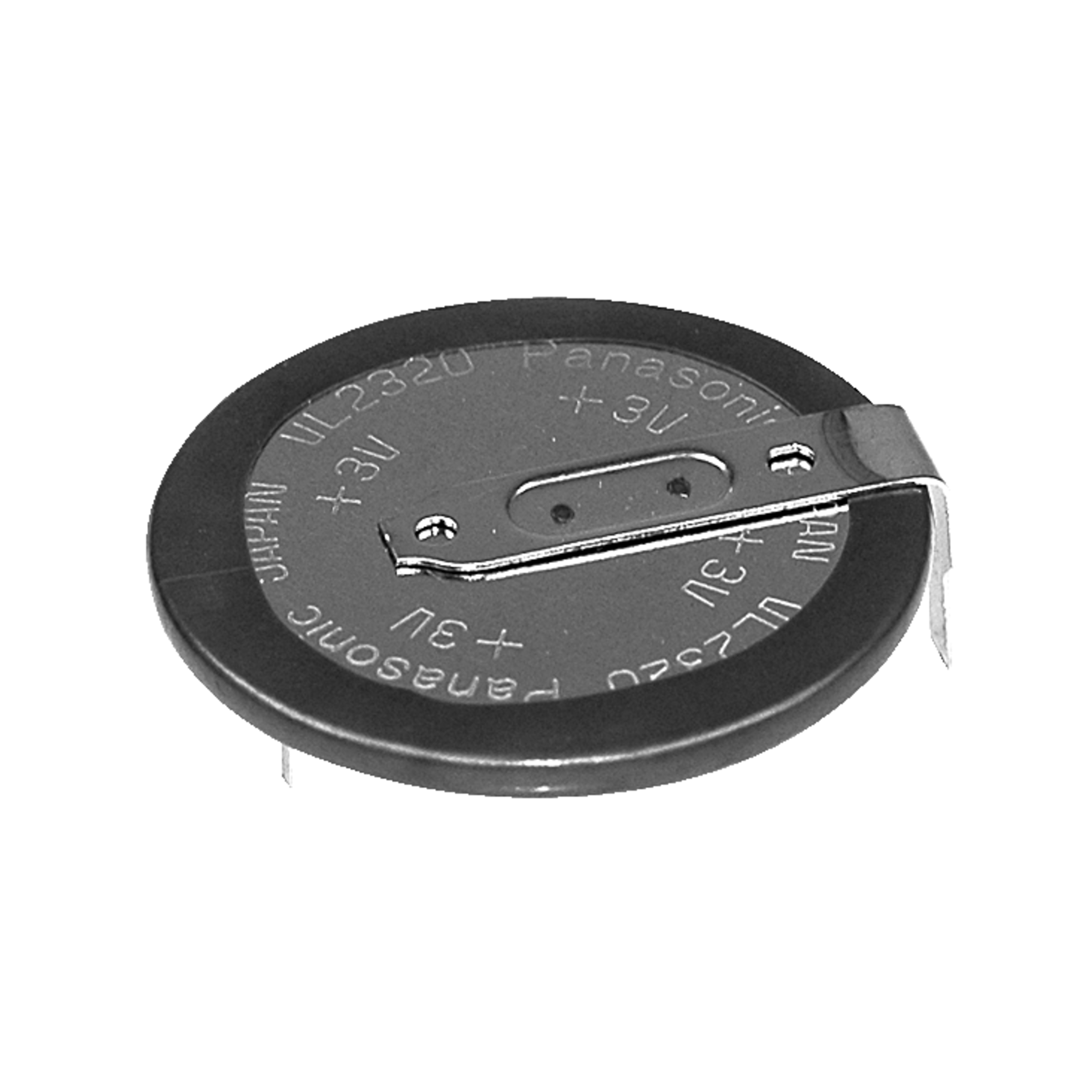

Panasonic Lithium Vanadium Pentoxide Button Cell VL 3V 50mAh
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
522 Pcs. in stock
Next Stock Receipt
Week 01/2025
860 Pcs.
860 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 240 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3 V
- Nominal capacity
- 50 mAh
- Chemical system
- Lithium Vanadium Pentoxide
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -20 °C
- Operating temperature, charge, max.
- 60 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 0.17 %/Monat
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -20 °C
Electrical features
- Nominal capacity
- 50 mAh
- Rated Voltage
- 3 V
- Charge voltage, standard
- 3.25 V
- Charge voltage, max.
- 3.55 V
- Discharge current, max.
- 0.1 mA
Hazardous Substances/Goods
- UN number
- 3090 - Lithium metal battery
