VL-2020/HFN

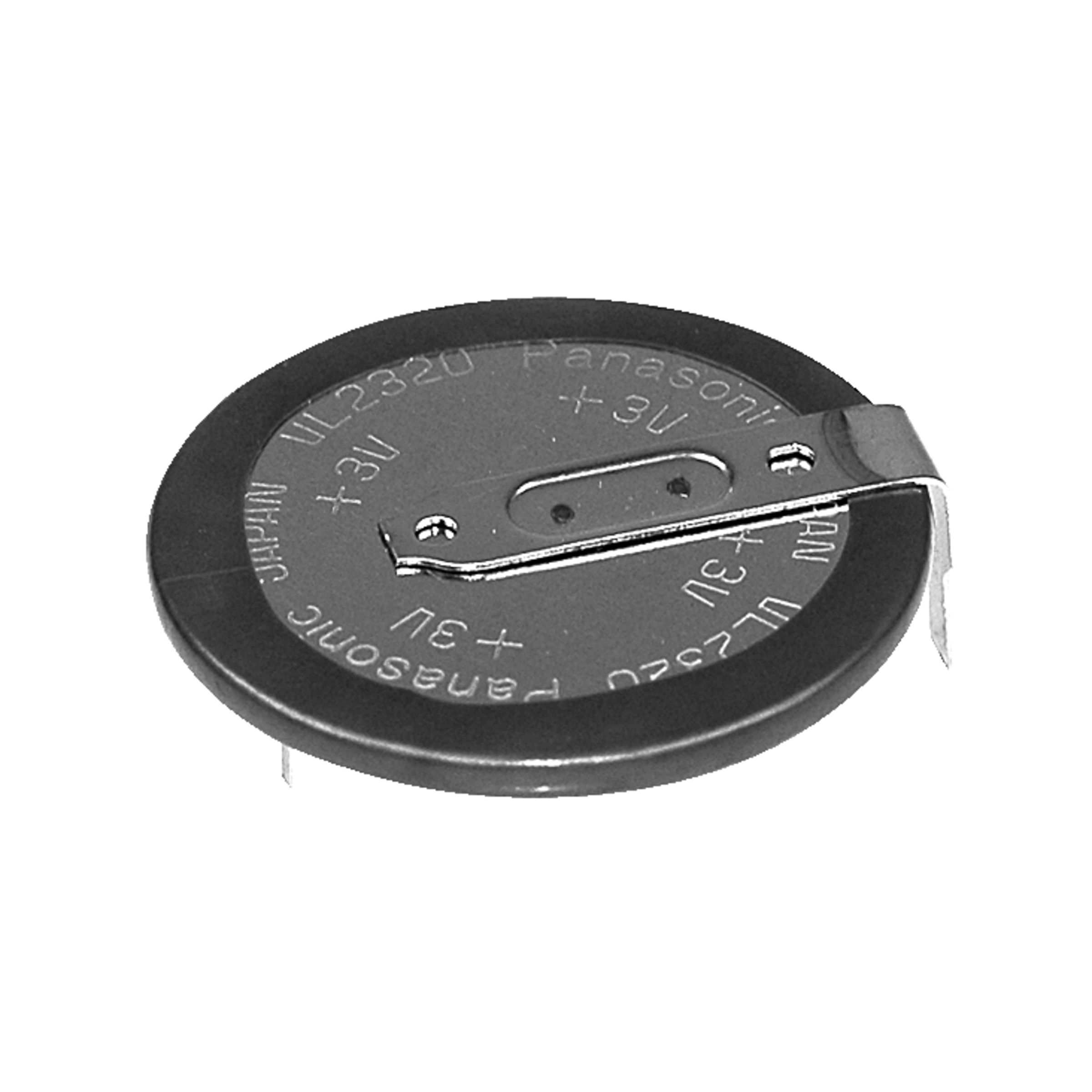

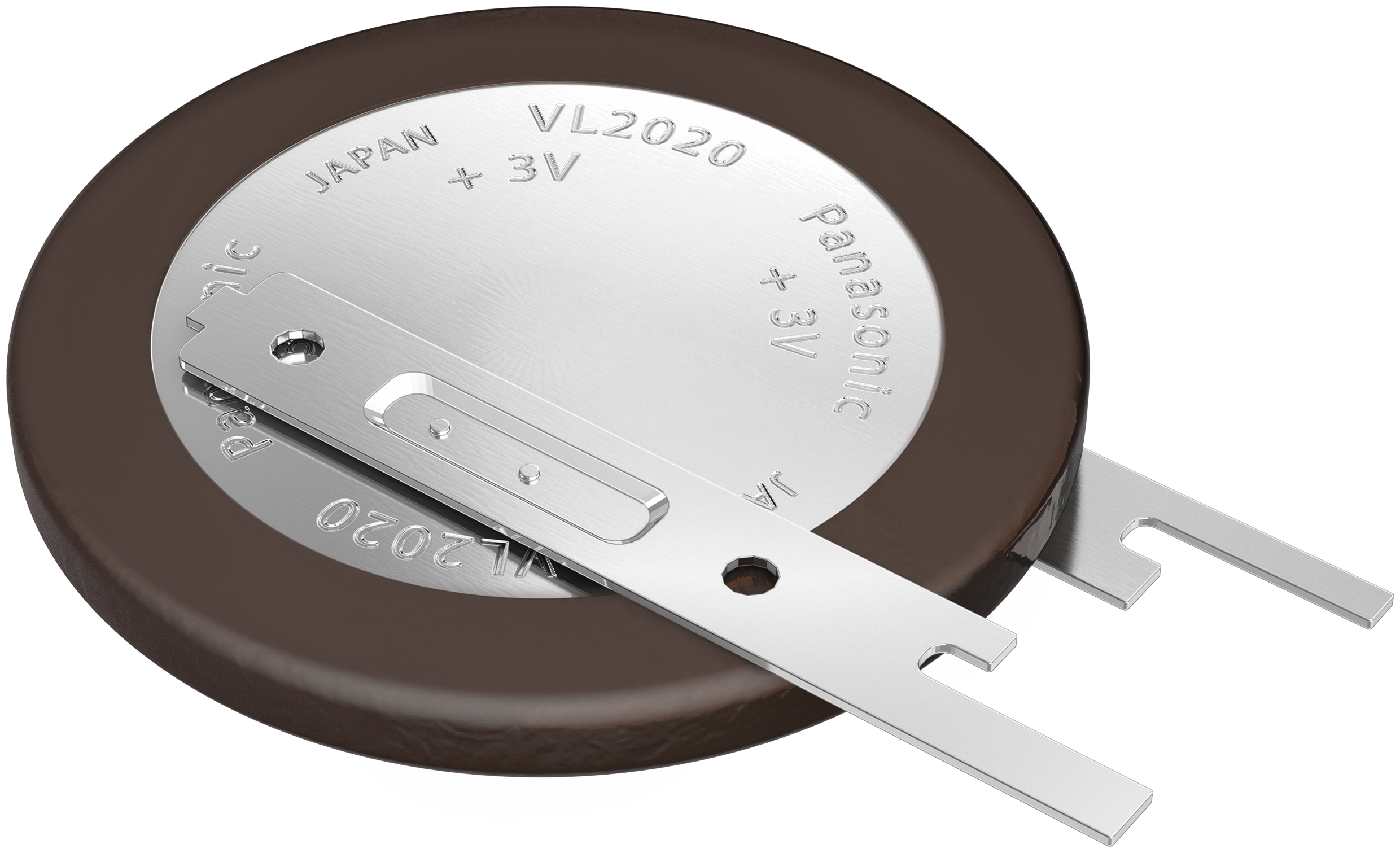

Panasonic Lithium vanadium pentoxide (LiV2O5) Button Cell Accu VL 3V 20mAh
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
628 Pcs. in stock
Next Stock Receipt
Week 23/2026
1.080 Pcs.
1.080 Pcs.
Planned delivery time
Ø 34 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 360 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 20 mAh
- Chemical system
- Lithium vanadium pentoxide (LiV2O5)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -20 °C
- Operating temperature, charge, max.
- 60 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 0.17 %/Monat
- Shelf life, IEC
- 1,000 Zyklen
- Storage Temperature Min.
- -20 °C
Electrical features
- Nominal capacity
- 20 mAh
- Energy storage, capacity
- 0.06 Wh
- Rated Voltage
- 3 V
- Charge voltage, standard
- 3.25 V
- Charge voltage, max.
- 3.55 V
- Discharge current, max.
- 0.07 mA
Conformity
- REACH Notice
- REACh Art. 33: contains 1,2-dimethoxyethane; ethylene glycol dimethyl ether(EGDME) CAS# 110-71-4
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
AAF4000COL26.pdf
AAF4000D40.pdf
VL2020_UN38.3(2019).pdf
VL-PSDS-01-EN.pdf
VL_series.pdf
