EZPV60806MTT

Panasonic THT MKP capacitor EZPV radial 600V 80µF 10% RM37,5mm AEC-Q200

Image similar
Manufacturer Part No.
EZPV60806MTT
Schukat Part No.
EZPV60806MTT
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
MKP capacitor
Capacity
80 µF
Capacity tolerance
10 %
Rated voltage DC
600 V
Assembly Type
THT
Housing
radial
Pitch
37.5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Panasonic
Type
  • MKP capacitor
Series
  • EZPV
Housing
  • radial
Assembly Type
  • THT
Form of Delivery
  • bulk
Connections
  • 4Pin

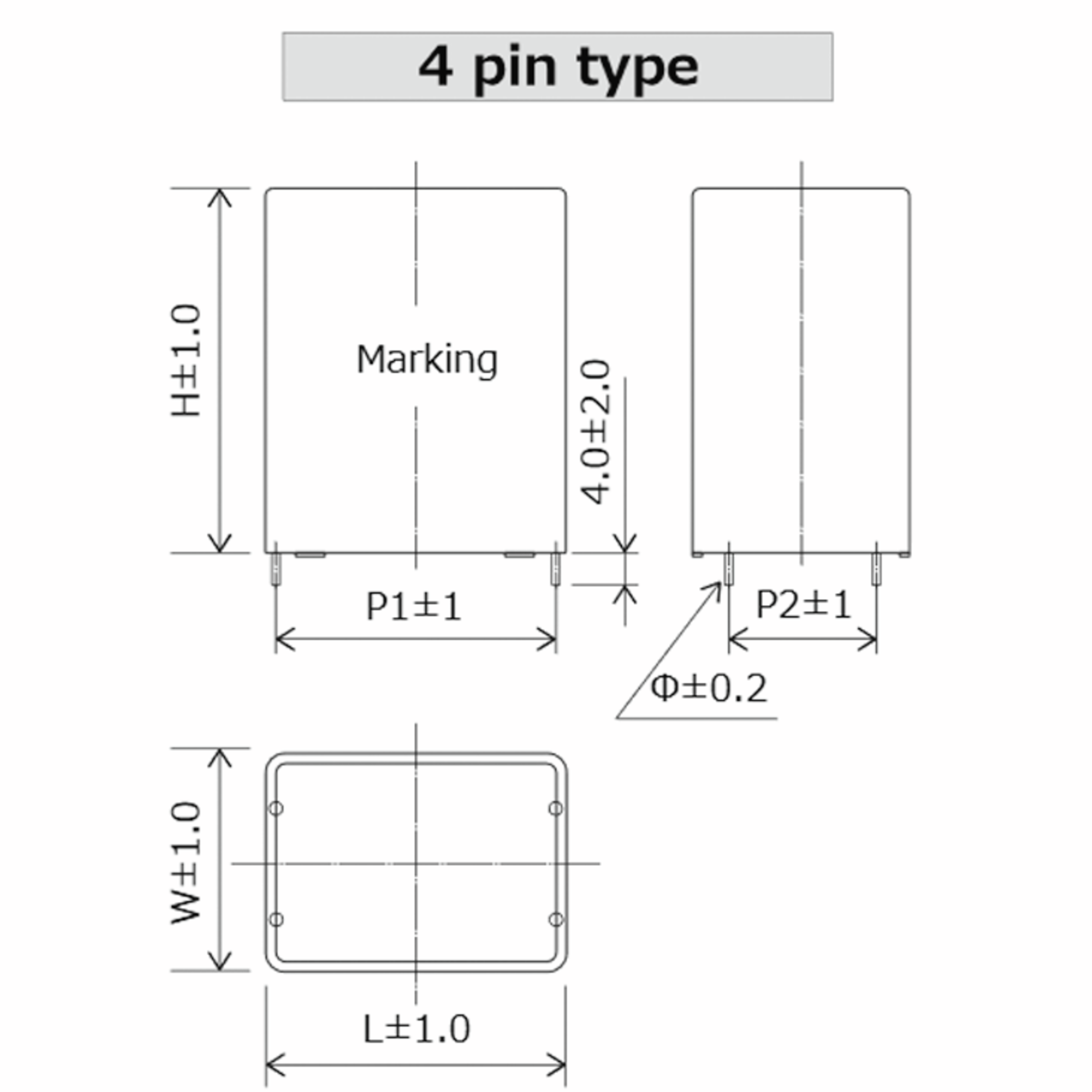

Dimensions and weights

Dimension: Length
  • 41 mm
Dimension: Width
  • 43 mm
Dimension: Height
  • 58 mm
Wire diameter
  • 1.2 mm
Pitch
  • 37.5 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 105 °C

Technical features

Capacity
  • 80 µF
Capacity
  • 80
Capacity unit
  • µF
Capacity tolerance
  • 10 %
Rated voltage DC
  • 600 V

Safety/Certifications

Qualification
  • AEC-Q200
Standards
  • AEC-Q200 konform
