EZPV60706MTT
Panasonic THT MKP capacitor EZPV radial 600V 70µF 10% RM37,5mm AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Capacity
- 70 µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 600 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 37.5 mm
- RoHS-Conform
Specifications
Open all

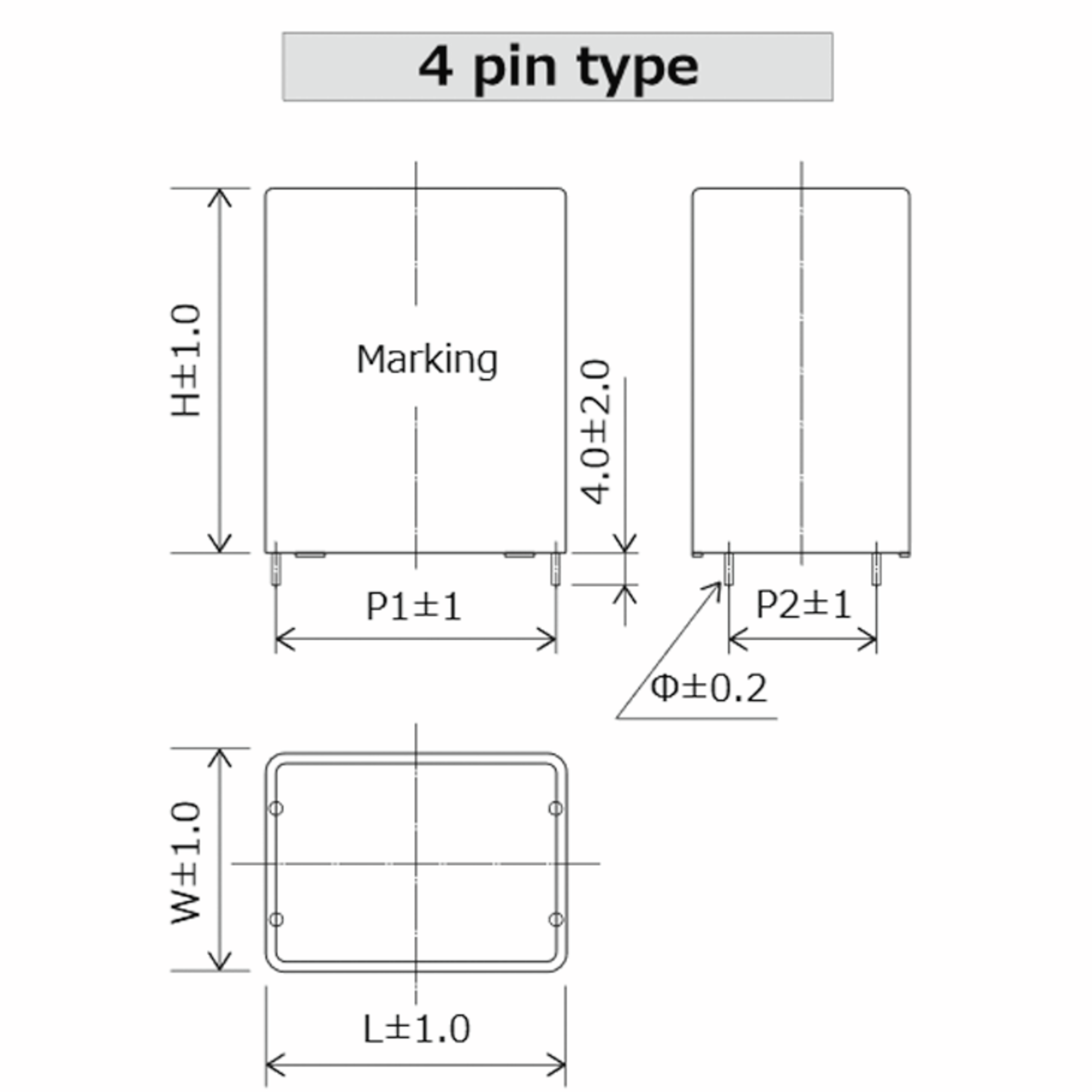

Dimensions and weights
- Dimension: Length
- 42 mm
- Dimension: Width
- 38 mm
- Dimension: Height
- 52.5 mm
- Wire diameter
- 1.2 mm
- Pitch
- 37.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 70 µF
- Capacity
- 70
- Capacity unit
- µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 600 V
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- AEC-Q200 konform
