EZPV1B256MTB
Panasonic THT MKP capacitor EZPV radial 1.100V 25µF 10% RM37,5mm AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Capacity
- 25 µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 1,100 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 37.5 mm
- RoHS-Conform
Specifications
Open all

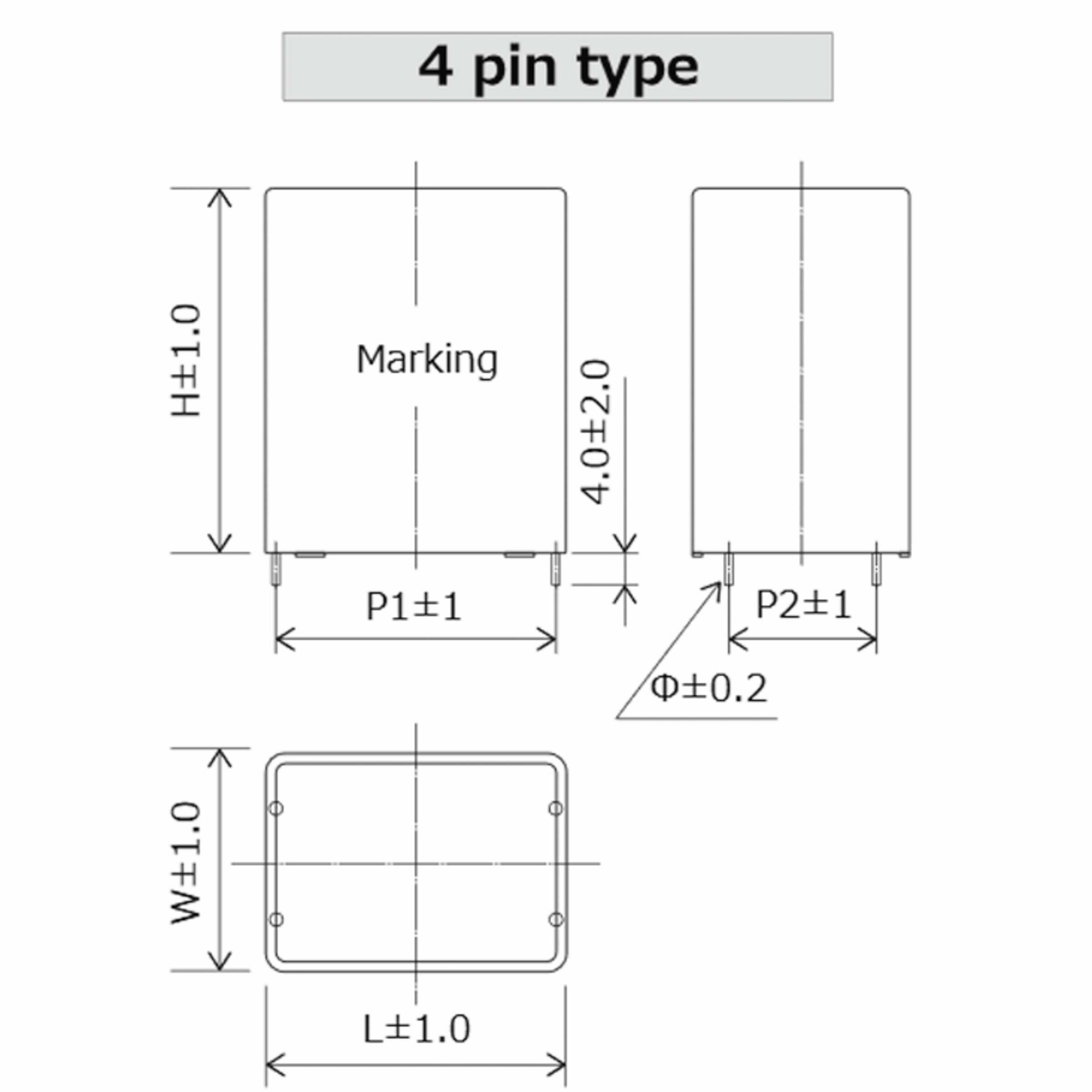

Dimensions and weights
- Dimension: Length
- 42 mm
- Dimension: Width
- 38 mm
- Dimension: Height
- 52.5 mm
- Wire diameter
- 1.2 mm
- Pitch
- 37.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 25 µF
- Capacity
- 25
- Capacity unit
- µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 1,100 V
Safety/Certifications
- Qualification
- AEC-Q200
