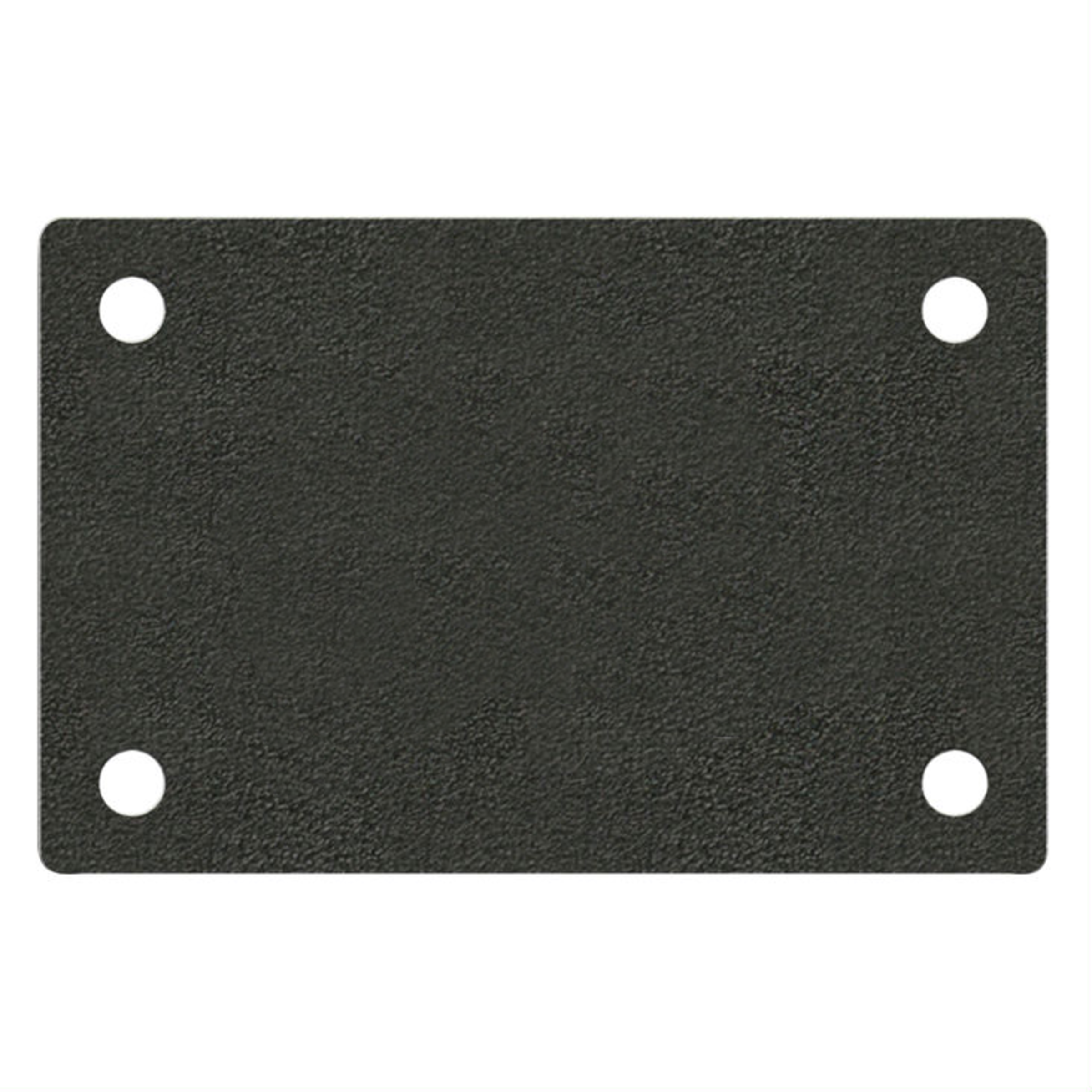

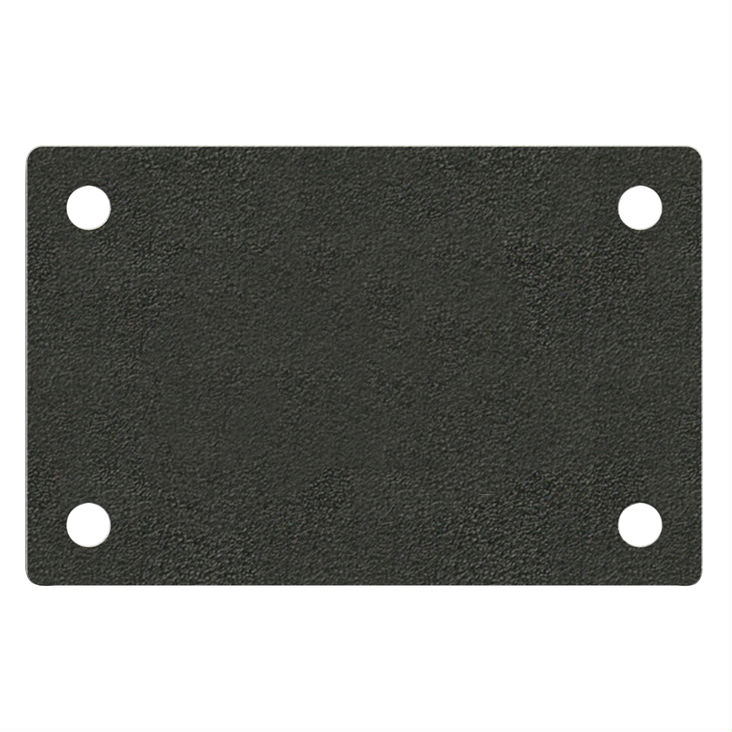

EYGS0204ZLSN
Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 24mm 36,5mm -55°C 400°C gray
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
30 Pcs.
30 Pcs.
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 30 or multiple of 30)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pyrolytic graphite sheets
- Series
- EYGS
- Dimension: Length
- 24 mm
- Dimension: Width
- 36.5 mm
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 400 °C
- Material
- Graphite
- Material thickness, max.
- 200 µm
- Colour
- gray
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 24 mm
- Dimension: Width
- 36.5 mm
- Material thickness, max.
- 200 µm
Operating conditions
- Thermal conductivity
- 400 W/m.K
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 400 °C
Technical features
- Thermal resistance
- 0.2 K/W
