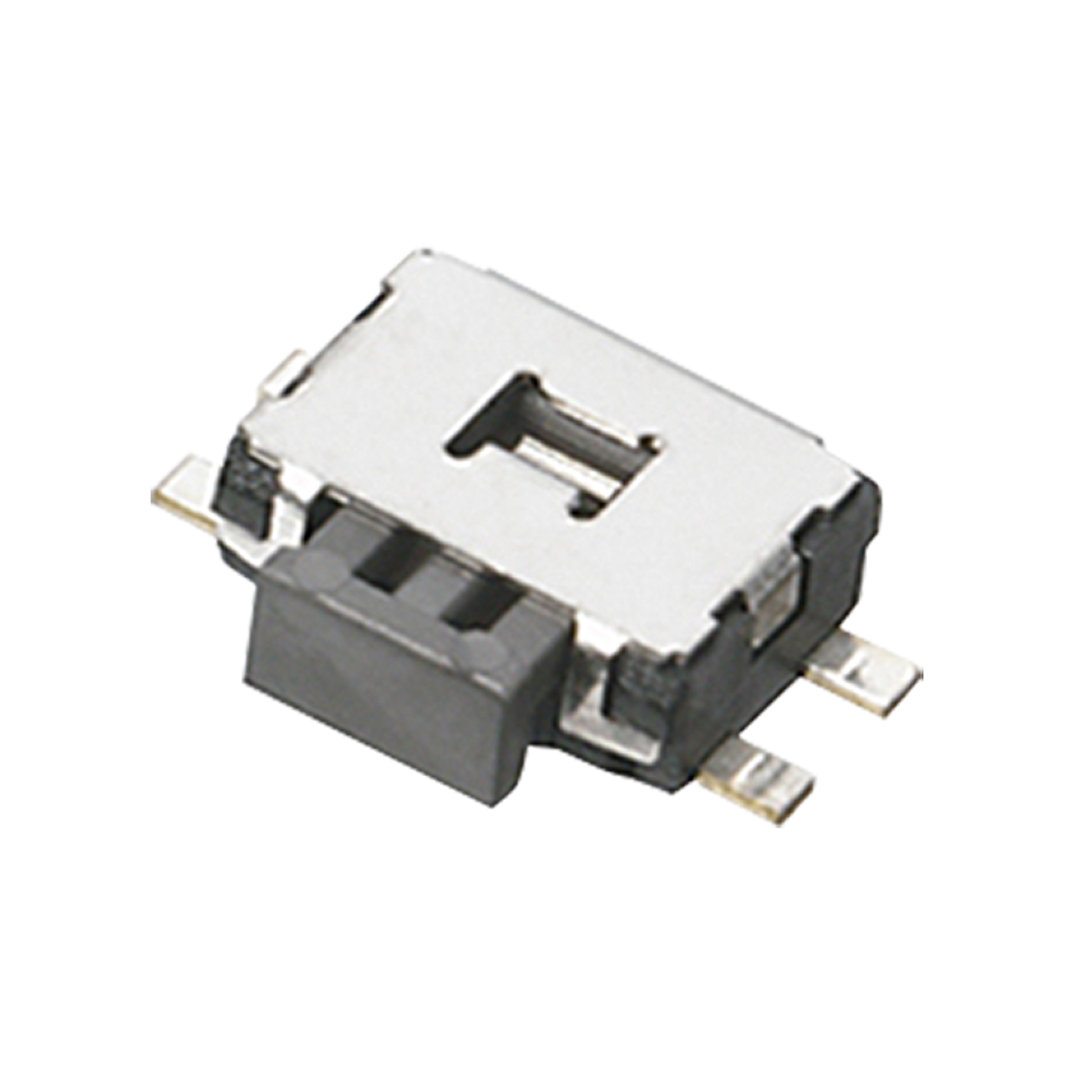

EVQPUA02K
Panasonic Switches EVQPU 1x0-(E) SMD silver 0,05A 2,2N 4,7mm 3,5mm 1,65mm unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Switches
- Series
- EVQPU
- Body colour
- silver
- contacts
- 1xNO
- Type of actuator
- Plunger
- Function
- 1x0-(E)
- Actuator colour
- black
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 0.05 A
- Operating voltage DC
- 12 V DC
- Actuating force, max.
- 2,2 N
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 70 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 4.7 mm
- Dimension: Width
- 3.5 mm
- Dimension: Height
- 1.65 mm
Operating conditions
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 70 °C
- Minimum Storage Temperature
- -20 °C
- Maximum Storage Temperature
- 60 °C
Technical features
- Operating voltage DC
- 12 V DC
- Test voltage
- 250 V AC, 1min.
- Mechanical service life
- 10 x 10^4 Betätigungen
- Switching current, max.
- 0.05 A
- Contact resistance, max.
- 500 mOhm
- Insulation resistance, min.
- 100 MOhm
- Contact bounce time, max.
- 10 ms
Mechanical properties
- Connection
- SMD
- Operating path
- 0.3 mm
- Actuating force, max.
- 2,2 N
- Number of poles
- 1
