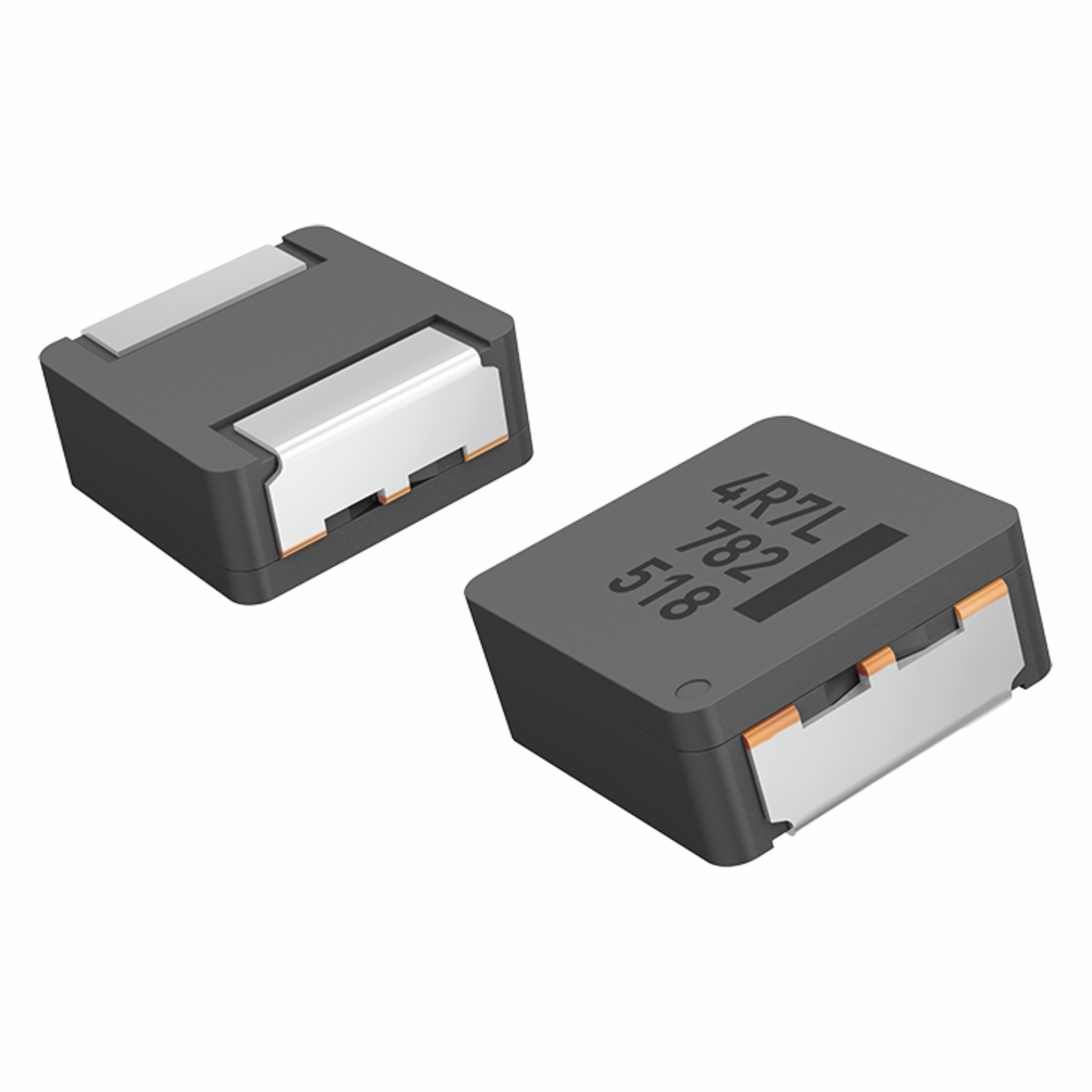

ETQP4M3R3KVK
Panasonic Inductors SMD storage / suppression chokes PCC-M0840M-LP 3,3µH -20-20% 8,5mm 8mm 4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
95 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- storage / suppression chokes
- Inductance
- 3,3 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 15,51 mOhm
- Housing
- SMD
- Dimension: Length
- 8.5 mm
- Dimension: Width
- 8 mm
- Dimension: Height
- 4 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 8.5 mm
- Dimension: Width
- 8 mm
- Dimension: Height
- 4 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical features
- Inductance
- 3,3 µH
- Inductance tolerance
- -20 %
- Nominal resistance
- 15,51 mOhm
- Sättigungsstrom
- 17.4 A
Safety/Certifications
- Standards
- AEC-Q200
