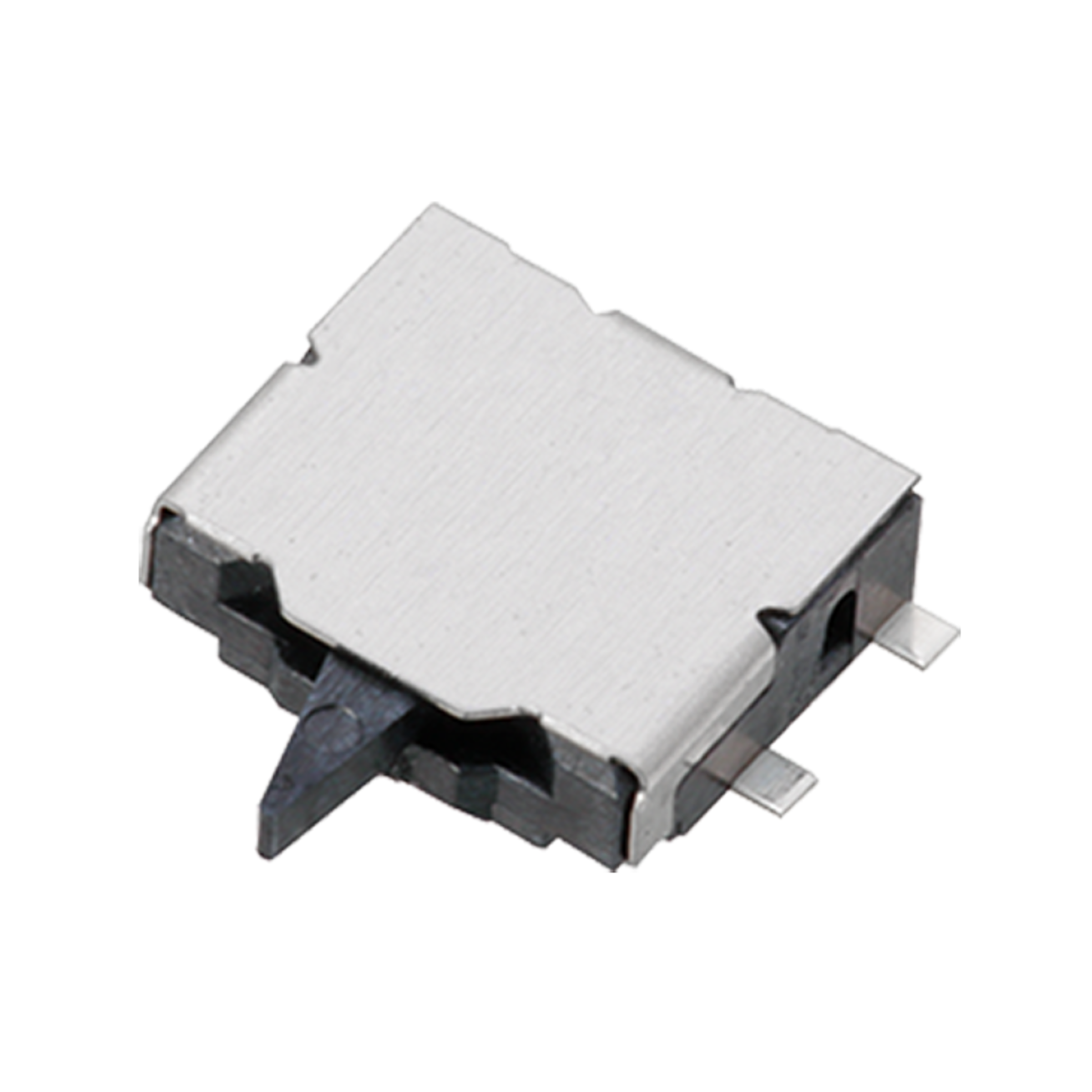

ESE23F101

Panasonic Pushbutton switch ESE23 1x0-E SMD silver 0,01A 0,3N 4,1mm 5mm 1,5mm unlit

Manufacturer Part No.
ESE23F101
Schukat Part No.
ESE23F101
Manufacturer
Panasonic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

25 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Pushbutton switch
Series
ESE23
Body colour
silver
contacts
1xNO
Type of actuator
Lever
Function
1x0-E
Actuator colour
black
Number of poles
1
illumination
unlit
Switching current, max.
0.01 A
Operating voltage DC
5 V DC
Actuating force, max.
0,3 N
Operating temperature range, min.
-10 °C
Operating temperature range, max.
60 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Panasonic
Series
  • ESE23
Product group
  • E3442 ESE23F Detector Switch 5x4,4x1,5mm
Type
  • Pushbutton switch
contacts
  • 1xNO
Function
  • 1x0-E
Body colour
  • silver
Type of actuator
  • Lever
Actuator colour
  • black
illumination
  • unlit

Dimensions and weights

Dimension: Length
  • 4.1 mm
Dimension: Width
  • 5 mm
Dimension: Height
  • 1.5 mm

Operating conditions

Operating temperature range, min.
  • -10 °C
Operating temperature range, max.
  • 60 °C

Technical features

Operating voltage DC
  • 5 V DC
Test voltage
  • 100 V AC, 1min.
Mechanical service life
  • 50 x 10^3 Betätigungen
Switching current, max.
  • 0.01 A
Contact resistance
  • 100 mOhm
Contact resistance, max.
  • 500 mOhm

Mechanical properties

Connection
  • SMD
Operating path
  • 1 mm
Actuating force, max.
  • 0,3 N
Number of poles
  • 1
