ERJ8RQF1R2V

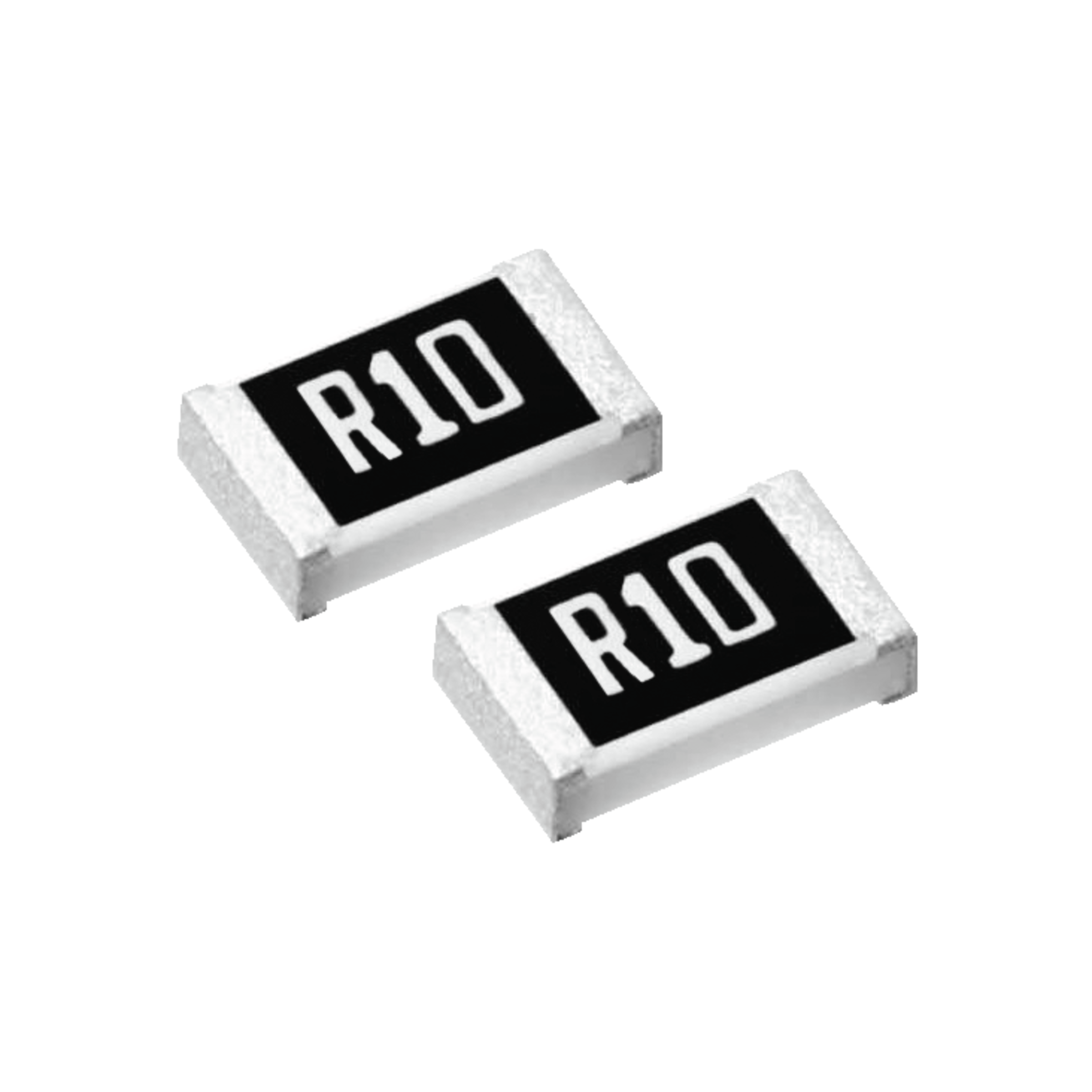

Panasonic SMD thick film resistor ERJ8R 1206 0,25W 1,2Ohm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Thick film resistor
- Series
- ERJ8R
- Housing
- 1206
- Rated power
- 0.25 W
- Resistance
- 1,2 Ohm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

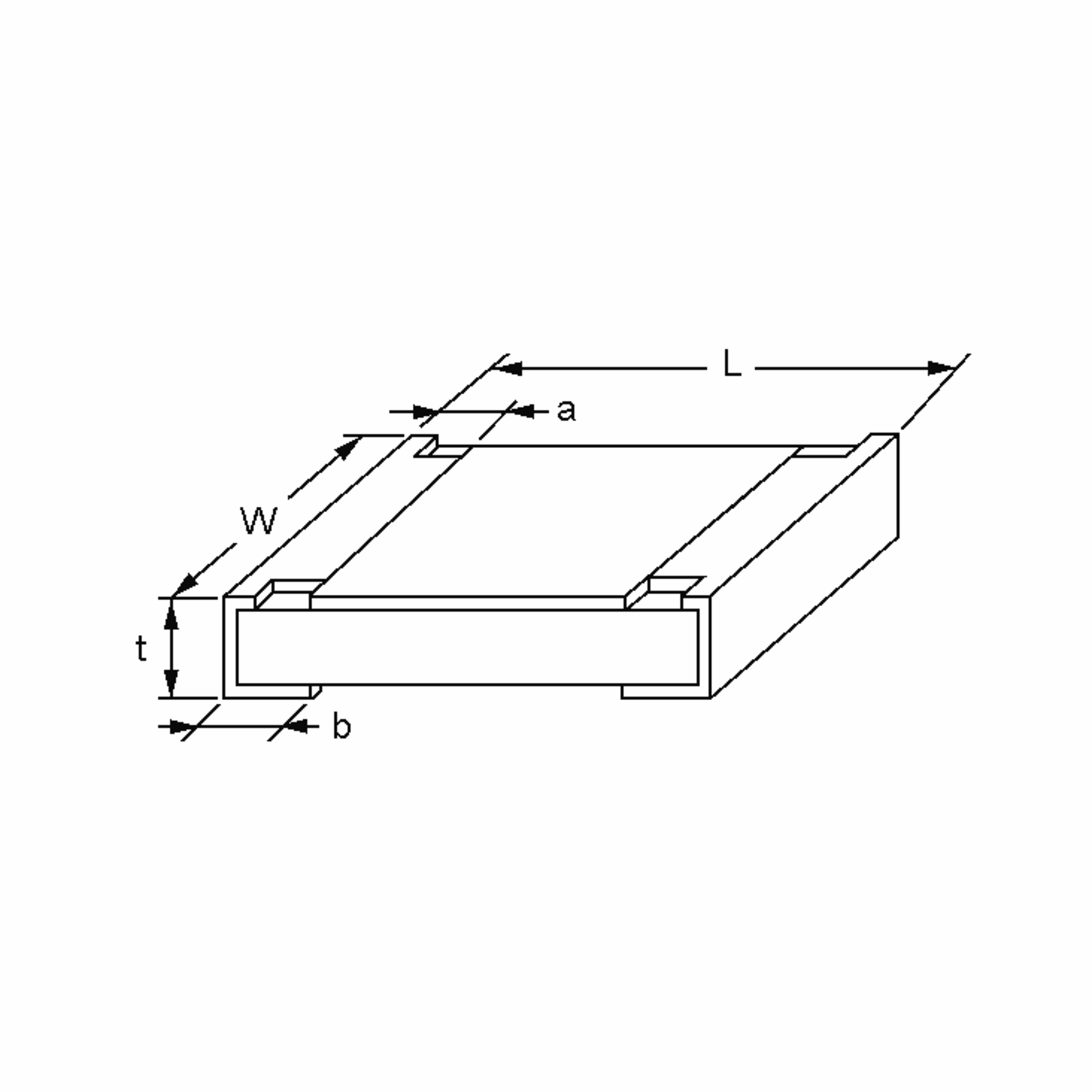

Dimensions and Weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 1.6 mm
- Dimension: Height
- 0.6 mm
- Weight
- 0.01 g
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Resistance value
- 1.2
- Resistance unit
- Ohm
- Resistance
- 1,2 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 0.25 W
- Load reduction
- linear from 70°C to 155°C (0W)
- Temperature coefficient
- 200 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- IEC 60115-8, JIS C 5201-8, JEITA RC-2144
