ERJ3GEYJ331V

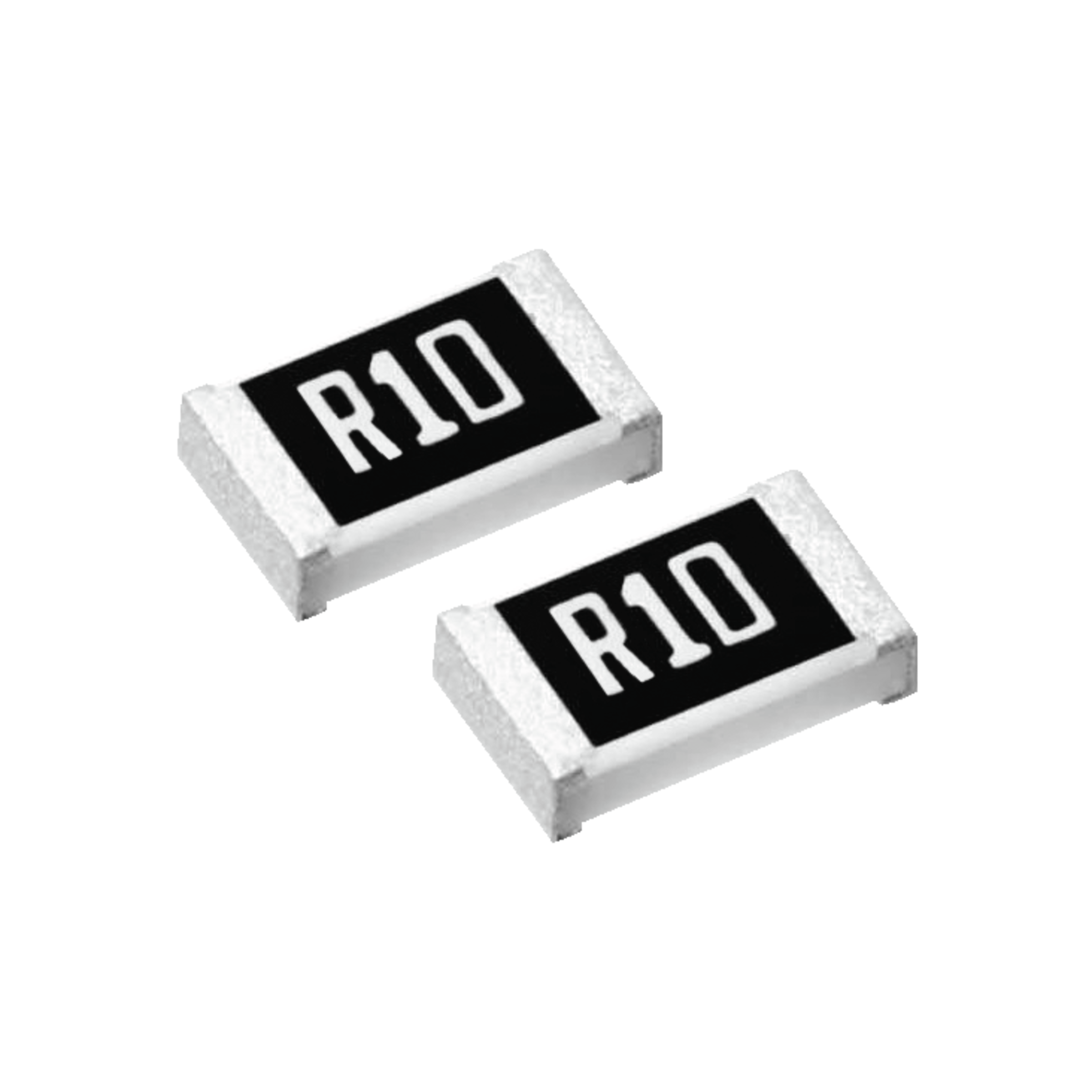

Panasonic SMD thick film resistor ERJ3GE 0603 0,1W 330Ohm 5% AEC-Q200
![Herstellerlogo](https://shopapi.schukat.com/medias/Panasonic-Logo-2022.png?context=bWFzdGVyfHBpbWFzc2V0c3w1MDQ5fGltYWdlL3BuZ3xhRE0yTDJobE5pOHhNRFE0TVRBek5EVTFPVFV4T0M5UVlXNWhjMjl1YVdOZlRHOW5iMTh5TURJeUxuQnVad3w2MjdjN2YxYmFlMTViMmE5OGI2YTBmMjA2ZTZmNjEzZDViYjdkZmJlOTk3ZmFiYzllZWJhMjM0NWE2YjNmYmJk)
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
27.700 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 330 Ohm
- Resistance tolerance
- 5 %
- Rated power
- 0.1 W
- Housing
- 0603
- RoHS-Conform
Specifications
Open all

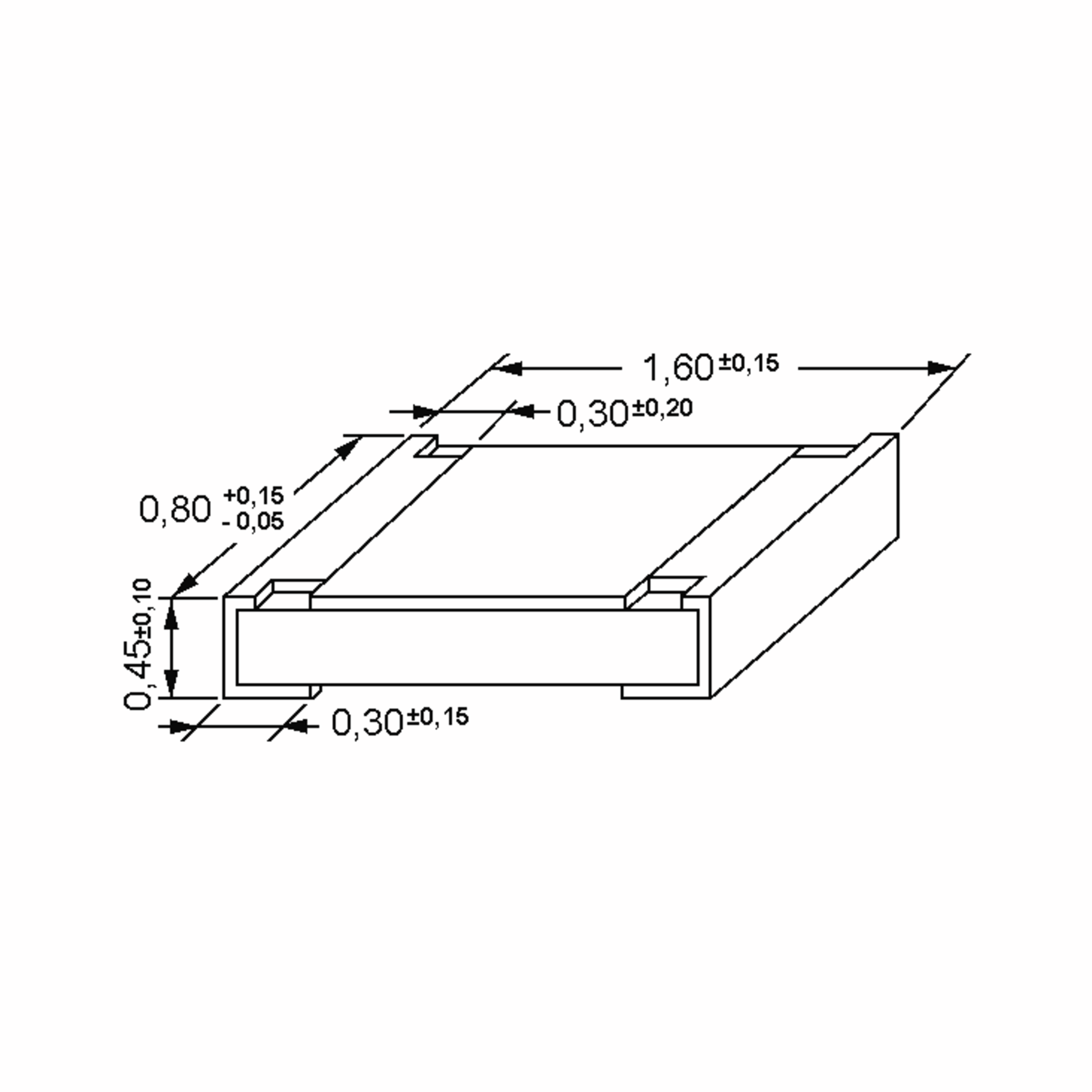

Dimensions and weights
- Dimension: Length
- 1.6 mm
- Dimension: Width
- 0.8 mm
- Dimension: Height
- 0.45 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical features
- Resistance value
- 330
- Resistance unit
- Ohm
- Resistance value
- 330 Ohm
- Resistance tolerance
- 5 %
- Rated power
- 0.1 W
- Max. Operating voltage (DC)
- 75 V DC
- Max. Operating voltage (AC)
- 75 V AC
- Temperature coefficient
- 200 x 10^-6 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- AEC-Q200
