ELLATP151MB

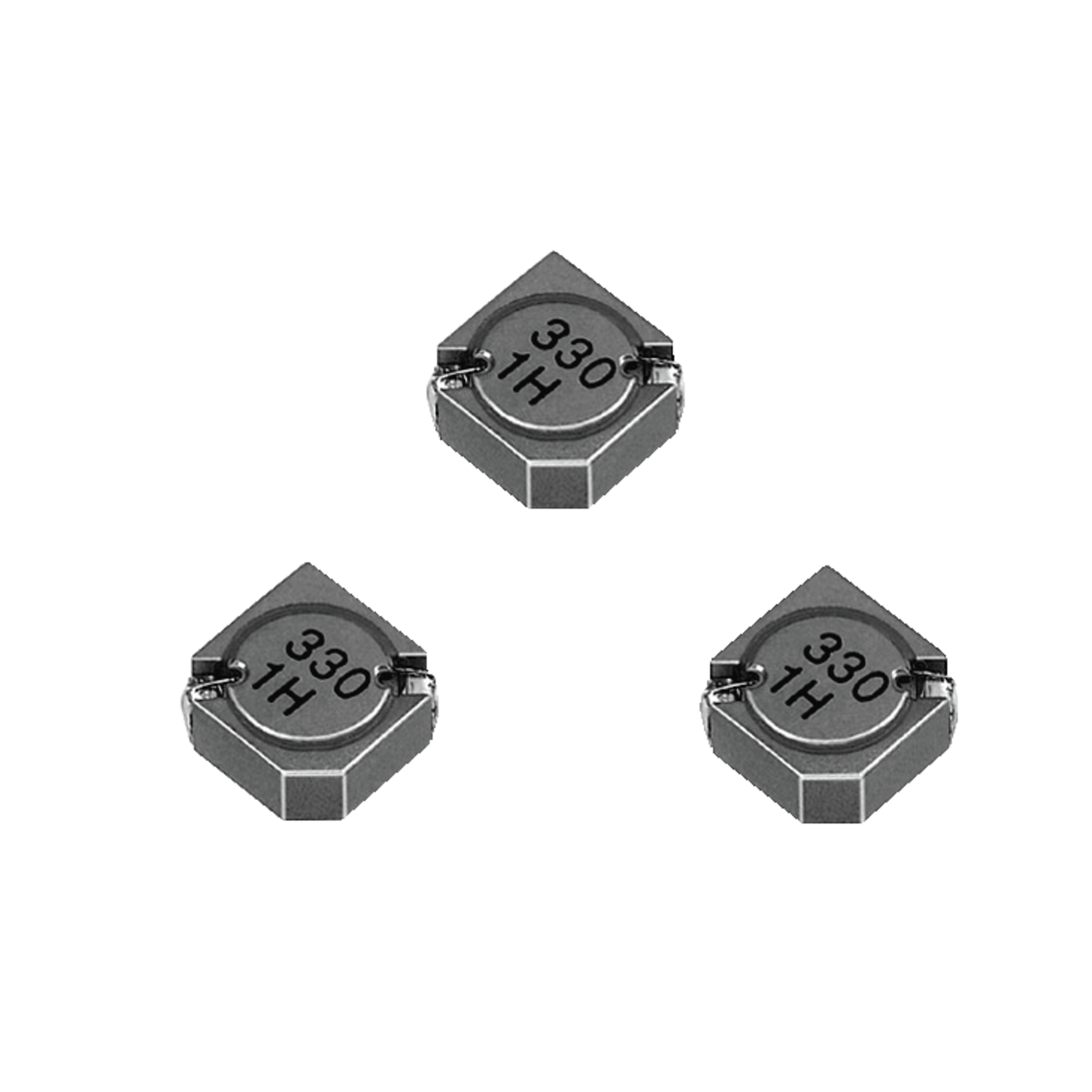

Panasonic Inductors SMD throttle ELLATP 150µH -20-20 10mm 10mm 4,2mm strapped
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.02.2025
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- throttle
- Inductance
- 150 µH
- Inductance tolerance[%]
- -20 - 20
- Nominal resistance
- 250 mOhm
- Housing
- SMD
- Dimension: Length
- 10 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 4.2 mm
- RoHS-Conform
Specifications
Open all

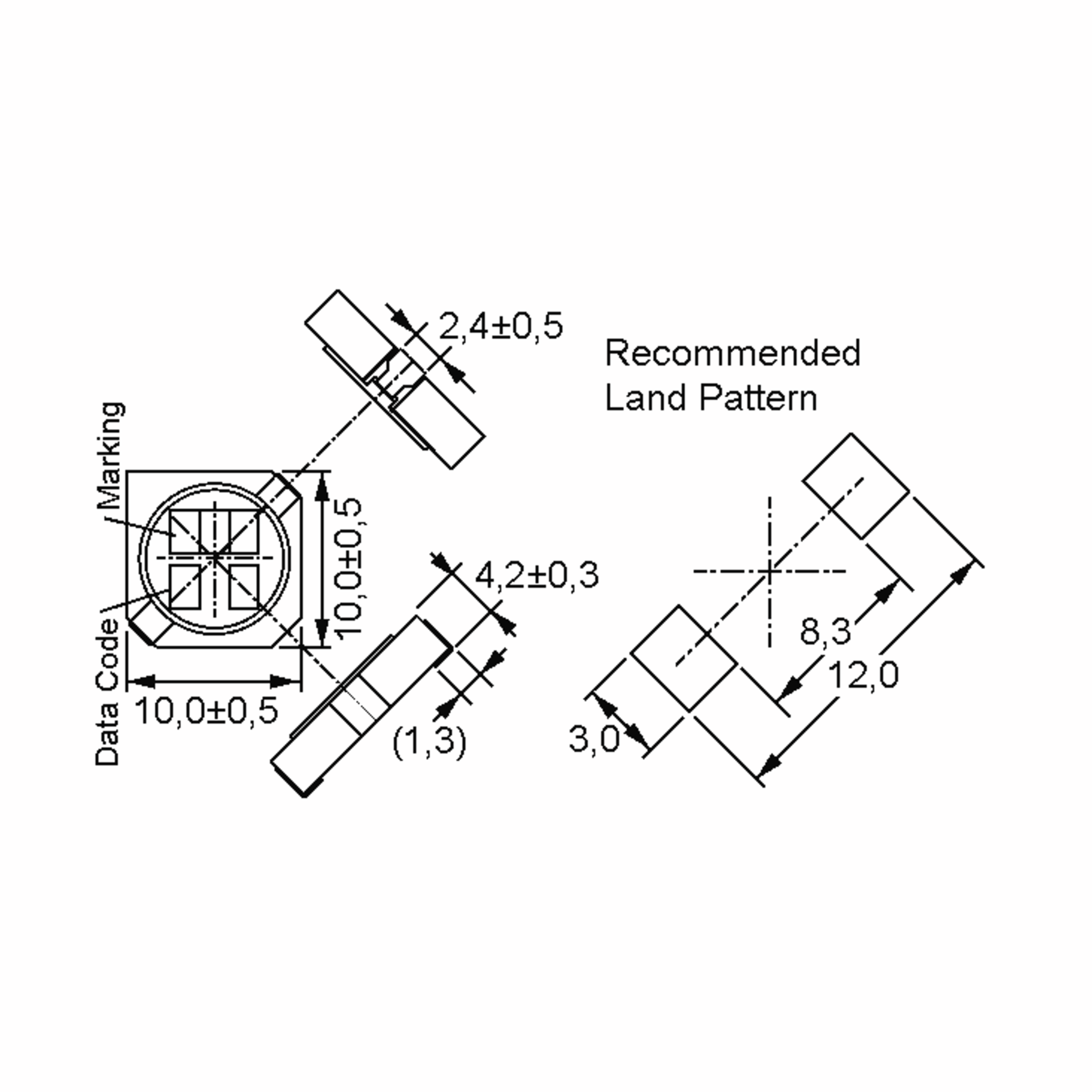

Dimensions and Weights
- Dimension: Length
- 10 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 4.2 mm
Technical Features
- Inductance
- 150 µH
- Inductance value
- 150
- Inductance unit
- µH
- Inductance tolerance[%]
- -20 - 20
- Nominal resistance
- 250 mOhm
- Saturation Current
- 0.78 A
- Temperature rise current
- 900 mA
