EEUFS0J221H
Panasonic Aluminum electrolytic capacitor FS-A THT radial 6,3V 220µF P2,5mm -40°C...105°C Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 08.11.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 220 µF
- Capacity Tolerance
- ±20
- Rated voltage DC
- 6.3 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 2.5 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all

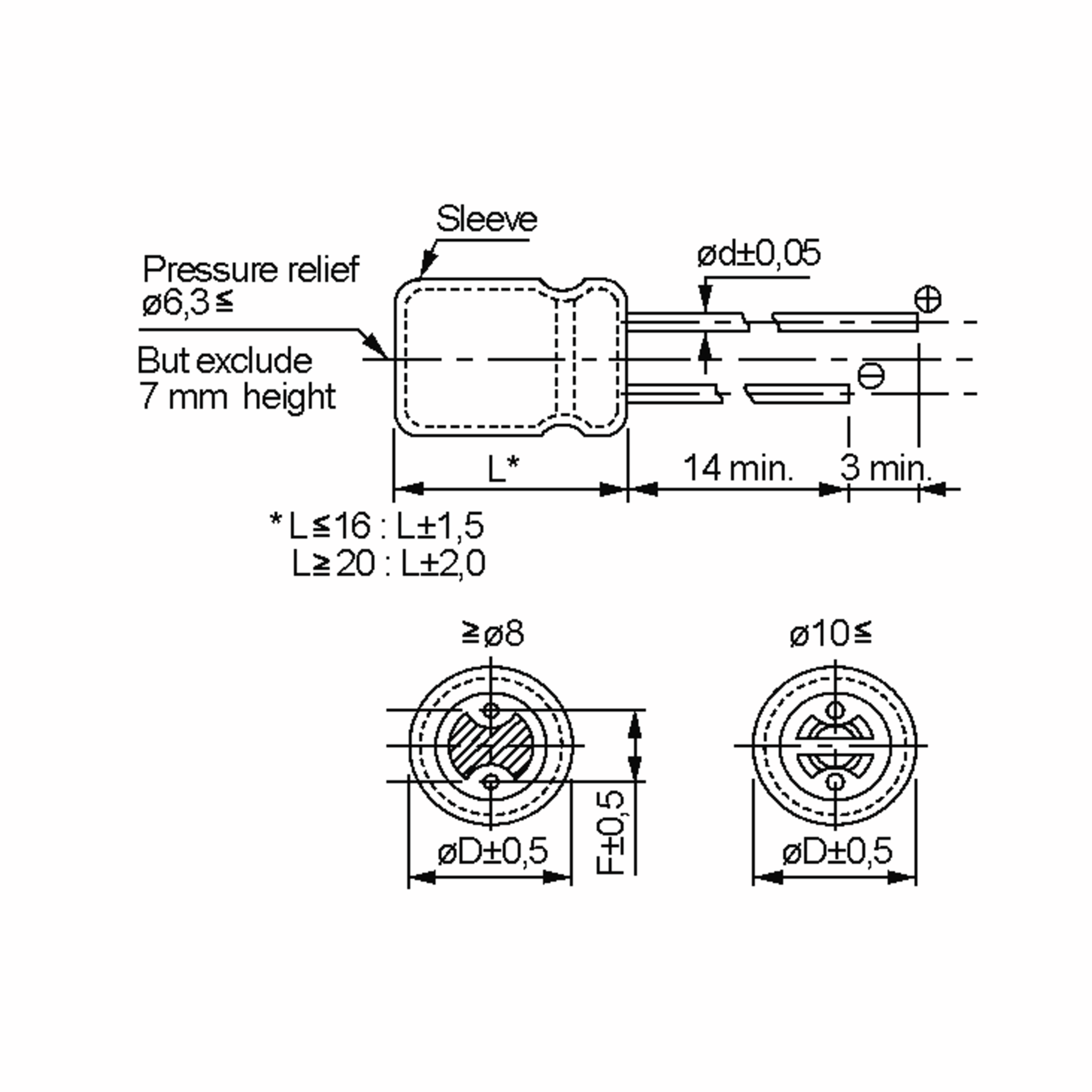

Dimensions and Weights
- Diameter
- 5 mm
- Dimension: Height
- 11 mm
- Pitch
- 2.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Capacity
- 220 µF
- Capacity
- 220
- Capacity unit
- µF
- Capacity Tolerance
- ±20
- Rated voltage DC
- 6.3 V
