EEUFC1J102U
Panasonic Aluminum electrolytic capacitor FC-A THT radial 63V 1000µF 20% P7,5mm -55°C...105°C AEC-Q200
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
225 Pcs. in stock
Next Stock Receipt
Week 08/2025
4.000 Pcs.
4.000 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 1.000 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 63 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 7.5 mm
- RoHS-Conform
Specifications
Open all

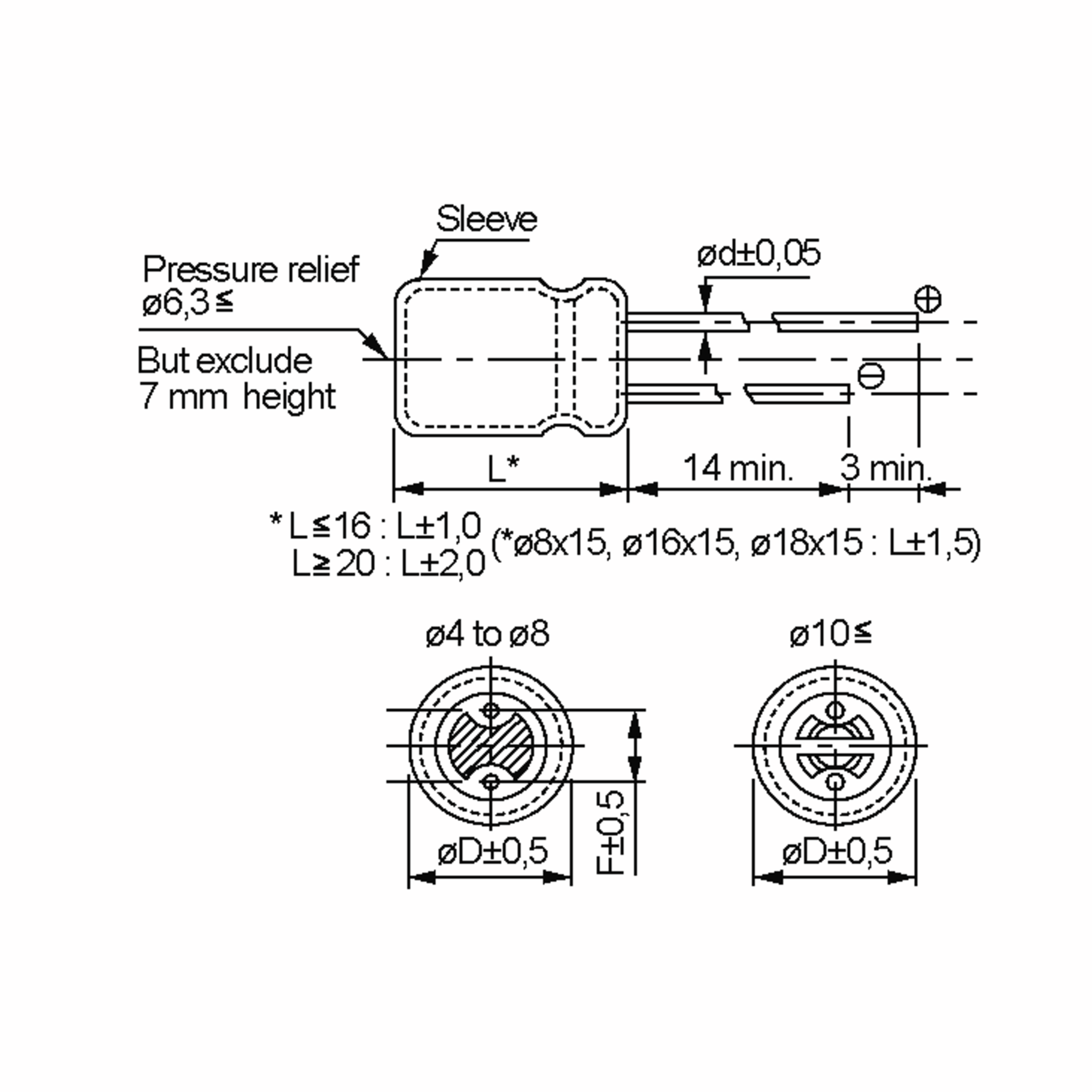

Dimensions and weights
- Diameter
- 16 mm
- Dimension: Height
- 31.5 mm
- Pitch
- 7.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 1.000 µF
- Capacity
- 1,000
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,08
- Ripple Current
- 2.670 mA
- Equivalent series resistance (ESR)
- 0,043 Ohm
- Rated voltage DC
- 63 V
- Service life
- 5.000 h
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- AEC-Q200
