EEUFC1C472
Panasonic Aluminum electrolytic capacitor THT radial 4700µF 16V 20% RM7,5mm -55°C - 105°C AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
350 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 4.700 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 16 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 7.5 mm
- RoHS-Conform
Specifications
Open all

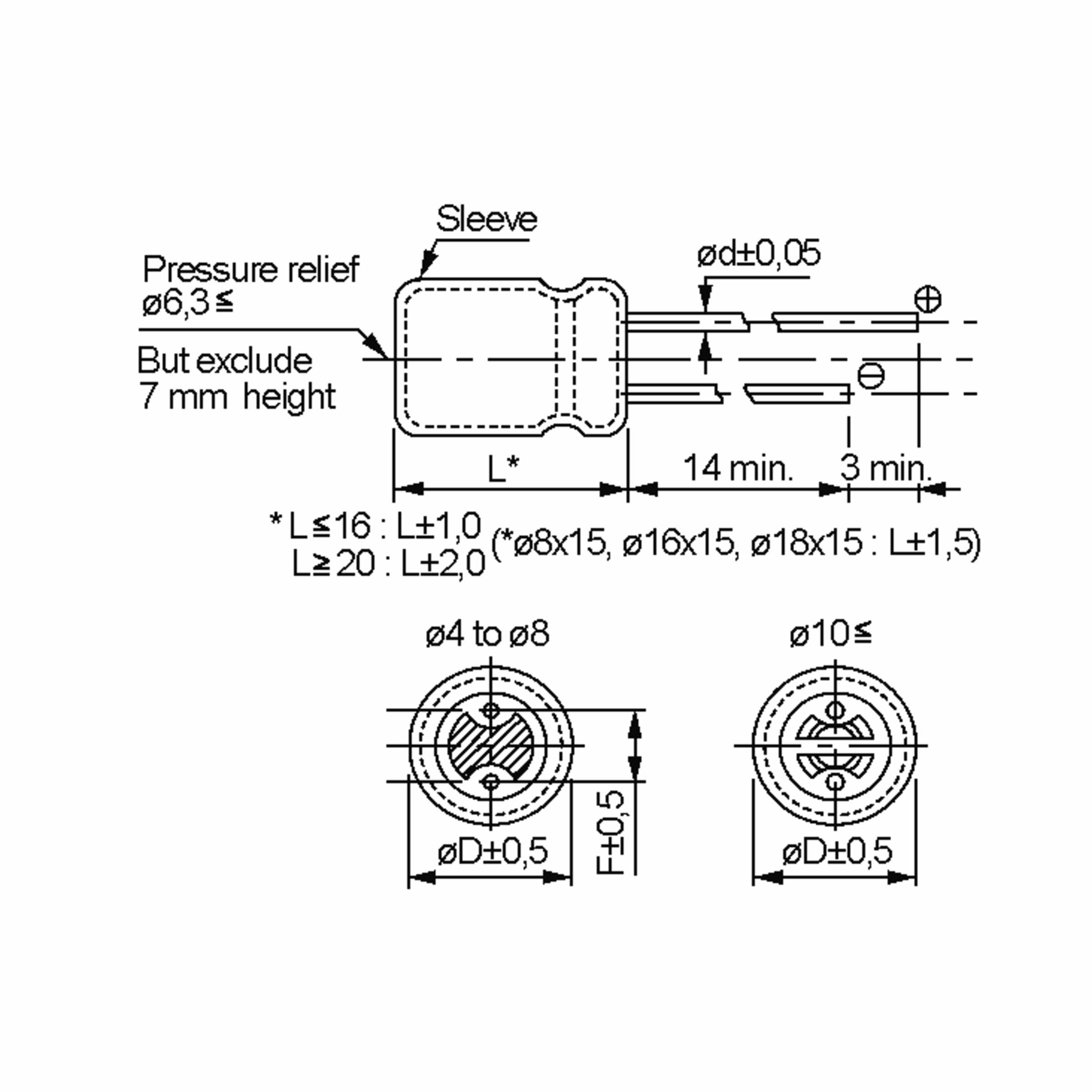

Dimensions and weights
- Diameter
- 16 mm
- Dimension: Height
- 31.5 mm
- Pitch
- 7.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 4.700 µF
- Capacity
- 4,700
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,16
- Ripple Current
- 3.010 mA
- Equivalent series resistance (ESR)
- 0,018 Ohm
- Rated voltage DC
- 16 V
- Service life
- 5.000 h
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- AEC-Q200
