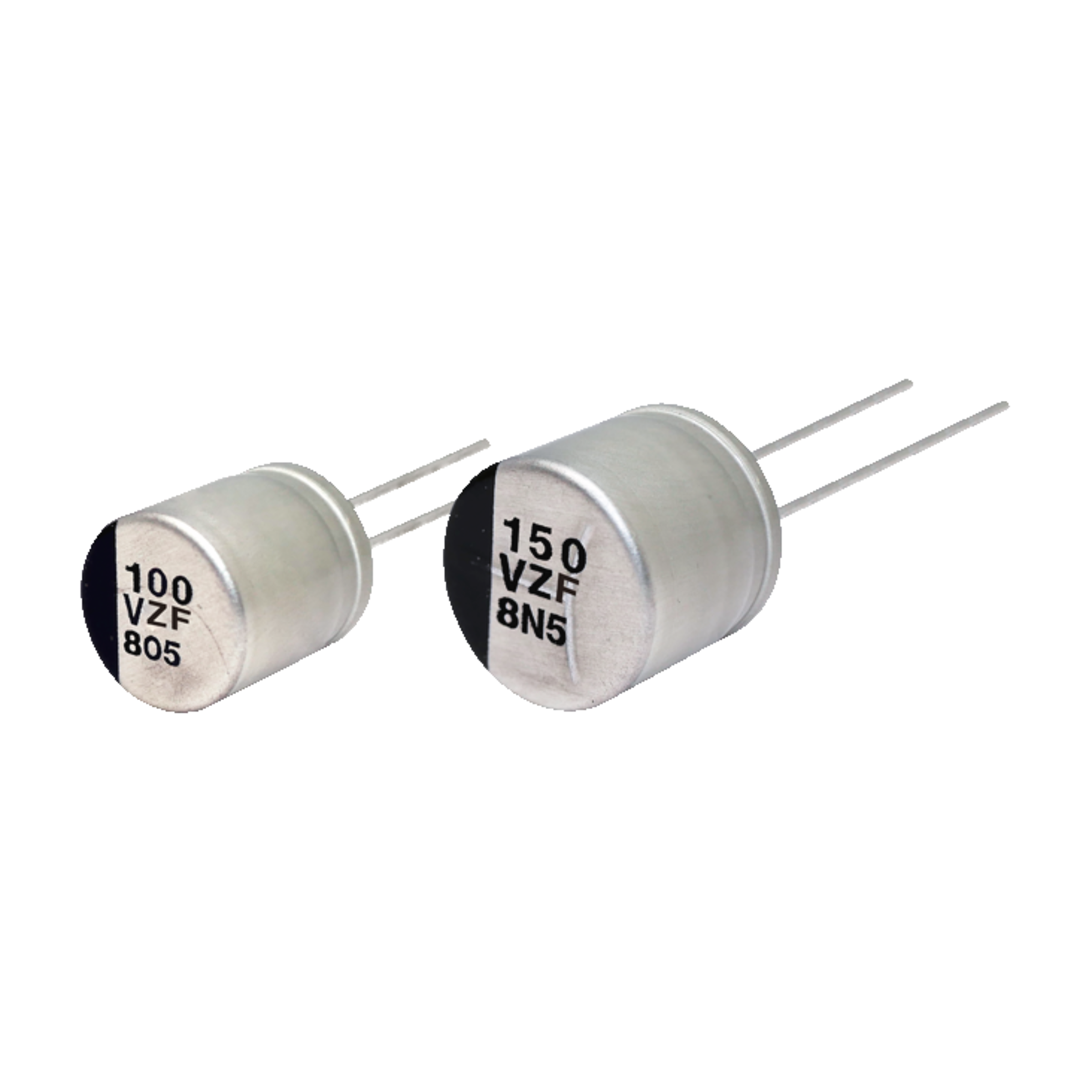

EEHAZF1E151
ZF-A 20% ...
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 04.07.2021
Abgekündigt durch Hersteller ohne Ersatz
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Capacity
- 150 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 25 V
- Pitch
- 3.5 mm
- RoHS-Conform
Specifications
Open all

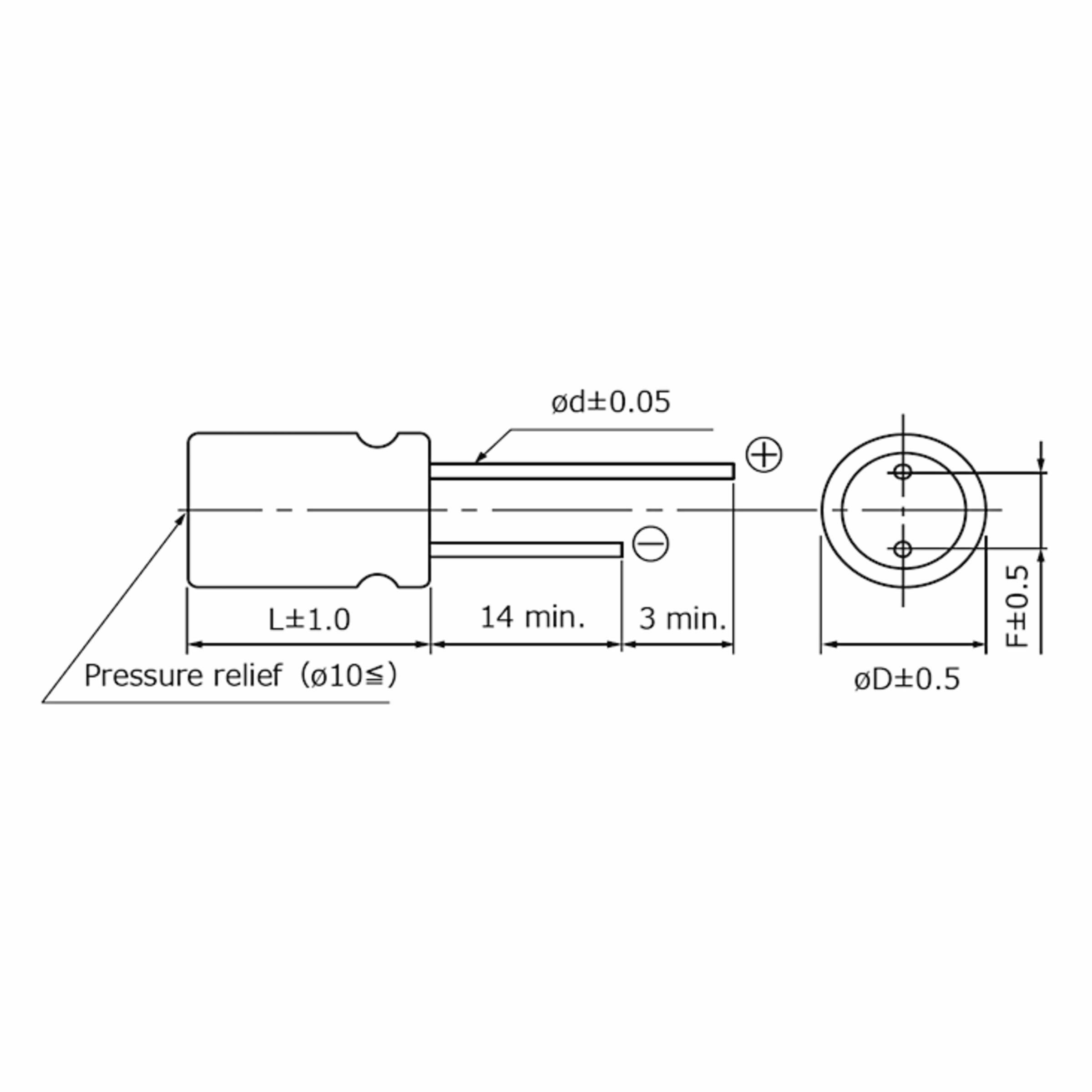

Dimensions and weights
- Diameter
- 8 mm
- Dimension: Height
- 9.5 mm
- Pitch
- 3.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
Technical features
- Capacity
- 150 µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,14
- Rated voltage DC
- 25 V
- Service life
- 1.000 h
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- AEC-Q200
