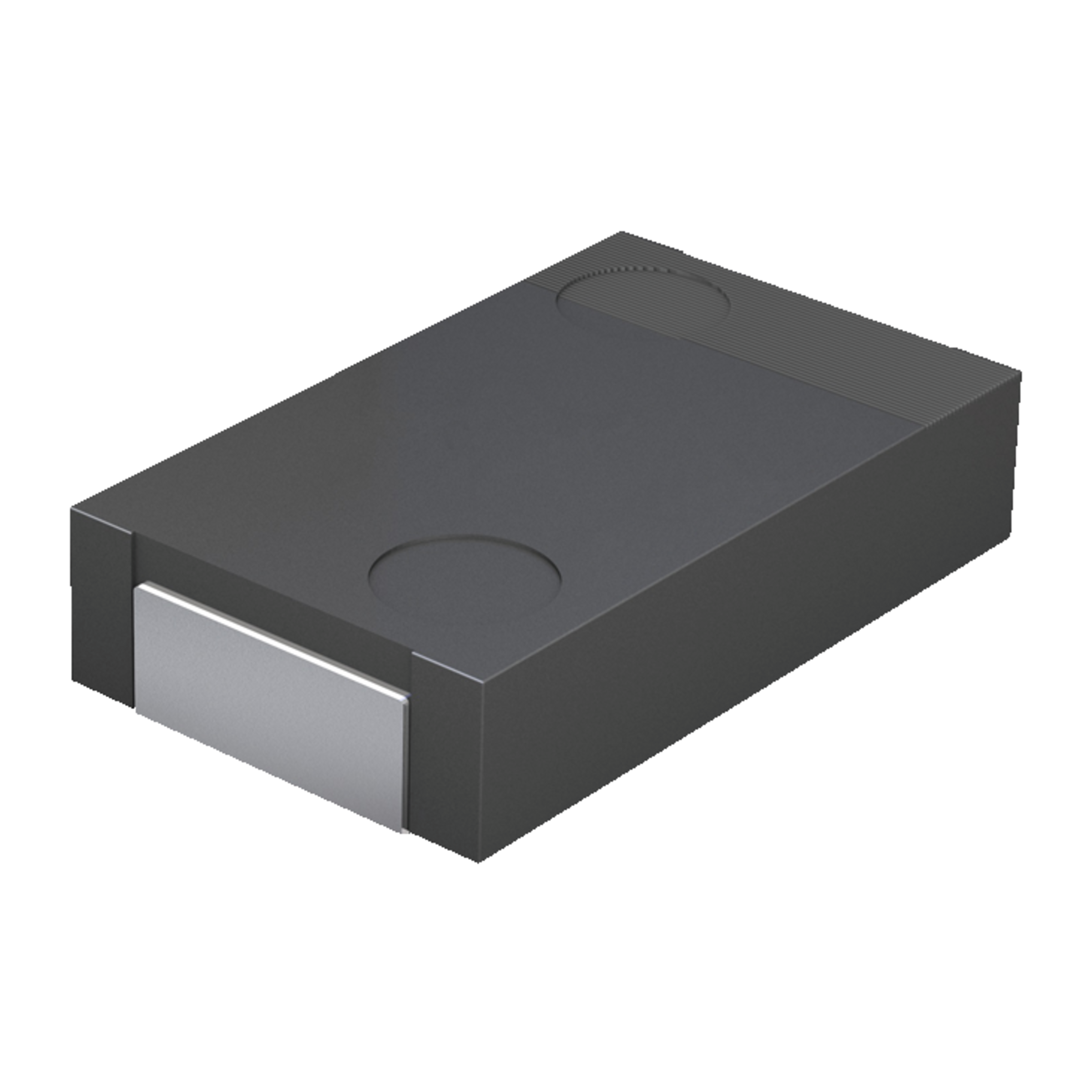

EEFLR0D221R4
Panasonic SMD electrolytic capacitor 2 V 220 µF 20 % -55 °C - 105 °C
![Herstellerlogo](https://shopapi.schukat.com/medias/Panasonic-Logo-2022.png?context=bWFzdGVyfHBpbWFzc2V0c3w1MDQ5fGltYWdlL3BuZ3xhRE0yTDJobE5pOHhNRFE0TVRBek5EVTFPVFV4T0M5UVlXNWhjMjl1YVdOZlRHOW5iMTh5TURJeUxuQnVad3w2MjdjN2YxYmFlMTViMmE5OGI2YTBmMjA2ZTZmNjEzZDViYjdkZmJlOTk3ZmFiYzllZWJhMjM0NWE2YjNmYmJk)
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
3.500 Pcs.
3.500 Pcs.
Planned delivery time
Ø 38 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
Prices
Manufacturer bundle 3500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3500 or multiple of 3500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Polymer aluminum electrolytic capacitor SP-Cap
- Capacity
- 220 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 2 V
- Assembly Type
- SMD
- RoHS-Conform
Specifications
Open all

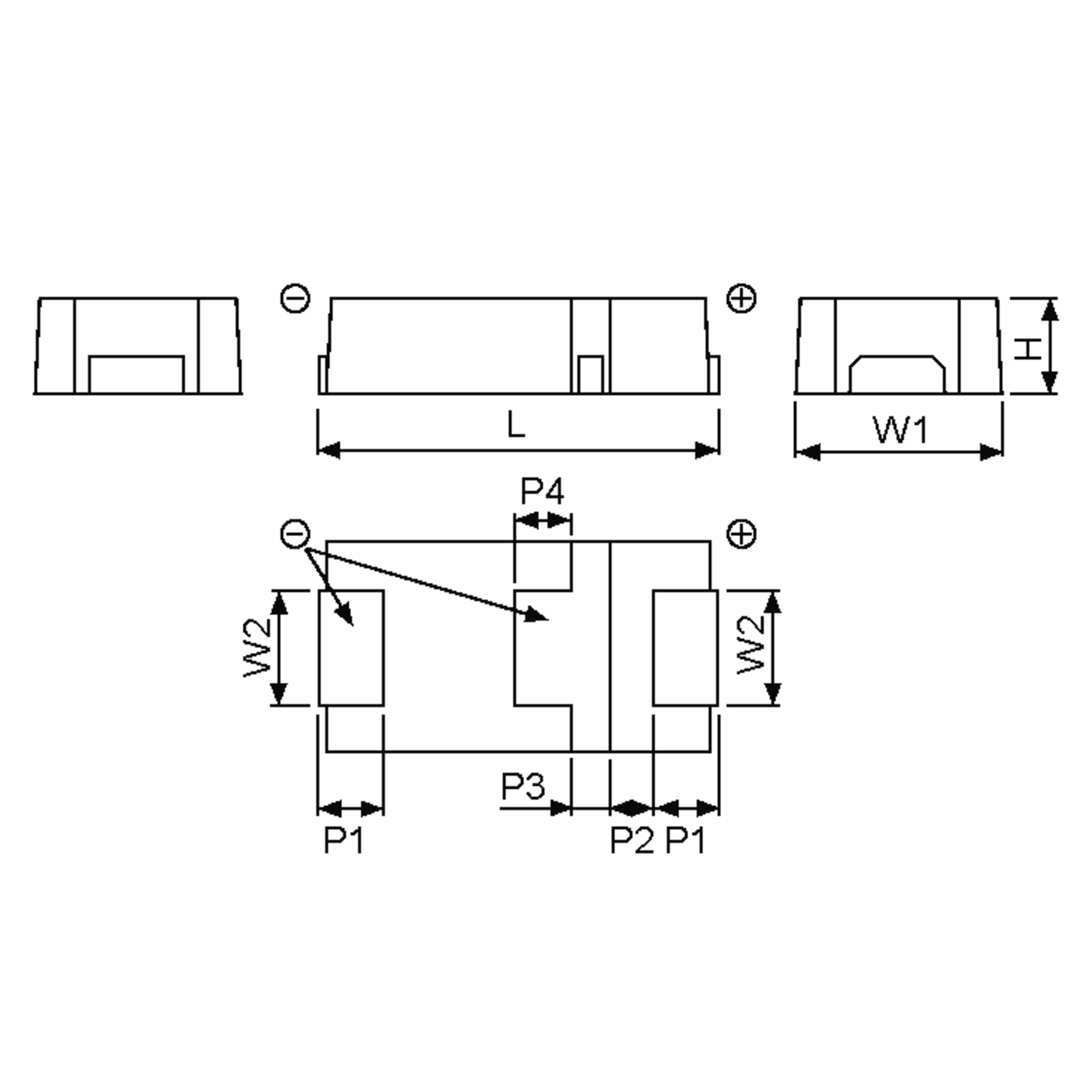

Dimensions and weights
- Dimension: Length
- 7.3 mm
- Dimension: Width
- 4.3 mm
- Dimension: Height
- 1 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 220 µF
- Capacity
- 220
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,06
- Ripple Current
- 8.500 mA
- Equivalent series resistance (ESR)
- 4,5 mOhm
- Rated voltage DC
- 2 V
- Surge voltage
- 2.5 V
- Service life
- 2.000 h
