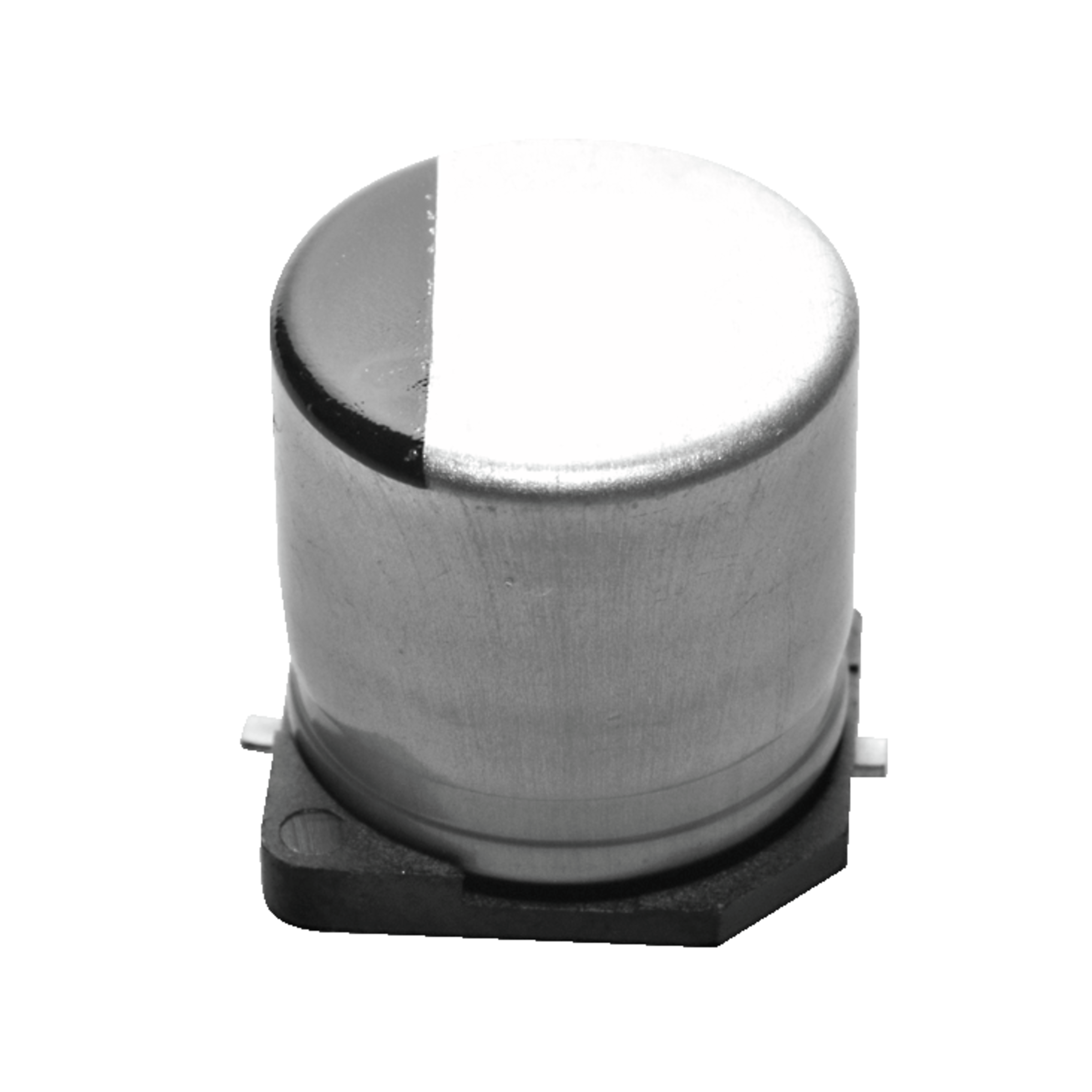

EEEFT1V681UP
Panasonic Aluminum electrolytic capacitor FT 35V 680µF 20% 10,0mmx10,2mm -55°C...105°C AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Next Stock Receipt
Week 02/2025
500 Pcs.
500 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 680 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 35 V
- Housing
- G
- RoHS-Conform
Specifications
Open all

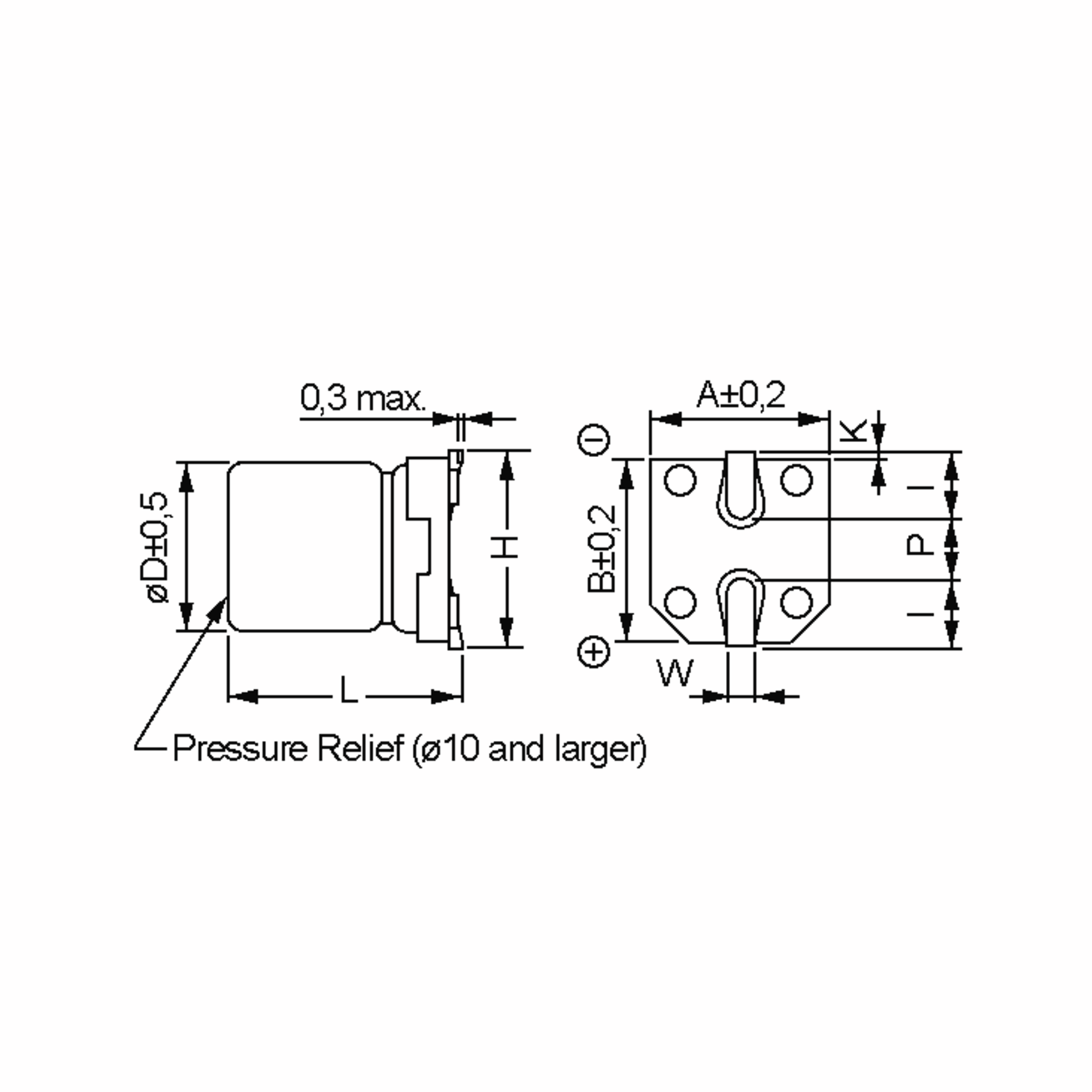

Dimensions and weights
- Diameter
- 10 mm
- Dimension: Height
- 10.2 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 680 µF
- Capacity
- 680
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Equivalent series resistance (ESR)
- 0,06 Ohm
- Rated voltage DC
- 35 V
- Service life
- 2.000 h
Safety/Certifications
- Qualification
- AEC-Q200
