EEEFN0J680UR
Panasonic SMD Aluminum electrolytic capacitor FN 6,3V 68µF 20% 4mmx5,8mm -55°C...105°C AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
100 Pcs.
100 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 68 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 6.3 V
- Assembly Type
- SMD
- Housing
- B
- RoHS-Conform
Specifications
Open all

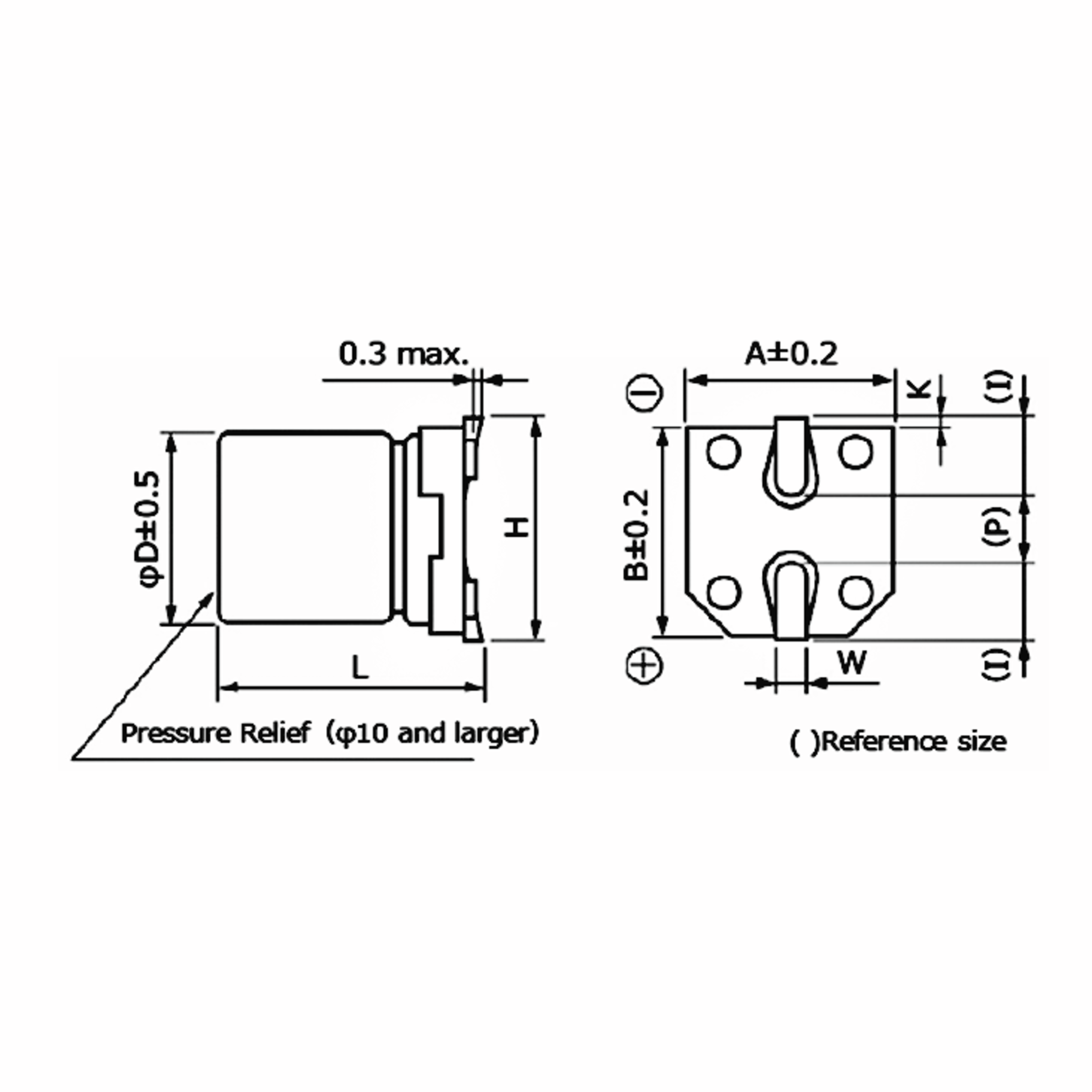

Dimensions and weights
- Diameter
- 4 mm
- Dimension: Height
- 5.8 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 68 µF
- Capacity
- 68
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,26
- Ripple Current
- 90 mA
- Equivalent series resistance (ESR)
- 1,35 Ohm
- Rated voltage DC
- 6.3 V
- Service life
- 2.000 h
Safety/Certifications
- Qualification
- AEC-Q200
