BR-2/3AY4PN

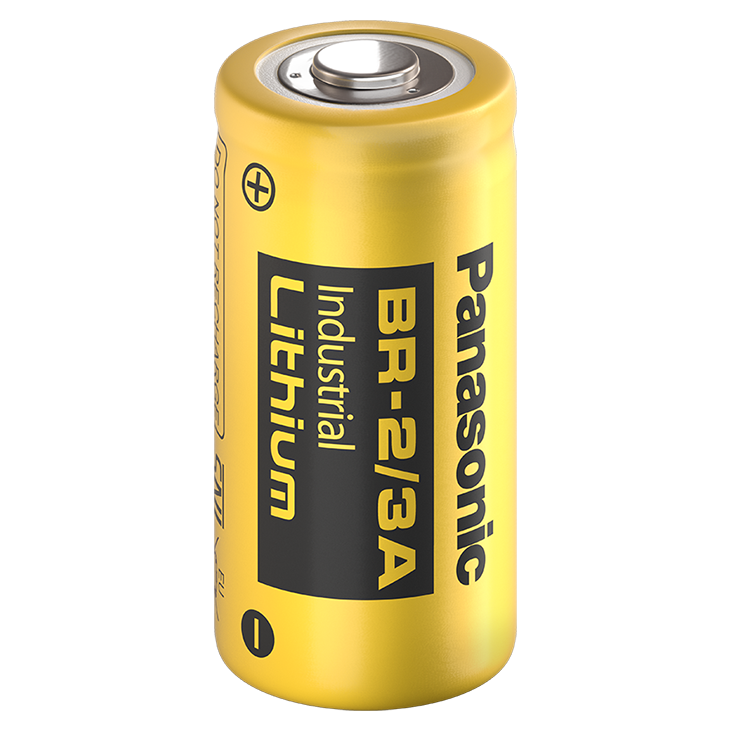

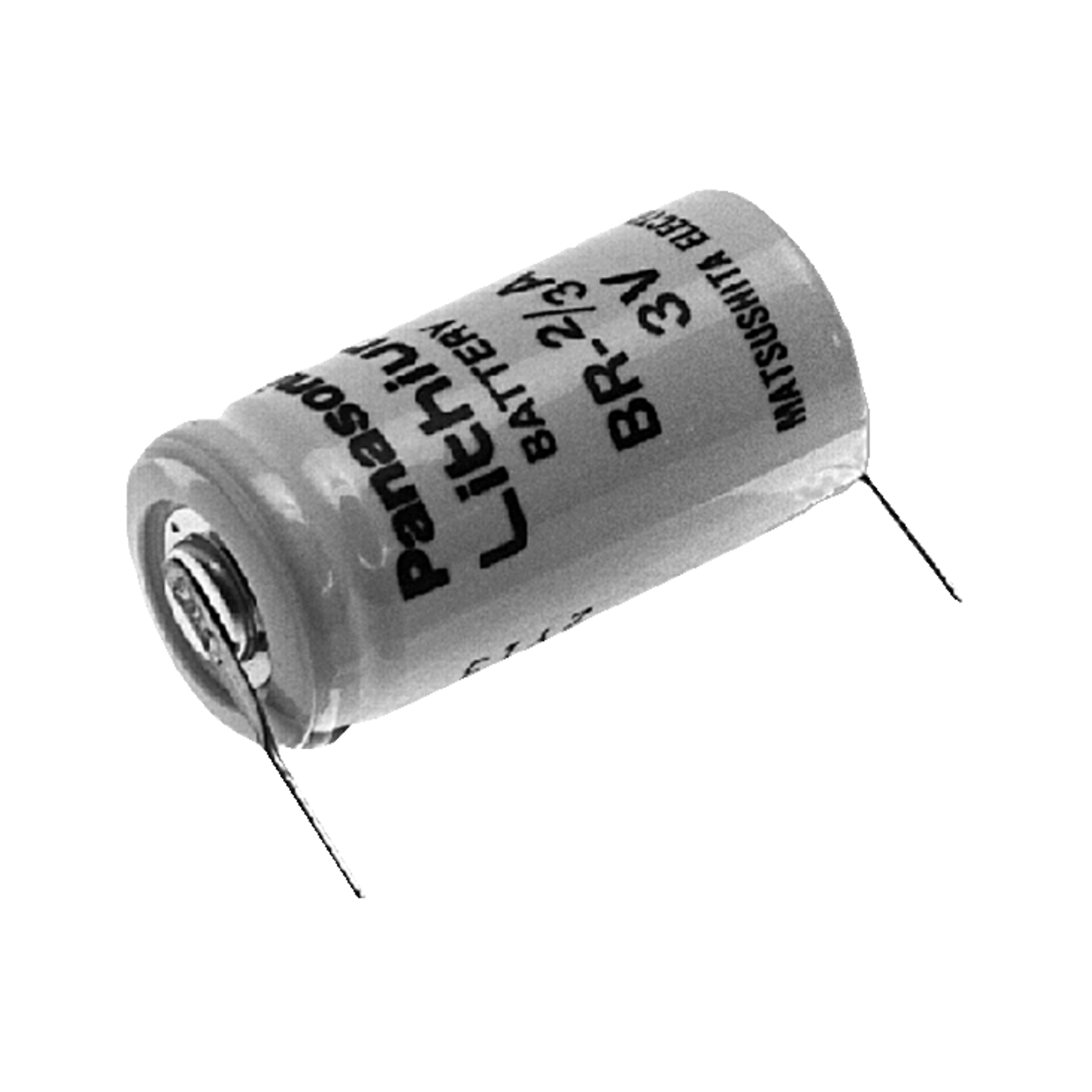

Panasonic Lithium carbon monofluoride (Li-CFx) Round Cell BR 3V BR17335 2/3A Radial Pins
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
33 Pcs. in stock
Next Stock Receipt
Week 19/2026
200 Pcs.
200 Pcs.
Planned delivery time
Ø 34 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3 V
- Nominal capacity
- 1,200 mAh
- Chemical system
- Lithium carbon monofluoride (Li-CFx)
- IEC Code
- BR17335
- Other designation
- 2/3A
Specifications
Open all
Operating conditions
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 85 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 1,200 mAh
- Energy storage, capacity
- 3.6 Wh
- Rated Voltage
- 3 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
BR-2_3A_UN38.3(2019).pdf
CYBR-PSDS-01-EN.pdf
PCN_About adding CE marking on outer carton box_24.04.2024_EN.pdf
