APAN3105

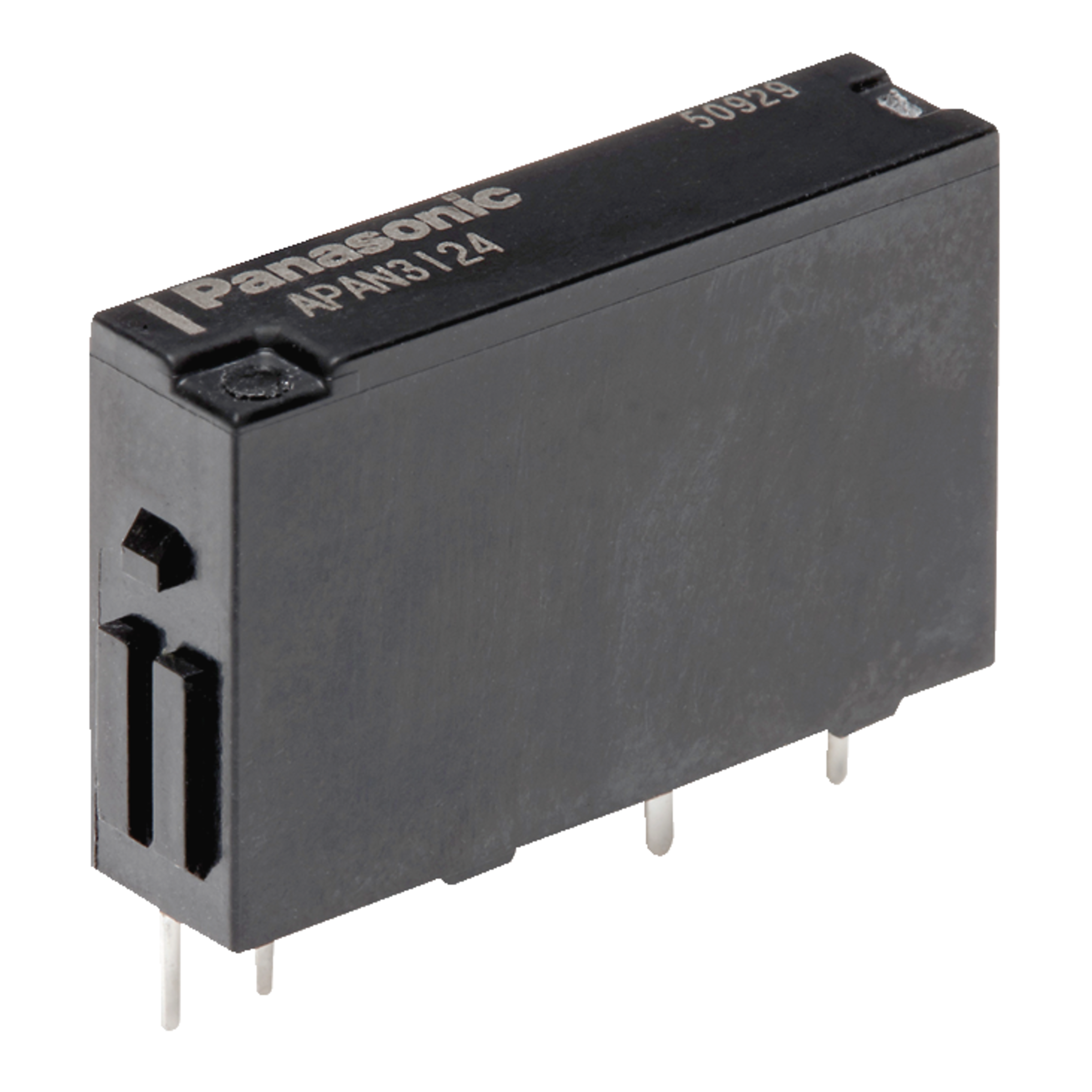

Panasonic Power relay APAN-N THT SPST-NO 5A 5VDC 227Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
184 Pcs. in stock
Planned delivery time
Ø 31 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- APAN-N
- Rated current
- 22 mA
- Rated voltage DC
- 5 V DC
- Switching current
- 5 A

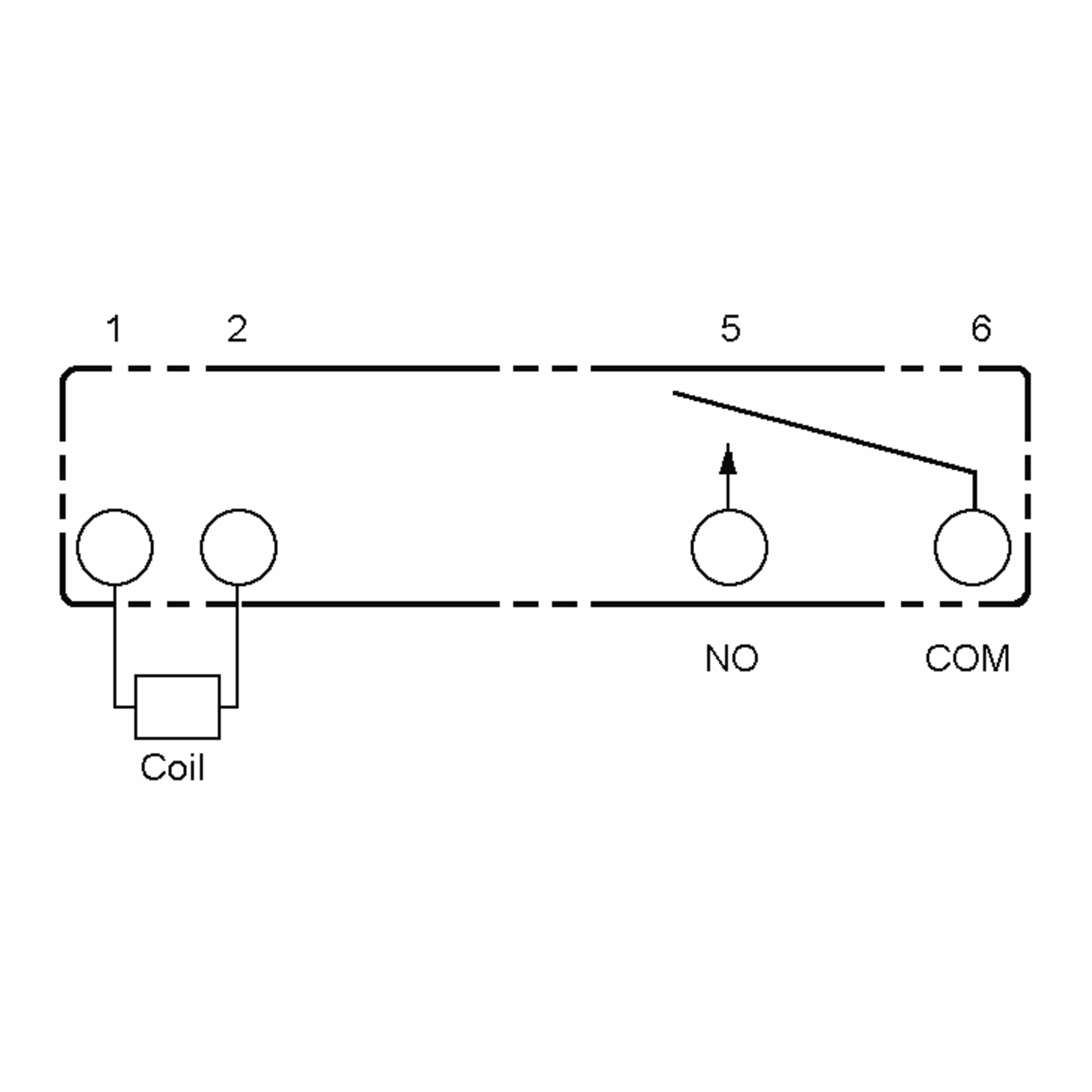

- contacts
- SPST-NO
- Coil resistance
- 227 Ohm

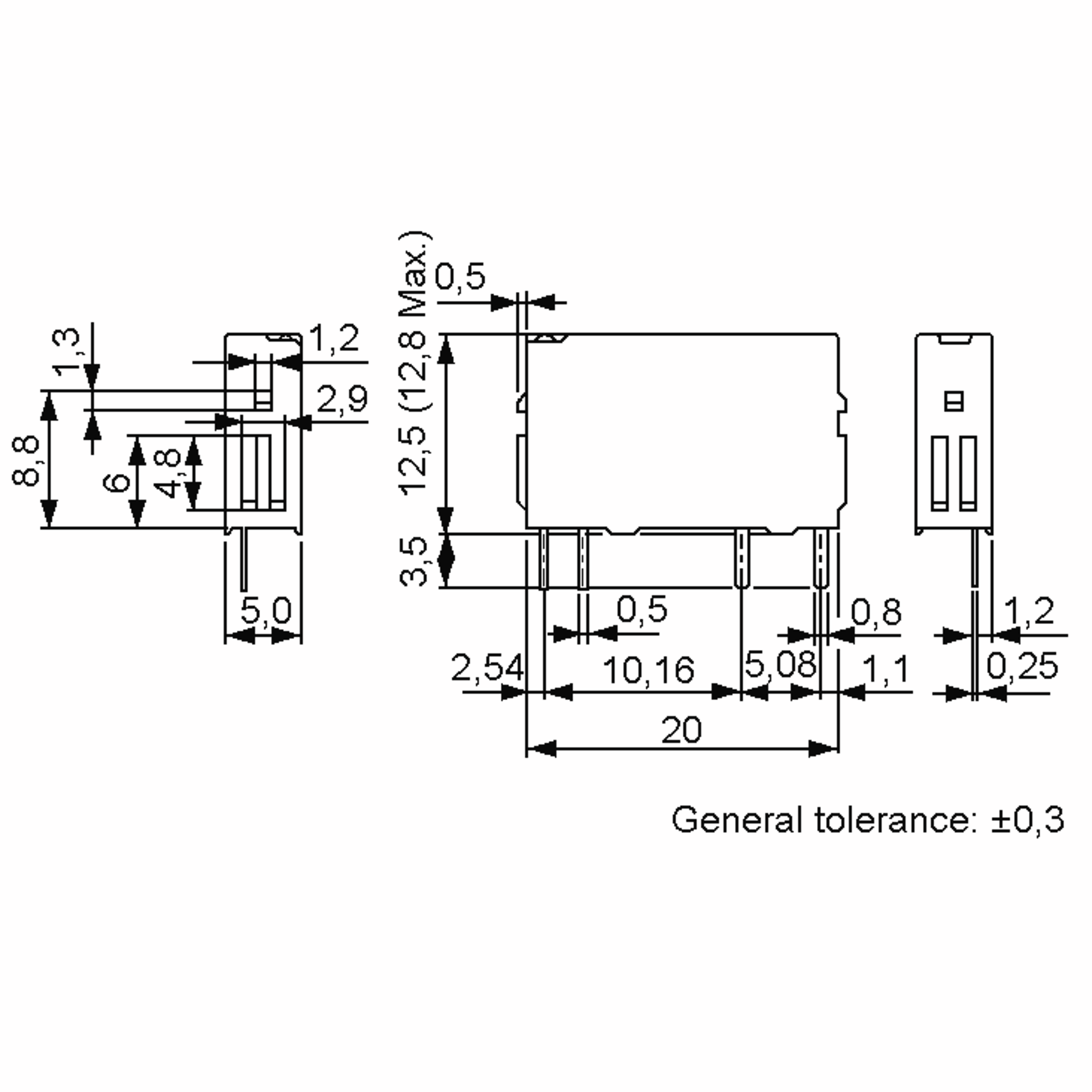

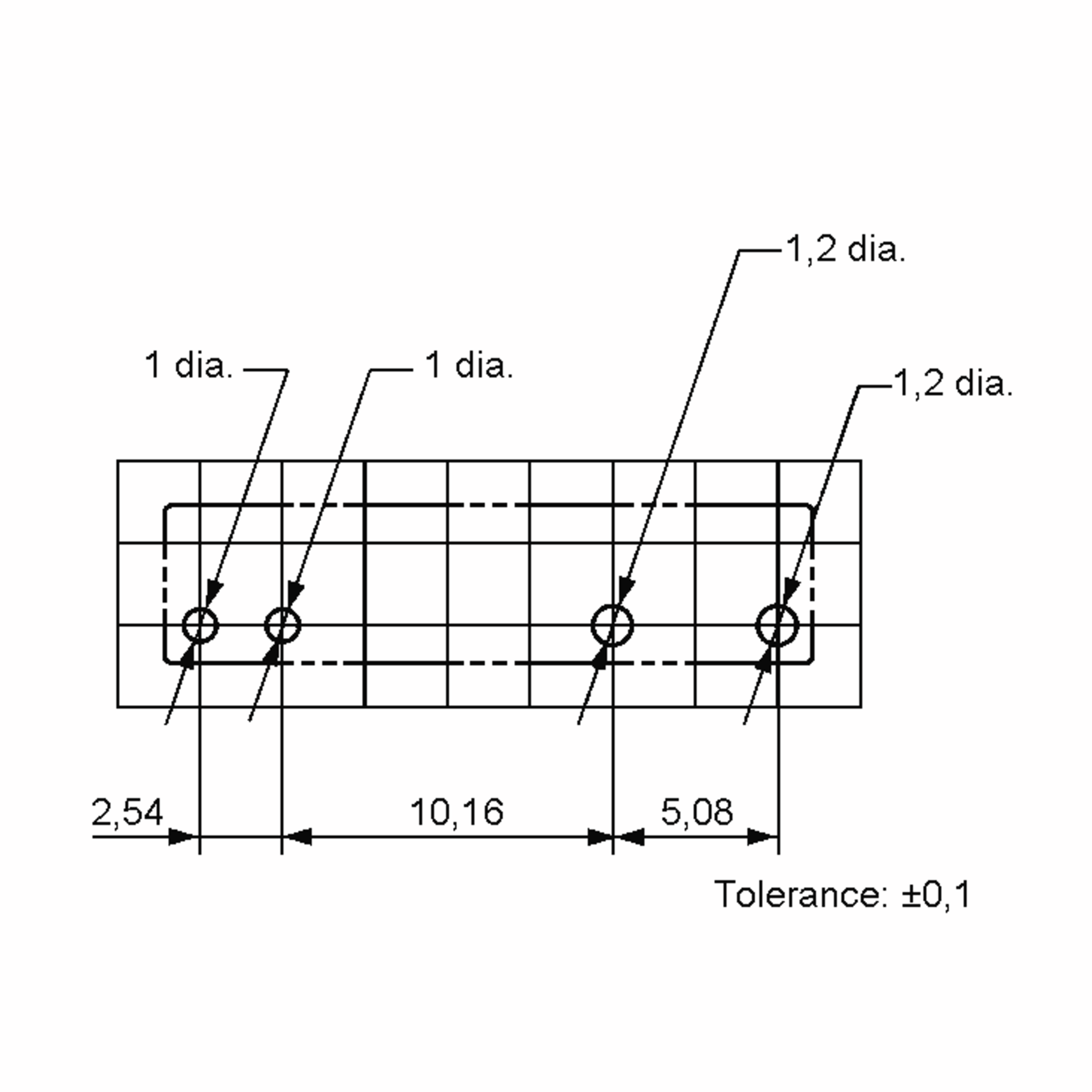

- Dimension: Length
- 20 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 12.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 12.5 mm
- Weight
- 3 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 90 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 110 V DC
- Response voltage
- 3.5 V
- Drop-out voltage
- 0.25 V
- Test voltage open contacts
- 3,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Creepage distance
- 5.29 mm
- Rated current
- 22 mA
- Switching current
- 5 A
- Rated power
- 110 mW
- Switching capacity (VA)
- 1,250 VA
- Switching capacity (W)
- 150 W
- Coil resistance
- 227 Ohm
- Contact resistance
- 30 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 2,5 mm DA
- Impact resistance, functional
- 147 m/s²
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 61010, ANSI/ISA 12.12.01, CAN/CSA C22.2 No. 213-15
