6TPB220ML

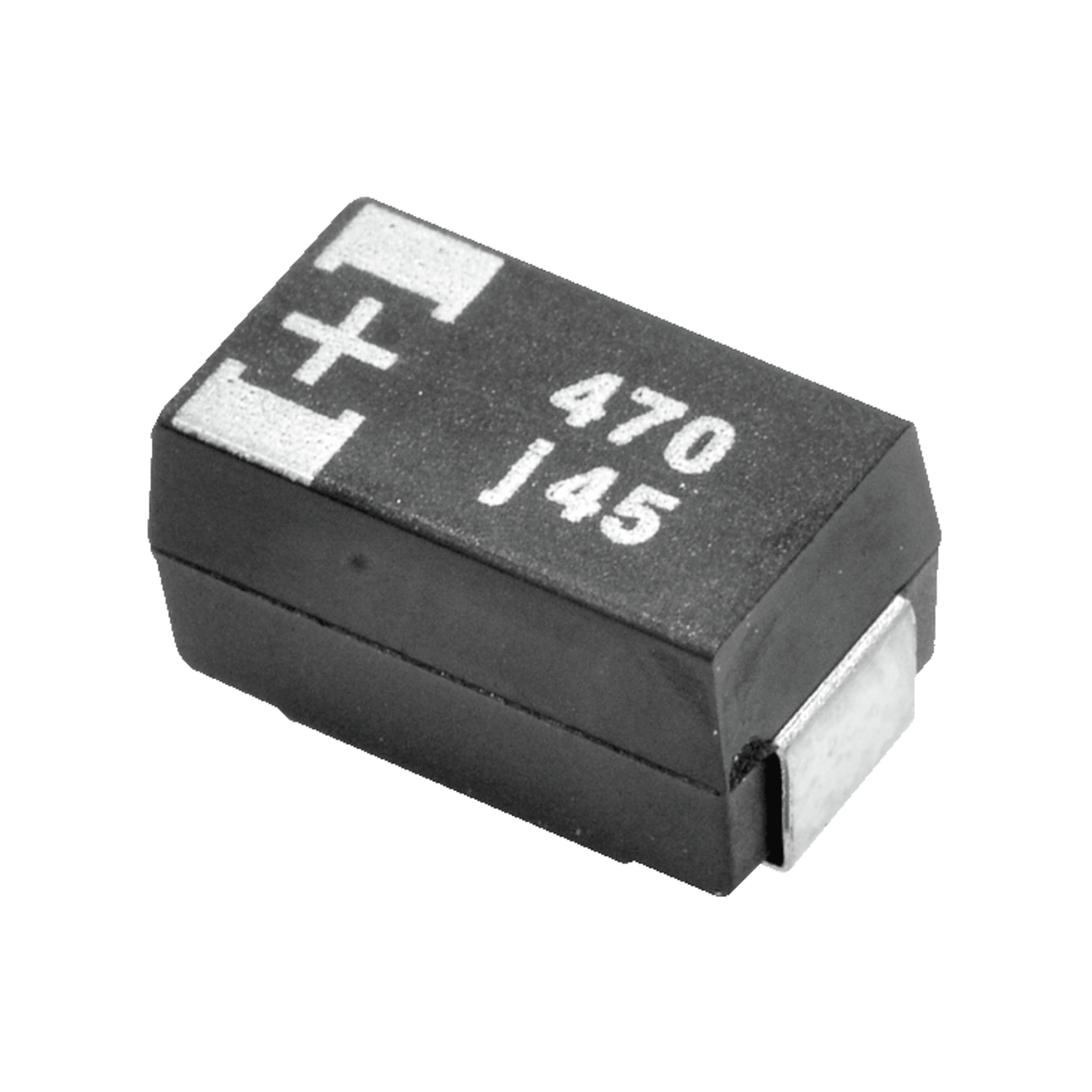

Panasonic Polymer tantalum capacitor POSCAP TPB 220 µF 20 % 6,3 V SMD
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 24.10.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2500 or multiple of 2500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Polymer tantalum capacitor POSCAP
- Capacity
- 220 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 6.3 V
- Assembly Type
- SMD
- Housing
- D3L
- RoHS-Conform
Specifications
Open all

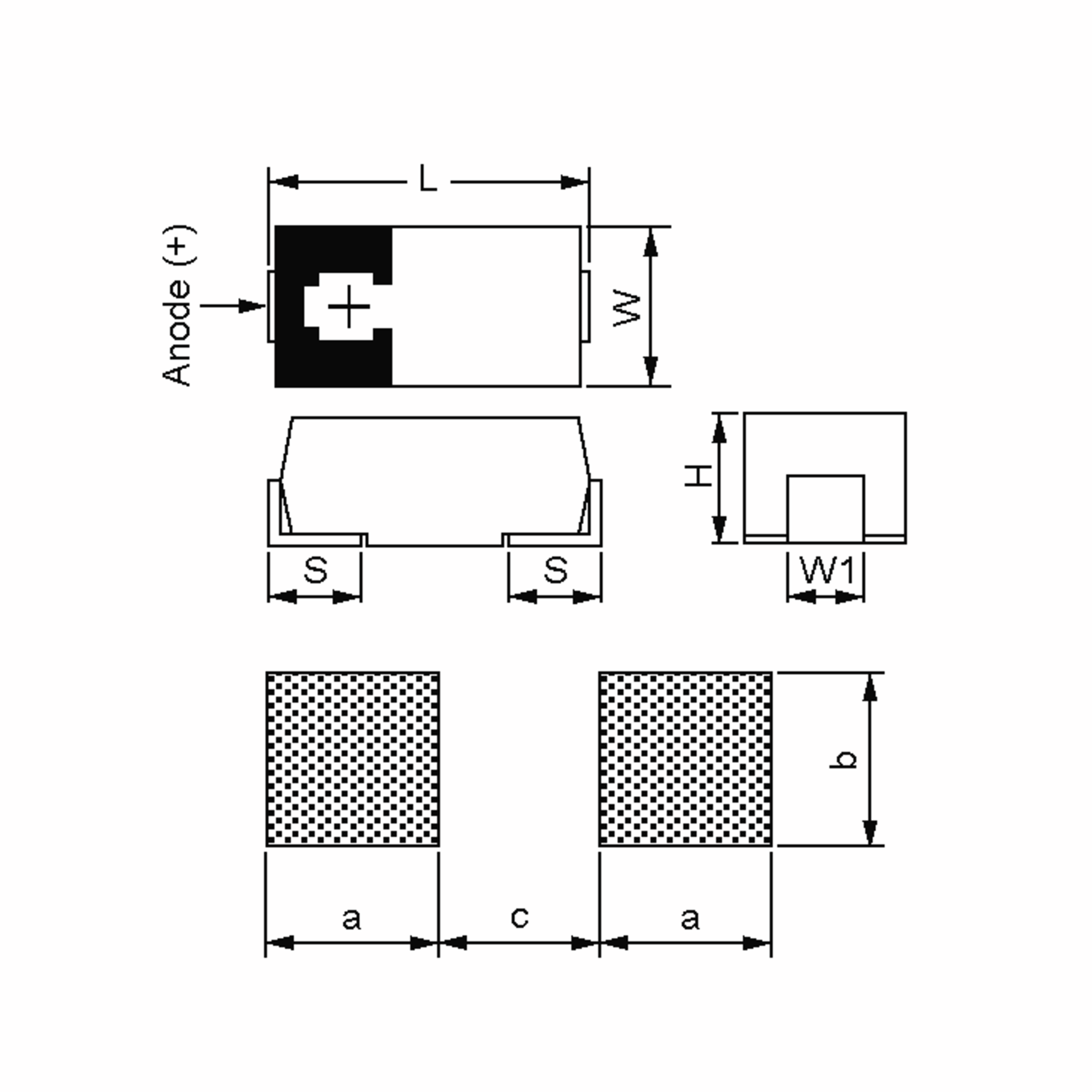

Dimensions and weights
- Dimension: Length
- 7.3 mm
- Dimension: Width
- 4.3 mm
- Dimension: Height
- 2.8 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 220 µF
- Capacity
- 220
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,1
- Ripple Current
- 2.000 mA
- Equivalent series resistance (ESR)
- 0,04 Ohm
- Rated voltage DC
- 6.3 V
- Service life
- 2.000 h
Documents
MLCC-Sheet.pdf
Conflict-free tantalum.pdf
MLCC-Sheet.pdf
Conflict-free tantalum.pdf
