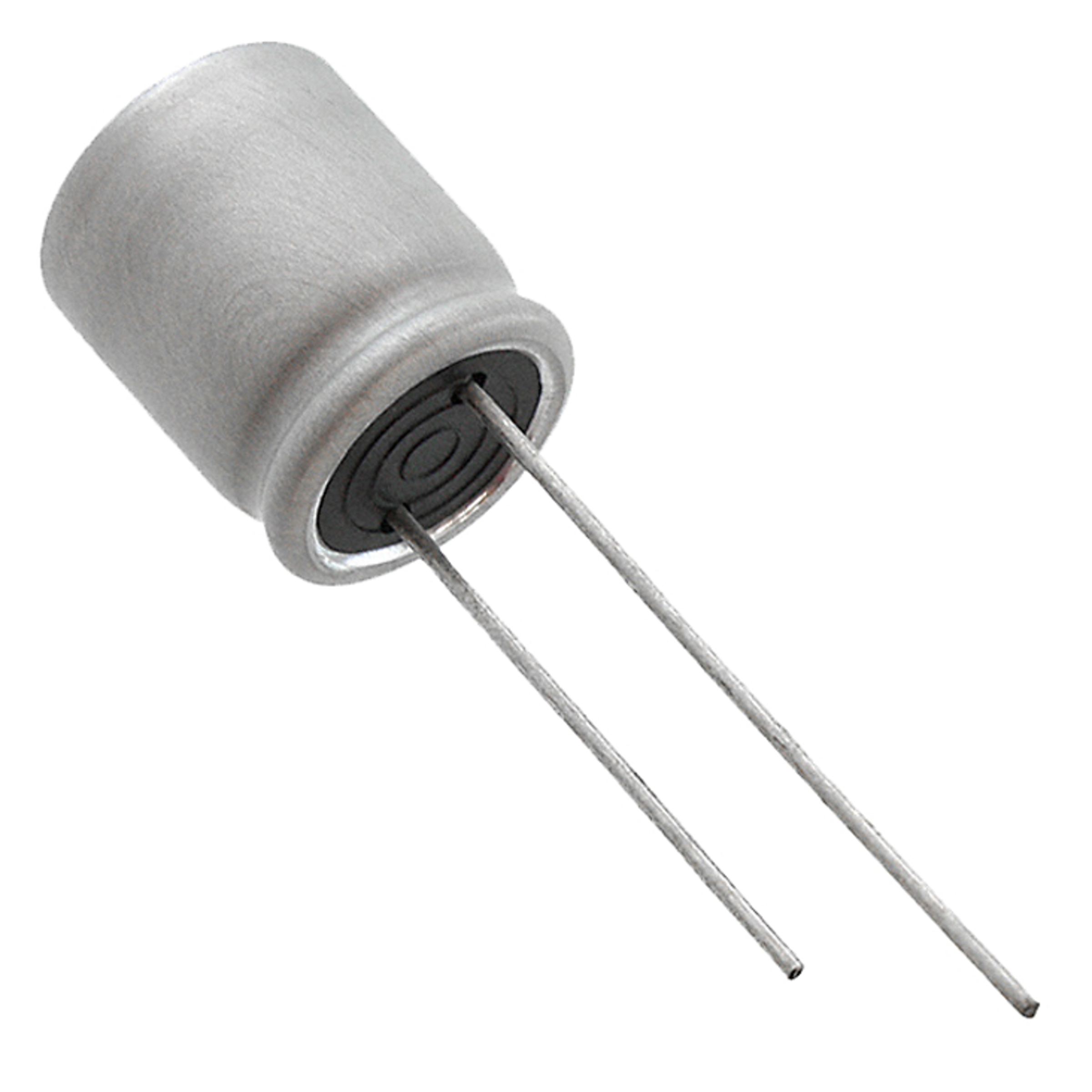

35SEF82M
Panasonic Polymer aluminum electrolytic capacitor OS-CON THT radial 82µF 35V 20% RM3,5mm -55°C - 125°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.000 Pcs. in stock
Planned delivery time
Ø 42 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Polymer aluminum electrolytic capacitor OS-CON
- Capacity
- 82 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 35 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 3.5 mm
- RoHS-Conform
Specifications
Open all

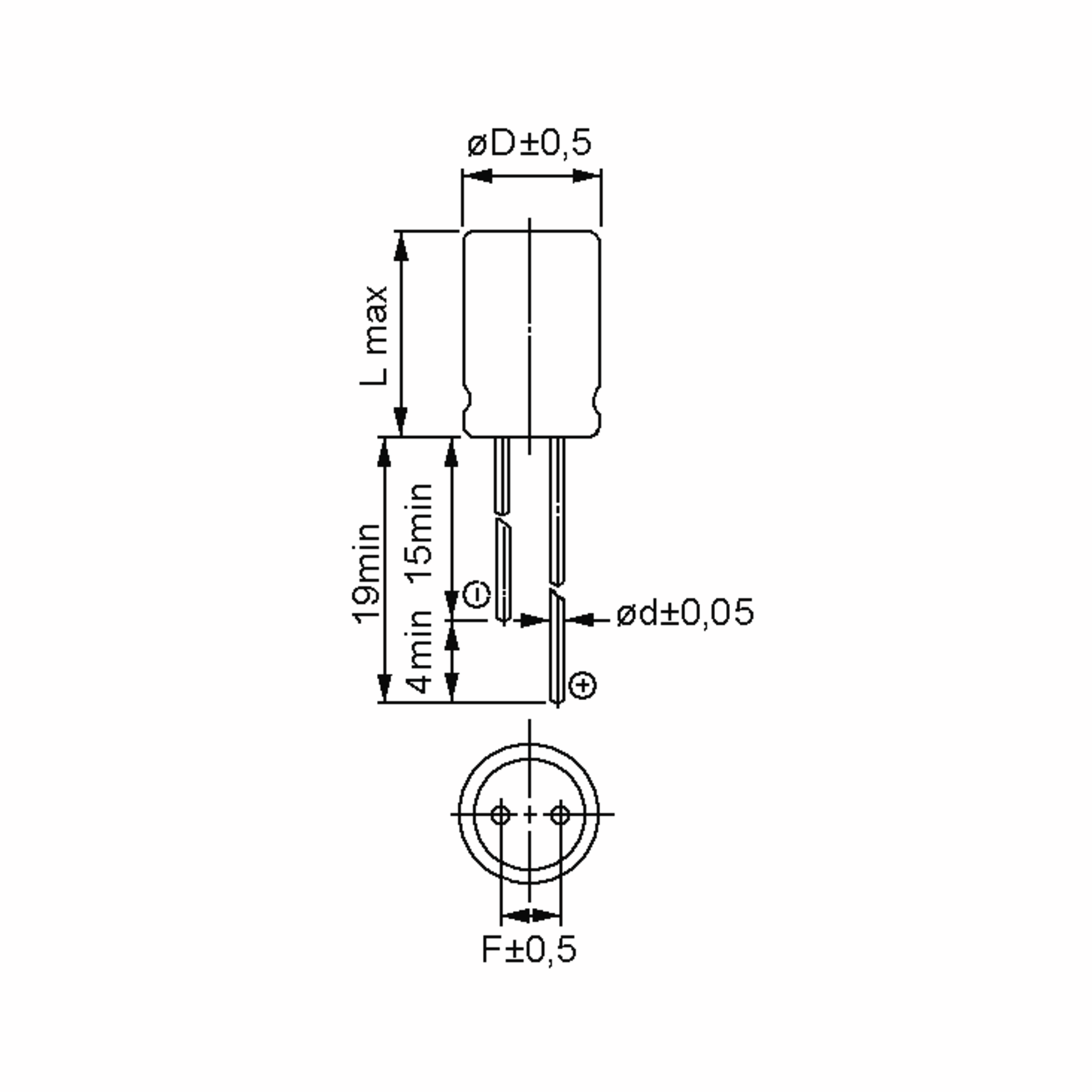

Dimensions and weights
- Diameter
- 8 mm
- Dimension: Height
- 12 mm
- Pitch
- 3.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Capacity
- 82 µF
- Capacity
- 82
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,12
- Equivalent series resistance (ESR)
- 2 mOhm
- Rated voltage DC
- 35 V
- Service life
- 1.000 h
Documents
MLCC-Sheet.pdf
