16TQC10M

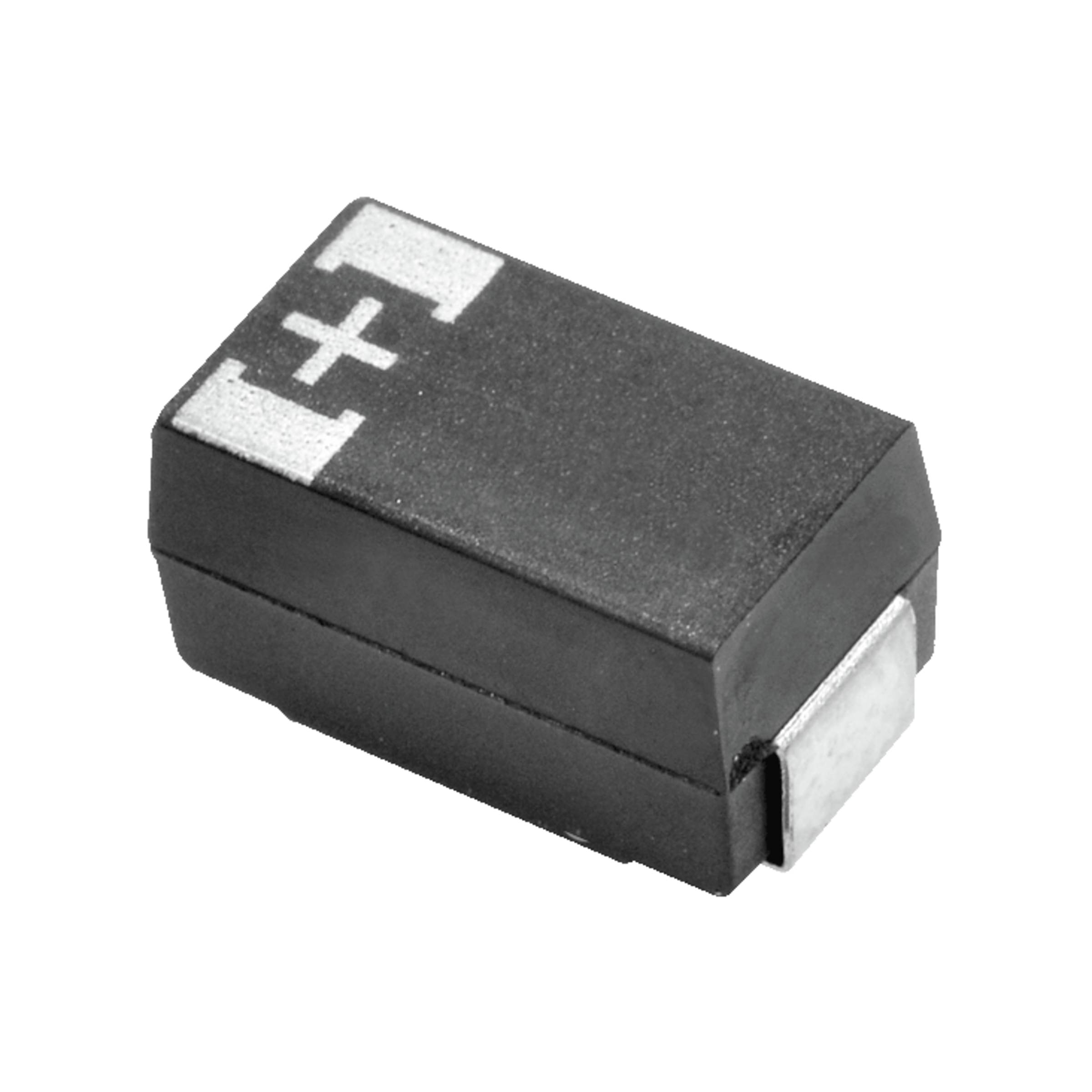

Panasonic SMD Polymer tantalum capacitor POSCAP TQC B2 16V 10µF Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 23.02.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2000 or multiple of 2000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Polymer tantalum capacitor POSCAP
- Capacity
- 10 µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 16 V
- Assembly Type
- SMD
- Housing
- B2
- RoHS-Conform
Specifications
Open all

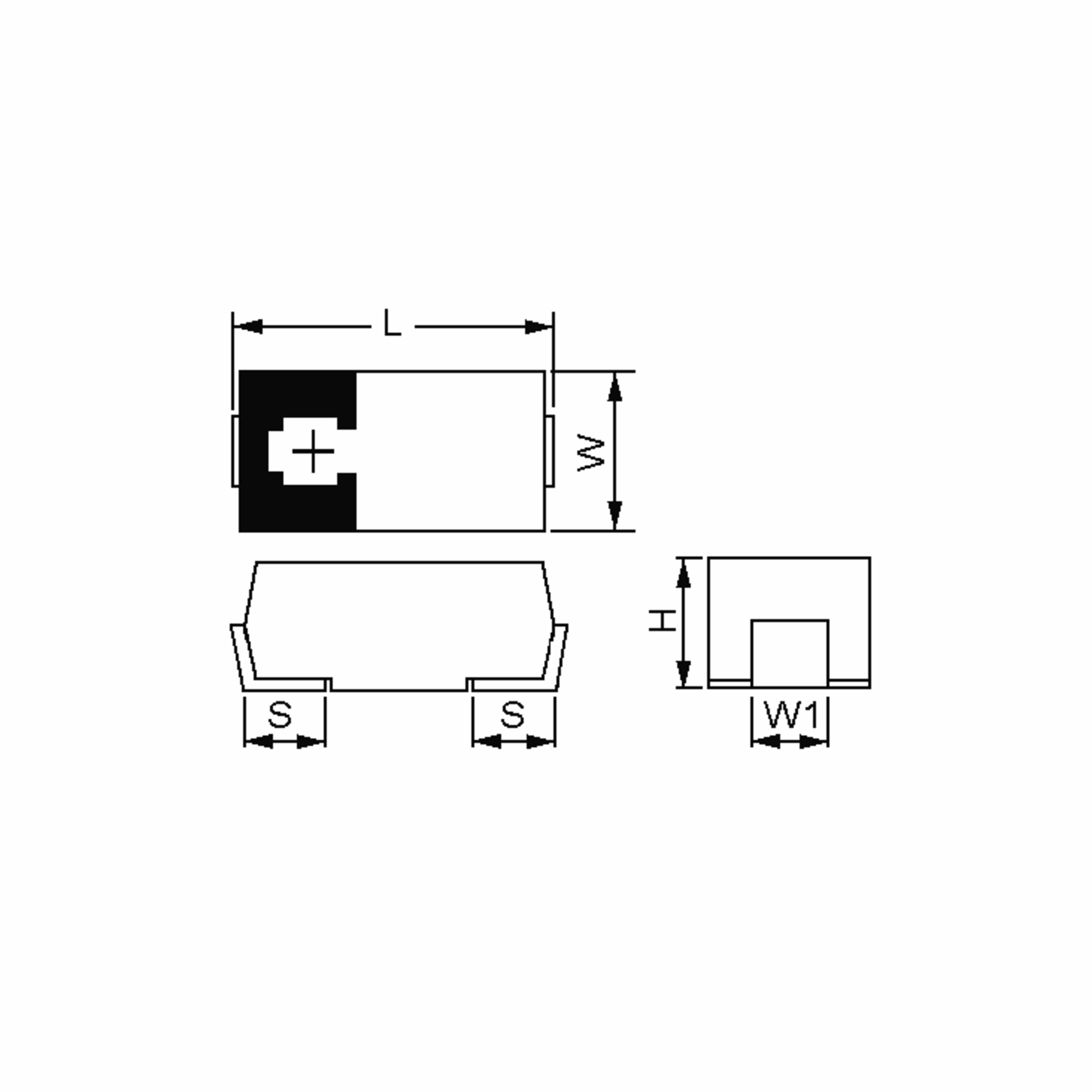

Dimensions and Weights
- Dimension: Length
- 3.5 mm
- Dimension: Width
- 2.8 mm
- Dimension: Height
- 1.9 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Capacity
- 10 µF
- Capacity Tolerance
- ±20%
- Loss factor tan δ
- 0,1
- Ripple Current
- 800 mA
- Equivalent series resistance (ESR)
- 100 mOhm
- Rated voltage DC
- 16 V
- Service life
- 2.000 h
