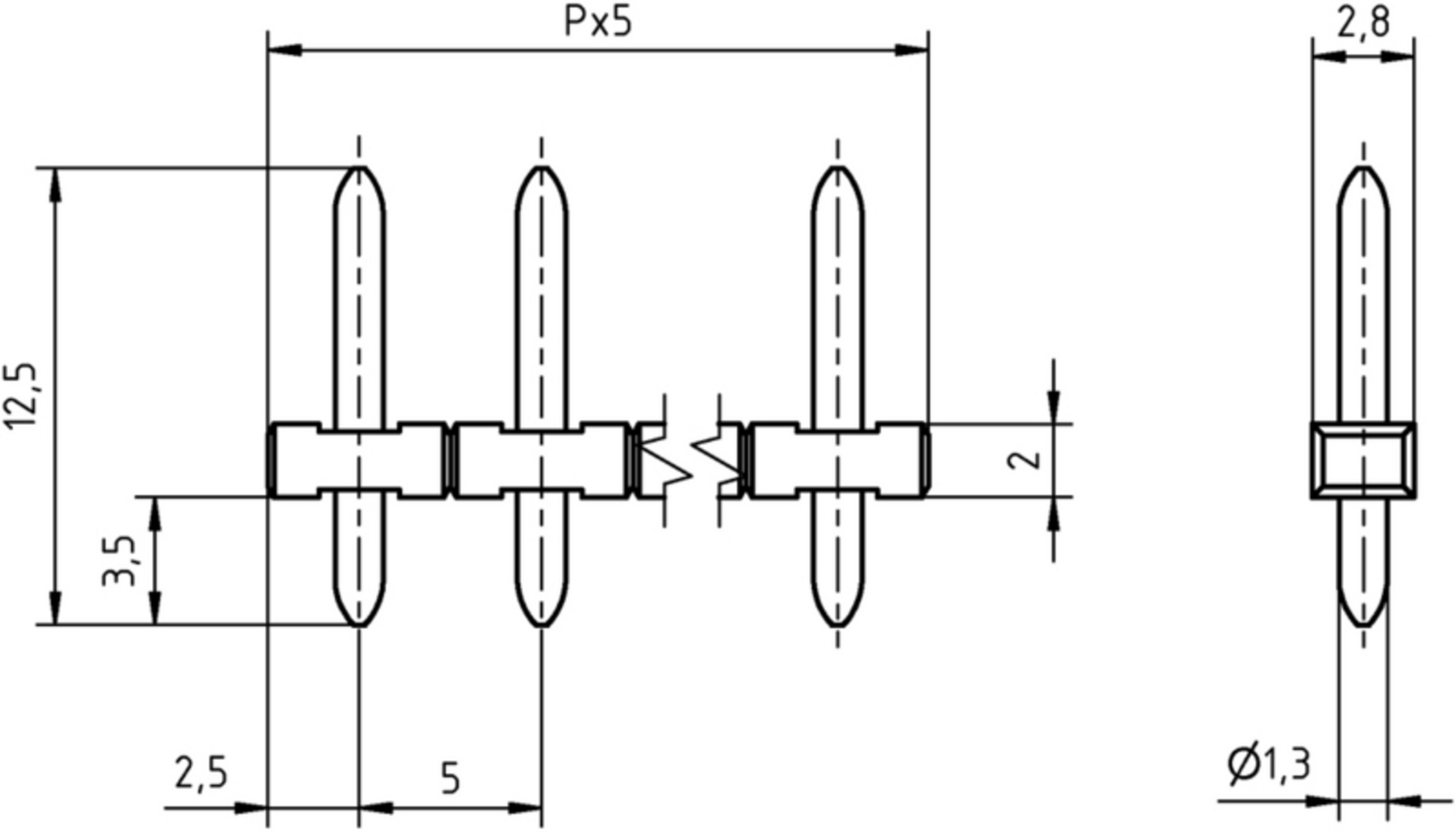

STL130/24-5.0-V-SCHWARZ

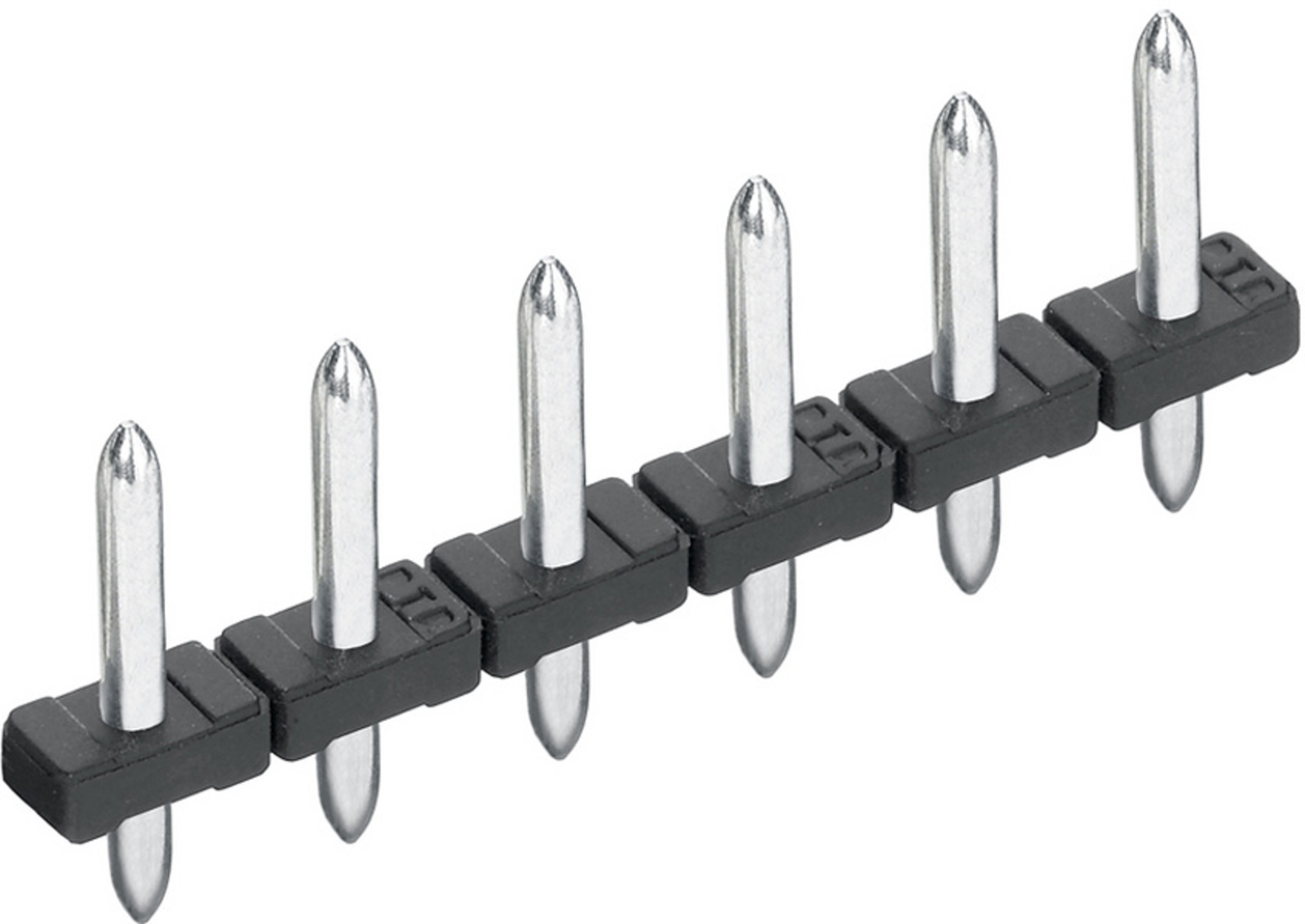

PTR HARTMANN Pin header STL130 Pin Box Header 1-row vertical 24 Pole Pitch5mm dark gray
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.025 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Pin header
- Connector Contact
- Solder
- Series
- STL130
- Colour
- dark gray
- Housing material
- Polyamide (PA) 66
- Housing
- 1-row
- Specifications
- Box Header
- Number of poles
- 24
- Pitch
- 5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- vertical
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 7 A
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
