SR 4 BEIGE

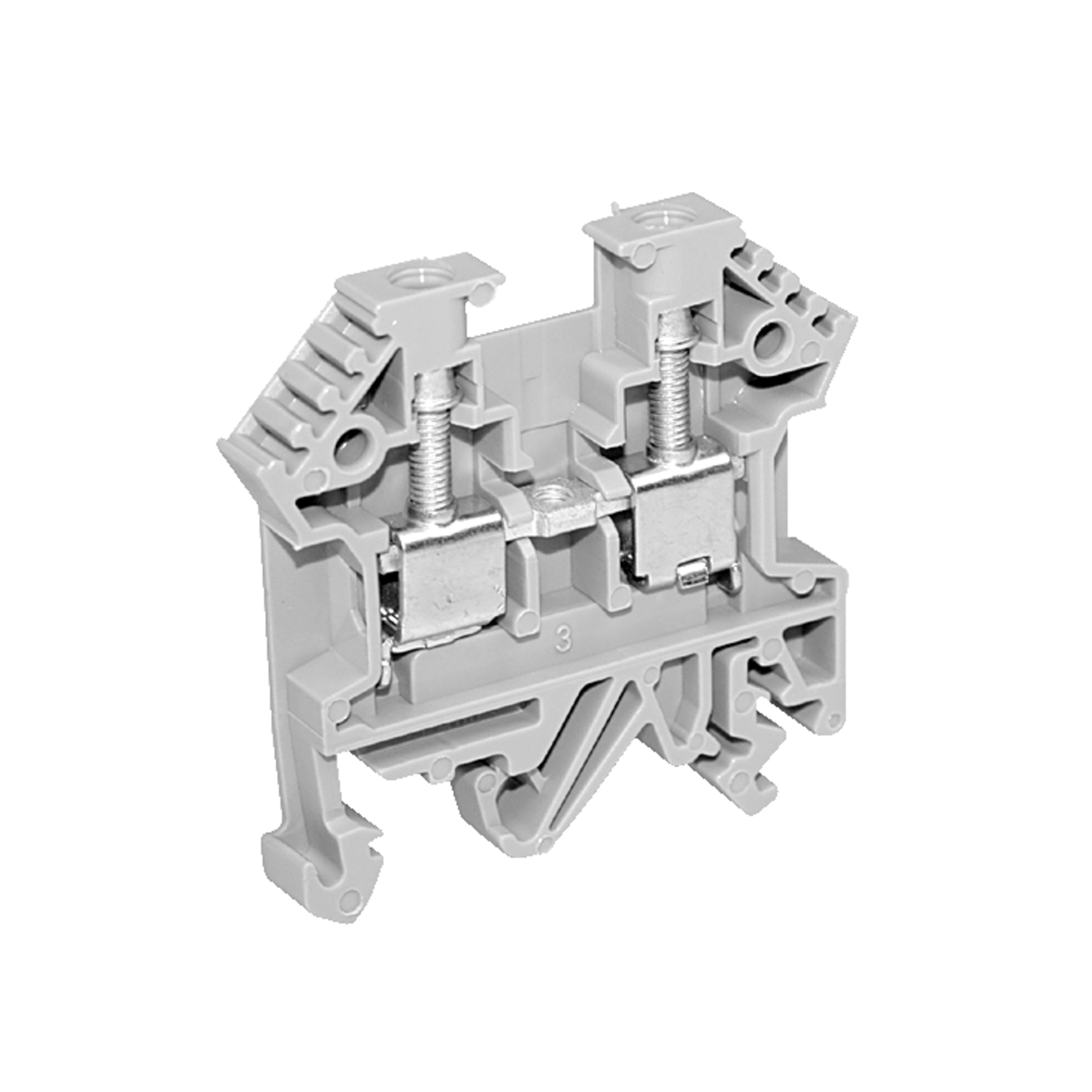

PTR HARTMANN Terminal block SR4 Through terminal block 2 Conductor horizontal 1 Pole beige Screw 0,2mm² 4mm²
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
350 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Through terminal block
- Type
- Terminal block
- Connector Contact
- Screw
- Series
- SR4
- Colour
- beige
- Housing material
- Polyamide (PA) 66
- Design
- 2 Conductor
- Number of poles
- 1
- Class of Inflammability
- UL 94 V-2
- Locking
- no
- Alignment
- horizontal
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 600 V AC
- Rated current
- 20 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 48 mm
- Dimension: Width
- 52 mm
- Dimension: Depth
- 6 mm
- Stripping length, max.
- 12 mm
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 6 mm²
- Nominal cross-section finely stranded, min.
- 0.2 mm²
- Nominal cross-section finely stranded, max.
- 4 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 20 A
- Rated voltage AC
- 600 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 66
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
