AK4601/3KD-3.5-V-P3.3-BK-HTR
PTR HARTMANN Terminal block AK4601 vertical 3 Pole Pitch3,5mm black Solder 10,5mm 17,3mm 24AWG 16AWG 8A 250VAC
Manufacturer Part No.
AK4601/3KD-3.5-V-P3.3-BK-HTR
Schukat Part No.
AK4601/3-VBKHT-G
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices

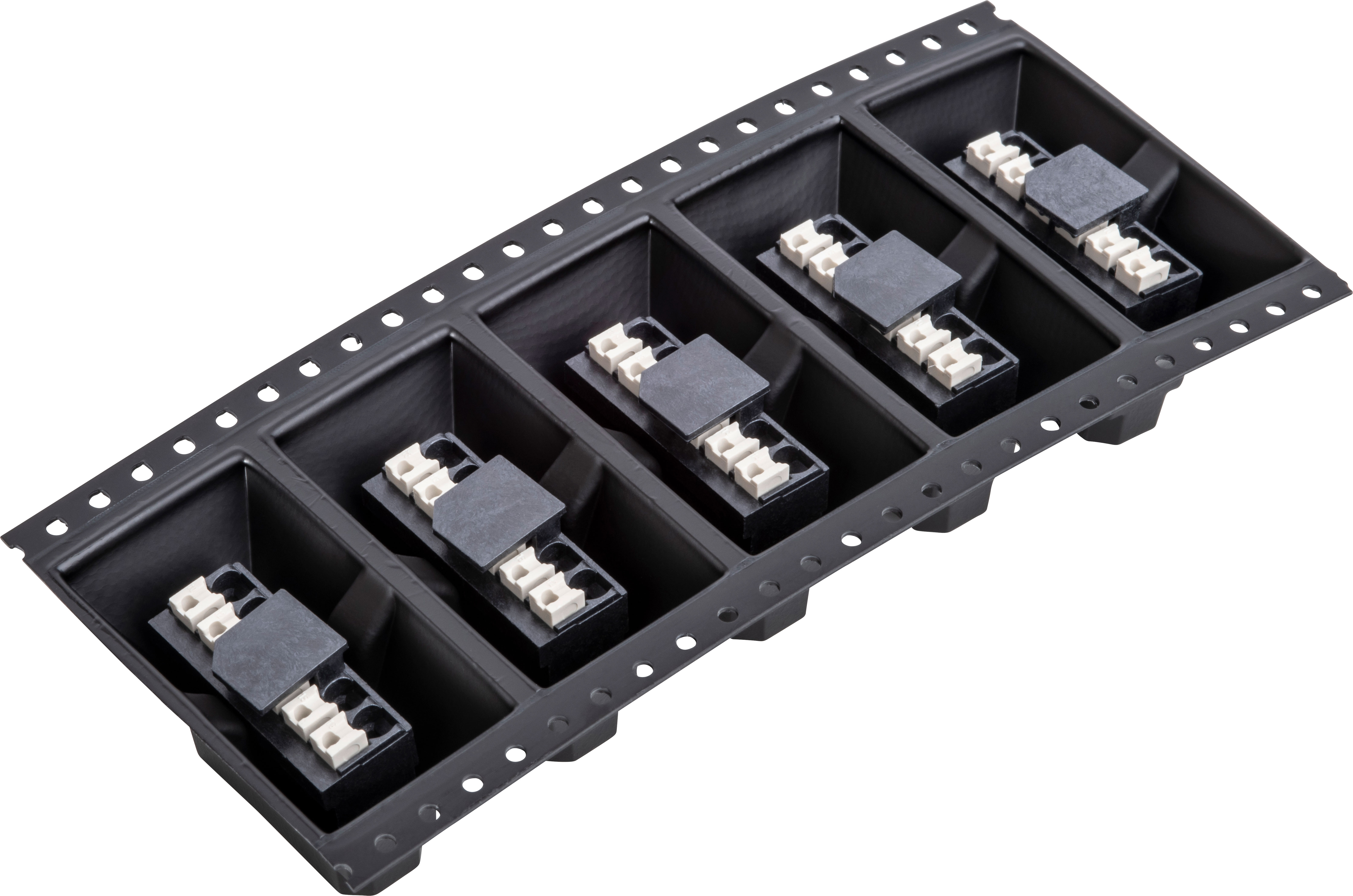

Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- Solder
- Series
- AK4601
- Colour
- black
- Housing material
- Polyamide (PA)
- Design
- Push-In
- Number of poles
- 3
- Pitch
- 3.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- vertical
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 8 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

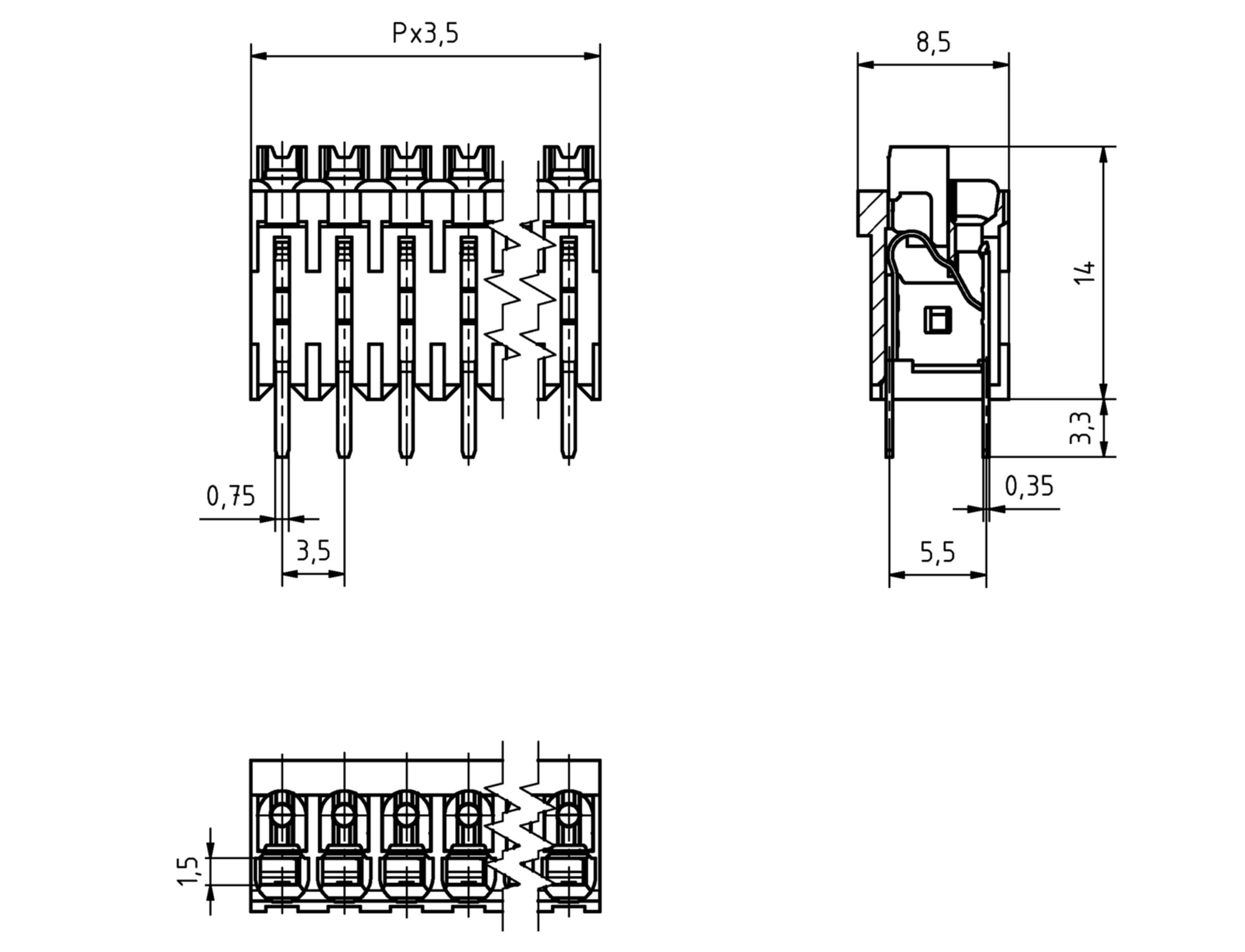

Dimensions and Weights
- Dimension: Width
- 10.5 mm
- Dimension: Height
- 17.3 mm
- Dimension: Depth
- 8.5 mm
- Pitch
- 3.5 mm
- Stripping length, max.
- 10 mm
- Conductor cross-section (AWG), min.
- 24 AWG
- Conductor cross-section (AWG), max.
- 16 AWG
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.2 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 8 A
- Rated voltage AC
- 250 V AC
- Test voltage
- 4 V AC
Mechanical Features
- Housing material
- Polyamide (PA)
Safety/Certifications
- Approvals
- VDE
- cURus
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
