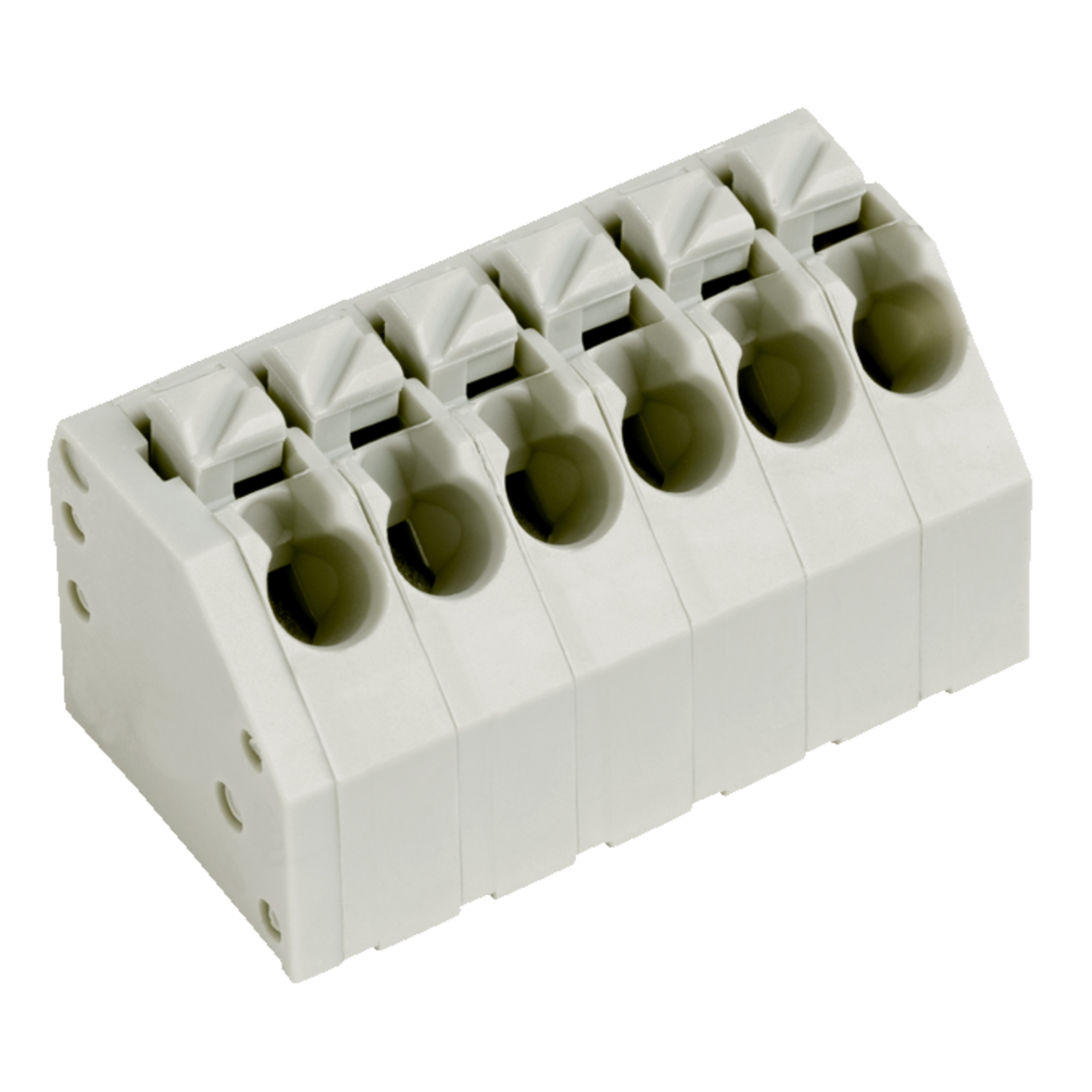

AK4291/2KDVP-3.5-KIESELGRAU
PTR HARTMANN With actuating lever 2pol. 250VAC
Manufacturer Part No.
AK4291/2KDVP-3.5-KIESELGRAU
Schukat Part No.
AK4291/2KDVP
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
540 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- AK4291
- Actuation
- With actuating lever
- Colour
- pebble gray
- Suitable cables
- Number of poles
- 2
- Dimension: Length
- 8.5 mm
- Rated current
- 3 A
- Rated voltage AC
- 250 V AC
- Pitch
- 3.5 mm
- Dimension: Height
- 13 mm
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all

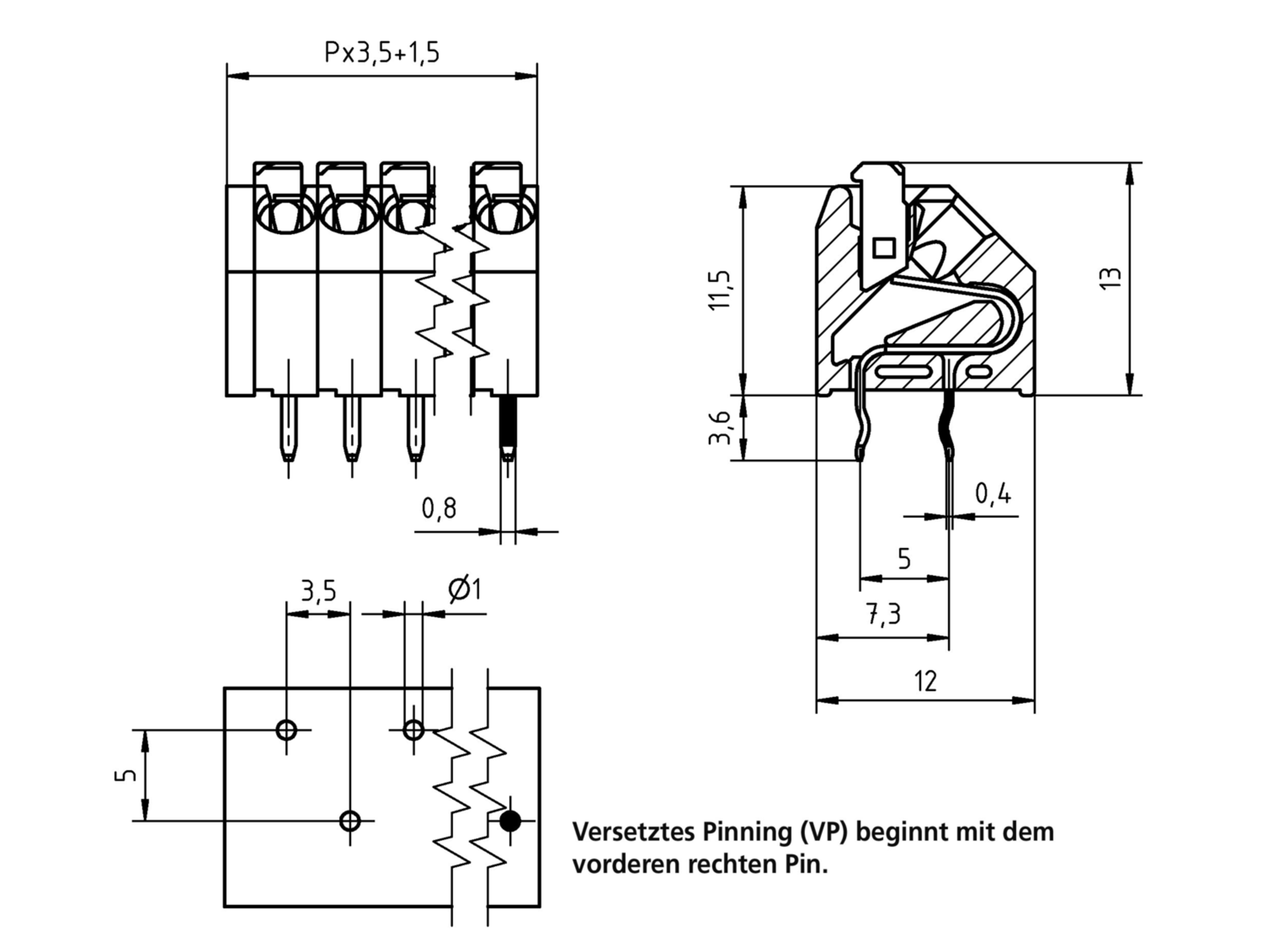

Dimensions and weights
- Dimension: Length
- 8.5 mm
- Dimension: Height
- 13 mm
- Dimension: Depth
- 12 mm
- Pitch
- 3.5 mm
- Stripping length, max.
- 9 mm
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, max.
- 1 mm²
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Rated current
- 3 A
- Rated voltage AC
- 250 V AC
- Test voltage
- 2 V AC
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
