AK1550/10-3.5-GRUEN
PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 10 Pole Pitch3,5mm green 160VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
30 Pcs. in stock
Next Stock Receipt
Week 18/2026
500 Pcs.
500 Pcs.
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Spring
- Type
- PCB connector
- Connector Contact
- Screw-cage clamp
- Series
- AK1550
- Colour
- green
- Housing material
- Polyamide (PA) 66
- Housing
- 1-row
- Design
- Header
- Number of poles
- 10
- Pitch
- 3.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 160 V AC
- Rated current
- 8 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

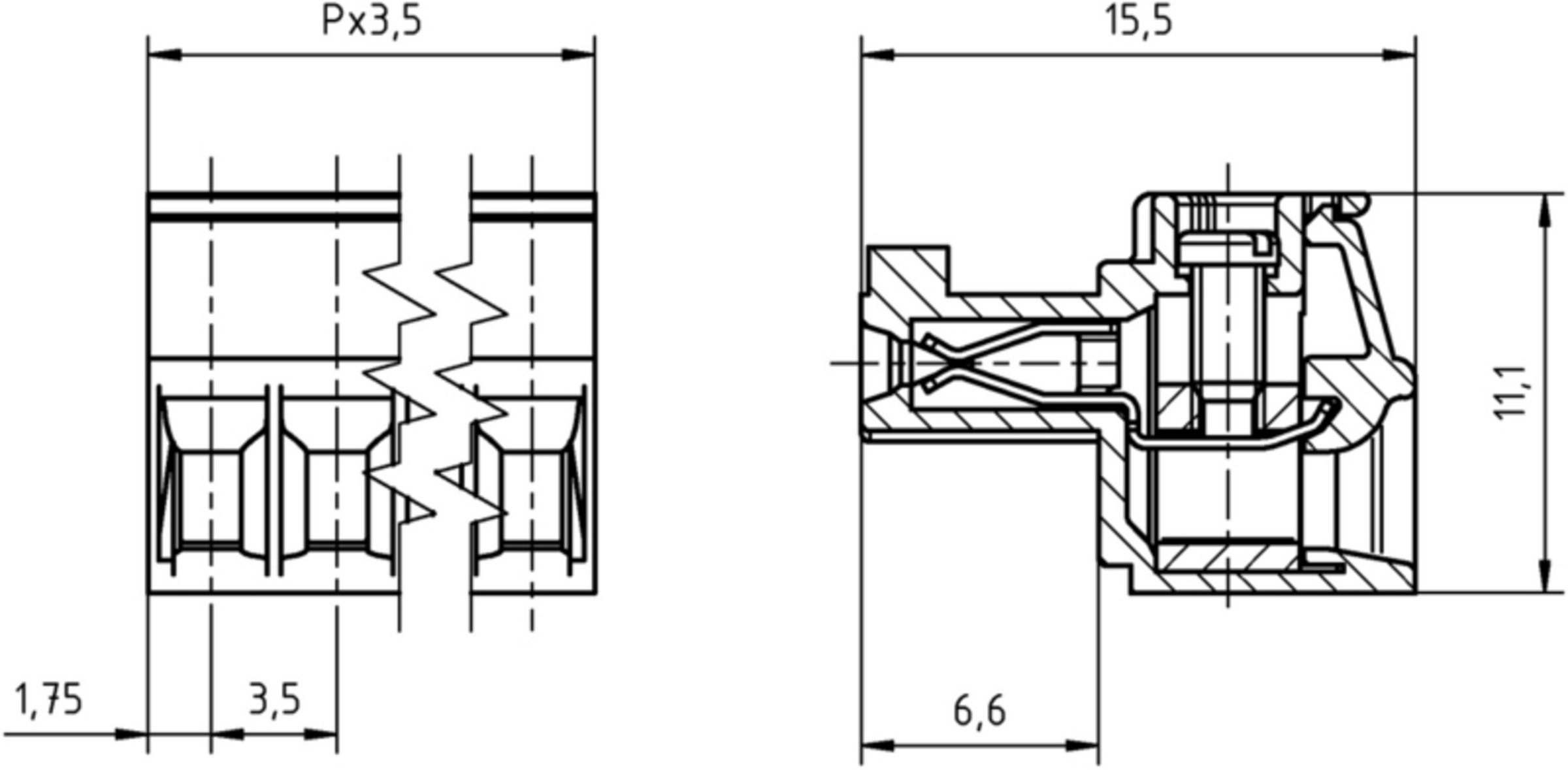

Dimensions and Weights
- Dimension: Length
- 35 mm
- Dimension: Height
- 11.1 mm
- Dimension: Depth
- 15.5 mm
- Pitch
- 3.5 mm
- Stripping length, max.
- 7 mm
- Conductor cross-section (AWG), min.
- 28 AWG
- Conductor cross-section (AWG), max.
- 16 AWG
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.5 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 8 A
- Rated voltage AC
- 160 V AC
- Test voltage
- 2,500 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 66
Safety/Certifications
- Approvals
- UL
- VDE
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
