Results (1017)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

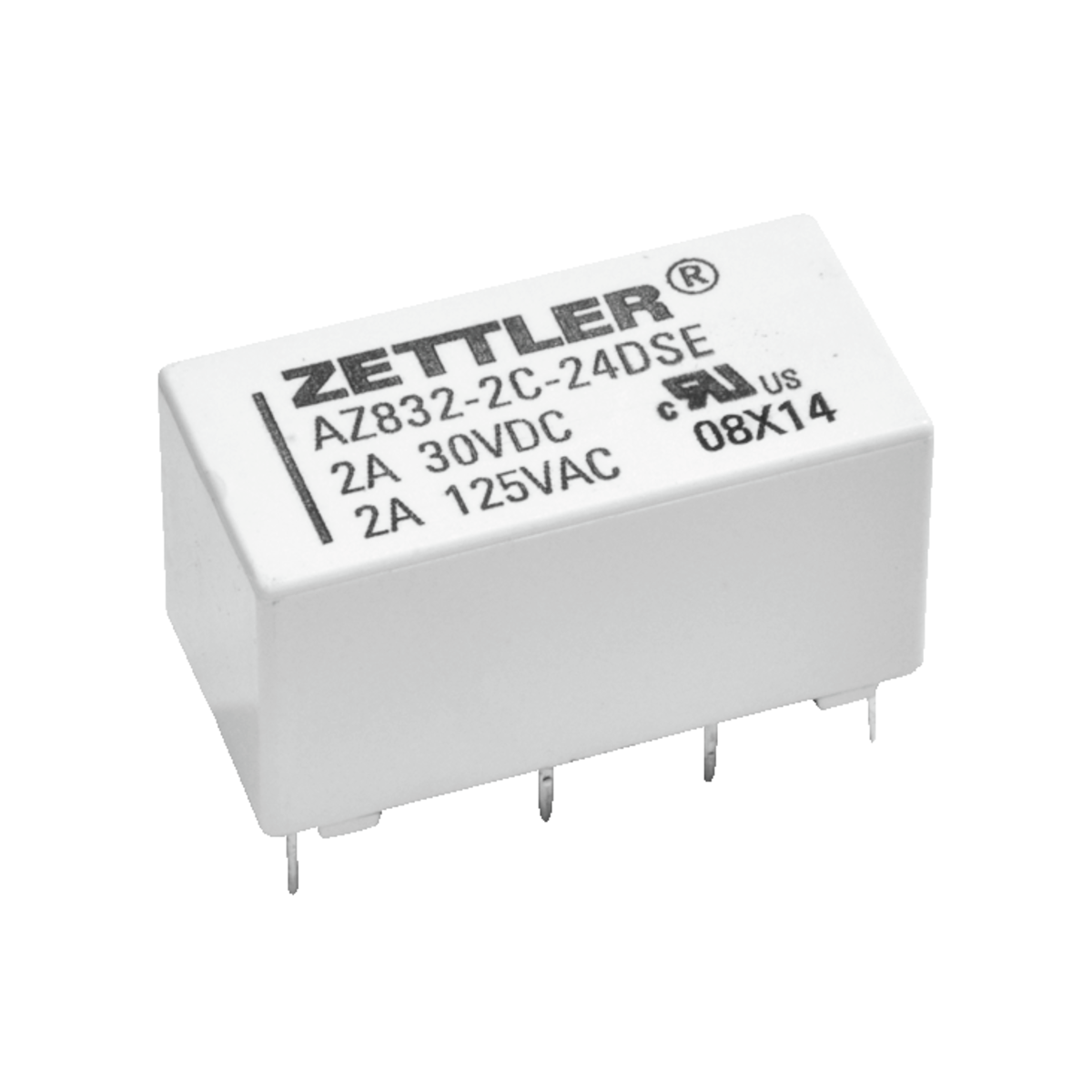

201 |  | Manufacturers Part No. AZ832P2-2C-24DSE(AZ832P2-2C-24DSE) Zettler PC relay AZ832P THT DPDT 3A 24VDC 3.840Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 25 Weeks Available on order | (at least 1000 or mul. of 1000) | Zettler | THT | DPDT | 3.0 A | 24.0 V DC | 3840.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
202 | | Manufacturers Part No. AZ832-2C-5DE(AZ832-2C-5DE) Zettler PC relay AZ832 THT DPDT 3A 5VDC 125Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 5.0 V DC | 125.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
203 | | Manufacturers Part No. AZ832-2C-12DE(AZ832-2C-12DE) Zettler PC relay AZ832 THT DPDT 3A 12VDC 720Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 120 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 12.0 V DC | 720.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
204 | | Manufacturers Part No. AZ832-2C-24DE(AZ832-2C-24DE) Zettler PC relay AZ832 THT DPDT 3A 24VDC 2.880Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 2.120 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 24.0 V DC | 2880.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
205 | | Manufacturers Part No. AZ832-2C-12DEA(AZ832-2C-12DEA) Zettler PC relay AZ832 THT DPDT 3A 12VDC 720Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 685 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 12.0 V DC | 720.0 Ohm | 250.0 VA | 60.0 W | AgPd/AgPd_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
206 | | Manufacturers Part No. AZ832-2C-24DEA(AZ832-2C-24DEA) Zettler PC relay AZ832 THT DPDT 3A 24VDC 2.880Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 605 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 24.0 V DC | 2880.0 Ohm | 250.0 VA | 60.0 W | AgPd/AgPd_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
207 | | Manufacturers Part No. AZ832-2C-12DSE(AZ832-2C-12DSE) Zettler PC relay AZ832 THT DPDT 3A 12VDC 960Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 1.445 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 12.0 V DC | 960.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||
208 | | Manufacturers Part No. AZ832-2C-24DSE(AZ832-2C-24DSE) Zettler PC relay AZ832 THT DPDT 3A 24VDC 3.840Ohm 20,2mmx10,2mmx10,6mm | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | DPDT | 3.0 A | 24.0 V DC | 3840.0 Ohm | 250.0 VA | 60.0 W | AgPd/Ag_Au | 20.2 mm | 10.2 mm | 10.6 mm | -40.0 °C | 85.0 °C | ||||||||

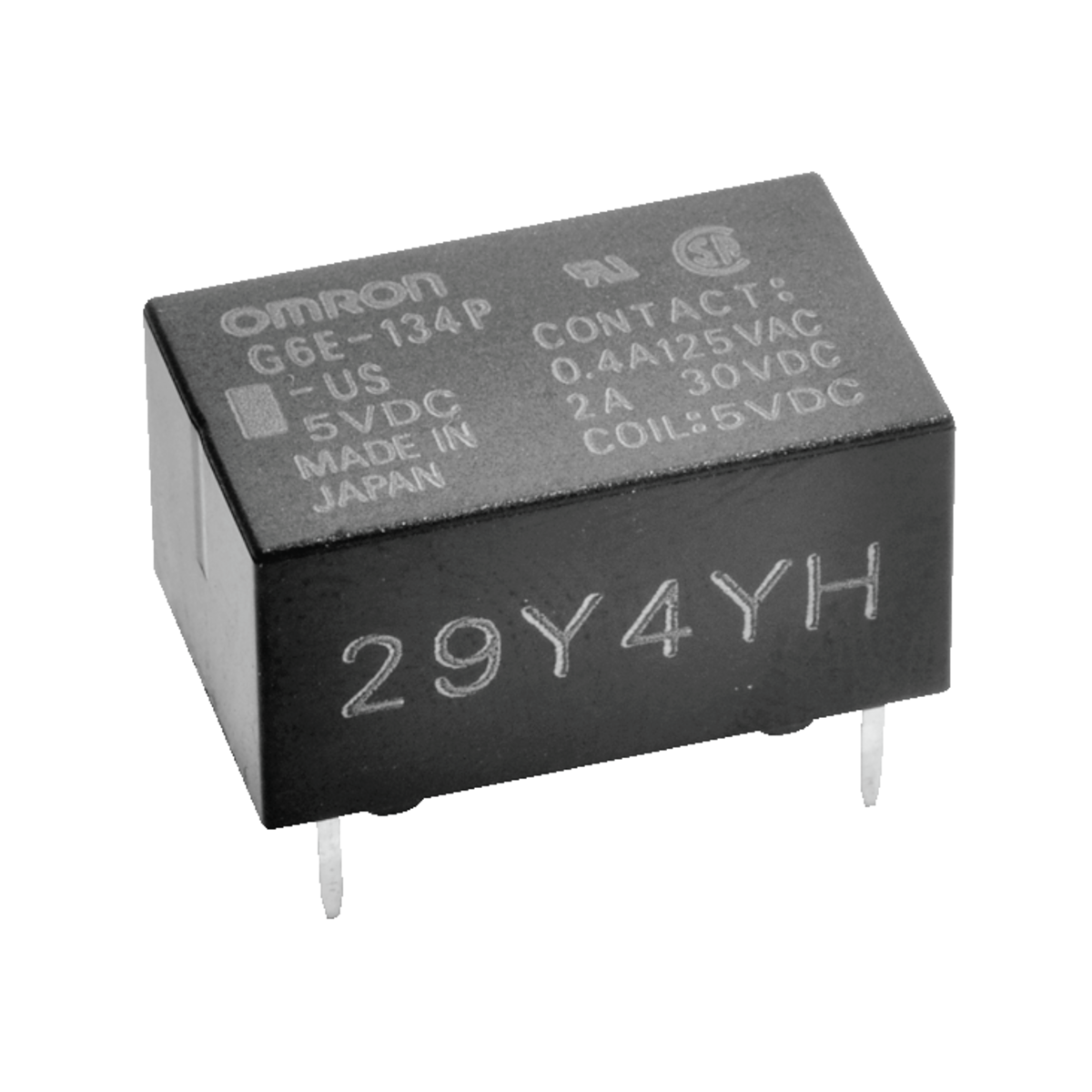

209 | LTB 31.03.2027 | Manufacturers Part No. G6E-134P-US DC5(G6E-134P-US-5) Omron PC relay G6E THT SPDT 3A 5VDC 125Ohm 16mmx10mmx8mm | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 31 Weeks Discontinued by manufacturer without replacement | (at least 5 or mul. of 5) | Omron | THT | SPDT | 3.0 A | 5.0 V DC | 125.0 Ohm | Ag/Au | 16.0 mm | 10.0 mm | 8.0 mm | -40.0 °C | 70.0 °C | ||||||||||
210 | LTB 31.03.2027 | Manufacturers Part No. G6E-134P-US DC12(G6E-134P-US-12VDC) Omron PC relay G6E THT SPDT 3A 12VDC 720Ohm 16mmx10mmx8mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 28 Weeks Discontinued by manufacturer without replacement | (at least 5 or mul. of 5) | Omron | THT | SPDT | 3.0 A | 12.0 V DC | 720.0 Ohm | Ag/Au | 16.0 mm | 10.0 mm | 8.0 mm | -40.0 °C | 70.0 °C | ||||||||||
211 | LTB 31.03.2027 | Manufacturers Part No. G6E-134P-US DC24(G6E-134P-US-24) Omron PC relay G6E THT SPDT 3A 24VDC 2.880Ohm 16mmx10mmx8mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 20 Weeks Discontinued by manufacturer without replacement | (at least 5 or mul. of 5) | Omron | THT | SPDT | 3.0 A | 24.0 V DC | 2880.0 Ohm | Ag/Au | 16.0 mm | 10.0 mm | 8.0 mm | -40.0 °C | 70.0 °C | ||||||||||

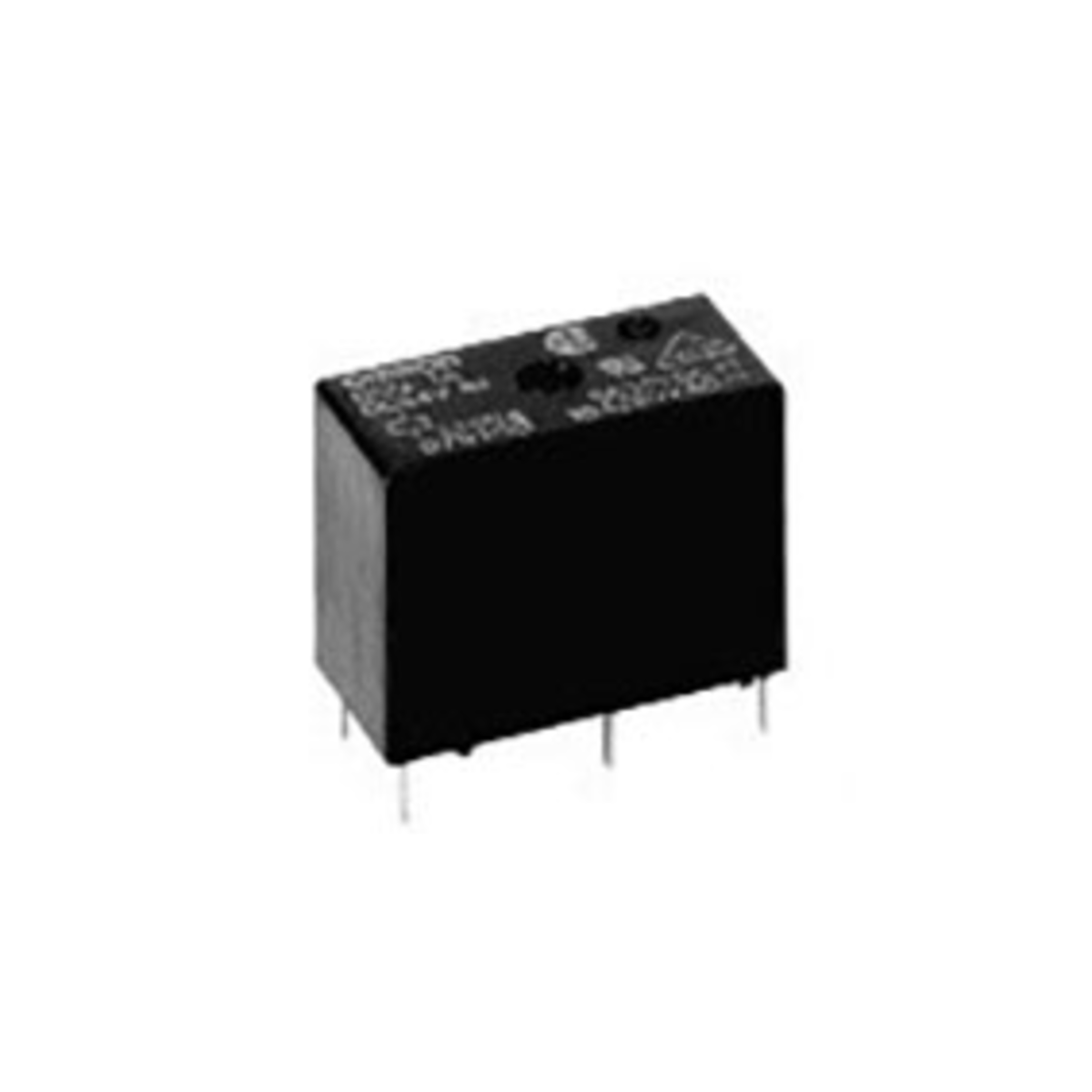

212 | | Manufacturers Part No. G5Q-14 DC5(G5Q14-5) Omron PC relay G5Q THT SPDT 10A 5VDC 63Ohm 20,3mmx10,3mmx15,5mm RTIII | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Omron | THT | SPDT | 10.0 A | 5.0 V DC | 63.0 Ohm | Ag alloy | 20.3 mm | 10.3 mm | 15.5 mm | RTIII | -40.0 °C | 105.0 °C | |||||||||
213 | | Manufacturers Part No. G5Q-14 DC12(G5Q14-12) Omron PC relay G5Q THT SPDT 10A 12VDC 360Ohm 20,3mmx10,3mmx15,5mm RTIII | Customer Part No. Customer Project No. | 20 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Omron | THT | SPDT | 10.0 A | 12.0 V DC | 360.0 Ohm | Ag alloy | 20.3 mm | 10.3 mm | 15.5 mm | RTIII | -40.0 °C | 105.0 °C | |||||||||
214 | | Manufacturers Part No. G5Q-14 DC24(G5Q14-24) Omron PC relay G5Q THT SPDT 10A 24VDC 1.440Ohm 20,3mmx10,3mmx15,5mm RTIII | Customer Part No. Customer Project No. | 1.180 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Omron | THT | SPDT | 10.0 A | 24.0 V DC | 1440.0 Ohm | Ag alloy | 20.3 mm | 10.3 mm | 15.5 mm | RTIII | -40.0 °C | 105.0 °C | |||||||||
215 | | Manufacturers Part No. ALQ105(ALQ105) Panasonic PC relay LQ THT SPDT 5A 5VDC 62,5Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 90 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPDT | 5.0 A | 5.0 V DC | 62.5 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
216 | | Manufacturers Part No. ALQ112(ALQ112) Panasonic PC relay LQ THT SPDT 5A 12VDC 360Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPDT | 5.0 A | 12.0 V DC | 360.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
217 | | Manufacturers Part No. ALQ124(ALQ124) Panasonic PC relay LQ THT SPDT 5A 24VDC 1.440Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 1.070 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPDT | 5.0 A | 24.0 V DC | 1440.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
218 | | Manufacturers Part No. ALQ305(ALQ305) Panasonic PC relay LQ THT SPST-NO 5A 5VDC 125Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPST-NO | 5.0 A | 5.0 V DC | 125.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
219 | | Manufacturers Part No. ALQ312(ALQ312) Panasonic PC relay LQ THT SPST-NO 5A 12VDC 720Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 170 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPST-NO | 5.0 A | 12.0 V DC | 720.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
220 | | Manufacturers Part No. ALQ324(ALQ324) Panasonic PC relay LQ THT SPST-NO 5A 24VDC 2.880Ohm 20mmx10mmx16mm RTIII | Customer Part No. Customer Project No. | 3.090 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Panasonic | THT | SPST-NO | 5.0 A | 24.0 V DC | 2880.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 10.0 mm | 16.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
221 | | Manufacturers Part No. FTR-C1CA003G(FTR-C1CA003G) FCL Components PC relay FTR-C1 THT DPDT 2A 3VDC 32,1Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available on order | (at least 1000 or mul. of 1000) | FCL Components | THT | DPDT | 2.0 A | 3.0 V DC | 32.1 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
222 | | Manufacturers Part No. FTR-C1CA005G(FTR-C1CA005G) FCL Components PC relay FTR-C1 THT DPDT 2A 5VDC 89,3Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 110 Pcs. Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | DPDT | 2.0 A | 5.0 V DC | 89.3 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
223 | | Manufacturers Part No. FTR-C1CA012G(FTR-C1CA012G) FCL Components PC relay FTR-C1 THT DPDT 2A 12VDC 514Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 280 Pcs. Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | DPDT | 2.0 A | 12.0 V DC | 514.0 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
224 | | Manufacturers Part No. FTR-C1CA024G(FTR-C1CA024G) FCL Components PC relay FTR-C1 THT DPDT 2A 24VDC 1.920Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | DPDT | 2.0 A | 24.0 V DC | 1920.0 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
225 | | Manufacturers Part No. FTR-C1CB003G(FTR-C1CB003G) FCL Components PC relay FTR-C1 THT DPDT 2A 3VDC 64Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 350 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | DPDT | 2.0 A | 3.0 V DC | 64.0 Ohm | 62.5 VA | 30.0 W | AgPd/Au | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C |
